14Bit ADC and ROI

The Camera has built in 14bit ADC. It also has 12bit output mode for hardware binning and smaller resolution.

The camera also supports hardware ROI, and the smaller the ROI size the faster frame rate is.

Table2 Camera Frame Rate at Different Resolution/Data Bit/Data Transfer(USB3.0/ USB2.0)

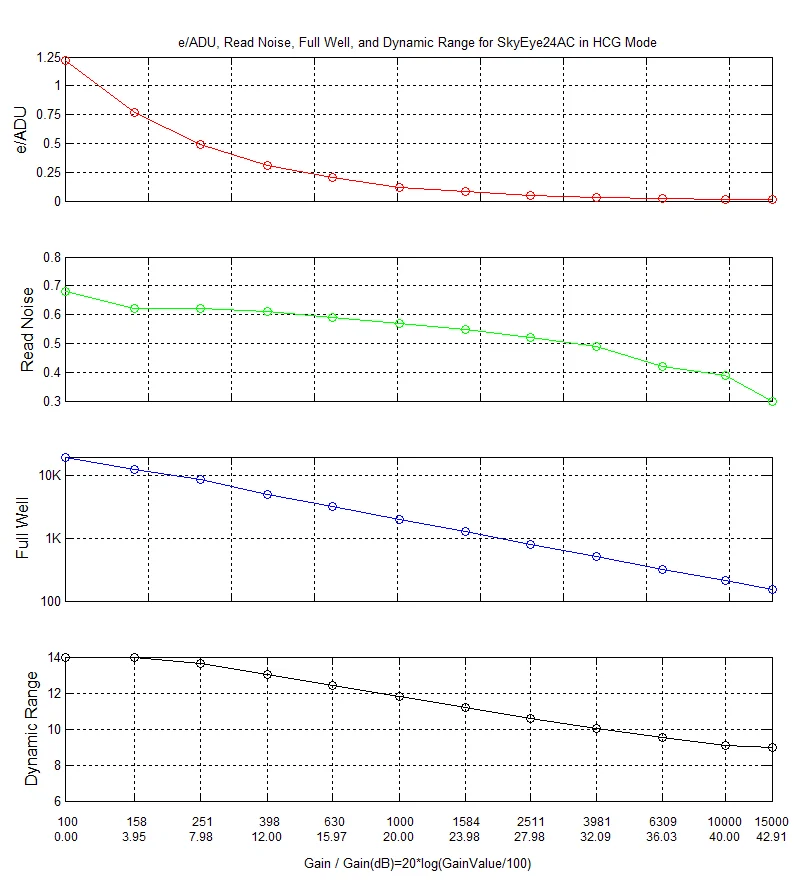

Camera setting used for performance analysis in HCG mode is as follow:

Full resolution

RAW 14 Bit mode

Temperature: -5°C

HCG mode

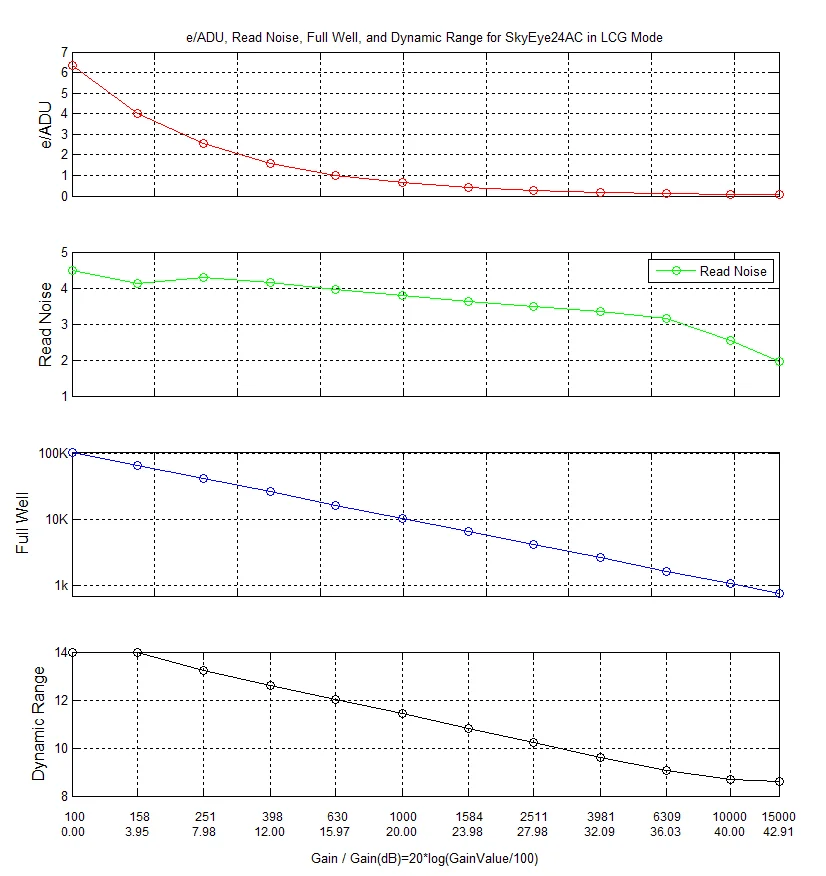

Camera setting used for performance analysis in LCG mode is as follow:

Full resolution

RAW 14 bit mode

Temperature: -5 C

LCG mode

Power and Cooling System for Precise Temperature Regulation

The cooling system of Camera is two-stageThermoelectric Cooling(TEC) with controllable electric fan assisting heat dissipation.

The working temperature can be regulated to specific number, and effective temperature drop can be -35°C from ambient temperature.

Such efficient cooling system guarantees the stability of ultra-low noise mode and quality of the camera image.

The TEC system is controlled by PID algorithm, which allows the TEC to be precisely regulated towards the target temperature with 0.1C deviation.

Amp-glow Reduction Technology

What is amp-glow reduction technology?

Most sensor have amp-glow problem when you do long-time exposure , such as longer than 1s
“amp glow reduction technology” is a hardware modification to reduce the amp-glow of sensor.

This Camera adopts Amp-glow reduction technology

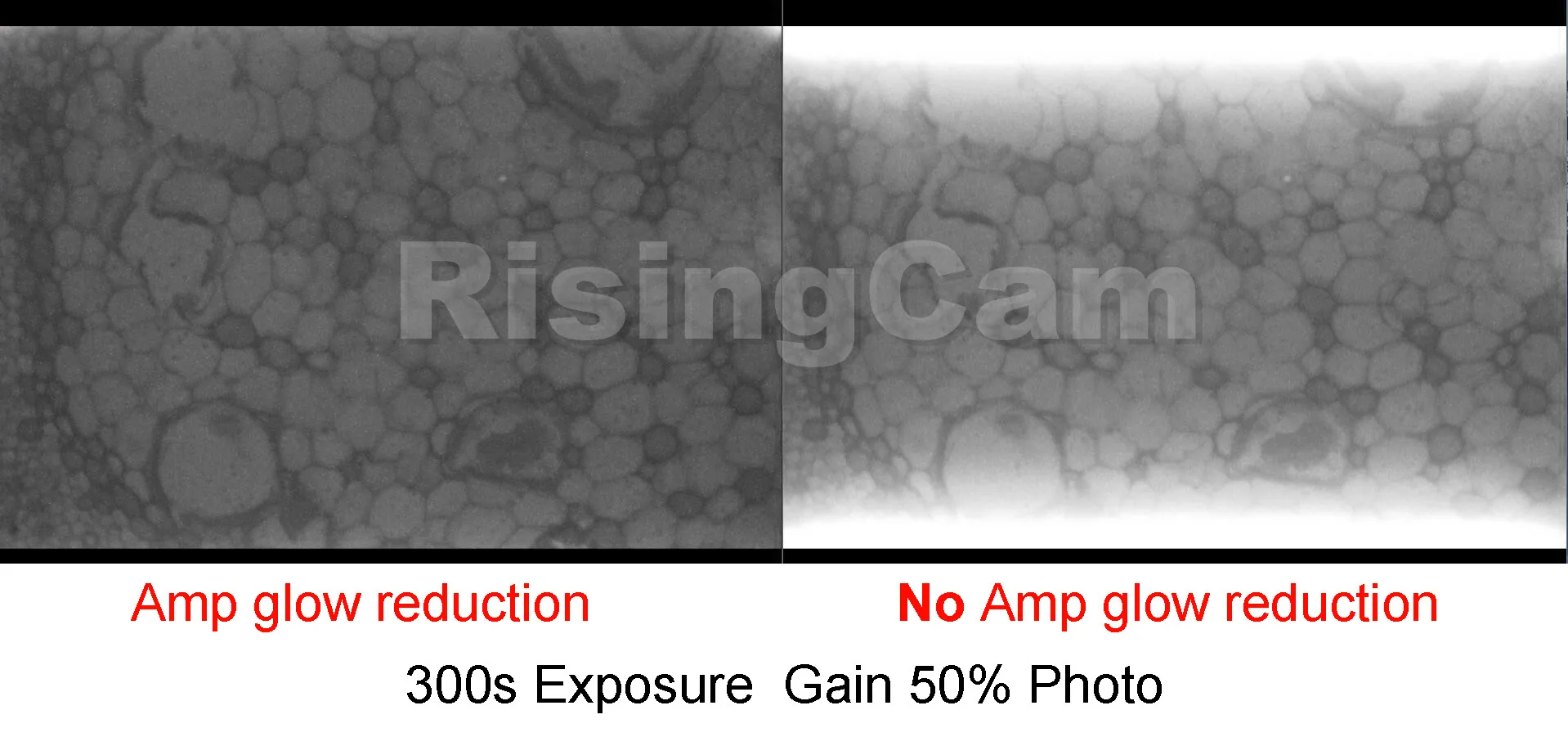

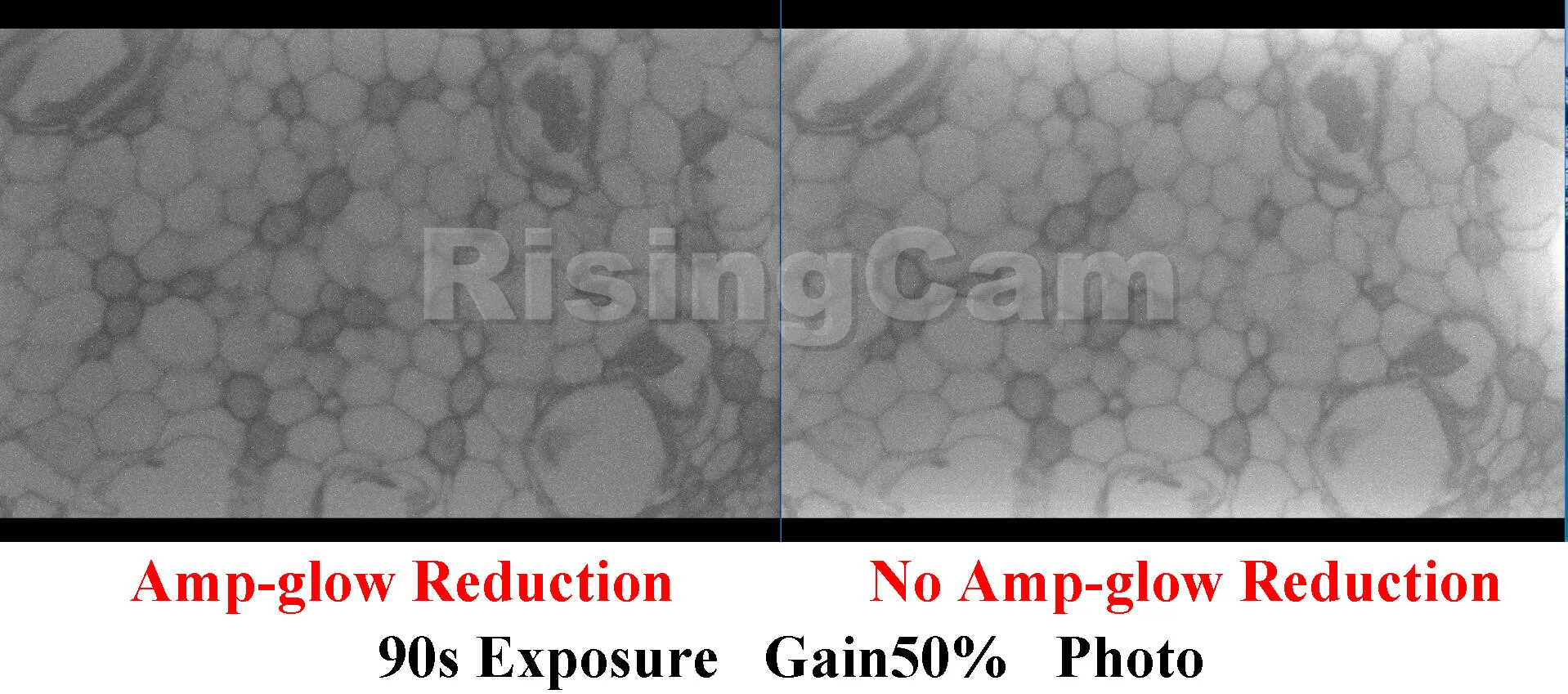

Amp-glow reduction test result

ASCOM/WDM driver for easy connection with 3rd party astrophotography softwares

Supported Software for this camera includes:

PHD Guiding, Nebulosity,MaxIm DL, SharpCap, MetaGuide,

Fire Capture, Astro Art, Registax, AstroStack, DeepSky Stacker

etc

-30°C below Ambient under Short Exposure/ -35°C under Long Exposure Time(> 1s)

Darkfield testing for the ATR3 Camera at Gain 20 , Exposure 600 second, None Cool, hot noise image

ATR3 Cameraat Gain 20 , Exposure600 second, Turn On Cooling, Minus 15 Centi-degree, hot nosie

This camera bulit-in Dew heater inside of camera

it can prevent Dew on Camera's glass or filter

The heating intensity can be adjusted in the RisingSky software

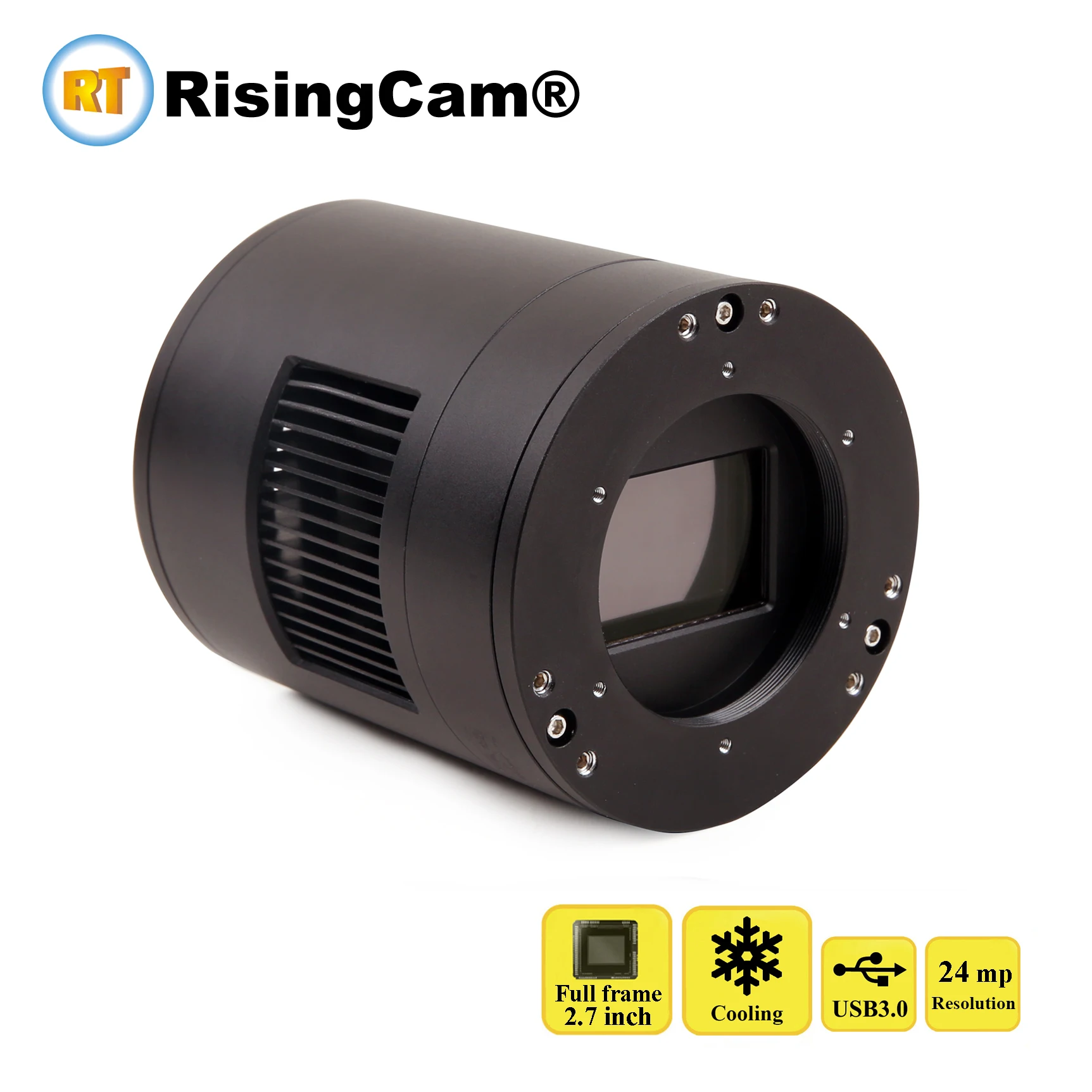

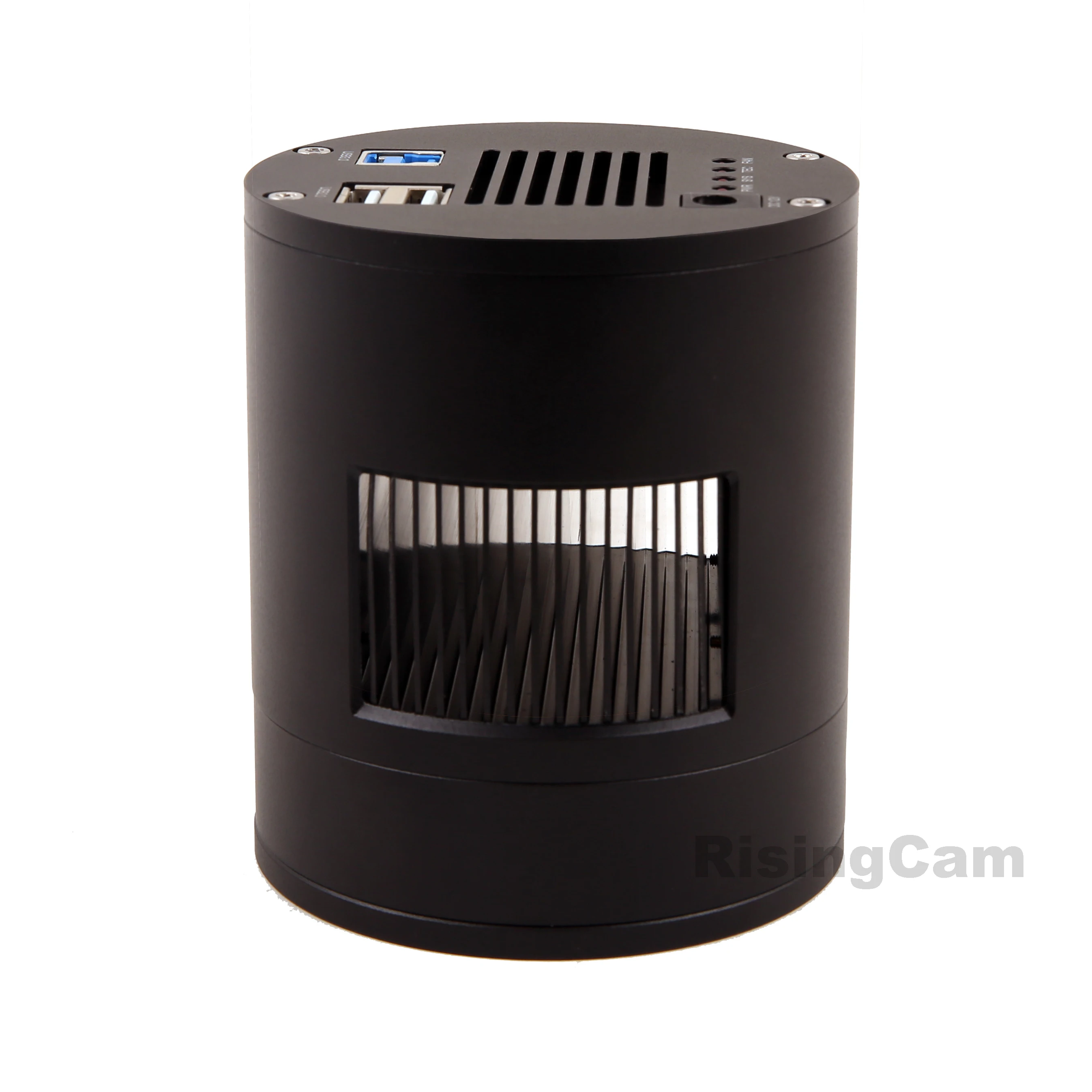

The Camera body, made from tough, alloy with CNC technique, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT or AR to block the IR light or protect the camera sensor. The fan‘s vibration is minimized to the low level to eliminate the vibration caused imaging blur. This design ensures a rugged, robust solution with an increased lifespan when compared to the other industrial camera solutions.

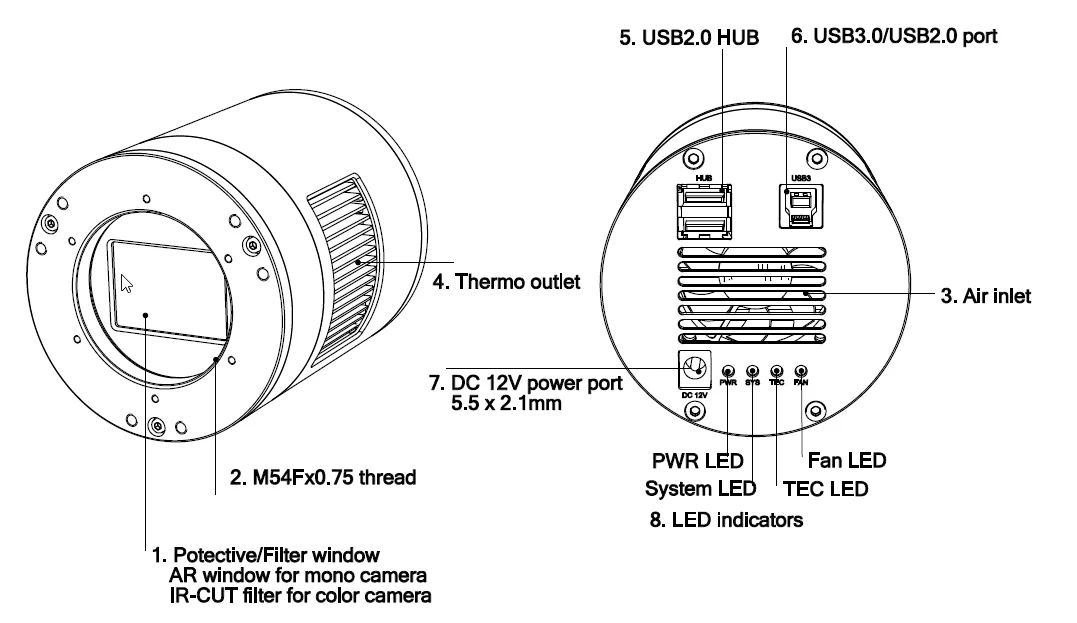

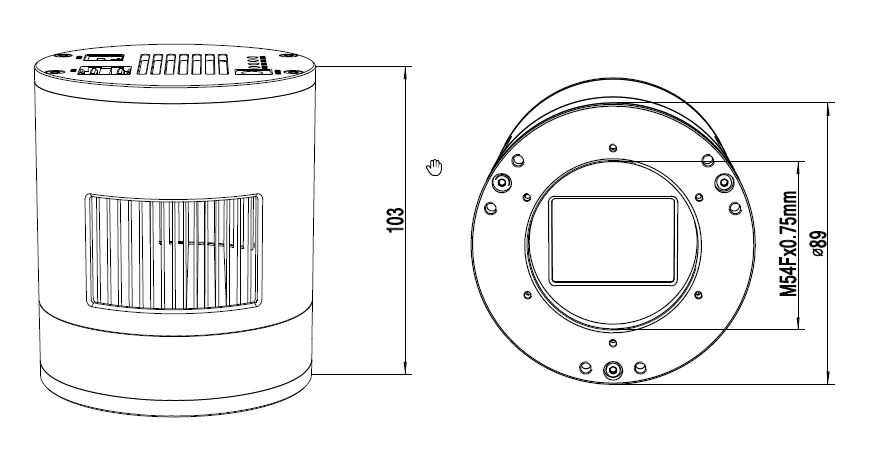

The Camera mount M54Fx0.75mm, Camera diameter 89mm, height 103mm

Back focus distance: 17.5mm

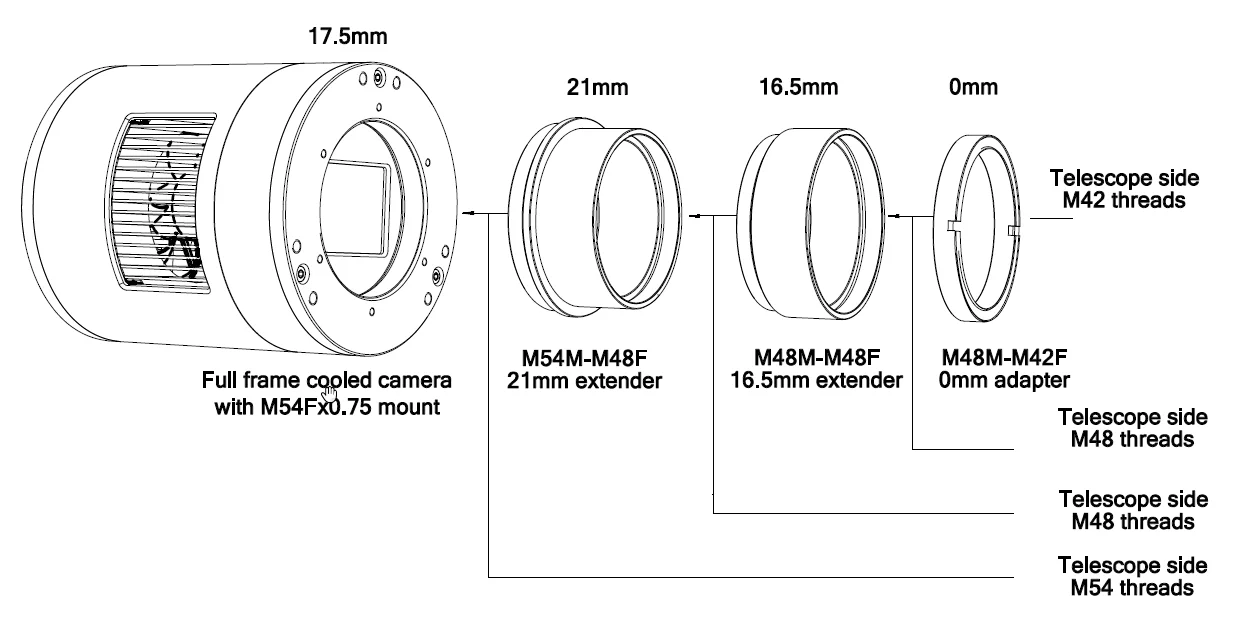

Camera Mechanical Connection with Adapter

The Camera can be connected to a telescope with proper adapter, or the camera lens.

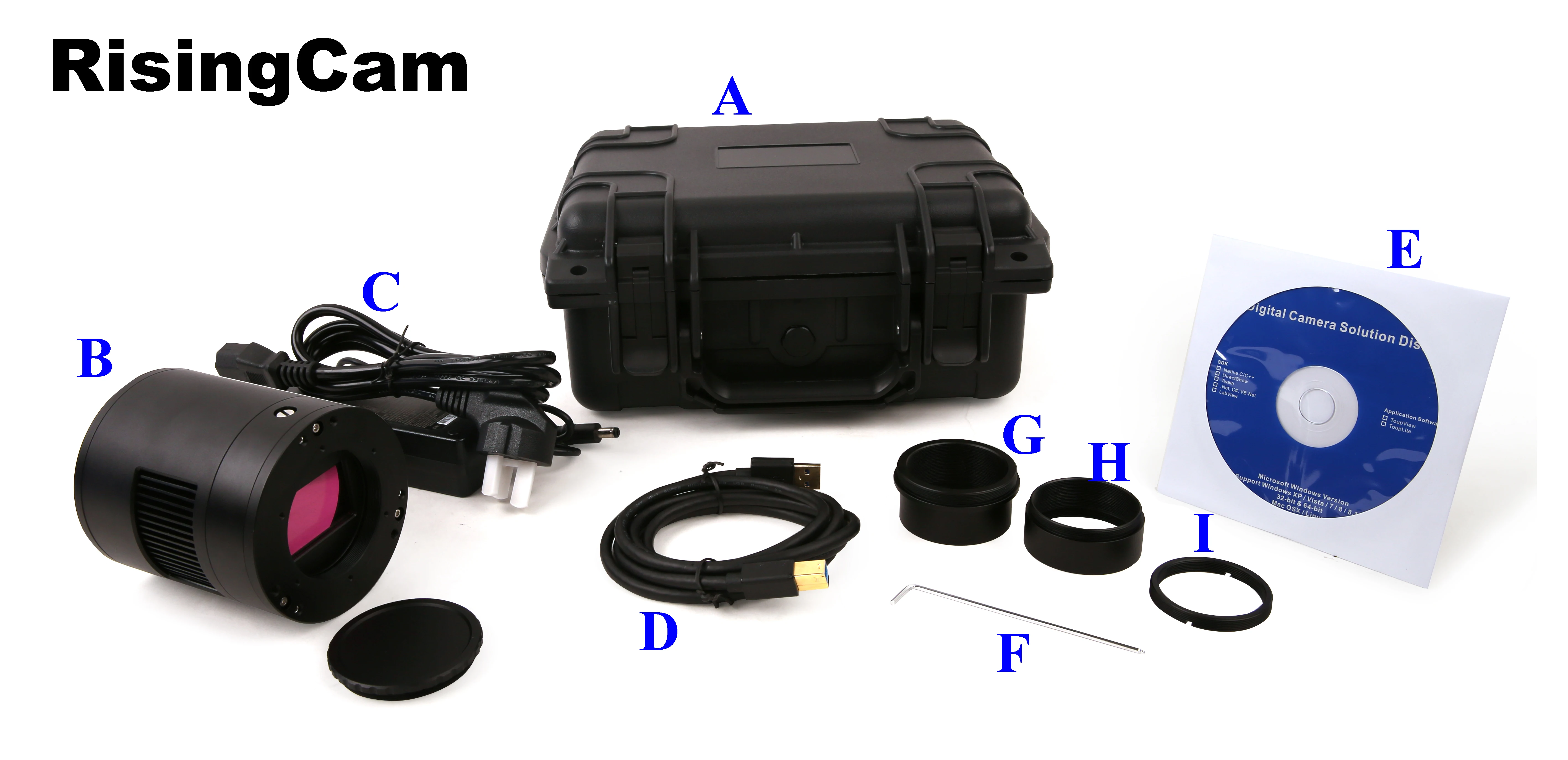

The most common adapters are already included in the package, but we also provide some specific adaptors based on the requirement.

The female flange to the sensor is 17.5mm. User can make it to 55mm back focus distance with the 21mm and 16.5mm extender included in the camera package.

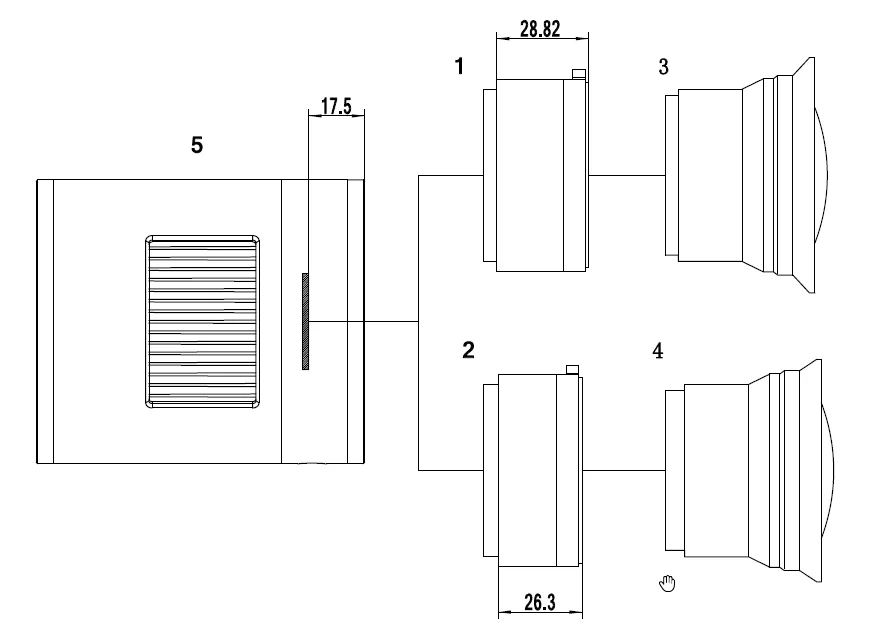

Camera Mechanical Connection with Lens

Nikon /CanonLenswith SkyEye Camera

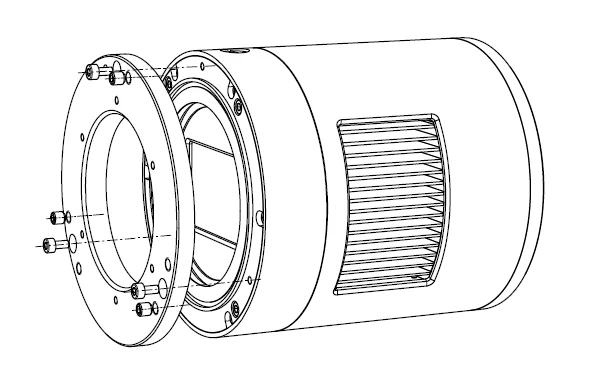

Camera Tilt Adjustment

The Cameaa has the tilt adjustment ability.

There are 3 sets of screws that can be used to tilt the sensor,

making it parallel with the primary mirror of Newtonian, two screws per set for screw in /out.

RisingSky is Professional software for Astronomical applications, which has multi-functions such as

Camera parameter adjustment, capture images&video, modify image, process image etc.

it can provide many tools choice for user.

RisingSky Support Windows XP/7/8/10 system

We also Provide RisingView software for MAC system and Linux system User.

RisingSky for Windows system

Long time exposure supported up to 3600s

RisingView for MAC system

RisingView for Linux system

Astronomy Photo Sample

Moon photo

Nebula photo

(Above 3 photo made bybuyer:Lorenzo Taltavull Menendez, who from Spain, thank you!!!)

Warranty 1year
