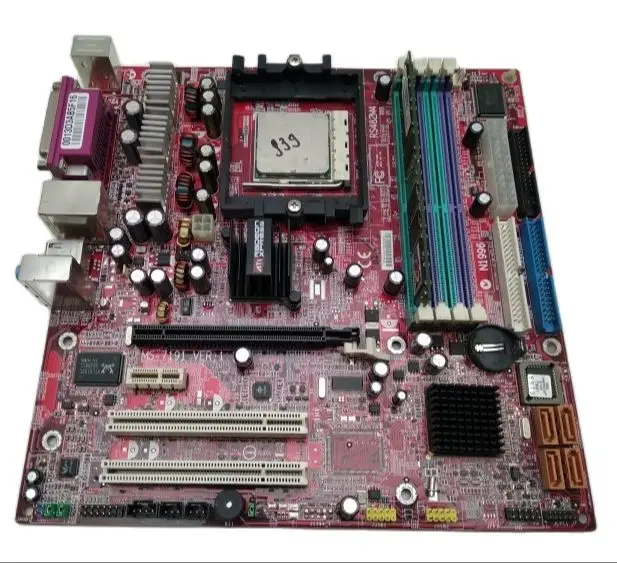

Motherboard MSI rs482m4 Socket 939 |

Motherboard MSI rs482m4 Socket 939 |

Model NumberMSI rs482m4 Socket 939Brand NameMSIBundleMotherboardsPackageNoSupport Memory TypeDDRUsage ScenarioOthersSpecial FunctionNONEChipset ManufacturerAMDWith CPUNoMaximum Ram Capacity4 GBStorage Interface TypeSATAPCI - E standardsPCI - E 2.0Back I/O Ports1x RJ45Back I/O PortsCOMBack I/O Ports3 x Audio JacksBack I/O PortsLTPBack I/O Ports4 x USB 2.0Back I/O PortsPS/2Number of PCI2Onboard LAN1x RJ45Measurement unitpiece/piecesEach pack1Not availableNot available

Reviews

5,0

All stars

• 8277 u.17 March 2022
  Show more

Description

Main features

Only motherboard, no memory, no CPU,

Without cooler, without battery bios, without back strap

The goods are used, tested, there is a guarantee

More accurate characteristics are indicated in the description of the goods.

Dear friend, thank you for visiting my ad!

If you buy several items, I will send them by express shipping for free or make a discount (discuss it in personal messages)!

Download real photos of goods, if necessary, make additional photos. Before sending, all products are subjected to professional inspection.

Email me if you need additional items for this product, such as Ram, CPU, video card or something.

If you have any questions about compatibility, feel free to ask. I can provide a large number of spare parts for old PCs.

Customer satisfaction and 5 star evaluation are very important to us. Feel free to send us your questions and feedback by email!

Technical specifications

Manufacturer MSI

Model ms-7191 rs482m4-l

Type of equipment motherboard for desktop PC

Destination Table PC

Chipset мат. ATI Radeon Xpress 200 boards (rs482) + sb450

Socket 939 processor socket

MicroATX card format (244x244mm)

CPU support

Max. number of processors on Motherboard 1

Support AMD series Athlon 64, Athlon 64 FX, Athlon 64 x2, Sempron processor types

Bus frequency 1600 ~ 2000 MHz

Support memory

DDR SDRAM memory type

Number of DDR DIMM 4 connectors (to activate 2 channel memory mode, modules are installed in pairs)

Maximum supported PC-3200 memory standards

Max RAM capacity 4 GB

Дисковая system

RAID controller is embedded in chipset, it is possible to create RAID 0, 1 arrays from Serial ATA devices.

Sata 4 channels with the ability to connect 4 devices.

Support UDMA/133 2 channels with the ability to connect 4 devices.

Communication

10/100 Mbps network, Realtek rtl8100c network controller

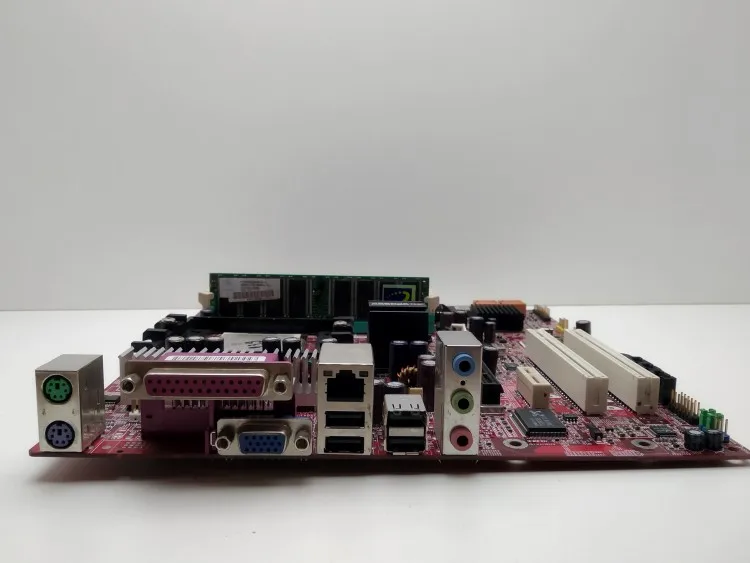

Interface, connectors and outputs

USB connectors on the back 4x USB 2.0

Ports 1x LPT

Keyboard/mouse PS/2 keyboard + PS/2 Mouse

Slots for installing expansion boards

Number of PCI Express 16x1 slot 16x connectors

Number of PCI Express connectors 1x1 1X slot

Number of PCI 2 slots

Integrated graphics card

Video m/b ATI Radeon X300

Video connectors on the back 1x VGA monitor

Integrated sound card

Sound 8-channel HDA codec Realtek alc880

Audio connectors on the back of the line-out, line-in, mic-in

Power supply

Power supply requirements are supported only 24 + 4 Pin power supplies.

Other features:

BIOS Award BIOS, 4 Mbps
