GY-521MPU-6050 Module 3 Axis Accelerometer 6 DOF Gyroscope Sensor Module16bit AD Converter Data Output IIC I2C Kit |

---

Brand NameNoneOriginMainland ChinaTypePressure SensorMeasurement unitpiece/piecesEach pack1Not availableNot available

Description

GY-521MPU-6050 Module 3 Axis Accelerometer 6 DOF Gyroscope Sensor Module16bit AD Converter Data Output IIC I2C Kit

MPU-6050 MPU6050 6-axis Accelerometer Gyroscope Sensor,Integrates 3-axis gyroscope and 3-axis accelerator, including the hardware accelerator engine for devices connected to the second I2C port, like another accelerator of other brands, magnetometer, or Digital Motion Processor (DMP) of other sensors
Communication mode standard IIC communication protocol , With three 16-bit analog-to-digital converters (ADCs) for digitizing the gyroscope outputs and another three ones for digitizing the accelerometer outputs

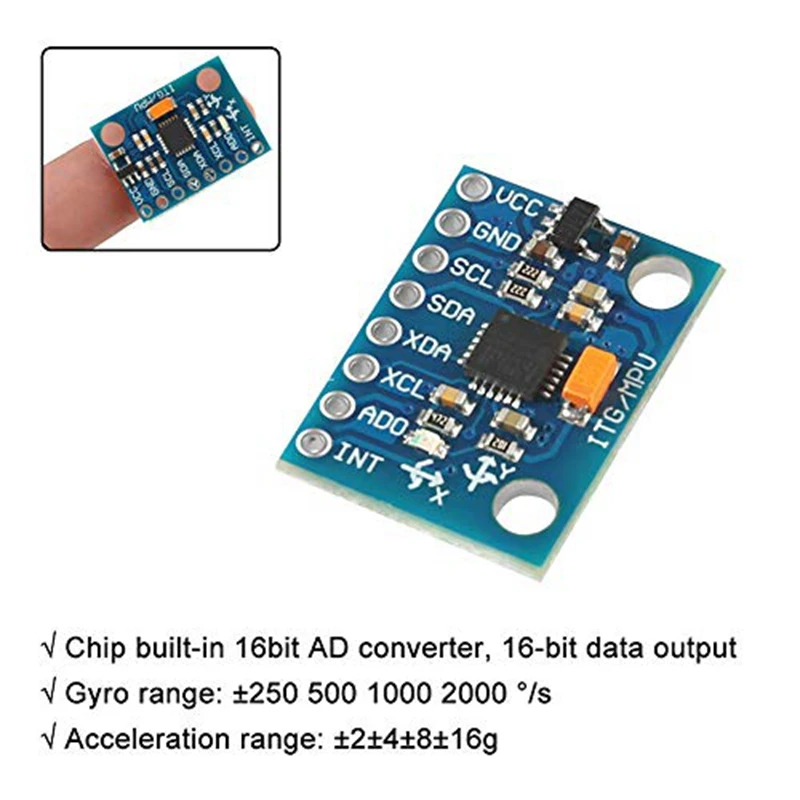

Chip built-in 16bit AD converter, 16-bit data output ,Supports the I2C serial interface and has a separate VLOGIC reference pin
User-programmable gyroscope, with a full-scale range of ±250, ±500, ±1000, and ±2000degrees /sec (dps) and a user-programmable accelerometer with a full-scale range of ±2g, ±4g, ±8g, and ±16g

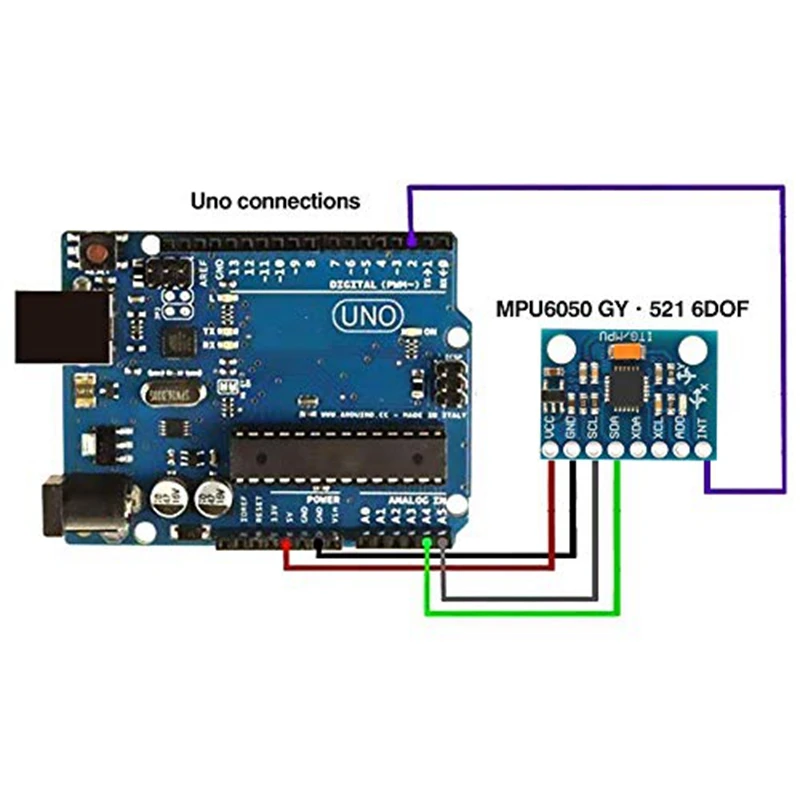

The item is set MPU-6050 module 3 axis gyroscope accelerometer module compatible with Arduino and Raspberry Pi.
The MPU-6050 module adopts the standard IIC communication agreement for communication and is powered by 3V-5V for sustainable use.
The module is nice for experimental and model structures compatible with Arduino and Raspberry Pi.

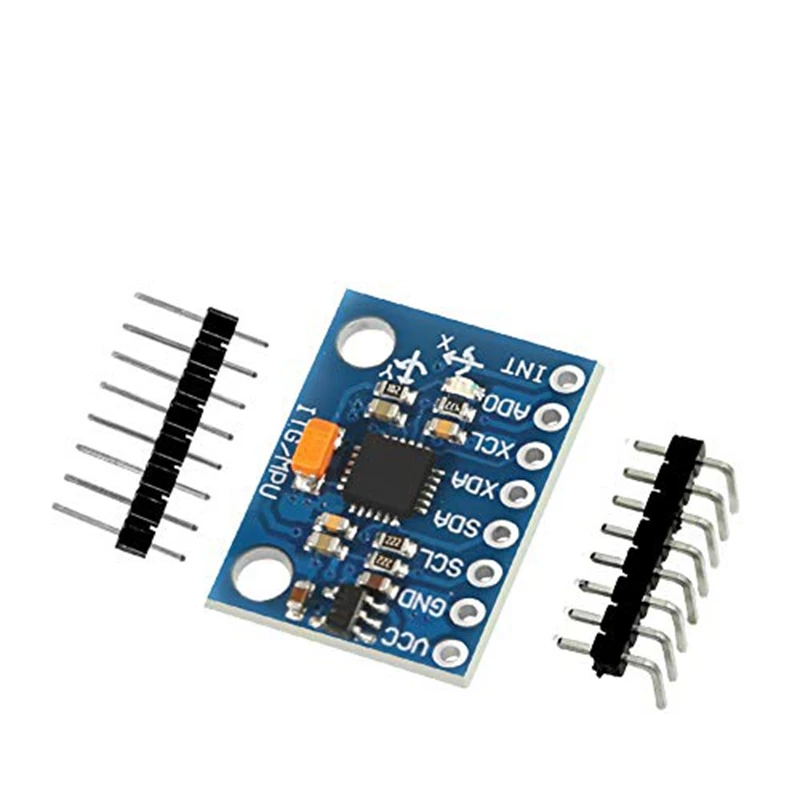

Model: GY-521

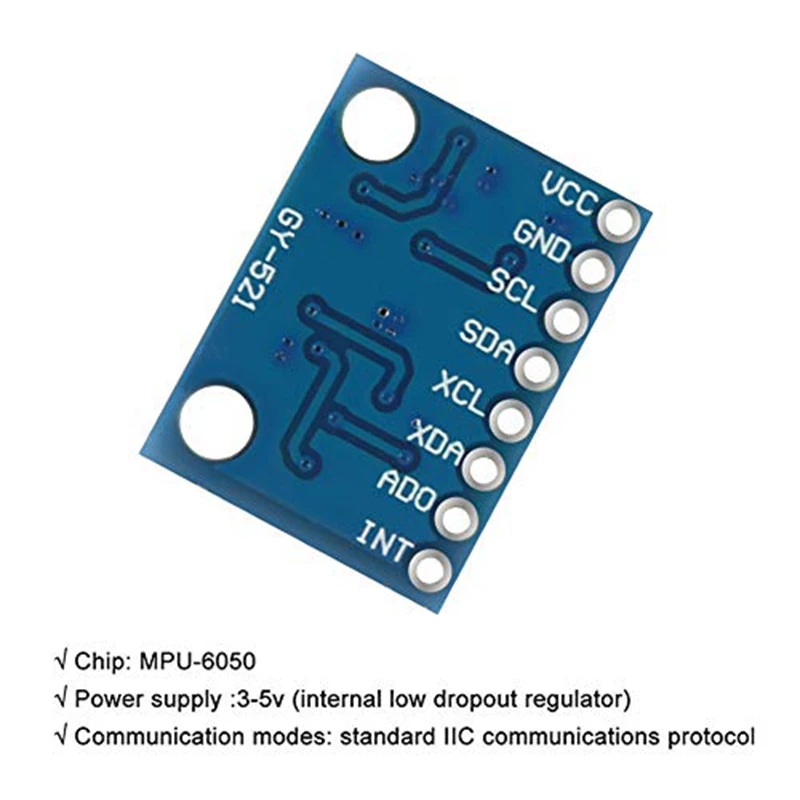

Main Chip: MPU-6050
Power supply: 3-5 V

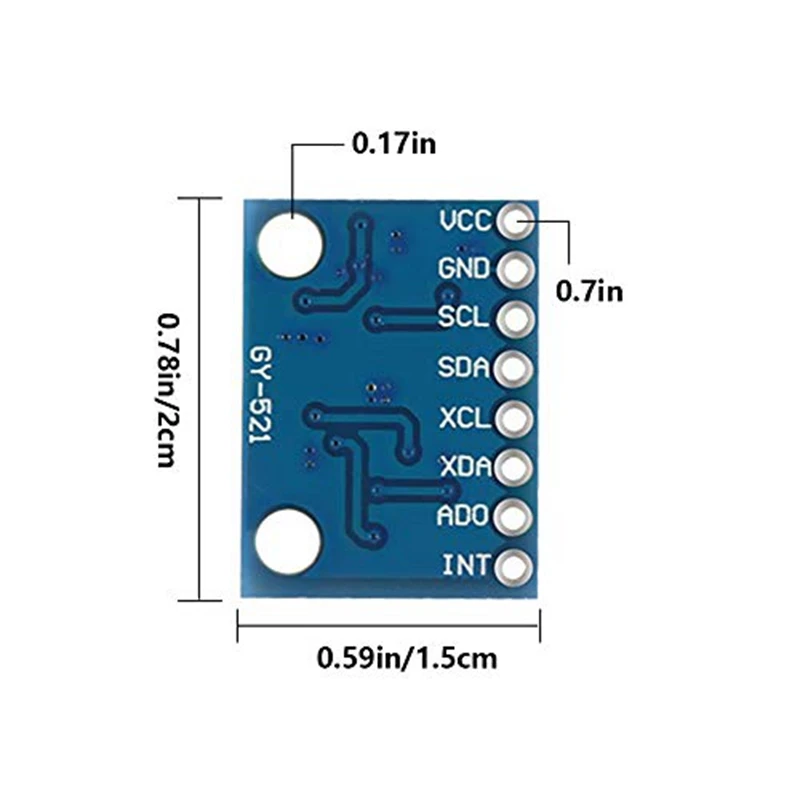

Pin pitch : 2.54 mm
Gyroscope range: ± 250 500 1000 2000 degrees / s
Communication mode: standard IIC communication protocol
Chip built-in 16bit converter, 16bit data output
Colour:blue+black
Material:PCB

Package Contents:

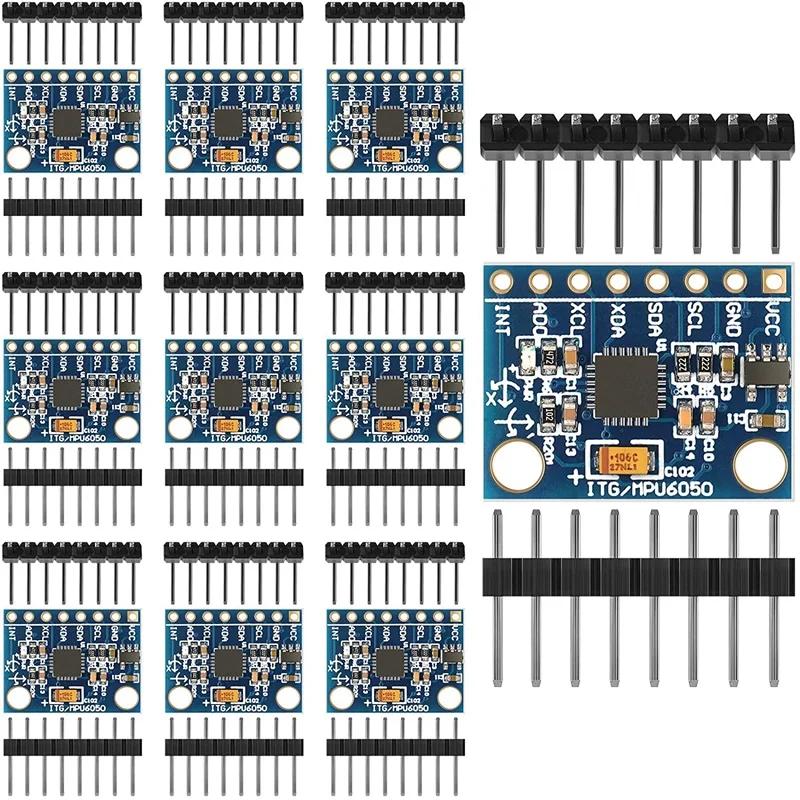

10 x MPU-6050 3 axis accelerometer gyroscope sensor modules
20 x Pin headers
/

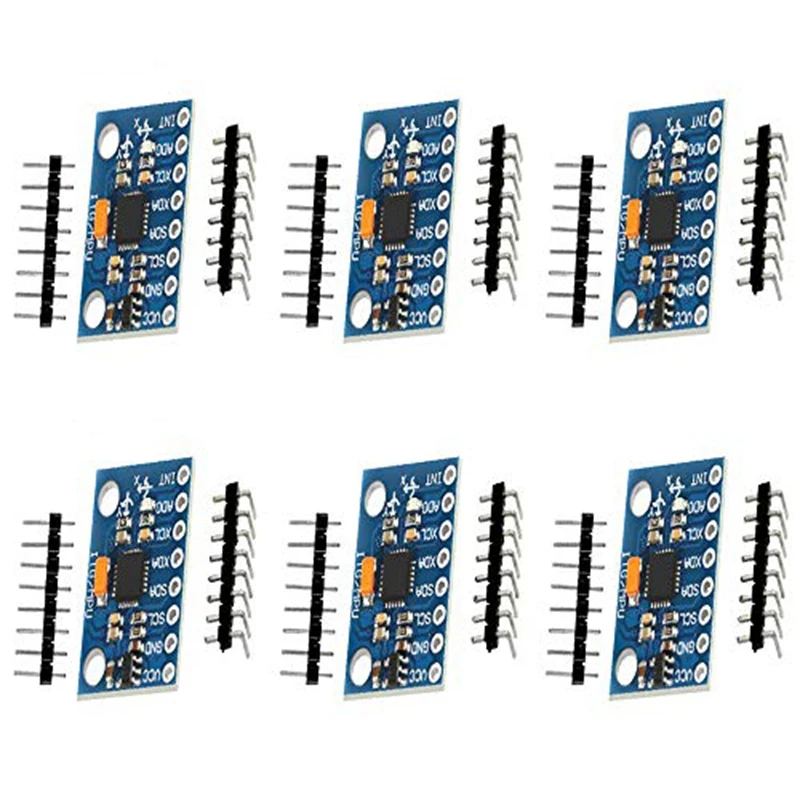

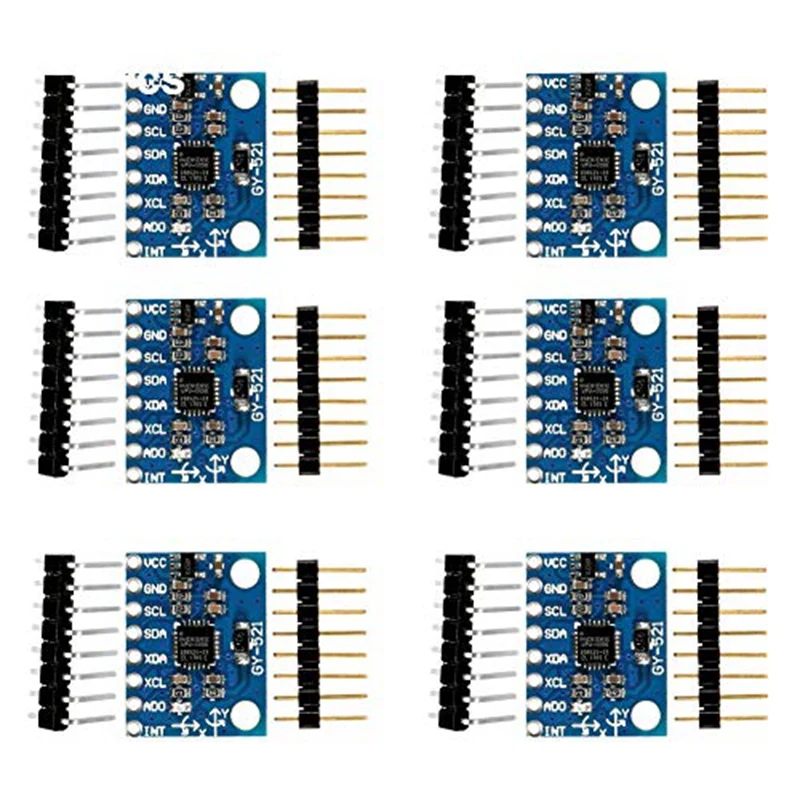

6 x MPU-6050 3 axis accelerometer gyroscope sensor modules
12 x Pin headers

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

---
