Product Details:

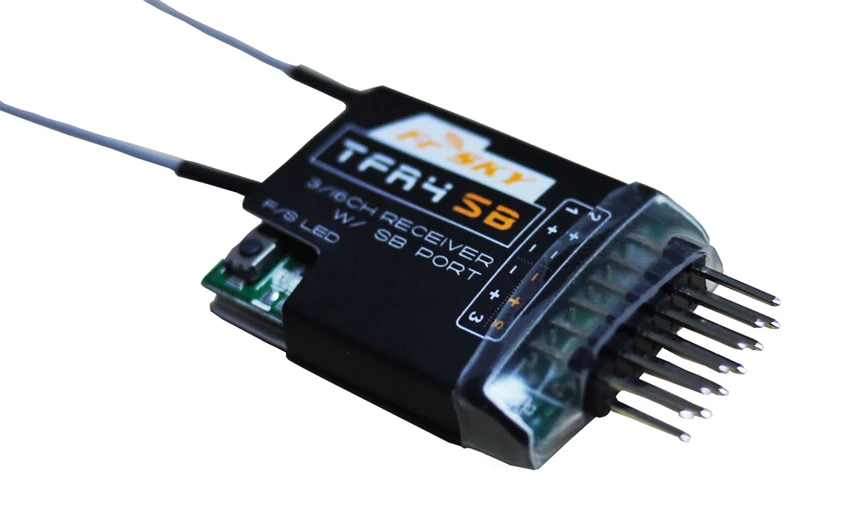

frsky tfr4sb

1 introduction

1.1   compatibility :

1.1 . 1 compatible system :

fasst 2.4g air system ( 7ch mode / multi mode ) : 6ex , 7c , tm-7 , tm-8 , t8fg , t10c , tm-10 , t10cg , t12z , t12fg , tm-14 , t14mz , etc .

Fasst 2.4g ground system ( c1 mode ) : 3pk , 4pk , etc .

1.1 . 2 s . b port compatible steering gear

futaba s . bus steering gear , frsky d12mb steering gear

1.2   characteristics of :

model : tfr4sb ( belt s . b port 3 rutong fasst compatible receiver )

measurement : 41 * 24 * 6mm

weight : 6.0g / 4.2g none ( shell )

voltage range : 3.5 ~ 10v

temperature range : - 1 0   ~ 8 0

steering gear frame speed : 14ms ( fs & ndash . general pattern ) 7ms ( hs & ndash . high mode )

1.3   characteristics of :

4 rutong

s . bus port

1 ) compatible fasst   2.4g : air system   ( 7ch   / multi mode   mode )  &  ground system ( c1 mode )

2 ) s . bus port compatible futaba s . bus steering gear and frsky d12mb steering gear , none channel limit , avoided steering gear channel misplaying .

3 ) high sensitivity and stability

4 ) can withstand temperature scope wide , in all type model

note : ensure that use battery or esc adjust output , meet steering gear use condition

installation

2.1   process : code

Control open , hold the receiver on f / s button concurrent access power supply , red light expirate , green light bright , code success , receiver normal work .

2.2   set of control protection :

tfr4sb receiver there are two optional runaway : protection options a kind of compatible accused of upper runaway protection settings , the second receiver set on the runaway protection .

2.2 . 1 a maximisation on use original runaway : protection settings

if not turn accused of on the protection , tfr4sb will use accused of incontrollable itself protection .

2.2 . 2 in tfr4sb set on the runaway : protection

tfr4sb support full channel runaway protection function , below is tfr4sb set of runaway : protection steps

charge protection postclosure desengages and , you need to reopen to receivers electricity .

1 ) first will receiver code , closed accused of coach protection

2 ) receiver any channel settings any incontrollable protection

3 ) from the charge put rudderstock set to a , then hold receiver 's f / s push button , when the receiver green light flash two under , runaway guard position be saved , receiver lose signal when 'll return to location .

re code can be shut receiver end protection runaway set .

2.3   led   etc

how to two kinds switching mode ppm

closed accused of , , sincecontinually battery to receiver on , press receiver on f / s button 6 unclench seconds then . red light in hs flash mode , in fs slow flash .

switching mode .

.
