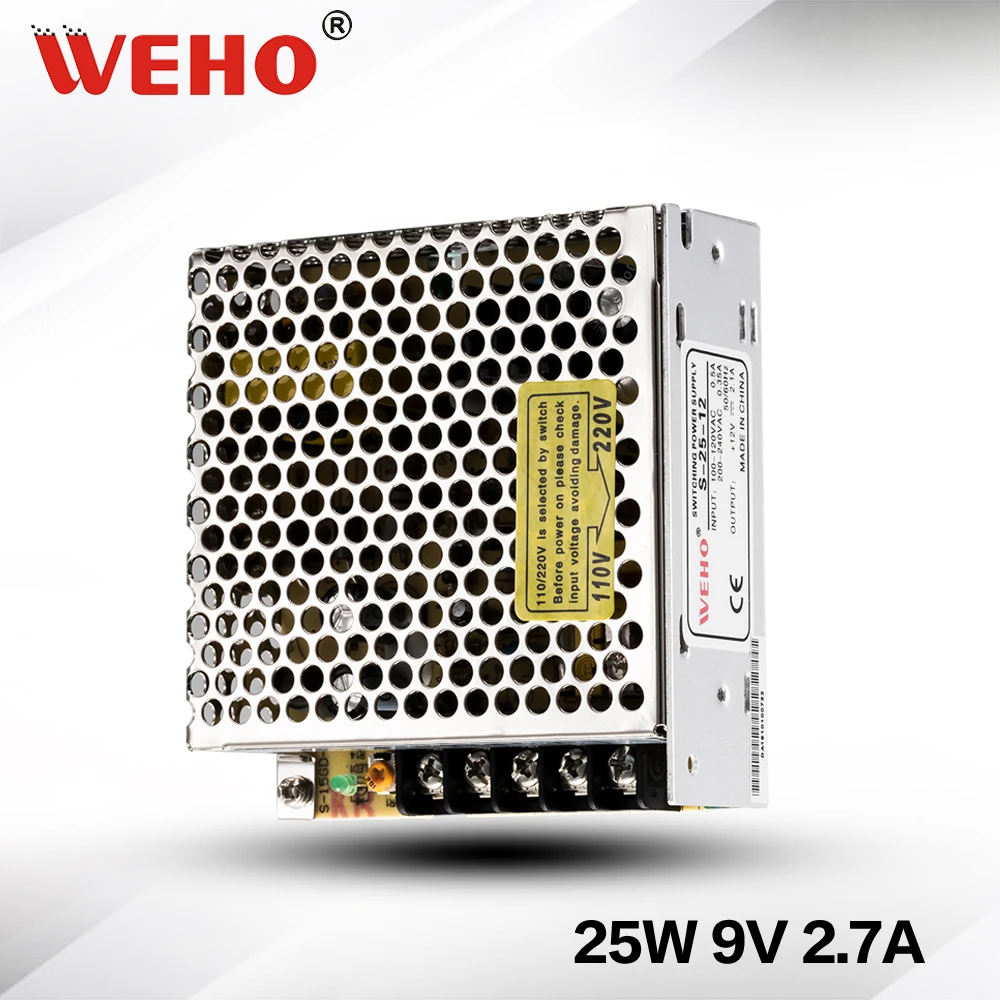

(S-25-9) схема соединений для настройки переменного тока в постоянный Мощность 25 Вт
MEAN WELL SP-240-12 12 В 20A meanwell SP-240 в 240 Вт Один выход с PFC Функция питания | Обустройство
34 326,40 руб.
Переключение светодиодный Мощность Supply48V 120W AC100-240V для DC48V 2.5A Драйвер адаптер
2 338,45 руб.
Universal Switching Power Supply 48V 1500W Transformer 110V 220V AC DC48V Powers Source for CCTV Light CNC Router Stepper Motor |
8 219,63 руб.
1 шт. новый оригинальный ULQ2003 в наличии | Обустройство дома
Характеристики

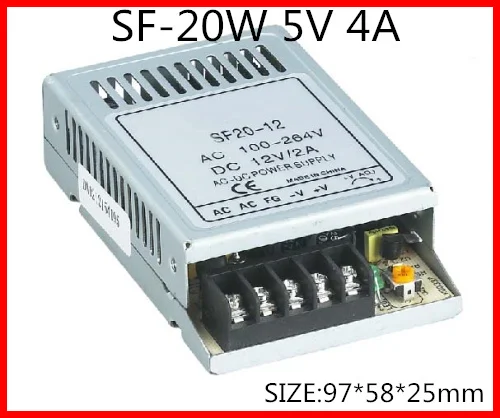

20W 5V 4A Ultra thin Single Output Switching power supply for LED Strip light 90-264 V AC Input | Обустройство дома
История изменения цены
*Текущая стоимость 387,76 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-18-2026 | 491.63 руб. | 501.60 руб. | 496 руб. |
| Jan-18-2026 | 399.52 руб. | 407.1 руб. | 403 руб. |
| Dec-18-2025 | 484.4 руб. | 494.49 руб. | 489 руб. |
| Nov-18-2025 | 480.21 руб. | 490.44 руб. | 485 руб. |
| Oct-18-2025 | 383.77 руб. | 391.72 руб. | 387 руб. |
| Sep-18-2025 | 472.96 руб. | 481.90 руб. | 476.5 руб. |
| Aug-18-2025 | 468.9 руб. | 477.90 руб. | 472.5 руб. |
| Jul-18-2025 | 464.26 руб. | 473.30 руб. | 468.5 руб. |
Описание товара
SF-20W series compact single switching power supply
Features:universal AC input
Small volume,low weight,high efficiency
Protections:short circuit/over load/over voltage/over temp
cooling by free air convection
LED indicator for power on
100% full load burn-in test
2 Years warranty
Model |
SF-20-5 |
SF-20-9 |
SF-20-12 |
SF-20-15 |
SF-20-24 |
|
output |
DC voltage |
5V |
9V |
12V |
15V |
24V |
Voltage tolerance |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Rated current |
4A |
2.2A |
1.7A |
1.4A |
0.8A |
|
Current range |
0~4A |
0~2.2A |
0~1.7A |
0~1.4A |
0~0.8A |
|
Rated power |
20W |
19.8W |
20.4W |
21W |
19.2W |
|
Ripple&noise |
80mvp-p |
120mvp-p |
120mvp-p |
120mvp-p |
120mvp-p |
|
DCvoltage ADJ.range |
-9%~+10% |
±10% |
±10% |
±10% |
±10% |
|
input |
Voltage range |
90~264VAC,125~373VDC |
||||
frequency |
47~63HZ |
|||||
AC current |
0.45A/115VAC,0.25A/230VAC |
|||||
efficiency |
75% |
78% |
78% |
78% |
80% |
|
Inrush current |
Cold start current15A/115VAC,30A/230VAC |
|||||
Leakage current |
< 0.5mA/240VAC |
|||||
protection |
overload |
Rated output power115%~135% start over load protection |
||||
protection type:hiccup mode,auto-recovery after fault condition is removed |
||||||
Over voltage |
6.8~8.2V |
12.6~14.2V |
15.6~17.8V |
18.6~20.8V |
30.6~33.2V |
|
protection type:hiccup mode,auto-recovery after fault condition is removed |
||||||
Over temperature |
When temperature of transistor inner node is over150°C, start over temperature protection |
|||||
protection type:hiccup mode,auto-recovery after temperature become normal |
||||||
environment |
Working temp,humidity |
-10°C~+60°C,20%~90%RH |
||||
Storage temp,humidity |
-20°C~+85°C,10%~95%RH non-condensing |
|||||
Withstand vibration |
10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes |
|||||
safety |
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||||
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC |
|||||
Fit standard |
Safety standard |
Compliance to UL1012 |
||||
EMC standard |
Compliance to EN55022,CLASSA |
|||||
others |
Dimension |
97*58*25mm(L*W*H) |
||||
Weight/packing |
0.11kg/160pcs/18.5kg/0.033 m⊃3;/1.17CUFT |
|||||
note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25°Cof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. |
|||||
