Характеристики

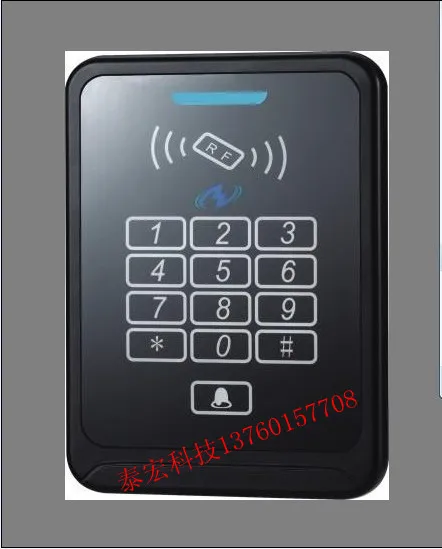

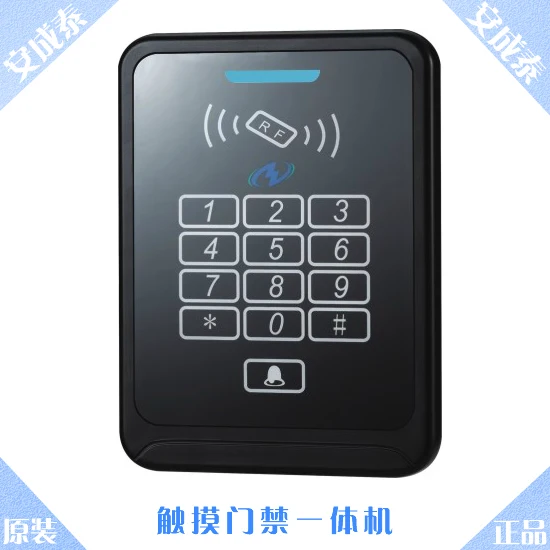

Touch access one electromechanical locks electric electronically controlled lock magnetic 280 kilograms dedicated acc |
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-19-2026 | 0.5 руб. | 0.43 руб. | 0 руб. |
| Feb-19-2026 | 0.19 руб. | 0.1 руб. | 0 руб. |
| Jan-19-2026 | 0.78 руб. | 0.22 руб. | 0 руб. |
| Dec-19-2025 | 0.71 руб. | 0.61 руб. | 0 руб. |
| Nov-19-2025 | 0.53 руб. | 0.54 руб. | 0 руб. |
| Oct-19-2025 | 0.52 руб. | 0.64 руб. | 0 руб. |
| Sep-19-2025 | 0.51 руб. | 0.36 руб. | 0 руб. |
| Aug-19-2025 | 0.4 руб. | 0.39 руб. | 0 руб. |
| Jul-19-2025 | 0.27 руб. | 0.49 руб. | 0 руб. |
Описание товара
One . Product Features:
The touch access one machine designed for office buildings, offices , intelligent buildings , residential , factories , building entrances and other public access control and launched a series of standalone access controller , support for proximity card to open the door , the password to open the door , sensor card with password , coercion plus other four -door alarm signal output mode provides users with a simple, direct and secure access control system solutions.
This product and other similar products have the following advantages:
1 .The new touch-button,Achieve a more user-friendly operation.
2 .Direct external standardWG26Reader, low cost single -sided and out door access control functions .
3 .High security, duress password alarm, tamper alarm , forced open the door alarm, alarm signal output function allowing users more complete security .
4.Flexible operation, no need to enter a user ID can directly continuous increase user card , complete set of features to make your operation more convenient installation .
5.As can be selected through the operation of the machineWiegand26Reader Use.
Special Note: Before using this system , please read this operating instructions and in strict accordance with the requirements of the manual to operate . This User's Guide
The introduction and operation of the main functions of the system to use .
Two . Function parameters:
Operating voltage: DC 12V
Unlock current: 1 .5A
Static current: 60 mA
Effective Card Capacity:3000Cards
The maximum reading distance :5-10Cm
RFCard Type : EMIDOrMifareCompatible card
Three . Installation Instructions
Remove the bottom of the fixed panel with Phillips screws , remove the bottom cover , bottom cover using the rubber plugs and screws installed in the desire to control the entrance of the inlet side of the wall , pay attention to the vertical direction.
Warning: Be sure to live operation , install wiring Remember to disconnect the power , make sure the wiring is correct and then power !Make sure the power voltage is DC12VAnd the power of positive and negative !
Four ..Line connection diagram:
1.Wiring Diagram
anti-
2 wiring instructions :
CON1 Interface Signal Description
Pin | Comments | Description |
1 | + 12VDC | Positive power supply (+ 12VDC) |
2 | GND | Power Ground |
3 | NC | NC relay output terminals |
4 | COM | Relay common |
5 | NO | Normally open relay output terminal |
6 | SW | Open button input terminal , and the other endGND |
7 | IN | Magnetic signal input, the other endGND |
8 | OUT | Alarm contact a positive electrode, and the other endGND |
9 | BELL | Doorbell cable connection |
10 | BELL | Doorbell cable connection |
Note: power locks electric lock power supply connected to the negative anode , usually marked withLOCK-Words | ||
CON2 Interface Signal Description
Pin | Comments | Description |
1 | + 12VDC / DC | Positive power supply (+ 12VDC) |
2 | GND | Then the power ground |
3 | D0 | Access card reader data linesDATA0 |
4 | D1 | Access card reader data linesDATA1 |
5 | A + | Standby |
6 | B- | Standby |
