Saipwell Electrical fan heating element industrial electric high frequency heater 150W with HVL031-150W | Инструменты
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.66 руб. | 0.58 руб. | 0 руб. |
| Feb-18-2026 | 0.73 руб. | 0.14 руб. | 0 руб. |
| Jan-18-2026 | 0.27 руб. | 0.41 руб. | 0 руб. |
| Dec-18-2025 | 0.32 руб. | 0.5 руб. | 0 руб. |
| Nov-18-2025 | 0.38 руб. | 0.74 руб. | 0 руб. |
| Oct-18-2025 | 0.43 руб. | 0.6 руб. | 0 руб. |
| Sep-18-2025 | 0.54 руб. | 0.53 руб. | 0 руб. |
| Aug-18-2025 | 0.18 руб. | 0.8 руб. | 0 руб. |
| Jul-18-2025 | 0.38 руб. | 0.41 руб. | 0 руб. |
Описание товара

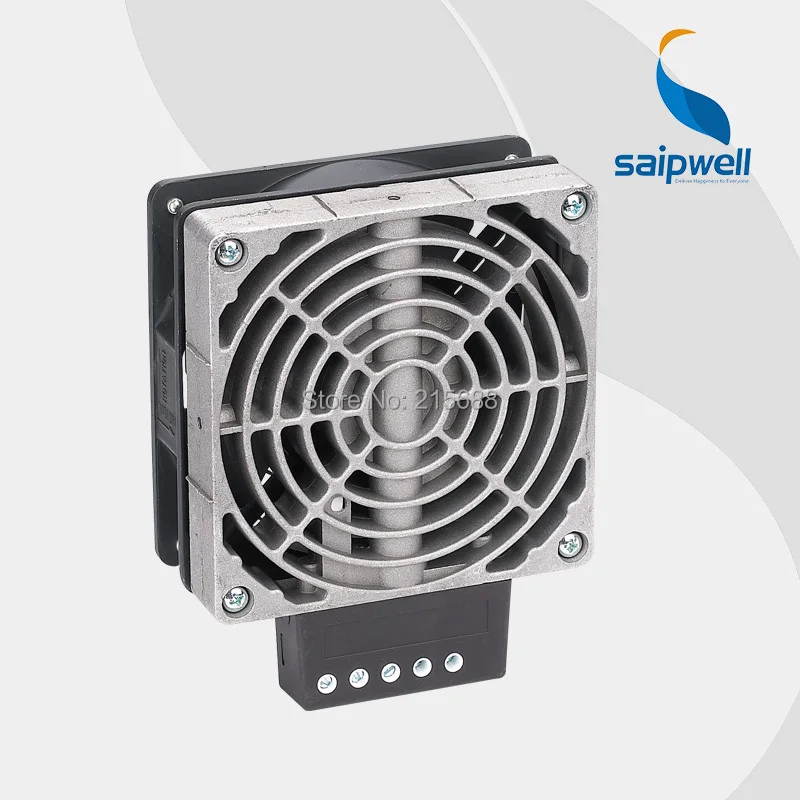

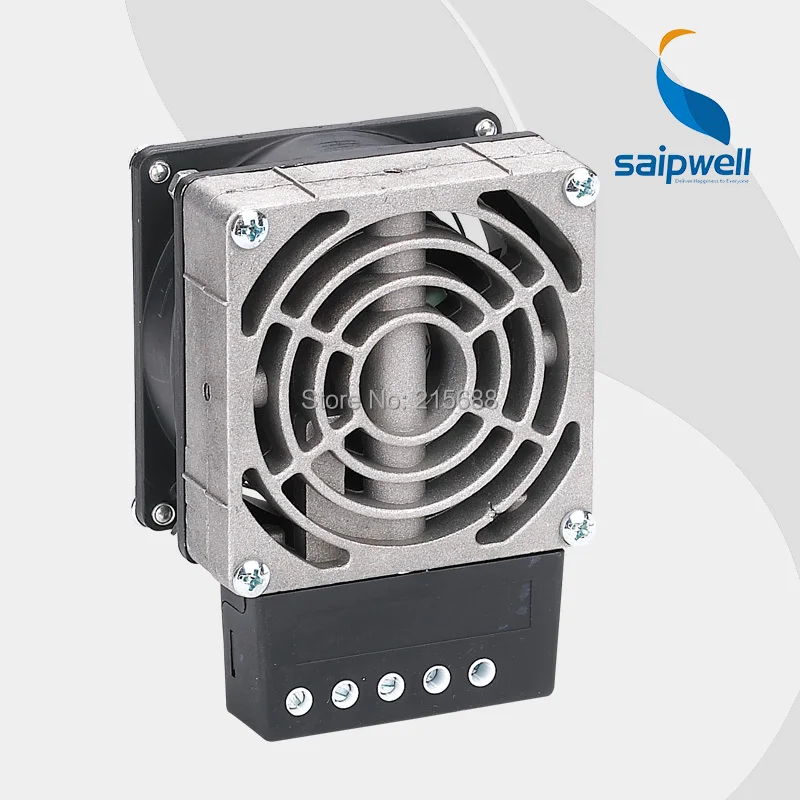

Saipwell Electrical fan heating element industrial electric high frequency heater 150W with fan HVL031-150W
SAIPWELL,AT YOUR SERVICE.
{ SAIPWELL, as a professional manufacturer and supplier, is specialized in developing, producing electric equipments fitting all over the world. Please kindly contact with us freely. High quality,reasonable price,best service is offered to you.}
Intro:
Specifications
These small heaters are designed to prevent condensation and to ensure a minimum operating temperature in small enclosures.
The compact high performance fan heater prevents formation of condensation in control or switch systems and provides an evenly distributed interior air temperature in enclosures. This fan heater is avail .
Technical data:
| HVL 031 | Heater with fan |
| Heating element | high performance cartridge |
| Temperature safety cut-out | to protect against overheating in case of fan failure, automatic reset |
| Heater body | die-cast aluminium (glass bead blasted) |
| Connection | 3-pole screw connector 2.5mm², clamping torque 0.8Nm max. |
| Connection casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Fitting position | vertical airflow (air outlet up) |
| Operating/Storage temperature | -45 to +70 °C (-49 to +158 °F) |
| Operating / Storage humidity | max. 90 % RH (non-condensing) |
| Protection type/Protection class | IP20 / I (earthed) |
| Approvals | UL File No. E187294 (VDE: 230V only: VDE) |
| Axial fan, ball bearing | airflow see table |
| service life 50 000h at 25°C (77°F) | |
| Connection (axial fan) | 2-pole screw connector 2.5mm² (L2/N2) |
| Art. No. 230VAC, 50/60 Hz | Art. No. 120VAC, 50/60 Hz | Heating capacity | Pre-fuse T (time-delay) 230VAC/ 120VAC | Airflow min., free flow | Dimensions | Weight (approx.) |
| 03102.0-00 | 03102.9-00 | 100W | 1A/ 1.4A | 35m³/h | 80 x 112 x 47mm | 0.6kg |
| 03103.0-00 | 03103.9-00 | 150W | 1.25A/ 2A | 35m³/h | 80 x 112 x 47mm | 0.6kg |
| 03113.0-00 | 03113.9-00 | 200W | 1.4A/2.5A | 108m³/h | 119 x 151 x 47mm | 0.9kg |
| 03114.0-00 | 03114.9-00 | 300W | 2A/ 4A | 108m³/h | 119 x 151 x 47mm | 0.9kg |
| 03115.0-00 | 03115.9-00 | 400W | 4A/ 5A | 108m³/h | 119 x 151 x 47mm |
Advantages:
1.Fan Heater HV 031/HVL 031
2.Dynamic heating up
3.Energy saving
4.Wide voltage range
5.Temperature limting;Clip fixing
Technical Drawing

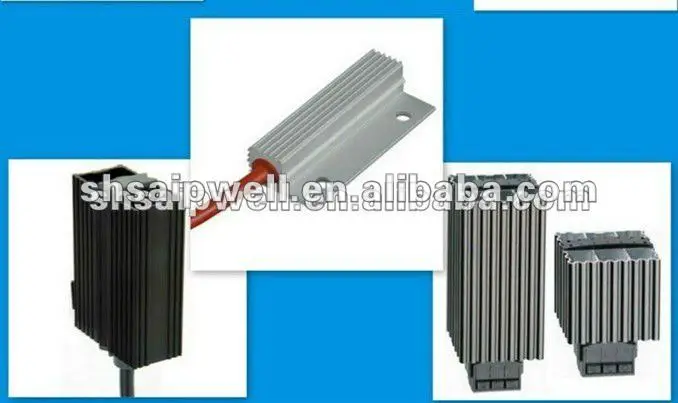

Our other heater products:
Exhibition in HK:

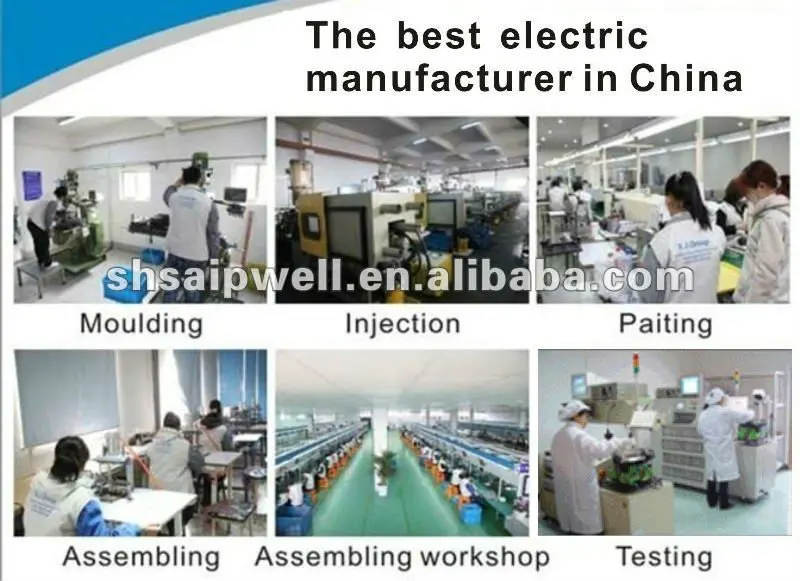

Factory:
