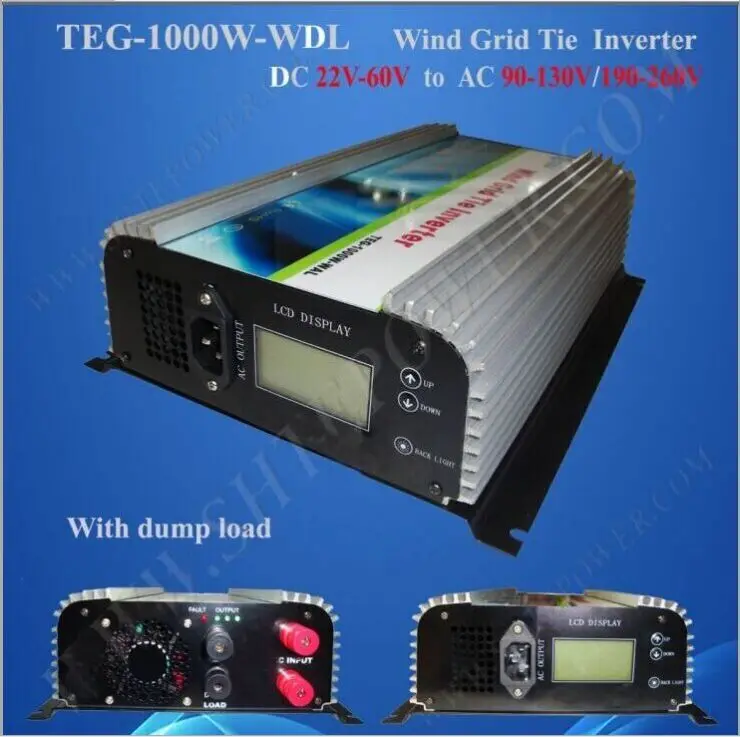

High quality grid connected wind generator inverter 1000W 48V DC, grid micro inverter pure sine wave

For DC Output Wind Turbine

Build In Dump Load Controller

Build In High Wind Protection

Build In LCD Display

grid tie inverter 1000W

Preface

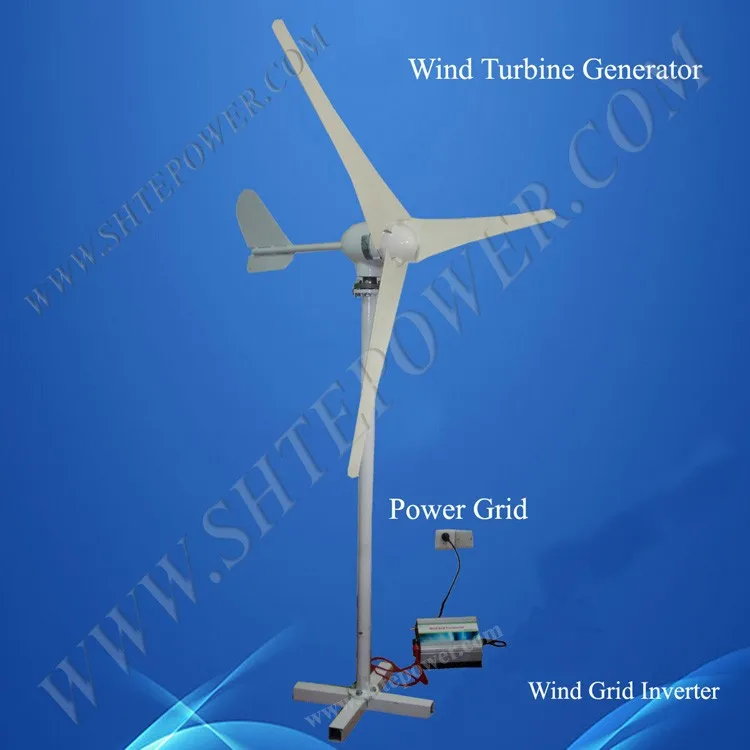

The grid-tie inverter can transfer wind energy from wind generators directly into the home grid using no extra equipment. It can be connected to any outlet (conventional network) in the home. The grid-tie inverter controls the phase and the frequency and voltage of the power generated by the wind generator. It produces a pure sine-wave and matches that of the grid.

This model grid-tie has designed for wind turbines that put out DC voltage. It can maintain the rotating speed of the wind turbine and keep the voltage from the wind turbine always at the range of the rated range of the grid tie inverter. It also has a high voltage protection function, when the wind is too big, and the dump load controlling system can’t keep the output voltage from the wind turbine, the controller will disconnect itself from the wind turbine, so it is very safe to be used.

Layout

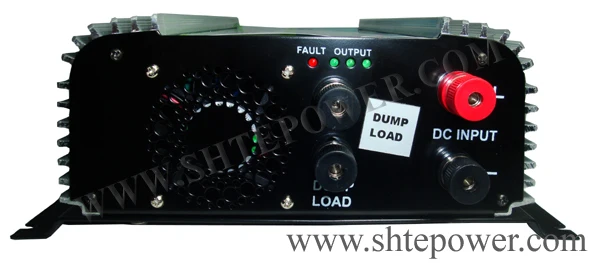

There are 4 terminals on the left side of the inverter, 2 terminals will be connected to the DC output from the wind turbine, and 2 black terminals will be connected to dump load resistors.

There are 4 LED indicators, 3 green indicators and 1 red indicator, 3 green LED indicators will start to cycle from left to right when the grid and AC input supply is detected. This indicates the inverter is operating under normal condition. The rate of the cycling is according to how much power is being output from the wind turbine. The more big output power is, the more fast the rate is. If there is no AC grid detected, the red LED will be on, the inverter will not put out power, this is called “Island Protection”.

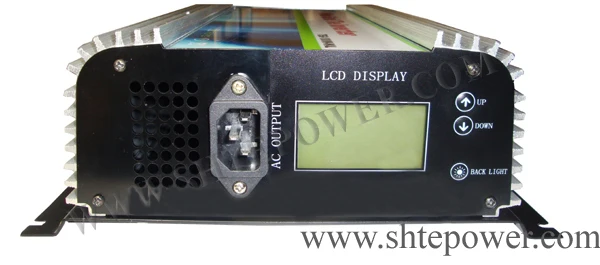

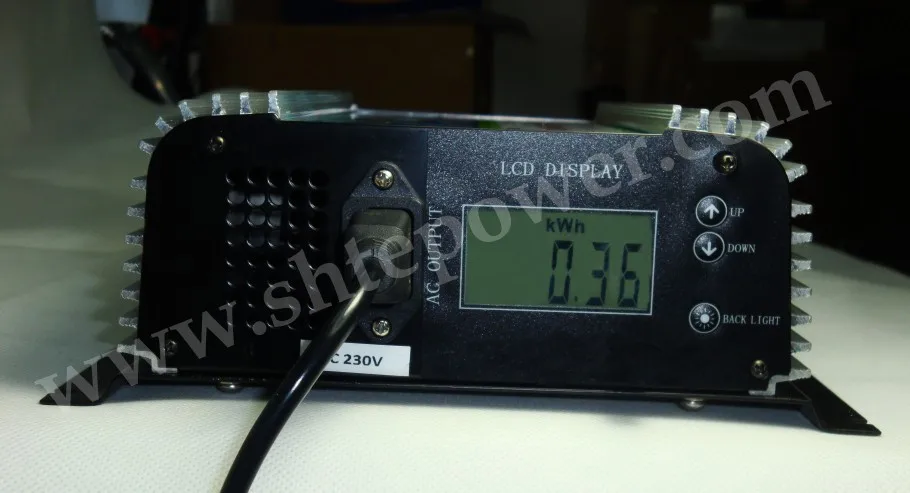

LCD display Function:

1 Electric parameters measurement function (voltage, current and active power, electric energy).

2 Running time function (record load cumulative working hours).

3 Back light function.

4 Power down data save function (save the number of kWh, operation time).

5 Large screen LCD display (display voltage, current, power, active power, cumulative running    time)

Key Function:

UP: Short press will display power, electricity, current and voltage in anti-sequence.

DOWN: Short press will display power, electricity, current and voltage in sequence.

BACKLIGHT: Short press will open or close back light.

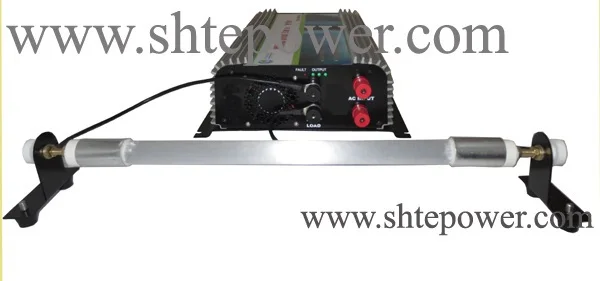

For this item, product includes Dump Load Resistor and LCD display.

Electrical Specifications:

on grid wind power inverter

Mechanical Specifications:

 -10 ~ 45 degrees C
