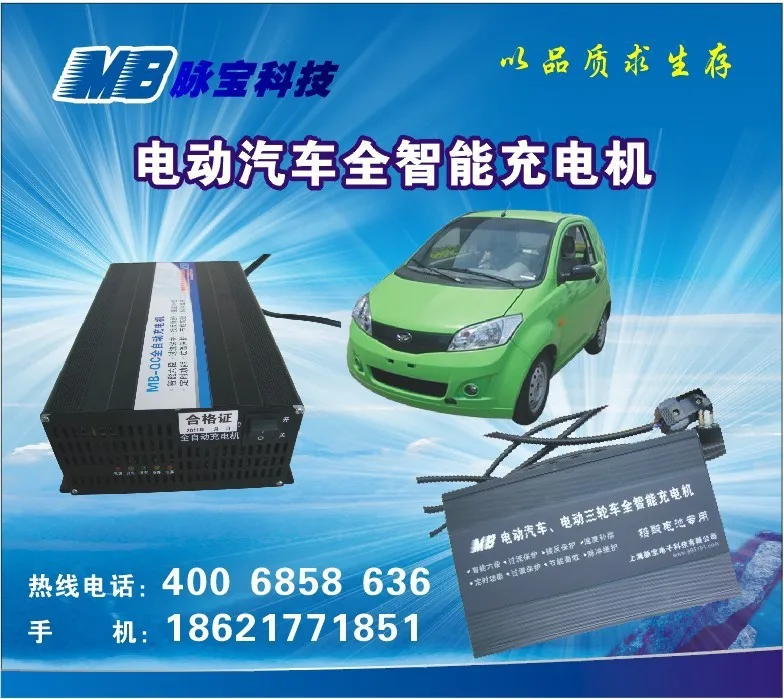

MB-QCAutomatic charger

The charger is suitable for electric vehicles, electric sightseeing cars, golf carts, electric forklifts, electric cars, electric forklift trucks,

Electric buses, electric boats, electric scooters, electric tricycle, adobe electric cars, electric field operations work, the engine rechargeable battery pack and other lead-acid batteries.

I. Related technical parameters

1.Intelligent Charging: AC165V-260VBetween normal charge, without manual adjustment. This charger using pulse width modulation (PWM) Circuit, according to the battery characteristics, the charging process by theCPUControl, is divided into six stages,

Ensure fast charging, reduce curing, dehydration less summer, winter, charges to full, normal use can extend the battery make

With life3-6Months.

2.Over current protection: output current will not change due to load change, always controlled the maximum charging current.

3.Reversal protection: Charger plug reversed, battery cable reversed or shorted cable, the charger automatically shut down, automatically charged after troubleshooting.

4.Temperature compensation: ambient temperature35-(-18By ) when the motor voltage is automatically adjusted to compensate for temperature change

And lead to the battery charge is low or overcharging.

5.Timing function: each charge process are set timer to prevent overcharging the battery, the charger does not shutdown current angle.

6.Over-temperature protection: When the charger internal temperature is too high, the charger automatically charging current when the temperature returns to normal, automatic charging.

7.Energy efficient: unique circuit design, power 89%, Compared to its cable charger, you can save a complete charge1-2KWh.

II.Scope

The charger is suitable for electric vehicles, electric sightseeing cars, golf carts, electric forklifts, electric cars, electric forklift trucks,

Electric buses, electric boats, electric scooters, electric tricycle, adobe electric cars, electric field operations work, the engine rechargeable battery pack and other lead-acid batteries.

III.Charging principles

Precharge the first paragraph: Charging lights lit, the charger is charging current when the voltage rises to or longer than the set value15Minutes into the second stage.

The second paragraph of constant current charging: Charging lights flashing, constant current charging at maximum.

Third constant voltage charging: Charging lights flashing, when the charging voltage is increased to a first set value, the current is automatically reduced down to the moment when the set value, transferred to the fourth paragraph.

Fourth paragraph of the constant current charging: floating lights flashing, constant trickle charge.

Fifth paragraph of the constant voltage charging: float lights flashing, when the voltage rises second set value, the current is automatically reduced down to the moment when the set value, transferred to the sixth paragraph.

Sixth paragraph vein rechargeyour: pulse charging lights flashing, the charging process for the charge10Second stop10Sec. Charging complete panel LEDs light up.

Note: The second paragraph of the third set time8Hour, fourth paragraph to the fifth paragraph is set to2Hour, the sixth paragraph of30Minutes, each turning point of the output current, output

Voltage, each time can be changed according to customer requirements.

IV.Instructions and Notes

1When the battery indicator light, said the battery polarity is correct, is not light that reversed.

2Please use three-pin plug (with ground wire).

3, Should be placed under safe working environment clean ventilation charged.

4Fan failure does not turn or damaged, please timely troubleshooting or replace the fan.

5This applies only to lead-acid battery charger, different voltage and current charger can not be mixed.

6Do not arbitrarily extended input and output cables, causing the battery can not be charged.

7If you disconnect the battery cables, must re-open the charger when the power switch is normally charged. (OtherwiseCPUProgram defaults

Is already full, the charger lights are lit)

8Charging the internal machine with high-pressure, non-professionals do not open.

9During the warranty period, should ensure the power cord, cables without damage, housing no distortion, no foreign objects inside the machine.

V. Dimensions: Length2900mmWidth200mmHigh95mm

6, installation dimensions:170mm×190mm 4A5mmMounting holes.

Seven Model:

48V25A 48V35A 60V15A 60V25A 60V30A 72V15A 72V25A 72V35A

Note: There are special needs of customers to order directly negotiate with us!
