Описание товара

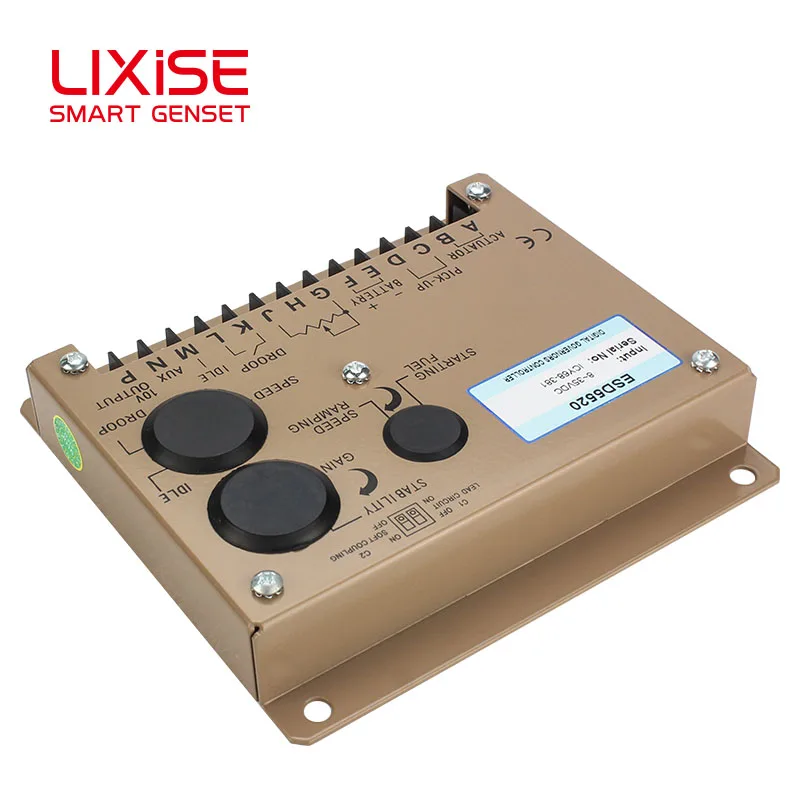

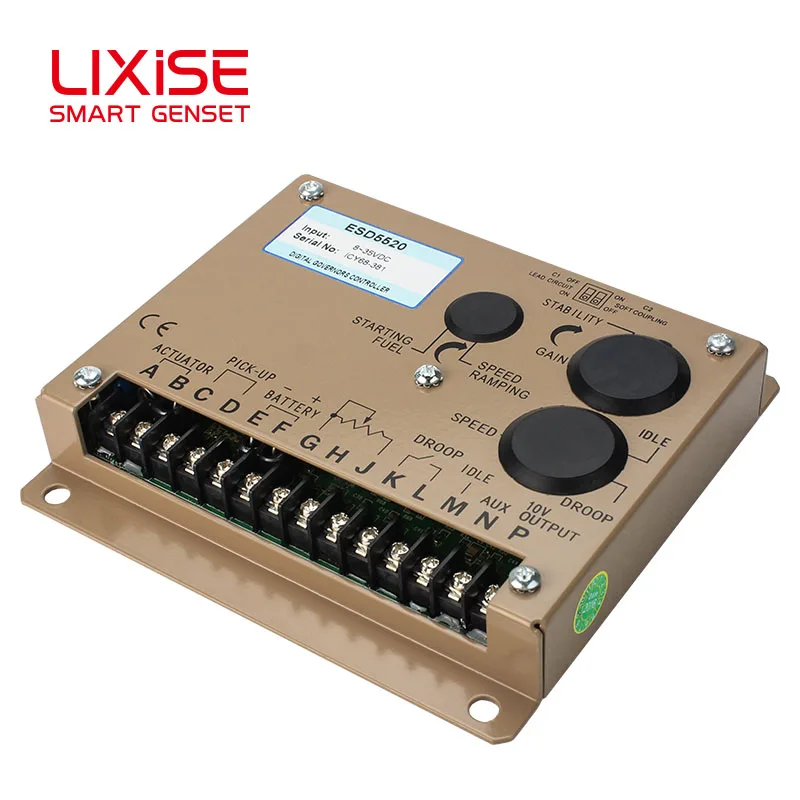

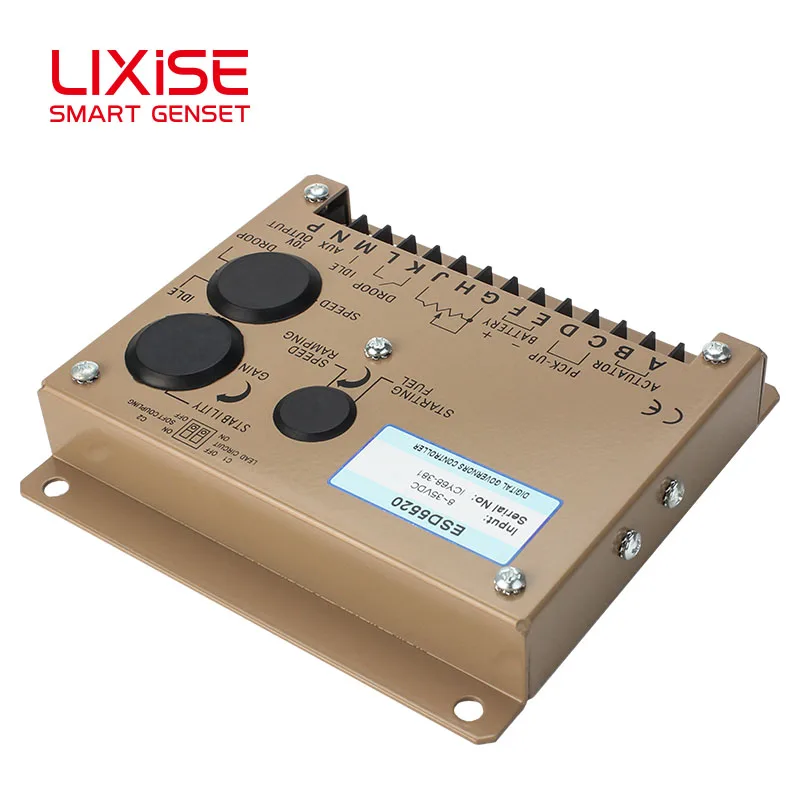

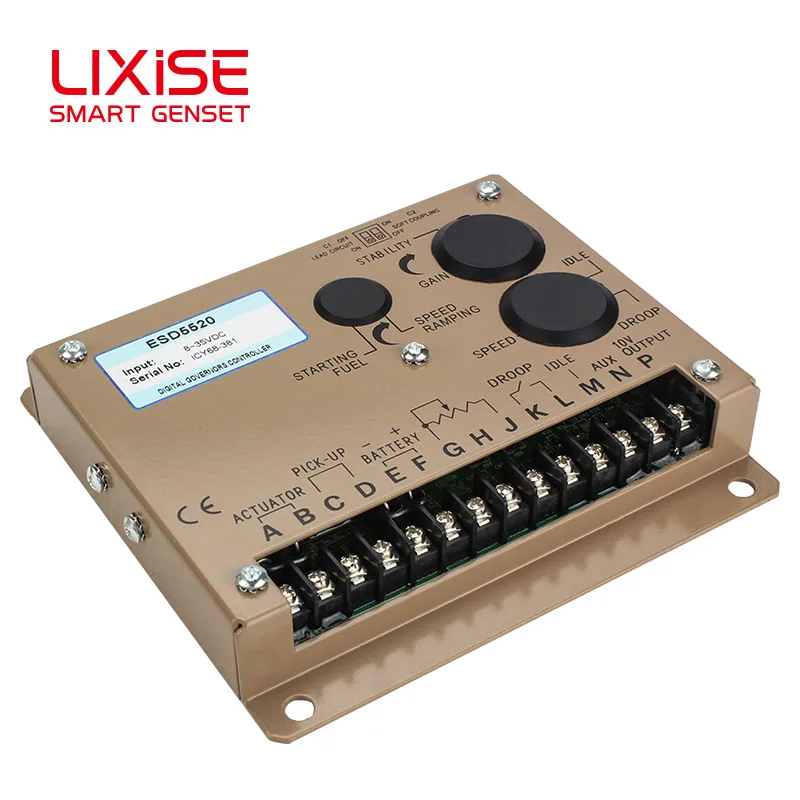

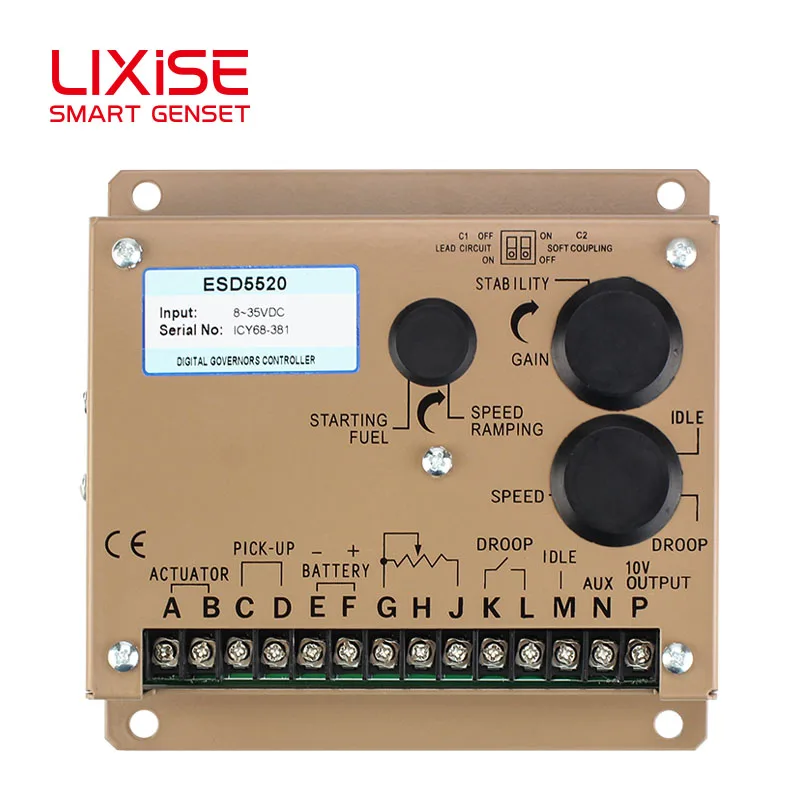

ESD5520 diesel generator governor automatic control
Phot
Description
The 5520 Series speed control unit is an all electronic device designed to control engine speed with fast and precise response transient load changes.
(5520E is designed for EFC series.)
Isochronous Operation/Steady Stability---- +/-0.25% or better
Supply----12 or 24 VDC Battery Systems(transient&reverse voltage protected)
Power Consumption----50 ma continuous plus acutator current
Maximum Actuator Current at 25celsius (77celsius F)----10 Amps continuous
Specification
Input | Supply | 12 or 24 VDC Battery System (Transient and Reverse Voltage) |
Polarity | Negative Ground (Case Isolated) | |
Power Consumption | 50 ma continuous plus actuator current | |
Actuator Current Range @ 25 | Min.2.5 Amps; Max. 10Amps continuous | |
PID | PID parameter is different with ESD5500 | |
Speed Sensor Signal | 0.5-120 Volts RMS | |
Performance | Isochronous Operation/Steady | ±0.25% or better |
Speed Range/Governor | 1K to 7.5K Hz continuous | |
Speed Drift with Temperature | ±1 Max | |
Idle Adjust CW | 60% of set speed | |
Idle Adjust CCW | Less than 1200 Hz. | |
Droop Range | 1-5% regulation | |
Droop Adj. Max. (K-L Jumpered) | 400 Hz., ±75Hz. Per 1.0A change | |
Droop Adj. Min. (K-L Jumpered) | 15Hz., ±6Hz. Per 1.0A change | |
Speed Trim Range | ±200 Hz | |
Remote Variable Speed Range | 500 - 7.5 Hz. Or any part there of | |
Terminal Sensitivity J | 100 Hz., ± 15Hz / Volt @ 5.0 K Impedance | |
Terminal Sensitivity L | 735 Hz., ±60 Hz / Volt @ 65 K Impedance | |
Terminal Sensitivity N | 148 Hz., ±10 Hz / Volt @ 1 Meg. Impedance | |
Terminal Sensitivity P | 10 VDC Supply @ 20 ma Max | |
Environmental | Ambient Operating Temperature | -40 to +85 Deg. C |
Relative Humidity | Up to 95% | |
All Surface Finishes | Fungus Proof and Corrosion Resitant | |
Reliability | Vibration | 1G at 20 to 100 Hz. |
Testing | 100% Functionally Tested |
Usage |
* Biogas Power Generation |
*Natural Gas Power |
*Field Engineering |
*Electric Power |
*Factory |
*Fire-fighting |
