Zoom Stereo Microscope--AmScope Supplies3.5X-180X Trinocular Inspection Microscope with Gooseneck LED Lights | Инструменты

Zoom Stereo Microscope--AmScope Supplies3.5X-180X Trinocular Inspection Microscope with Gooseneck LED Lights | Инструменты

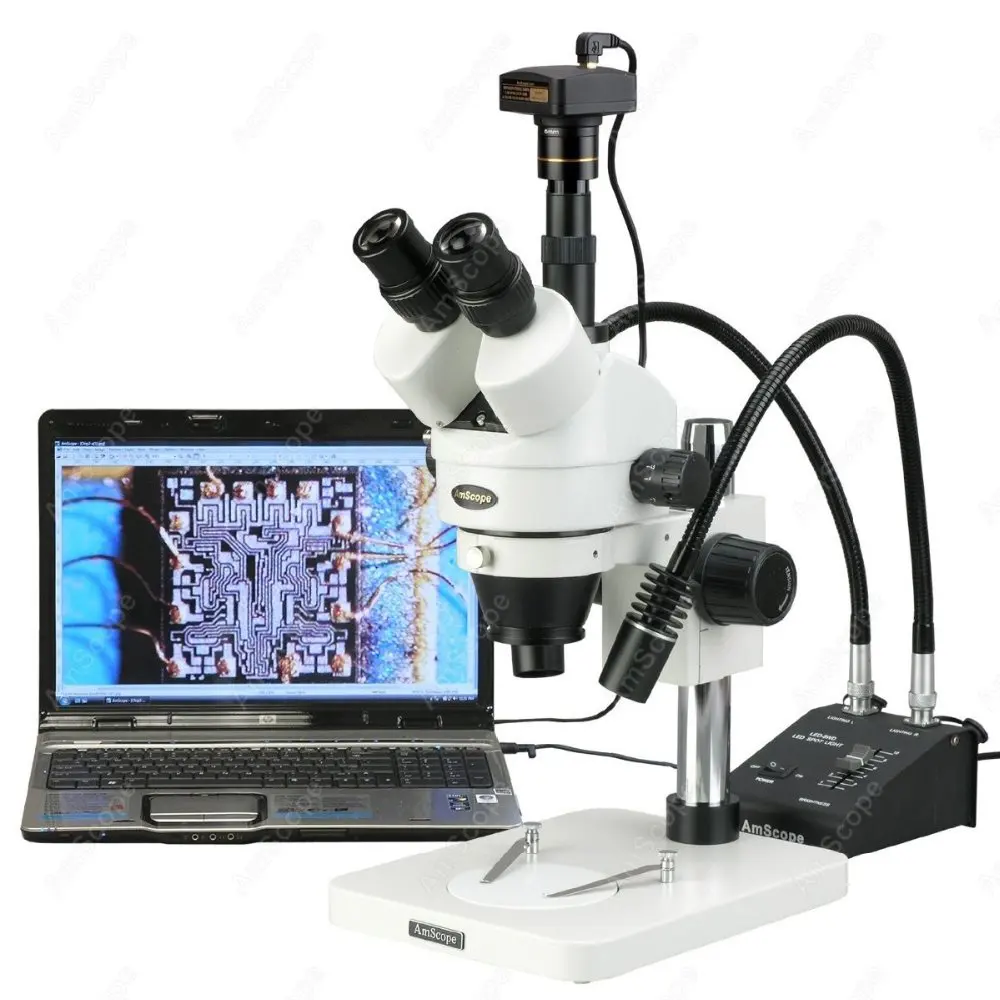

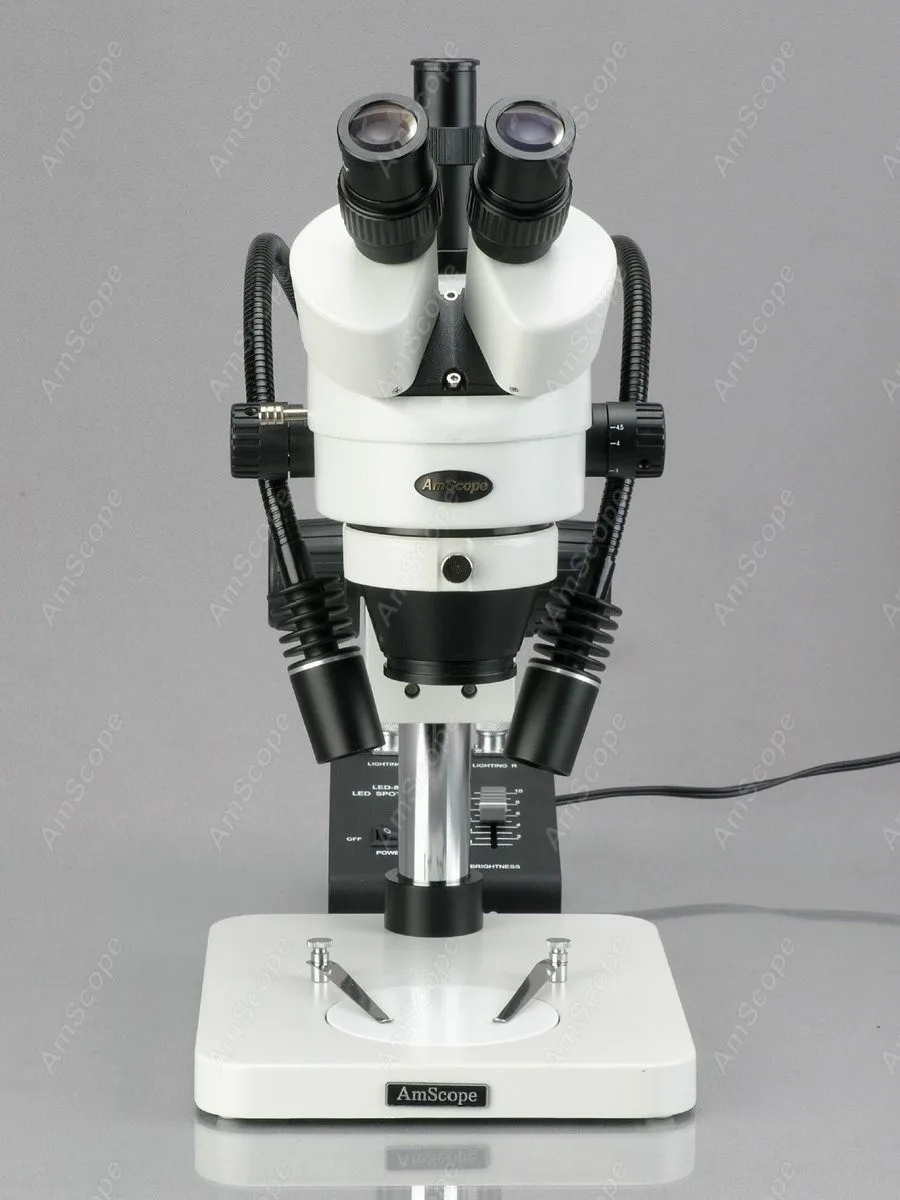

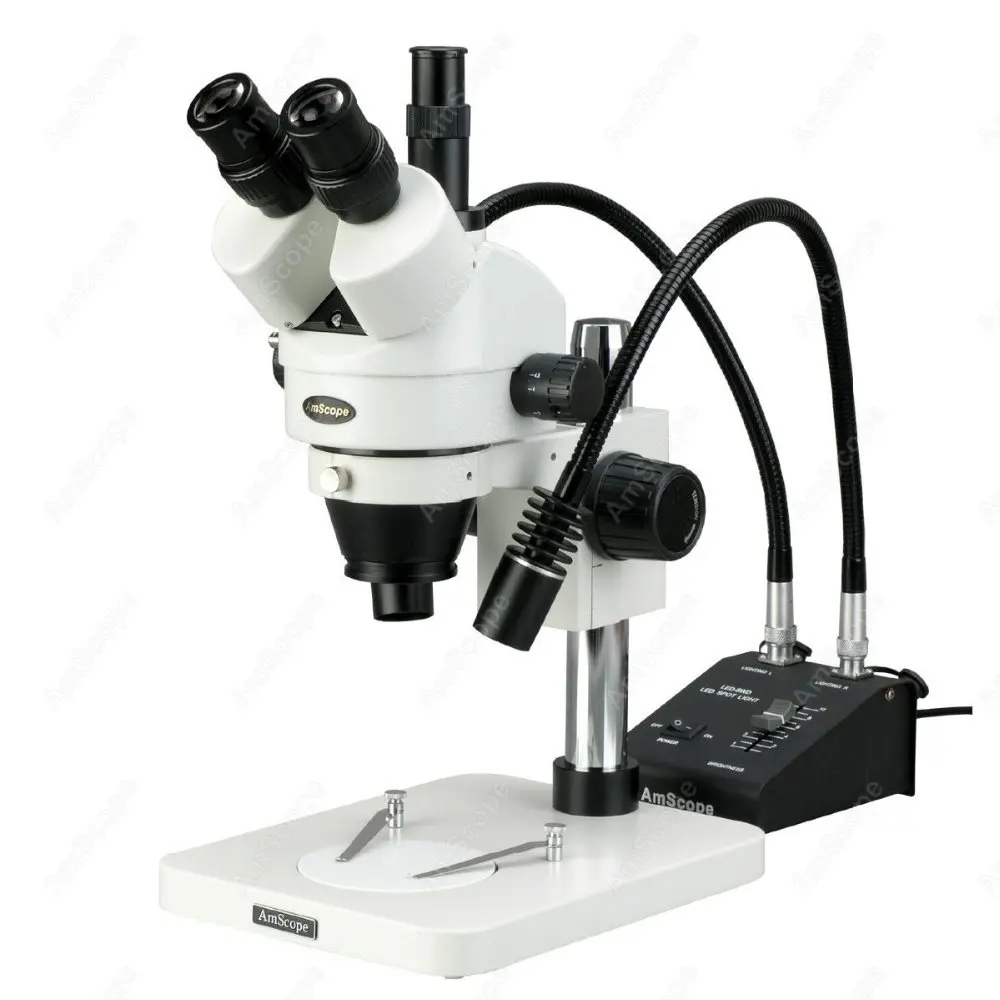

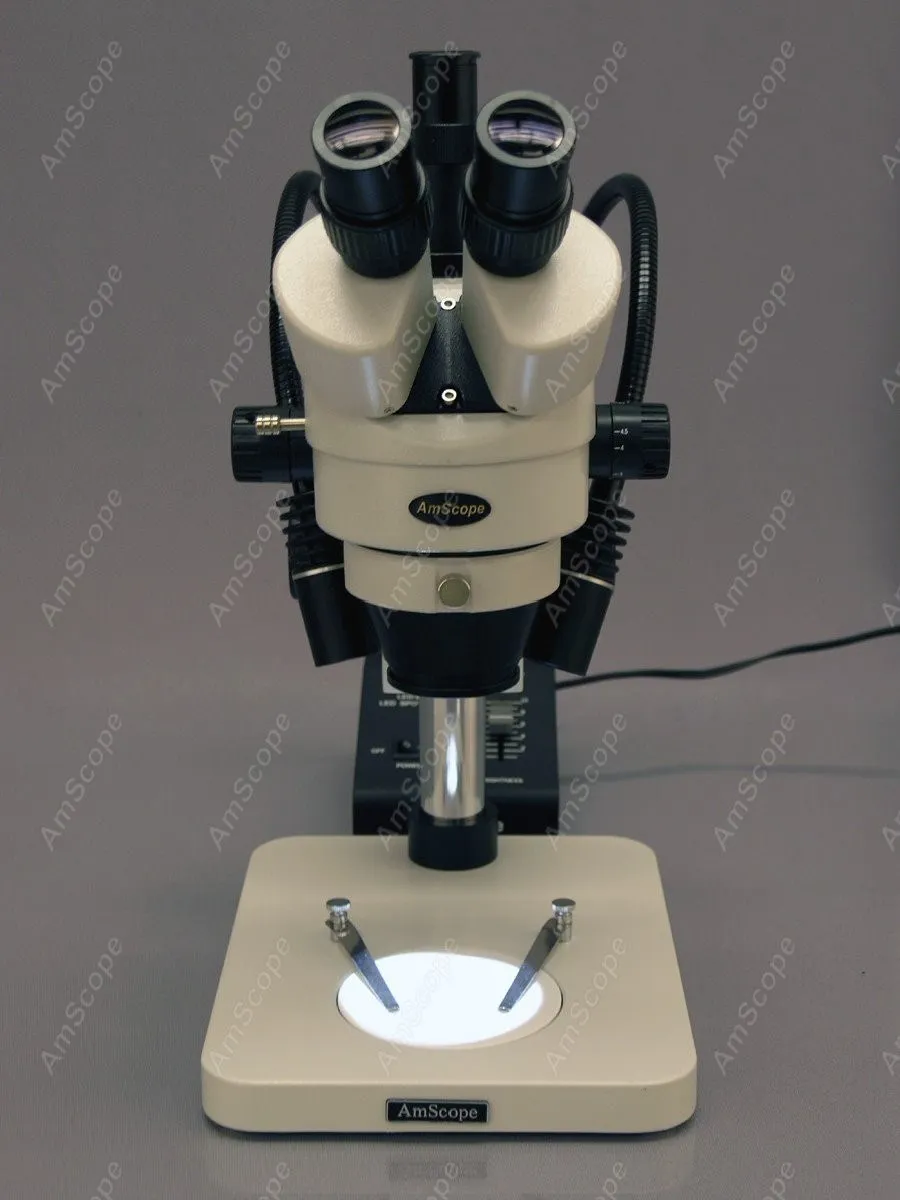

This trinocular stereo microscope comes with super widefield optics and a 6 Watt dual gooseneck LED illuminator. It offers 3.5X-180X zoom magnification power, long working distance, super large field of view and cool light illumination. The trinocular port uses the third port for the camera capabilities or a third party to view as well, giving you the remaining two ports to view your specimen. The LED gooseneck lights can be bent into various positions. The light source is a 85-265VAC/50-60Hz wide band voltage unit. The lamps are 3 Watt each (6 Watt in total) with fully adjustable intensity. This is an ideal microscopy package for industrial inspection. It is perfect for manufacturing engineers, lab technicians, circuit board inspectors, and anyone in electronic and semiconductor industries. It is brand new in a factory sealed box with a retail value of $2,100.

Features:

An excellent stereo inspection microscope with intensity-adjustable dual gooseneck LED lights
3.5X-180X super wide zoom magnification power
Powerful 6 Watt Variable Intensity LED Illuminator
Great for Precision Lighting
High resolution with great flatness and contrast, giving sharp and clear images
Trinocular head with 45 degree inclined 360 degree swiveling eye tubes
The trinocular port enables the easy use of camera capabilities
30mm super widefield high-eyepoint eyepieces with a 20mm field of view
Sharp stereo erect images with a wide field of view
Crystal clear original true color microscope images
Dual eye tubes with adjustable diopters
Large working distance
Sturdy metal table pillar stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included
Manufactured under ISO 9001 quality control standard
Five (5) year manufacturer warranty for microscope
Specifications:

Head: 360 degree rotatable 45 degree inclined trinocular
Eyepieces: 30mm super widefield high-eyepoint WH10X/20MM and WH20X/10MM
Barlow Lens: 0.5X and 2.0X
Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses
Diopter Adjustment: +/- 5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
Working Distance: 8" (200mm)

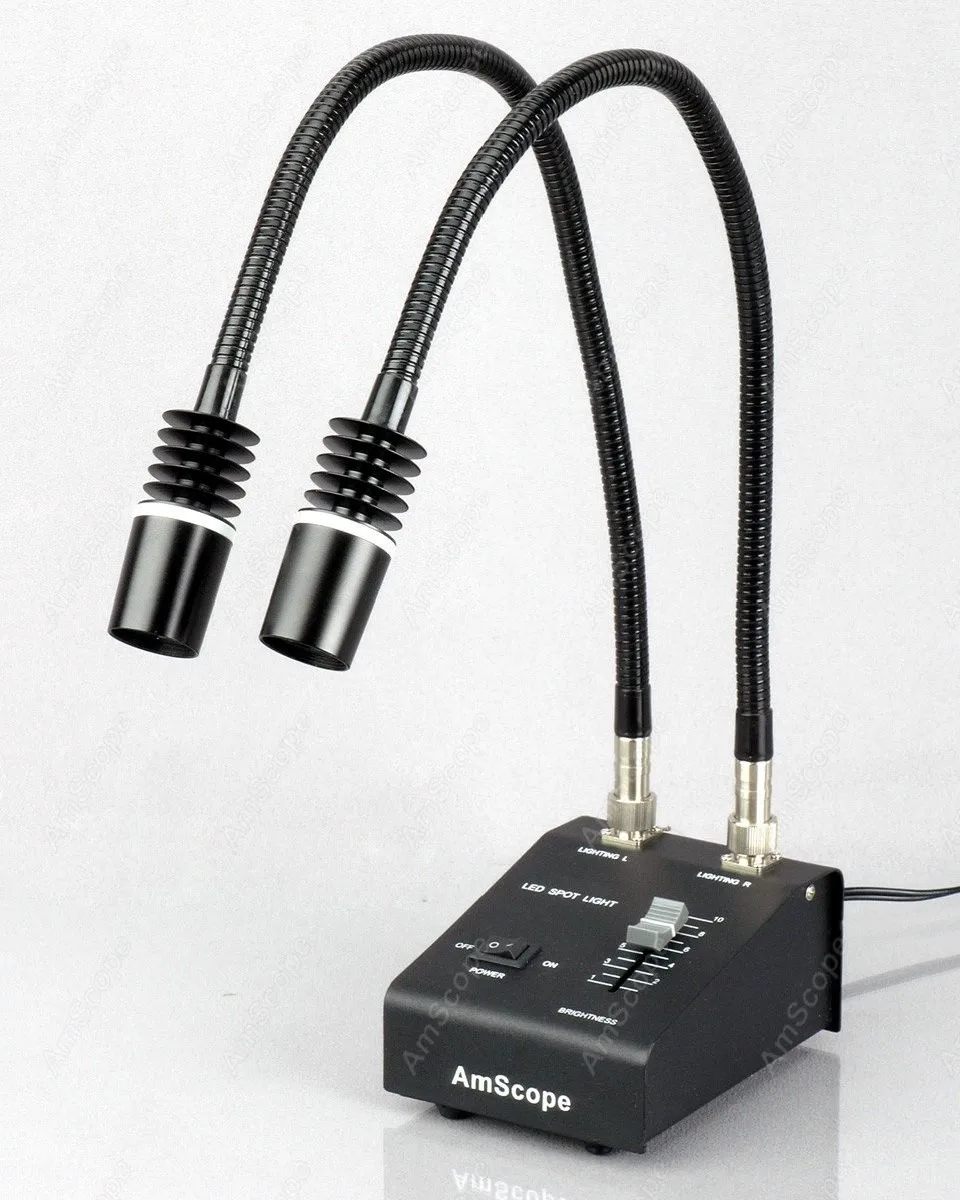

Illumination: 6 Watt dual gooseneck lights
Power Input: 110-240V, 50-60HZ, automatic switching
Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
Round Plate: 3-3/4" (95mm) in diameter
Accessories: Paired eye-caps
Packing List:

One Trinocular Stereo Zoom Head
One Pair of Super Widefield 10X Eyepieces
One Pair of Super Widefield 20X Eyepieces
One 0.5X Barlow Lens
One 2.0X Barlow Lens
One 6 Watt Dual Gooseneck LED Illuminator
One Pillar Table Stand
One Focusing Rack
One Round Plastic Plate
One Pair of Eye-Guards
One Pair of Clips
One Dust Cover
User's Manual
Package Dimension: 17" x 17" x 14.5"
Shipping Weight: 25 lbs
