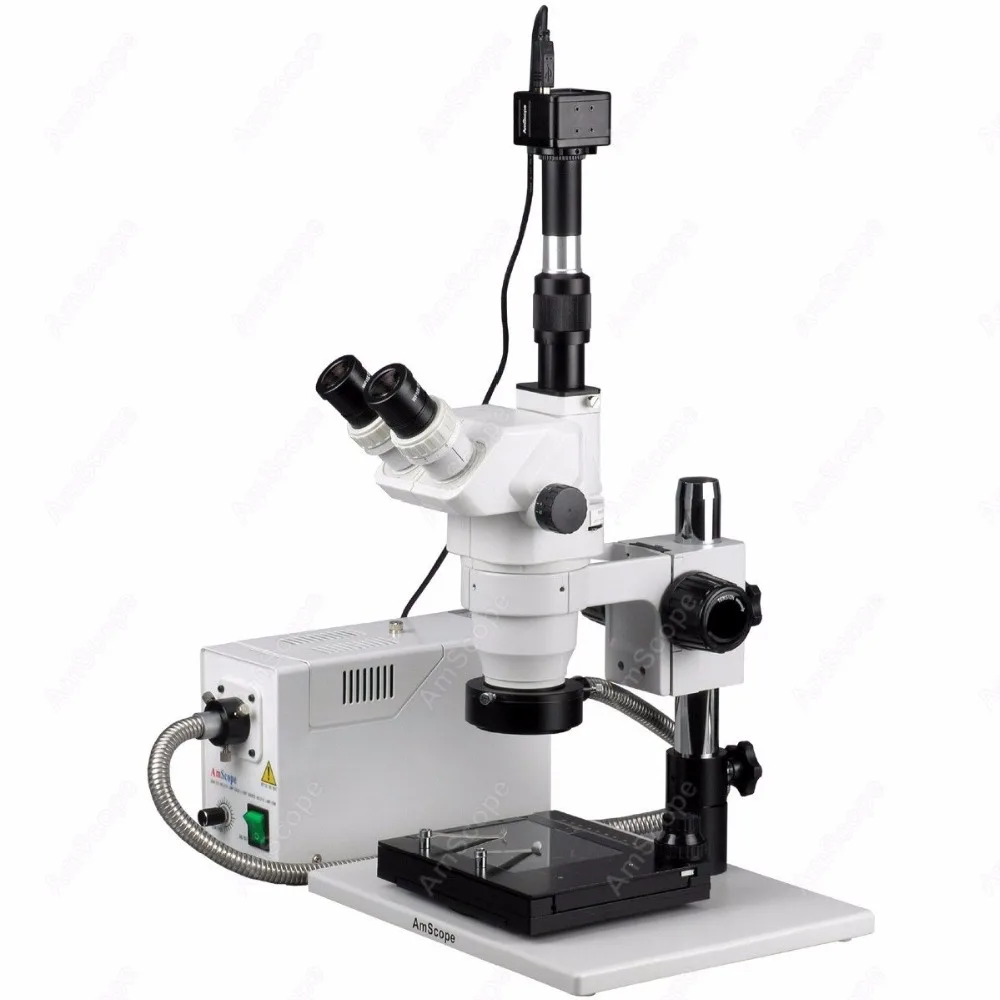

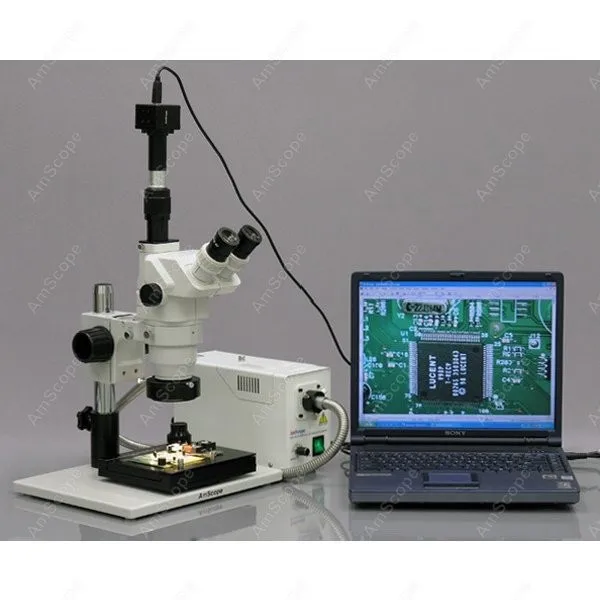

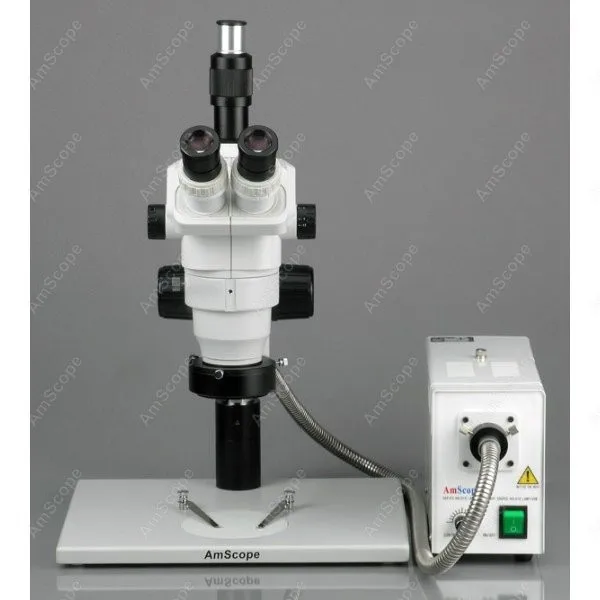

This is a turnkey package of an ultimate Industrial Inspection stereo microscopy system with extremely super widefield optics and contemporary design. It includes a trinocular 2X-225X stereo zoom microscope, a fiber optic ring illuminator, an X-Y gliding stage, and a 5MP high-resolution color USB digital camera. With 30mm extreme widefield high-eyepoint eyepieces and super widefield Barlow lenses, the microscope offers crystal clear sharp images, extremely large zoom magnification range (112:1) and very large working distance (14"). The fiber optic ring illuminator provides bright, even and cool illumination. The gliding stage enables a hand-free inspection process to place samples on the stage and move them in X, Y direction or both directions simultaneously.The digital camera captures still microscopy images, streams live videos on your computers, and is compatible with Windows XP/Vista/7/8, Mac OS X, and Linux. The 0.5X reduction lens included gives your computer screens the same field of view as your microscope's eyepiece. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), video recording, and measurement functions. Live video and still image capture can be set in different resolutions simultaneously. You can edit and process images in a manner similar to PhotoShop. This system is a perfect microscopy unit for industrial and/or biological laboratory applications. It is an ideal instrument for researchers, gemologists, manufacturing engineers, and anyone in semiconductor and electronic industries. It is brand new in box. Its retail value is more than $5,800.

Features:

• A great turnkey package of ultimate inspection microscopy system with 5MP USB Digital Camera.
• 2X-225X extremely large zoom magnification range
• 22mm extremely super widefield eyepieces
• Trinocular head with 45 degree inclined eye tubes
• Super high resolution with great flatness and contrast
• Extremely sharp and clear images
• 30mm SUPER widefield high-eyepoint eyepieces with 22 mm field of view
• Sharp stereo erect images over a wide field of view
• Crystal clear original true color microscope images
• Dual eye tubes with adjustable diopter
• Extremely large working distance 14" (350mm)
• Super large alloy stand with stain resistant enamel finish.
• Accurate alignment ensuring a fatigue-free long hour viewing
• Full optical glass elements
• Precise ground glass lenses
• Full metal chrome-plated mechanical components
• Adjustable interpupillary distance

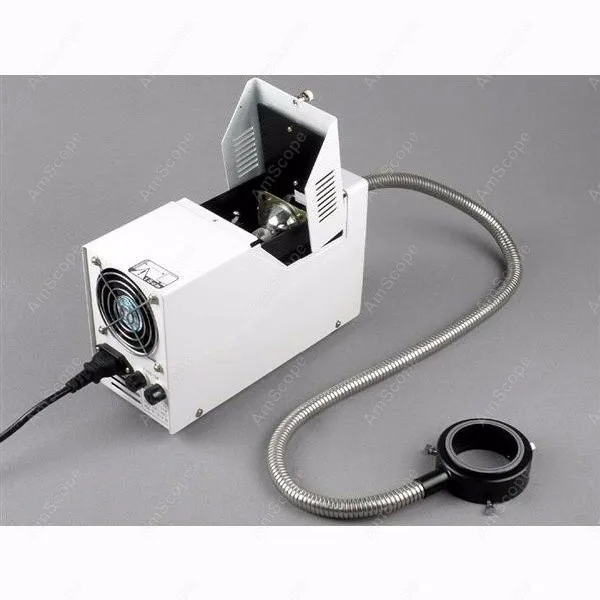

• Fiber optic ring light
• 150W variable-intensity light source
• High intensity 21V,150W halogen bulb
• Perfect even Quartz halogen illumination without heating
• Forced air cooling system
• 3200 degrees Kelvin lamp color temperature

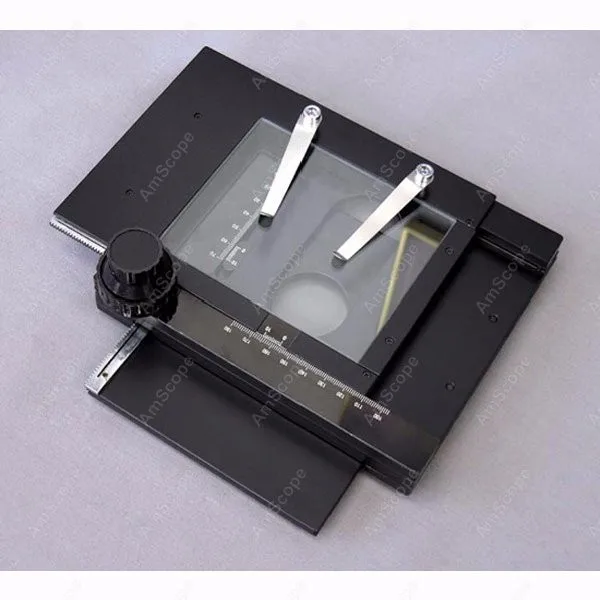

• X-Y gliding stage included for easy object control
• Rubber eye guards included
• One (1) year warranty for electrical accessories
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty



  Specifications:

• Head: 360 degree rotatable 45 degree inclined trinocular
• Eyepiece: 30mm super widefield high-eyepoint WH10X/22MM & WH25X/9MM
• Zoom Range: 0.2X-22.5X
• Diopter Adjustment: +/- 5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
• Working Distance: 14" (350mm)
• Field of View: 5-3/4" (145mm) in diameter
• Stand: 12.5"x10"x0.75" (320x260x20mm) solid cast steel base
• Light Source: 21V,150W halogen bulb
• Power Supply: 110V (220V version available)
• Accessories: paired eye-caps
• Shipping Weight: 60 lbs

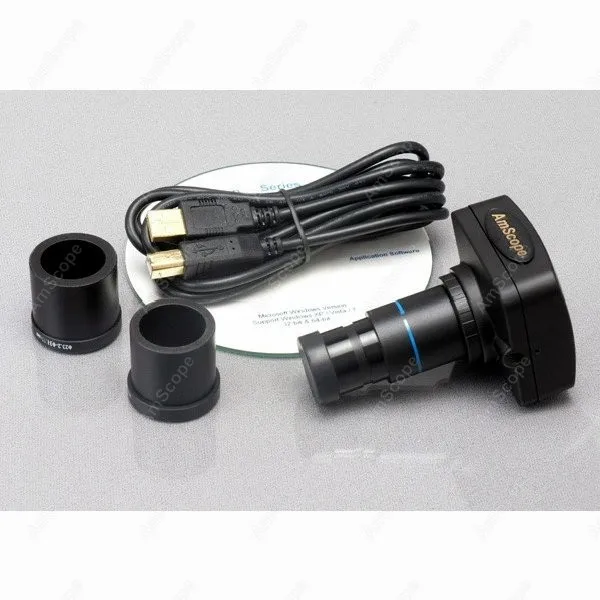

  Camera Specs:

• Sensor: Aptina MT9P001 CMOS (color)
• Sensor Size: 1/2.5" (5.70mm(H) x 4.28mm(V), diagonal 7.13mm)
• Resolution: 2592x1944 (approx.5,040,000 pixels)
• Reduction Lens: 0.5X
• Pixel Size: 3.2µm x 3.2µm
• G Sensitivity: 0.53v / lux-sec (550nm)
• Frame Rate: 60fps @640x480, 18fps @1280x960, 5fps @2592x1944
• Exposure: 0.21~2000ms, ROI Auto & Manual
• Operating System: Windows XP/Vista/7/8 (32 & 64 bit), Mac OS X, Linux
• PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, USB2.0 port
• Advanced software for Windows:
  - offers Stitching, EDF, video recording and measurement functions
  - conducts measurements for lengths, angles, arcs, areas and etc.
  - gives your computer screens the same field of view as your microscope's eyepiece
  - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
  - edit and process microscopy images in a manner similar to PhotoShop
  - live video and still image capture can be set in different resolutions simultaneously
• Life-time free software upgrades



  Packing List:

• One Trinocular Stereo Zoom Head
• Two Pairs of Super Widefield High-Eyepoint WF10X/22 and WF25X/9 Eyepieces
• Two Barlow Lenses, 0.3X and 0.5X extreme widefield
• One Super Large Pillar Stand
• One Focusing Rack
• One Pair of Eye-Guards
• One 150W Halogen Light Source
• One Fiber Optic Ring Light
• One X-Y Gliding Stage
• One 5MP USB2.0 Microscope Digital Camera with Reduction Lens
• Two Mounting Adapters
• One USB Cable
• One CD with Driver, Software and User's Instructions
• User's Manual for Microscope
