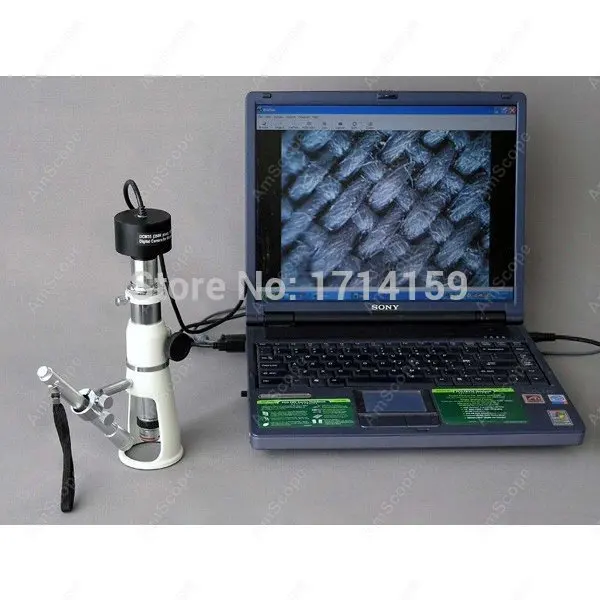

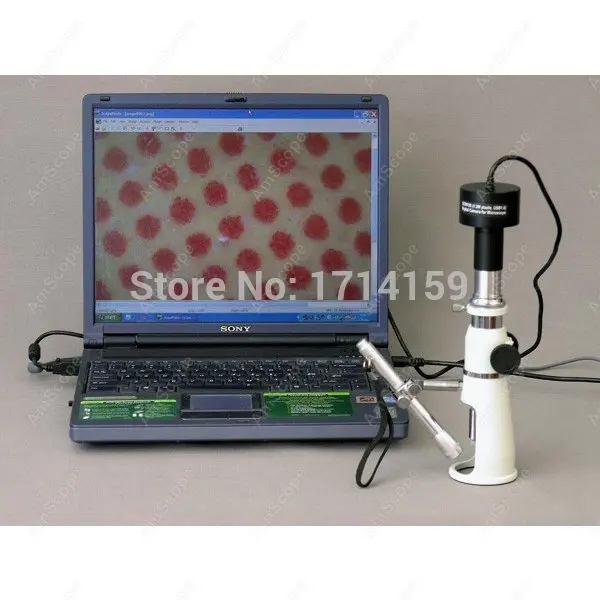

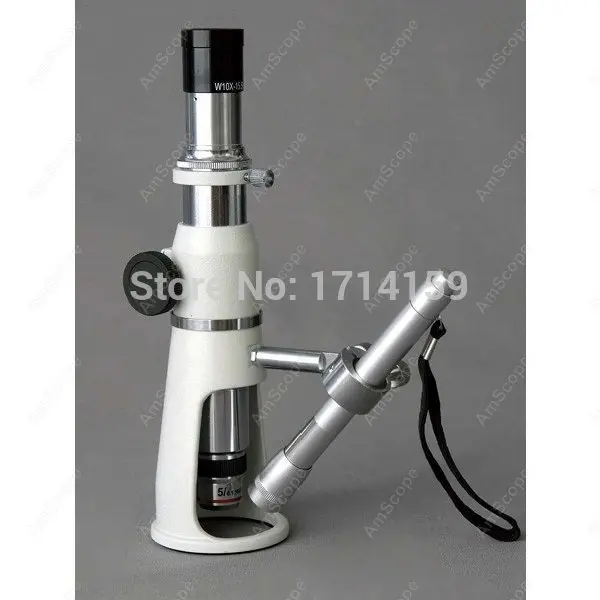

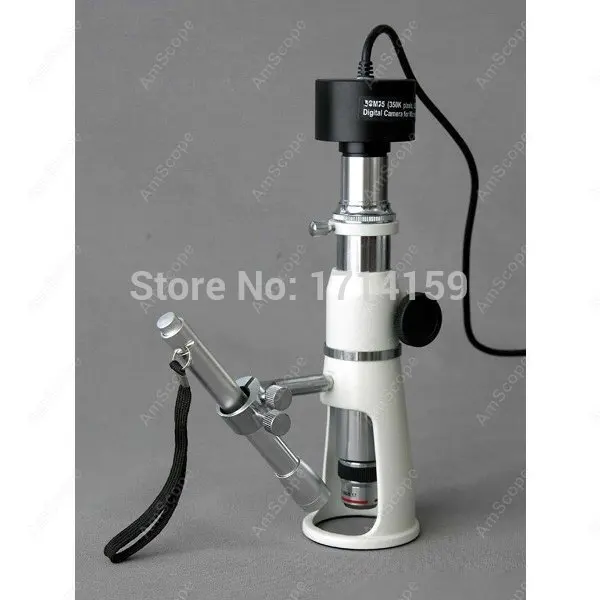

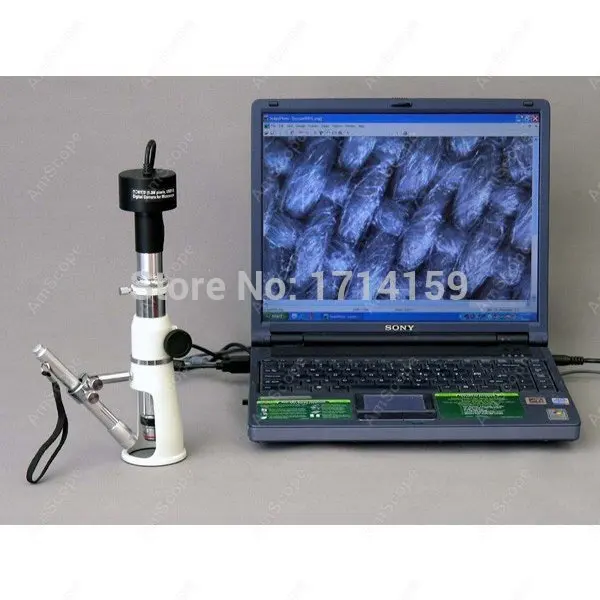

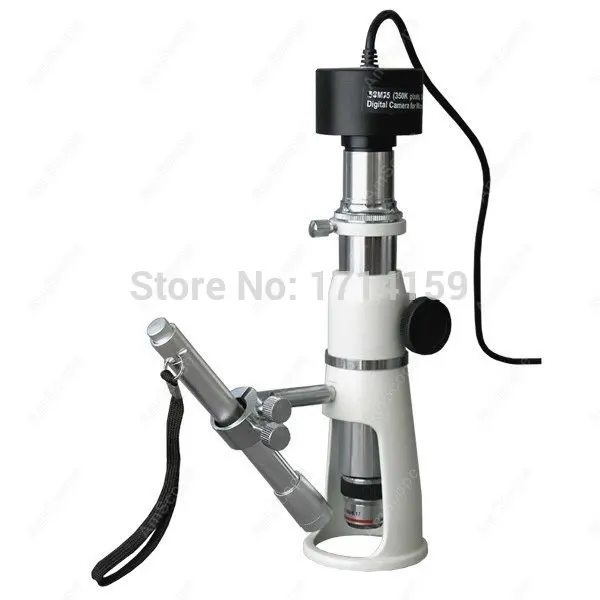

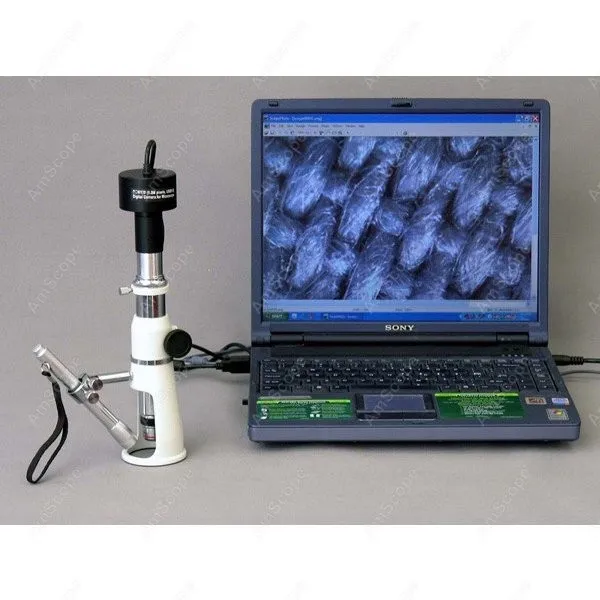

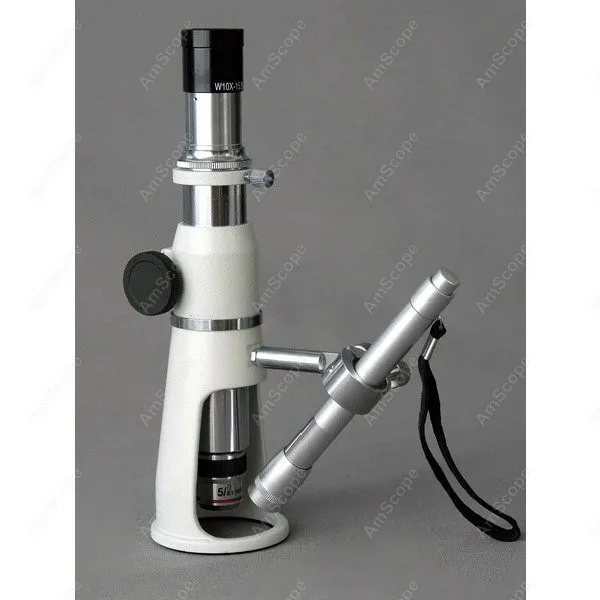

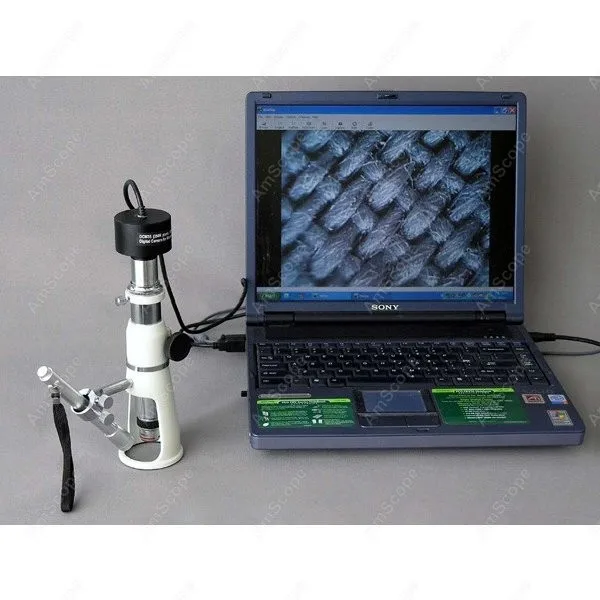

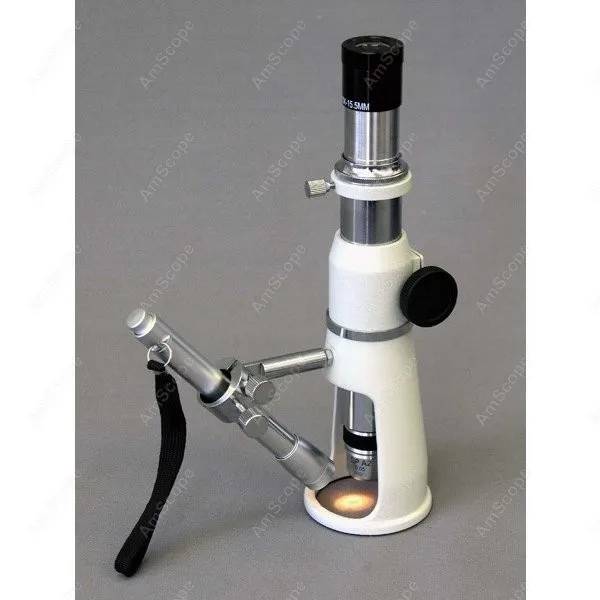

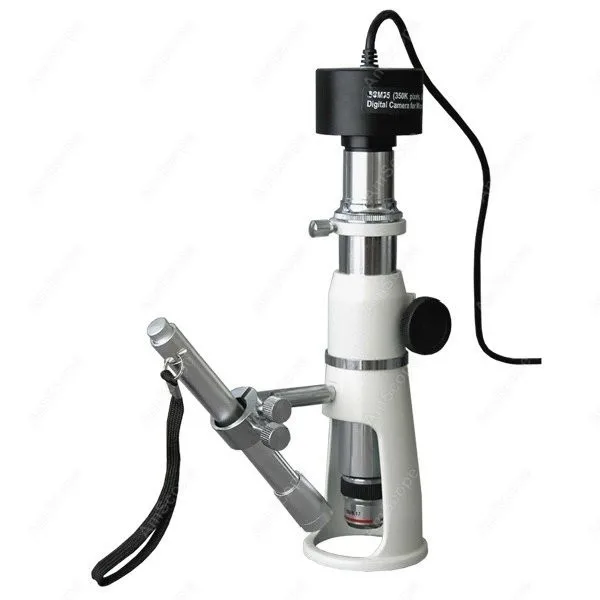

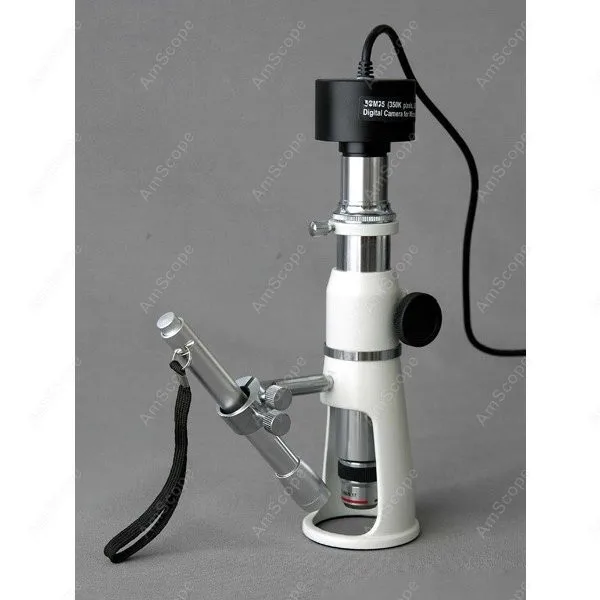

This shop measuring microscope offers 20X & 50X magnifications with 8MP digital camera. Combining compact design and precision optics, it is an ideal shop tool. This microscope has exceptional lens and gives clear images with flat field of view. WF10X eyepiece with direct reading reticle (no calibration required) shows metric scales and allows for precise measurement. Adjustable penlight makes it versatile. The digital camera captures still microscopy images, streams live videos on your computers, and is compatible with Windows XP/Vista/7/8, Mac OS X, and Linux. The 0.5X reduction lens included gives your computer screens the same field of view as your microscope's eyepiece. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), video recording, and measurement functions. Live video and still image capture can be set in different resolutions simultaneously. You can edit and process images in a manner similar to PhotoShop. This microscope system offers high quality clear images and unbeatable low price. Retail value is above $1,500.

Features :

• A shop measuring microscope with 8MP color USB digital image system!
• 20X and 50X magnification settings
• Built-in scale showing millimeters (0.1mm Graduation)
• Adjustable pen light
• Full metal body
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty

Specifications :

• Total Magnification: 20X & 50X
• Power of Eyepiece: 10X
• Power of Objectives: 2X & 5X
• Reading Graduation: 0.05mm and 0.02mm under 20X and 50X, respectively
• Field of View: 9mm (under 20X)
• Focusing Range: 30mm
• Diameter of Viewing Field: 17mm
• Reticle of Eyepiece: 0.1 micrometer
• Digital Camera Resolution: 640x480 Pixels
• Illumination System: pen lamp with two AA batteries
• Overall Size: 65mm (2-1/2") base diameter x 250mm (9-7/8") height

Camera Specs:

• Sensor: Aptina Special
• Sensor Size: 1/2.5" (5.451mm(H) x 4.088mm(V), diagonal 6.813mm)
• Resolution: 3264x2448 (approx.8,000,000 pixels)
• Reduction Lens: 0.5X
• Pixel Size: 1.67µm x 1.67µm
• G Sensitivity: 0.31v / lux-sec (550nm)
• Frame Rate: 27fps @800x600, 8fps @1600x1200, 1.9fps @3264x2448
• Exposure: 0.38~2000ms, ROI Auto & Manual
• Operating System: Windows XP/Vista/7/8 (32 & 64 bit), Mac OS X, Linux
• PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, USB2.0 port
• Advanced software for Windows:
  - offers Stitching, EDF, video recording and measurement functions
  - conducts measurements for lengths, angles, arcs, areas and etc.
  - gives your computer screens the same field of view as your microscope's eyepiece
  - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
  - edit and process microscopy images in a manner similar to PhotoShop
  - live video and still image capture can be set in different resolutions simultaneously
• Life-time free software upgrades

Shipping List :

• One Shop Microscope Body
• One Widefield 10X Eyepiece with Reticle Graduated in 100 Units
• One 2X Achromatic Objective
• One 5X Achromatic Objective
• One Pen Light
• One 8MP Color Digital Camera with Reduction Lens
• One CD with Software, Driver and Step-by-Step User's Instructions
• Two Camera Adapters
• One USB Cable
• Shipping Weight: 8 lbs
