Характеристики
WellnessModel:WS-JS108 860 Bar High pressure Portable frame Stainless steel Pneumatic hydro test pump bench for leakage testing |
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.47 руб. | 0.69 руб. | 0 руб. |
| Feb-18-2026 | 0.27 руб. | 0.30 руб. | 0 руб. |
| Jan-18-2026 | 0.90 руб. | 0.14 руб. | 0 руб. |
| Dec-18-2025 | 0.66 руб. | 0.54 руб. | 0 руб. |
| Nov-18-2025 | 0.70 руб. | 0.9 руб. | 0 руб. |
| Oct-18-2025 | 0.50 руб. | 0.87 руб. | 0 руб. |
| Sep-18-2025 | 0.9 руб. | 0.62 руб. | 0 руб. |
| Aug-18-2025 | 0.53 руб. | 0.7 руб. | 0 руб. |
| Jul-18-2025 | 0.84 руб. | 0.90 руб. | 0 руб. |
Описание товара
High quality model : WS-JS108 80Mpa High pressure pneumatic hydro test pump system
- Hydraulic Power Packs include WS-JS108 Model are complete hydraulic units ready for connection which are provided for generating operating pressures up to 86MPa.It is suitable for powering a variety of medium,such as oil, water or corrosive liquids.
- As the pressure will be generated by means of a pneumatically operated pump.The electric connection will not be necessary.
- To operate this system, the air driven liquid pump have to be equipped with the air control unit combined filter and water seperator, pressure-regulating valve,pressure control gauge as well as manual relieve valve.In this operation,the pump will be mounted to the stainless steel tank in the closed cabinet in a compact and space saving manner.Pressure gauges, valves and pressure regulators will be fitted on panel.
- The desired operating pressure can be attained by adjusting the driving air pressure.When the driving air pressure and the output pressure reach the balance,the pump stops filling pressure and the output pressure stays at the preset value.
- This hydraulic unit can be used for all kinds of pressure testing and test tools for research and test institutes or for other functions requiring a determined pressure.
- The configuration of the systems include :
-

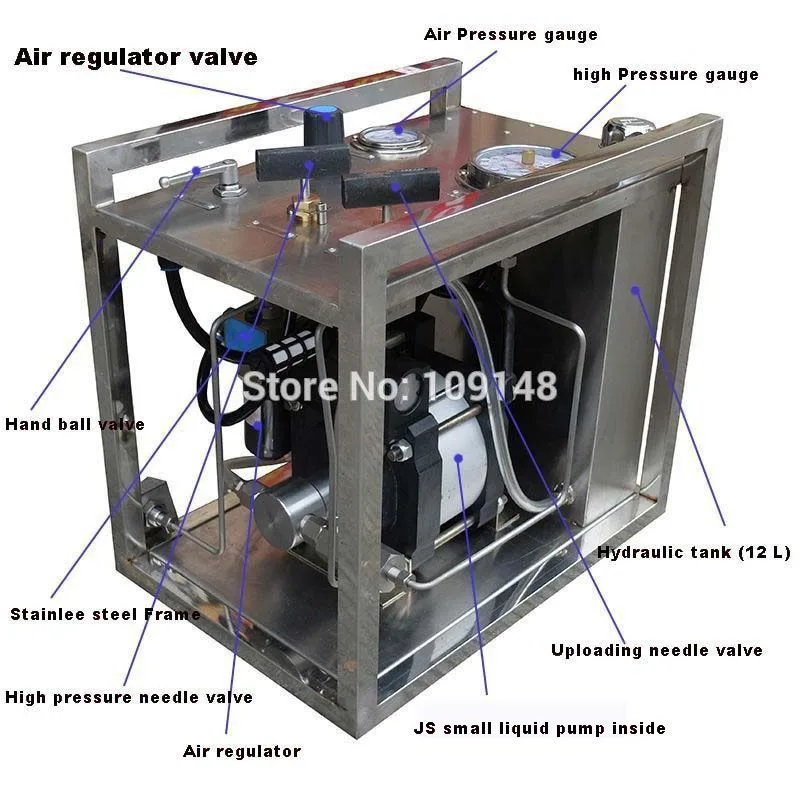

![LIQUID PUMP SYSTEM-3]()
- air pressure gauge , outlet pressure gauge ( On the first line of the Panel )
- The hand ball ( For control the on/ff the system ) , air pressure regulator valve ( for control the air pressure )
- Outlet needle valve ( for control the output of High pressure ) ,Uploading needle valve ( For releasing the high pressure ) ,it is on second line and also include 1 set JS108 air driven liquid pump , 12 Liters hydraulic tank inside of the cabinet and related pipelines
| Technical parameters Driven piston diameter is : 125 mm
JS108 model ,Maximum filling flow rate is around :1.52Liter per Min ,when pressure increase ,the flow rate comes down Specification of the JS108 Pump as bellow for reference ,this is also for Liquid system
|

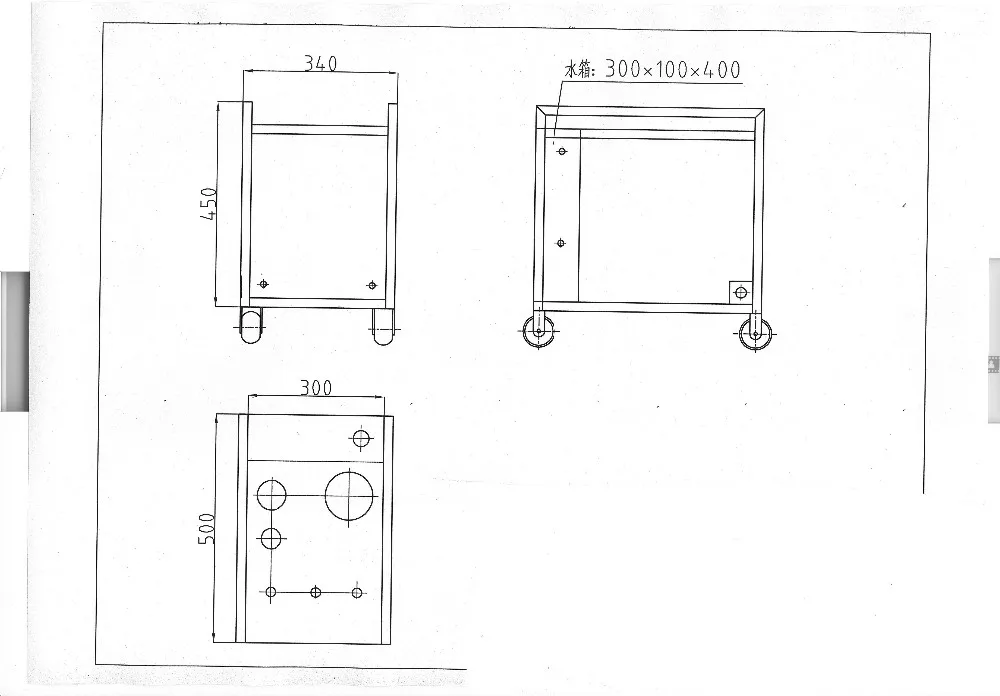

- Drawing of such stainless steel frame system
![layout drawing]()

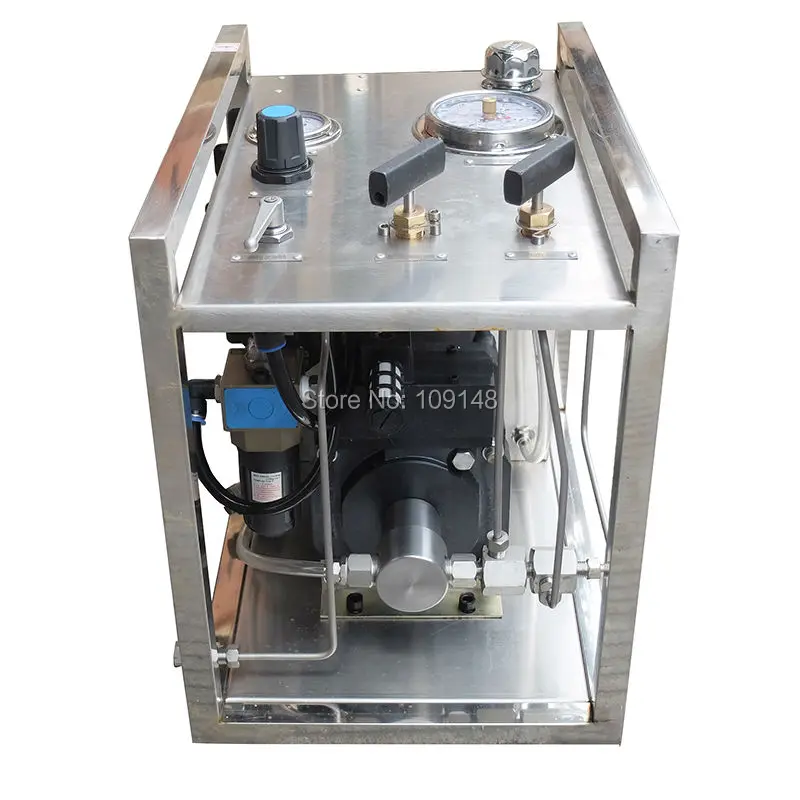

![WS-AH100-3]()
![WS-AH100-4]()
