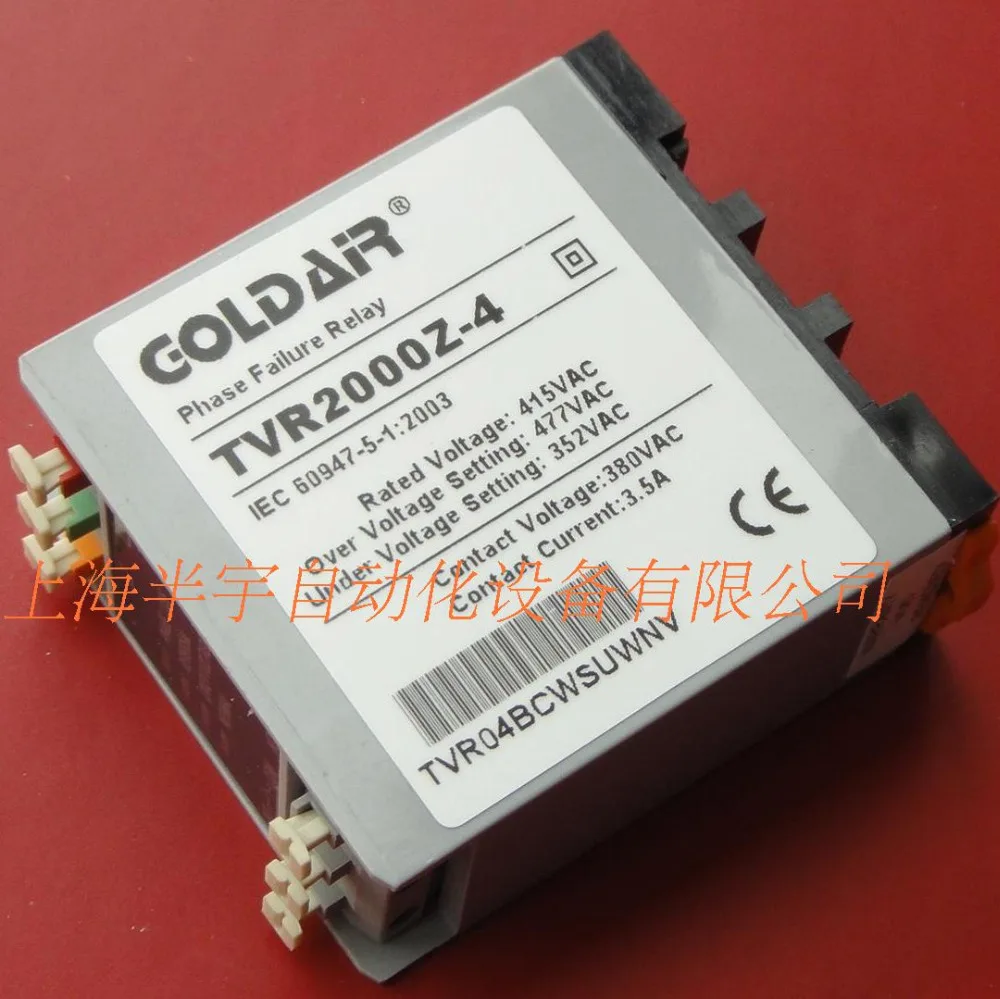

new original 415v three-phase power monitor over-voltage fault Phase sequence relay GOLDAIR TVR2000Z-4 | Обустройство дома

new original 415v three-phase power monitor over-voltage fault Phase sequence relay GOLDAIR TVR2000Z-4 | Обустройство дома

First, the technicaldata

1,three-phase powerprotectionfromthe current size ofthe monitorcircuit orload, impulseinfluencecurrentimbalancecurrent and loadproperties.

Capable offull performance,all-weatherlong-term work.Power≤1.0W;

2,this product meets theGB / T 14048.1-2000, GB14048.5-2001 eqv IEC60947-1: 1999;

3, EMCof this productcomplies with the radiointerferencecharacteristic measurement methodGB4343-1995and allowable values;

4, anti-surgevoltage5000VAC,isolation4000VAC;

5, the main circuit: Ratedvoltage(3Φ690VACless, 50 / 60Hzuniversal)

6,auxiliary circuits: 380VAC3.5A (16A), 110VDC3A (in bracketsoverweight)

Second, thesimpleselection table

1. Protection function.

Phase failure//wrong phase//over voltage//under voltage//three-phase voltage unbalance

1. Dynamic and static phase failure protection: If any phase of R, S, T is lost, the phase failure indicator will be on, and priority will be given to the relay.

2. Wrong and reverse phase protection: when R, S, T are out of phase, the reverse phase light will be on and the relay will act.

3. Over and under voltage protection: higher or lower than the voltage protection setting value, over and under voltage lights are on, and the relay is activated.

4. Three-phase voltage unbalance protection: the three-phase voltage unbalance rate is greater than 15%, the open-phase light is on, and priority is given to the relay.

5. Abnormal protection: When the input circuit itself has a phase failure or reverse phase fault, the protector will not act when it is powered on.

2. Action time

Protection item Operating time Operating conditions

Dynamic and static phase failure Less than 1S phase failure

Reverse phase Less than 0.1s reverse phase

Undervoltage Less than 8s, the operating voltage is lower than the set voltage value

Over voltage Less than 15s, the operating voltage is higher than the set voltage value

Three-phase voltage unbalance is less than 1.5s, voltage unbalance rate is greater than 15%

Abnormal protection There is a fault in the input power supply, and the protector will not act after power-on

Three, technical data

1. The three-phase power monitor is not affected by the current size of the line or load, the impact current, the unbalanced current and the nature of the load.

It can work for a long time with full performance and full climate. Power consumption is not more than 1.0W;

2. Anti-surge voltage 5000VAC, isolation 4000VAC;

3. Main circuit: rated voltage (below 3Φ690V AC, 50/60Hz)

4. Working temperature@maximum voltage, 50Hz: -20...+60°C, R is less than 95%

5. Auxiliary circuit:

Rated working current: 250VAC 2.5A, 110VDC 3A

Rated heating current: 5A

Four, simple selection table

model

Rated voltage

(VAC)

Overvoltage setting

(VAC)

Undervoltage setting

(VAC)

Output specifications

Remarks

TVR2000Z(C)-1

380

456±6

304±5

TVR2000Z

Contact voltage: 380V

Contact current: 3.5A

TVR2000C

Contact voltage: 380V

Contact current: 16.0A

Heavy Duty / Over Heavy Duty

TVR2000Z(C)-2

220

264±5

176±4

TVR2000Z(C)-3

440

528±9

352±8

TVR2000Z(C)-4

415

498±8

332±7

TVR2000Z(C)-5

400

480±7

320±6

TVR2000Z(C)-6

460

552±9

368±8

TVR2000Z(C)-8

660/690

20%

-20%

TVR2000Z(C)-9

480

576±9

384±8

TVR2000Z(C)-X

Customer Agreement

Customer Agreement

Customer Agreement

TVR2000Z(C)-NQ(LL)

85~150

No over-voltage and under-voltage protection functions, other functions are the same as above

TVR2000Z(C)-NQ(L)

160~260

No over-voltage and under-voltage protection functions, other functions are the same as above

TVR2000Z(C)-NQ(M)

300~500

No over-voltage and under-voltage protection functions, other functions are the same as above

TVR2000Z(C)-NQ(H)

500~700

No over-voltage and under-voltage protection functions, other functions are the same as above

Ui− U max

Note: Three-phase unbalance rate × 9± 1.5% protection action, 7± 1.5% reset

U

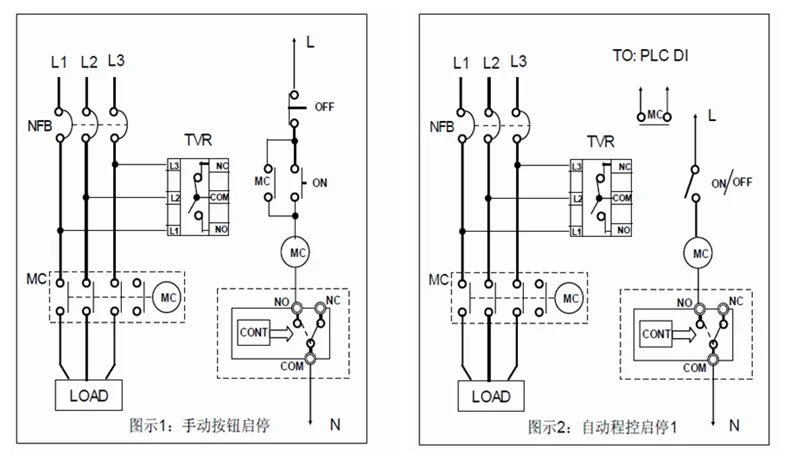

Five, wiring reference diagram
