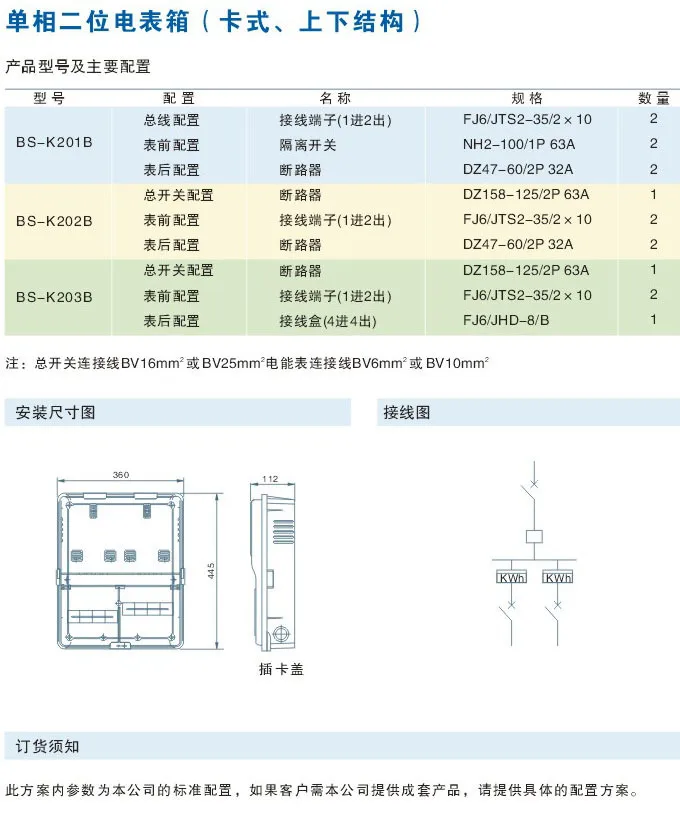

Shelf two epitopes smart meter box RXM2 single phase plug-transparent |

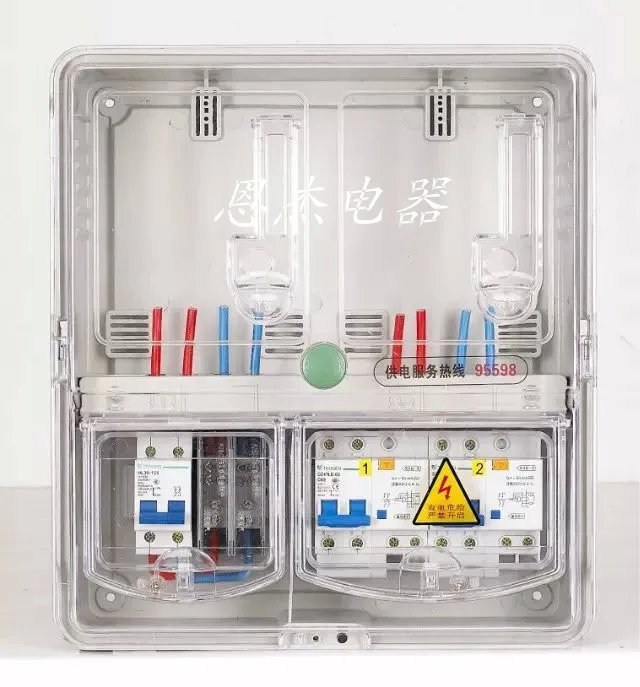

Meter box for the hanging and embedded power meter box, suitable for residential and commercial housing to more than 1 meter metering users, meter box there are about structure, about structure, assembly, single doors and other structures, the master switch mounted on the left door, qualifying households switch mounted on the lower right door, easy to operate.

Transparent meter boxElectricity metering device fully enclosed management. The main measure is a closed-loop measurement and prevent tampering with good effect. Products more than ten years of field operation test and repeatedly improved, and its technical performance has reached GB17466-1998National standards, full compliance with national3CSafety requirements, to fully meet the technical requirements for the use of all domestic sectors.

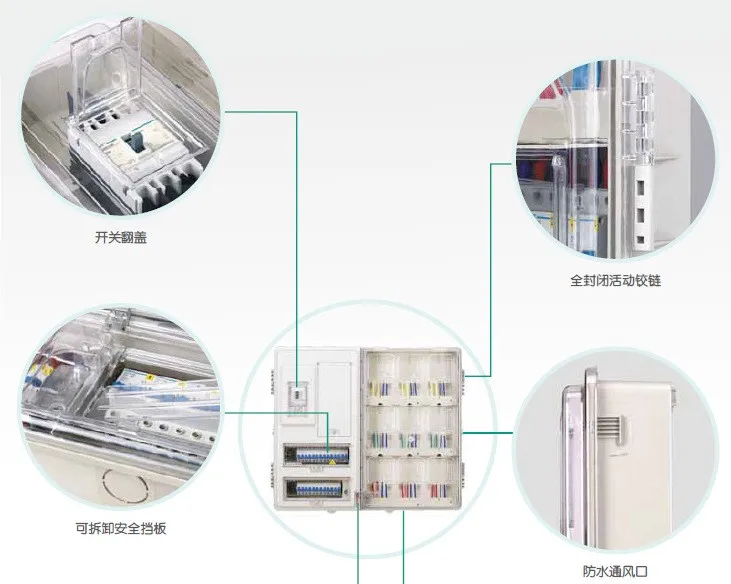

Structure and composition

Meter box overall style novel, simplicity, good looks, easy installation, functional and practical. Rugged transparent, reasonable structure and novel layout, compact good sealing performance. Users can be freely composed according to the site need to install the program in different configurations.

1.Overall structure:Meter box and wiring the components may look, there are economic Simple and full-featured, functional requirements to meet the basic anti-tampering.

2.Switch box:Can be installed into the line isolation switch and air switch. Clamshell design, customers can open space to operate, and can be locked. Box equipped with double screw terminals.

Main ingredients

Imported corrosion-resistant, high temperature, anti-aging, impact resistance, flame retardant, transparent polycarbonate material injection molding, the thickness2.5(mm)the above. Base is made of fire-retardant, anti-aging, corrosion resistance, enhanced tolerance and strong outsideABSEngineering plastics.

Electrical box configuration

1.Line management box can be installed by MCCB design and wiring.

2.Front line metering box with a table isolating switch, circuit breaker switch with rear outlet(With shunt trip)A single-phase meter box set single-phase two-pole switching.

3.Wiring: According to the switching capacity, the use of6-10mmSingle strandBVHard plastic copper wire, leaving sufficient margin to meet the needs of the scene loaded table. Case features a ground terminal block, through a multi-strand copper wire grounded.
