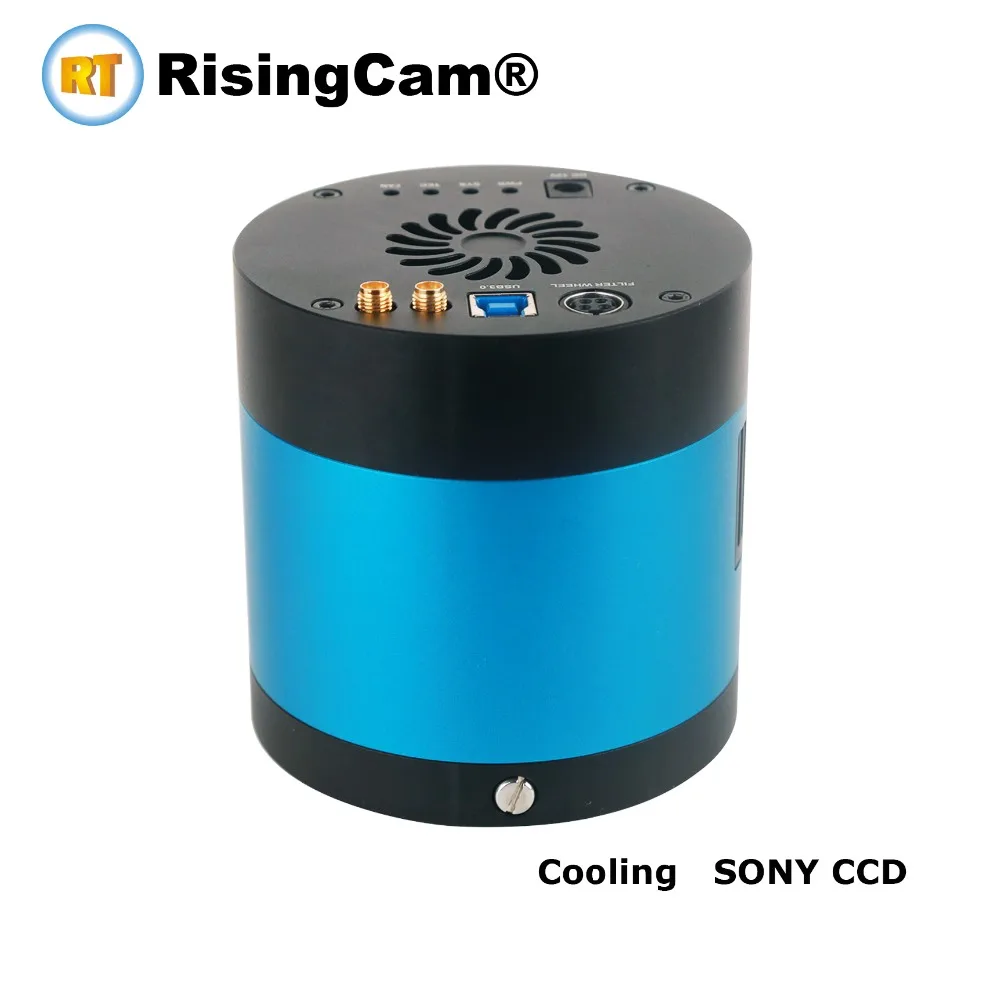

1.4MP USB3.0 SONY ICX285AQA CCD sensor cooling fluorescence microscope CCD Camera with temperature controlled

Feature

Standard C-Mount camera with SONY ExView HAD CCD II sensor ICX285AQA resolution 1.4Mp, Color sensor;

Two-stage TE-cooling with controllable electric fan;

Working temperature can be regulated to specified temperature;

Smart structure to assure the heat radiation efficiency and avoid the moisture problem;

Up to 40 degrees temperature drop ensures high quality image with low noise;

Up to 1 hour long time exposure;

USB3.0 5Gbit/second interface ensuring high speed data transmission;

Ultra-FineTM color engine with perfect color reproduction capability;

With advanced video & image processing application RisingView;

Instruction

RisingTech MTR3CCD camera is an Microscope Temterature Regulated USB3.0 CCD camera and it adopts Sony Exview HAD CCD sensor as the image-picking device.

Sony Exview HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor.

MTR3CCD comes with advanced video & image processing application RisingView;

The MTR3CCD can be widely used in low light environment and microscope fluorescence image capture and anaysis.

MTR3 CCDcamera adopts Sony Exview HAD CCD II sensor as the image-picking device               two-stage peltiercooling imaging chip to -40C degree below ambient.

Working temperature can be regulated to specified temperature in 5 minutes;

This will greatly increase the signal to noise ratio and decrease the image noise.

Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem.

Electric fan is used to increase the heat radiation speed.

USB3.0 is used as the data transfer interface to increase the frame rate.

MTR3CCDcomes with advanced video & image processing application RisingView; Support both video and trigger modes

Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The MTR3CCDcan be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy application.

Sony Exview HAD CCD

Excellent Sensitivity Including the Near IR
Excellent Image Quality
Exceptional Dynamic Range
Minimal Motion Blur For Sharp images at Higher Shutter Speeds

Sony EXview HAD CCD technology increases sensitivity and compared to other CCD, offers improved quantum efficiency, reduced smear, and increased sensitivity, including into the near infrared.

The EXview HAD CCD II is an evolved version of the well known EXview HAD CCD technology further increasing sensitivity as well as extending higher sensitivity into the near-IR range.

Specification

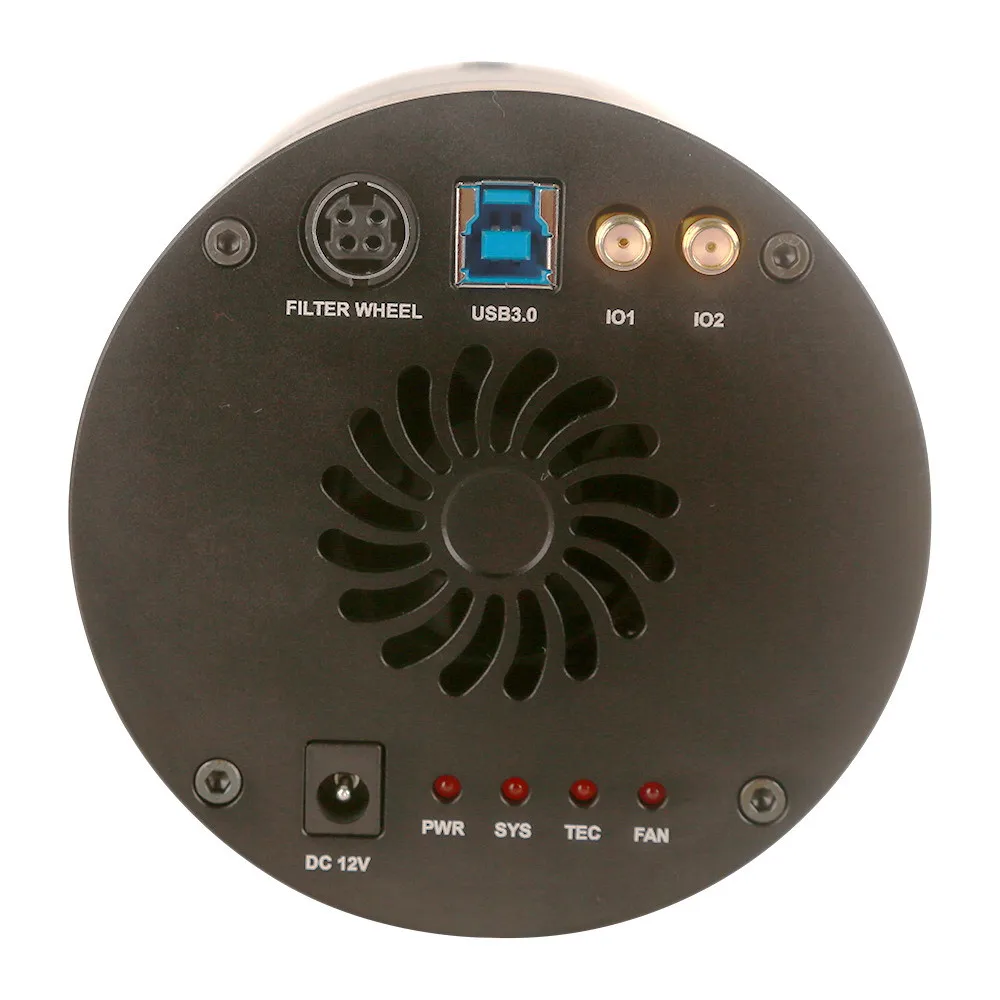

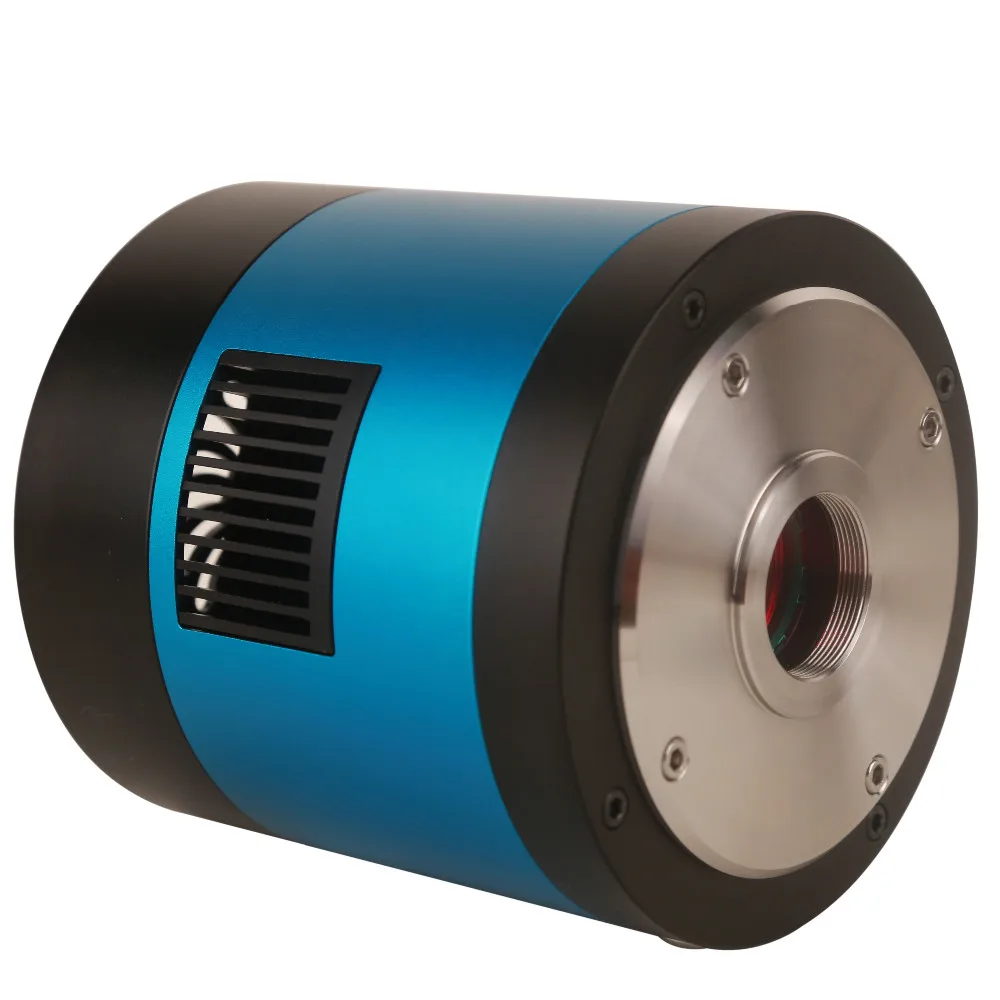

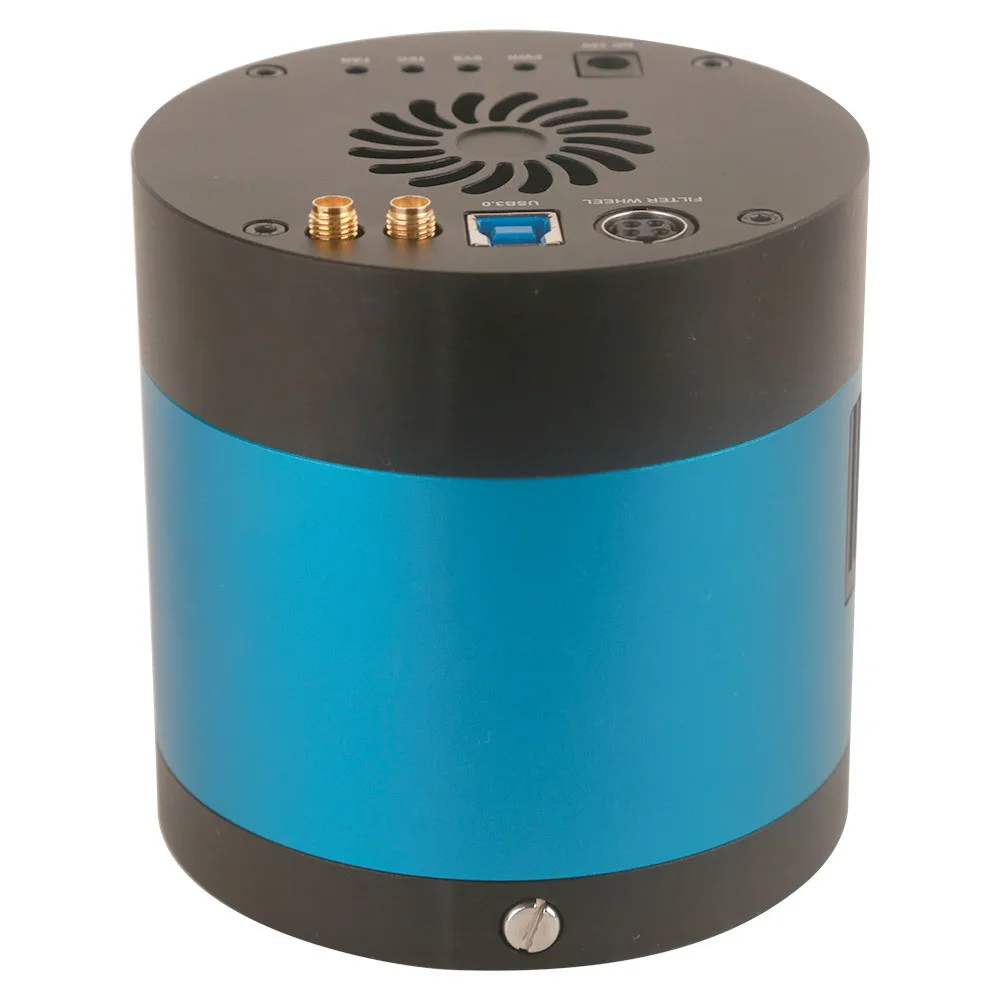

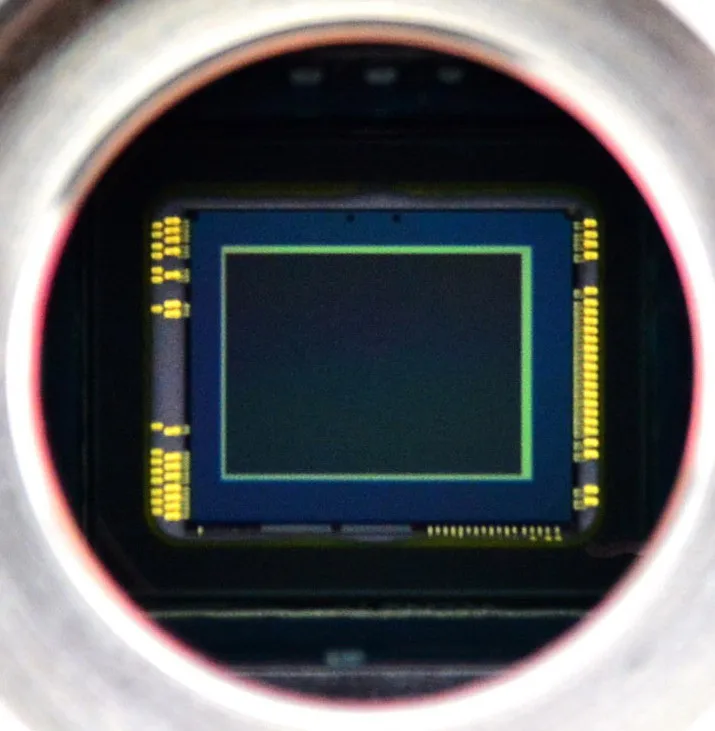

Detailed Picture

Dimensions

The MTR3CCD Series USB3.0 CCD Camera body, made from tough, alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Sample Image

Human Cell Mucus Membrane

Dog squamous Epitheblium

Daphina

Earthworm

Fluorescence Image sample picture

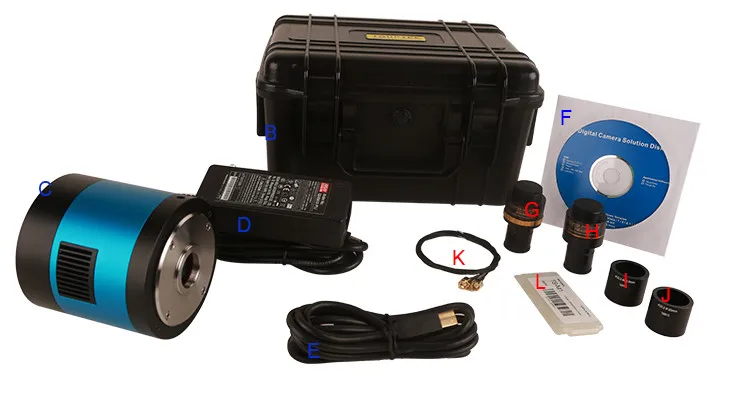

Packing
