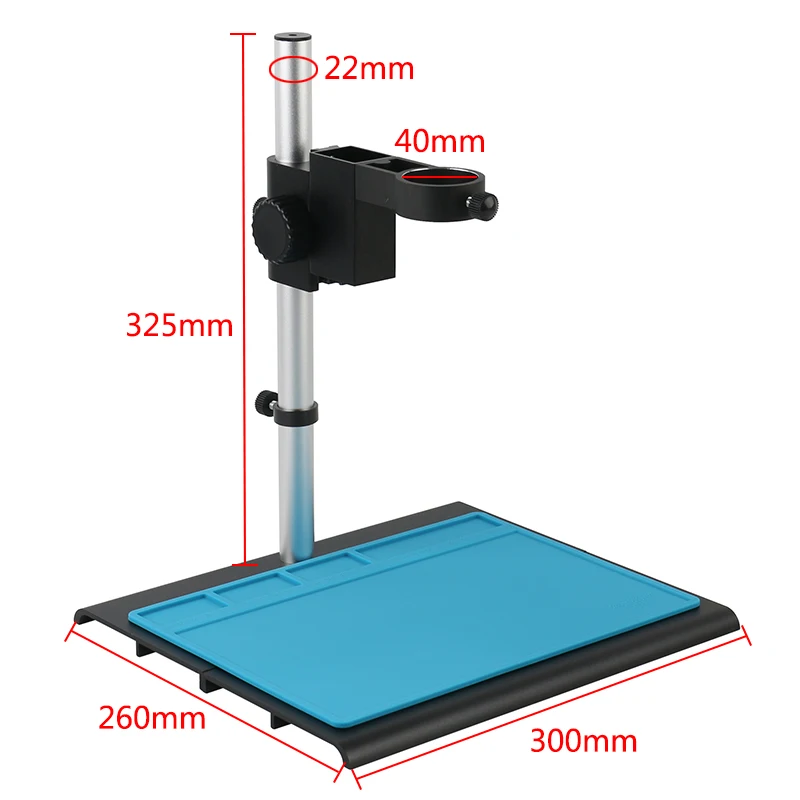

Регулируемый держатель объектива 40 мм из алюминиевого сплава для промышленного
3 533,46 - 4 054,56 руб.
100 шт./компл. микроскоп шлепанцы без задника с открытыми пальцами биологической
2 102,31 руб.
Микроскопы с подсветкой 60 светодиодов гибкий Регулируемый светодиодный
3 088,51 руб.
LeeTun DIV 0 1 мм окуляр микрометр для стерео микроскопа сетка вертикальная линия
Конденсатор диафрагмы диаметром 1 5-37 мм для микроскопа | Инструменты
1 931,40 руб.
Адаптер для микроскопа 0.8X совместимый с микроскопами Zeiss | Инструменты
10 383,10 руб.
Стеклянный микроскоп 11/25/50/91 шт. | Инструменты
723,61 - 2 972,49 руб.
Amada Optics Store
Магазина Amada Optics Store работает с 25.11.2015. его рейтинг составлет 98.37 баллов из 100. В избранное добавили 2929 покупателя. Средний рейтинг торваров продавца 4.9 в продаже представленно 767 наименований товаров, успешно доставлено 996 заказов. 123 покупателей оставили отзывы о продавце.
Характеристики
UCMOS 3 1 м цифровая камера образовательный микроскоп s USB2.0 | Инструменты
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.92 руб. | 0.81 руб. | 0 руб. |
| Feb-18-2026 | 0.71 руб. | 0.6 руб. | 0 руб. |
| Jan-18-2026 | 0.97 руб. | 0.10 руб. | 0 руб. |
| Dec-18-2025 | 0.30 руб. | 0.56 руб. | 0 руб. |
| Nov-18-2025 | 0.31 руб. | 0.31 руб. | 0 руб. |
| Oct-18-2025 | 0.60 руб. | 0.63 руб. | 0 руб. |
| Sep-18-2025 | 0.48 руб. | 0.87 руб. | 0 руб. |
| Aug-18-2025 | 0.26 руб. | 0.91 руб. | 0 руб. |
| Jul-18-2025 | 0.57 руб. | 0.56 руб. | 0 руб. |
Описание товара
UCMOS Series C-mount USB2.0 CMOS Camera
UCMOS Basic Characteristic
UCMOS is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.
UCMOS hardware resolutions ranges from 0.35M to 14M and comes with the Integrated zinc aluminum alloy compact housing. UCMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The UCMOS can be widely used in bright field light environment and microscope image capture and analysis with moderate frame rate.
The basic characteristic of UCMOS cameras are as follows:
1） Standard C-Mount with Aptina CMOS sensor;
2） With hardware resolution among 0.35M to 14M;
3） Integrated zinc aluminum alloy housing;
4） USB2.0 interface ensuring high speed data transmission;
5） Ultra-FineTM color engine with perfect color reproduction capability;
6） With advanced video & image processing application ToupView;
7） Providing Windows/Linux/Mac OS multiple platforms SDK;
8） Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
UCMOS Datasheet
| Order Code |
Sensor & Size(mm) |
Pixel(μm) |
G Responsivity Dynamic range SNRmax |
FPS/Resolution |
Binning |
Exposure |
| UCMOS03100KPA |
3.1M/MT9T001(C) |
3.2x3.2 |
1.0 V/lux-sec 61dB 43dB |
8@2048x1536 |
1x1, 2x2, 3x3 |
0.244ms~2000ms |
C: Color; M: Monochrome;
| Other Specification for UCMOS Camera |
|
| Spectral Range |
380-650nm (with IR-cut Filter) |
| White Balance |
ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
| Color Technique |
Ultra-FineTM Color Engine/NA for Monochromatic Sensor |
| Capture/Control API |
Native C/C++, C#/VB.NET, DirectShow, Twain and Labview |
| Recording System |
Still Picture and Movie |
| Cooling System* |
Natural |
| Operating Environment |
|
| Operating Temperature(in Centidegree) |
-10~ 50 |
| Storage Temperature(in Centidegree) |
-20~ 60 |
| Operating Humidity |
30~80%RH |
| Storage Humidity |
10~60%RH |
| Power Supply |
DC 5V over PC USB Port |
| Software Environment |
|
| Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
| PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory:2GB or More |
|
| USB Port:USB2.0 High-speed Port |
|
| Display:17” or Larger |
|
| CD-ROM |
|
Dimension of UCMOS
The UCMOS body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
Packing Information for UCMOS
| Standard Camera Packing List |
|||
| A |
Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo |
||
| B |
Gift box L:15cm W:15cm H:10cm (0.5~0.55Kg/ box) |
||
| C |
UCMOS series USB2.0 C-mount CMOS camera |
||
| D |
High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m |
||
| E |
CD (Driver & utilities software, Ø12cm) |
||
| Optional Accessory |
|||
| F |
Adjustable lens adapter |
C-mount to Dia.23.2mm eyepiece tube |
108001/AMA037 |
| C-mount to Dia.31.75mm eyepiece tube |
108008/ATA037 |
||
| G |
Fixed lens Adapter |
C-mount to Dia.23.2mm eyepiece tube |
108005/FMA037 |
| C-mount to Dia.31.75mm eyepiece tube |
108011/FTA037 |
||
| Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; |
|||
| H |
108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube |
||
| I |
108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube |
||
| J |
108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube |
||
| K |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.); |
|
If you need optional accessories, please contact me. I will quote additionally.
Extension of UCMOS with Microscope or Telescope Adapter
Sample Images 1 Captured with UCMOS Camera(UCMOS03100KPA)
