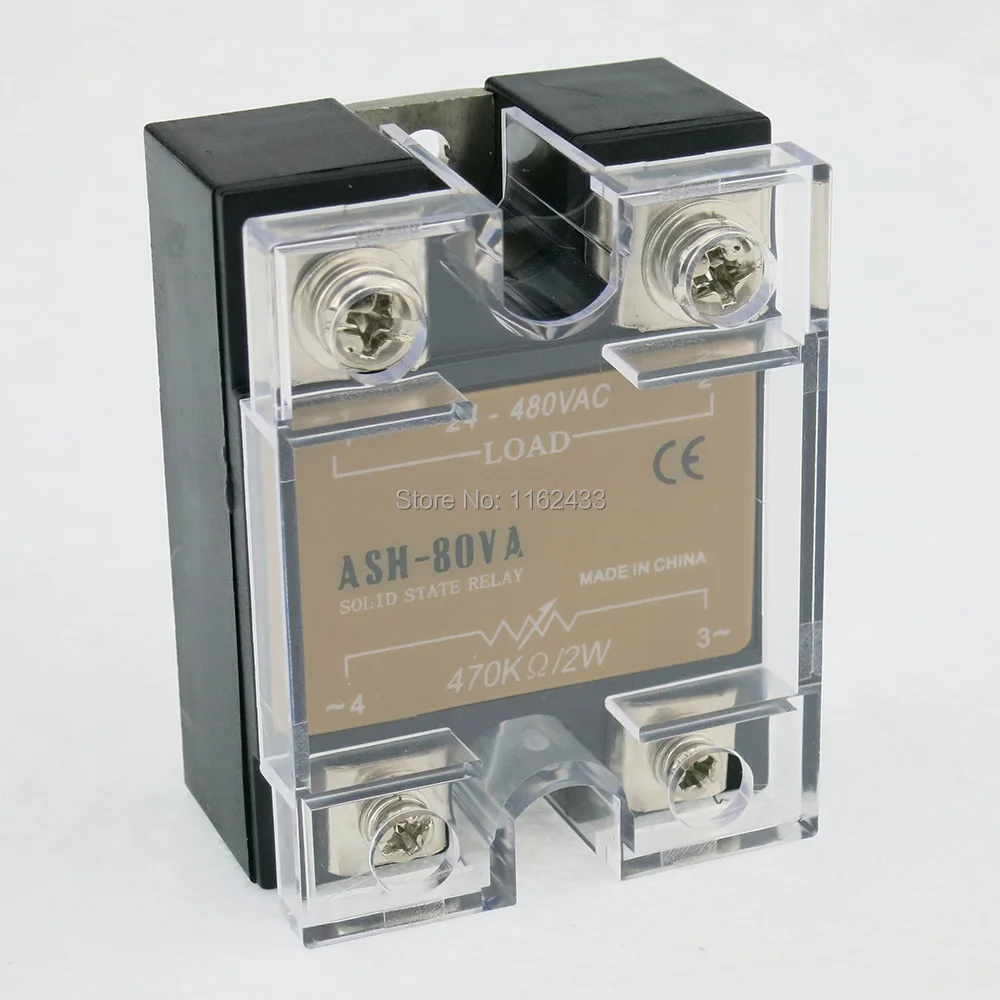

ASH-80VA single phase resistance to AC 80A 480VAC solid state voltage regulator 80VA SSR | Обустройство дома
ASH-80VA single phase resistance to AC 80A 480VAC solid state voltage regulator 80VA SSR | Обустройство дома
ASH-80VA single phase resistance to AC 80A 480VAC solid state voltage regulator 80VA SSR | Обустройство дома

ASH-80VA single phase resistance to AC 80A 480VAC solid state voltage regulator 80VA SSR | Обустройство дома


Сохраните в закладки:

Цена:US $5.99RUB
*Стоимость могла изменится

Количество:


Новое поступление

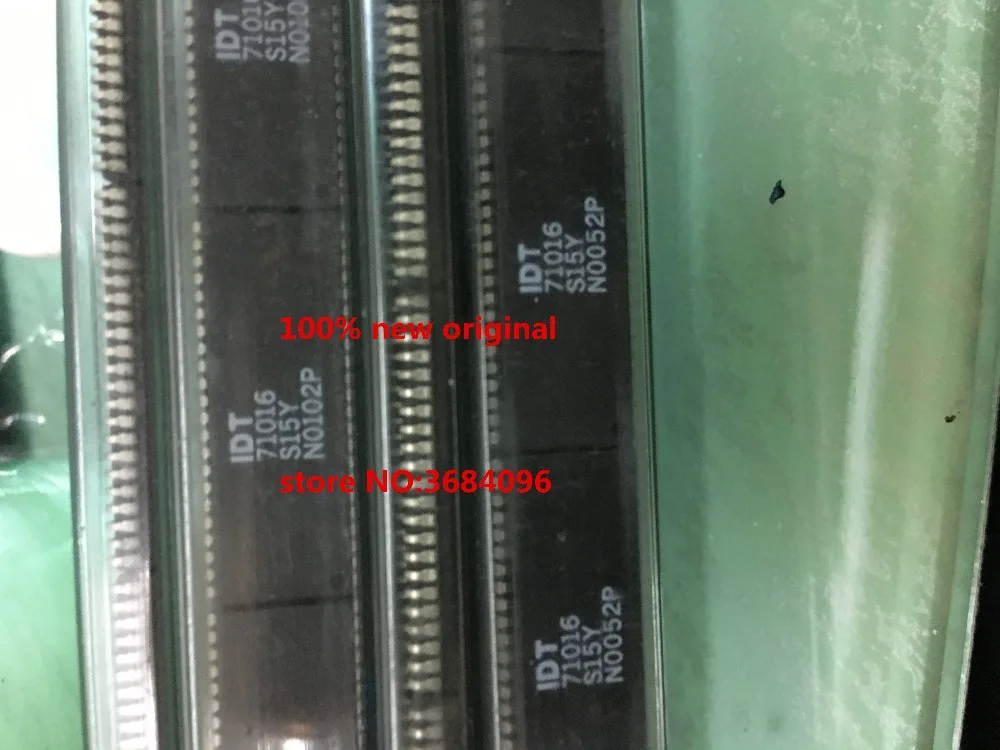

IDT71016S15Y SOJ 100% оригинал | Обустройство дома

IDT71016S15Y SOJ 100% оригинал | Обустройство дома

452,49 руб.

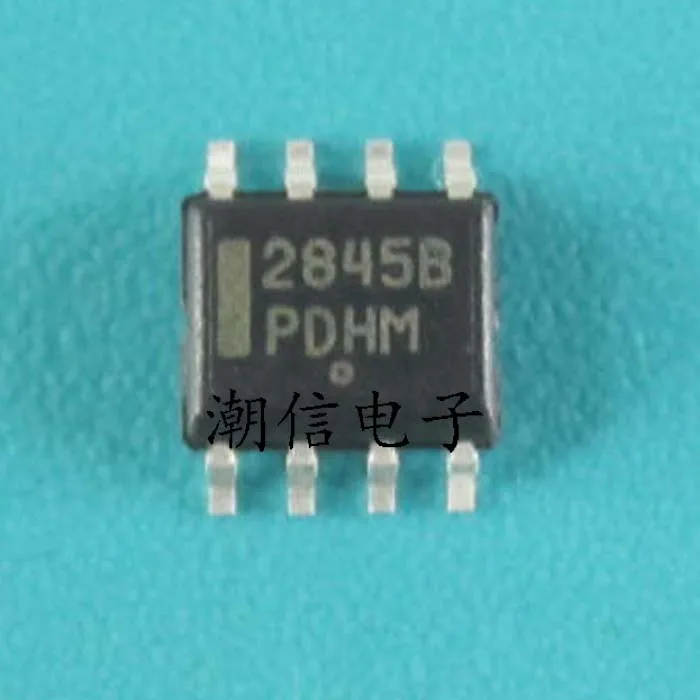

Free shipping new100% 2845B UC2845B8 | Обустройство дома

Free shipping new100% 2845B UC2845B8 | Обустройство дома

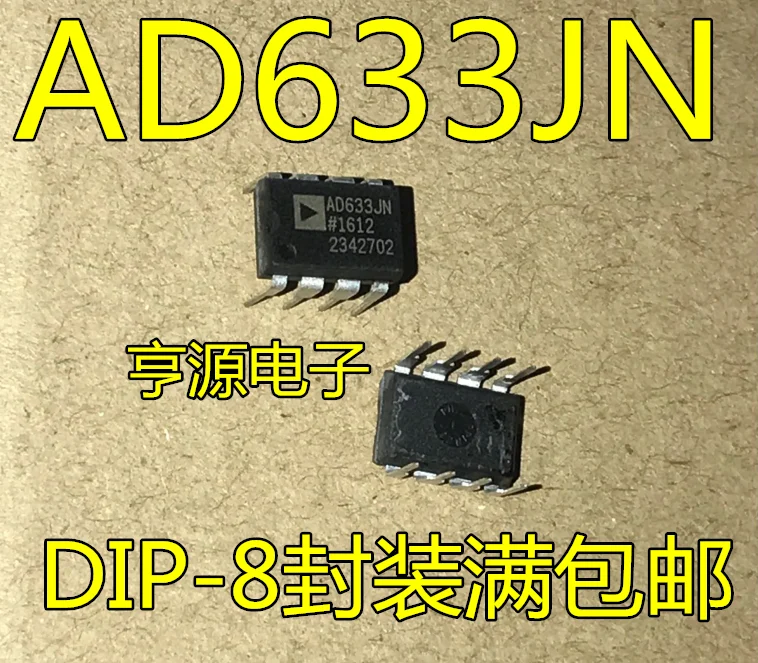

AD633JN analog transmitter chip straight plug DIP-8 AD633 633 Original | Обустройство дома

AD633JN analog transmitter chip straight plug DIP-8 AD633 633 Original | Обустройство дома

1 716,63 руб. / lot
Shipping TDA8566TH Free spot directly to shoot | Обустройство дома

Shipping TDA8566TH Free spot directly to shoot | Обустройство дома

16 в 470 мкФ 8*10 / 8*12 10*13 электролитический конденсатор 50 шт./лот | Обустройство дома

16 в 470 мкФ 8*10 / 8*12 10*13 электролитический конденсатор 50 шт./лот | Обустройство дома

Бесплатная доставка (10 шт./лот) оригинальное новое высокочастотное HF HF7FD 012-1ZPTF

Бесплатная доставка (10 шт./лот) оригинальное новое высокочастотное HF HF7FD 012-1ZPTF

2 169,07 руб. / набор
Реле schrack v23050-a1024-a542 v23050-a1024 v23050 | Обустройство дома

Реле schrack v23050-a1024-a542 v23050-a1024 v23050 | Обустройство дома

CM6800I DIP-16 | Обустройство дома

CM6800I DIP-16 | Обустройство дома

Finglai Electric

Finglai Electric

Магазина Finglai Electric работает с 06.03.2014. его рейтинг составлет 95.89 баллов из 100. В избранное добавили 1924 покупателя. Средний рейтинг торваров продавца 4.8 в продаже представленно 2159 наименований товаров, успешно доставлено 9824 заказов. 1997 покупателей оставили отзывы о продавце.

Характеристики

ASH-80VA single phase resistance to AC 80A 480VAC solid state voltage regulator 80VA SSR | Обустройство дома

История изменения цены

*Текущая стоимость US $5.99 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"

Месяц Минимальная цена Макс. стоимость Цена
Feb-18-2026 6.91 руб. 6.43 руб. 6 руб.
Jan-18-2026 5.5 руб. 5.54 руб. 5 руб.
Dec-18-2025 6.39 руб. 6.6 руб. 6 руб.
Nov-18-2025 6.30 руб. 6.43 руб. 6 руб.
Oct-18-2025 5.3 руб. 5.67 руб. 5 руб.
Sep-18-2025 6.90 руб. 6.30 руб. 6 руб.
Aug-18-2025 6.64 руб. 6.74 руб. 6 руб.
Jul-18-2025 6.14 руб. 6.53 руб. 6 руб.

Описание товара

ASH-80VA single phase resistance to AC 80A 480VAC solid state voltage regulator 80VA SSR | Обустройство домаASH-80VA single phase resistance to AC 80A 480VAC solid state voltage regulator 80VA SSR | Обустройство дома

ASH-VA series single phase resistance to AC solid state voltage regulator

finglaiModel number and parameters
Model number Load current Load voltage Related product
ASH-10VA 10A 24-480Vac Order
ASH-25VA 25A 24-480Vac Order
ASH-40VA 40A 24-480Vac Order
ASH-60VA 60A 24-480Vac Order
ASH-80VA 80A 24-480Vac Visiting...
ASH-100VA 100A 24-480Vac Order
ASH-120VA 120A 24-480Vac Order
finglaiSuitable maximum load power
Load current (A) 10 25 40 60 80 100 120
220V resistive load power (KW) 1.1 2.8 4.4 6.6 8.8 11 13.2
220V inductive load power (KW) 0.4 0.8 1.3 1.9 2.6 3.2 3.8
finglaiGeneral
Model number ASH-VA series
Rated input control voltage Variable resistor
Input resistance 470KΩ
Wattage of VR 2W
Control type Phase control
On-state leakage current 2mA max
On-state voltage drop at Imax 1.5Vac
Matched heat sink ≤40A: FHS-S40, ≤60A: FHS-S60, ≤120A: FHS-S120
Matched thermal grease HZ-KS101
Dielectric strength 2500VAC 50/60Hz for 1 minute
Insulation resistance 1000 MΩ min at 500 VDC
External dimensions 57.4x44.8x28mm
Terminals Screw
Operational temperature -30 to 75°C
Operational humidity 95% max no condensation
Alias name ASH-VA series single phase voltage adjustable SSR
Advantage
ASH-VA_d1 1. Features:
Solid state relay is a non-contact on-off electronic switch, is four-terminal active device, two terminals are input control terminal, the other ends are output control terminal, it has optical isolation in the middle of them. Add DC or pulse signal to the input terminal, the output terminal's state can be changed from off to on (If it is no signal, it is off state), so as to control bigger load.
ASH-VA_d2 2. Typical applications:
This product can be widely used in electric heating thermostat equipment, remote control systems, industrial automation and control equipment, lights, stage lighting control equipment, instrument, medical equipment, etc. It has more superiority in some occasion of requiring shock-proof, corrosion-resistant, moisture-proof, explosion-proof.
ASH-VA_d3 3. Parameter Description:
1). Inrush current (grid one week) 700% output on-state voltage drop 1.5V.
2). Static voltage rise rate dvs/dt 100v/us operation temperature range -40 to 80 °C.
3). Commutation voltage rise rate dvs/dt 100v/us zero-crossing SSR start delay 10ms maximum.
4). Leakage current (no RC absorbing circuit) is less than 1mA, SSR shut delay 10ms maximum.
5). Zero-crossing SSR zero-area 15V power frequency 50/60HZ.
Note 1. Model selection method: calculate the load current, according to load type, multiply the balance factor.
Resistive load: balance factor is 2 times, such as incandescent lamp, resistance wire, oven, heating rod.
Inductive load: balance factor is 7 times, such as: transformer, coil, fan motor, pump motor.
Example: 220V 3KW resistive load. 3KW/220V*2=27.3, select 40A specification.

2. To use product long and safely, please install the product with corresponding heat sink and fan.
finglaiASH-VA series single phase resistance to AC solid state voltage regulator drawing ASH-VA series single phase resistance to AC solid state voltage regulator drawing finglaiASH-VA series single phase resistance to AC solid state voltage regulator structure figure ASH-VA series single phase resistance to AC solid state voltage regulator structure figure Feedback: If you are satisfied to our product and service, please leave a 5 star positive feedback, we very appreciate it. If not, please contact us first, we will try to resolve your problem.
