1. Machine with iron cast steel frame.With strong heavy duty,long time use without out of shape.

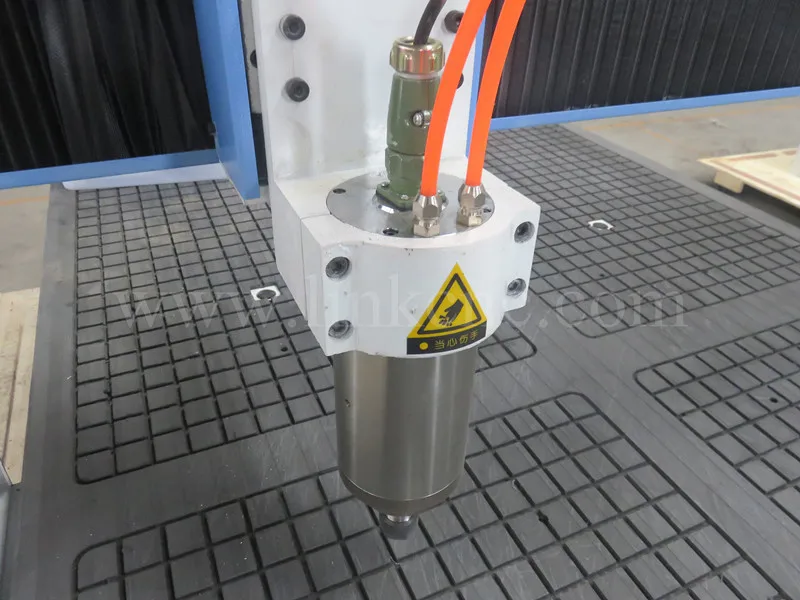

2. 3.0kw water cooling spindle,the most popular brand in China. With high working speed.The rotate speed can reach 24000 RPM.And never lose step. With high precision.

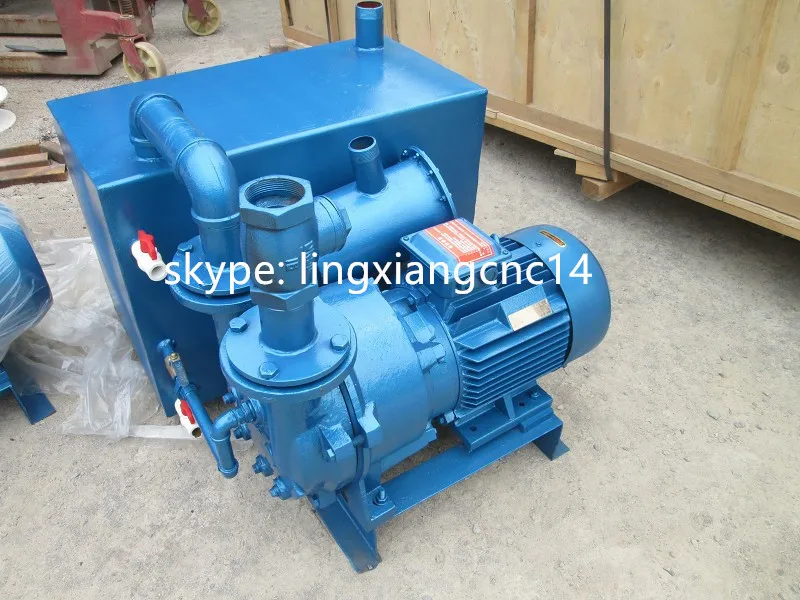

3. Vacuum table. With vacuum water pump. Fix the material very tightly. Very convenient to use. Make sure the machine work with high precision.

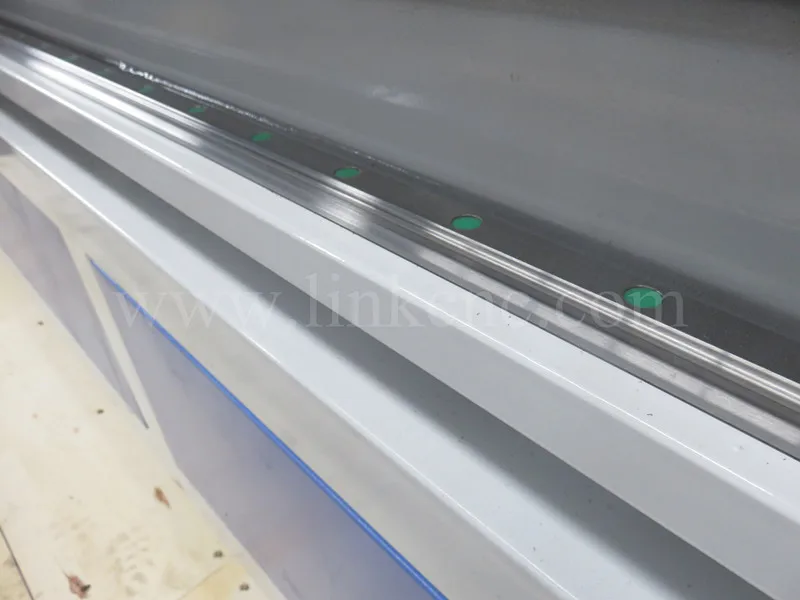

4. X/Y/Z axis with Taiwan Hiwin rail and TBI ball screw transmission.

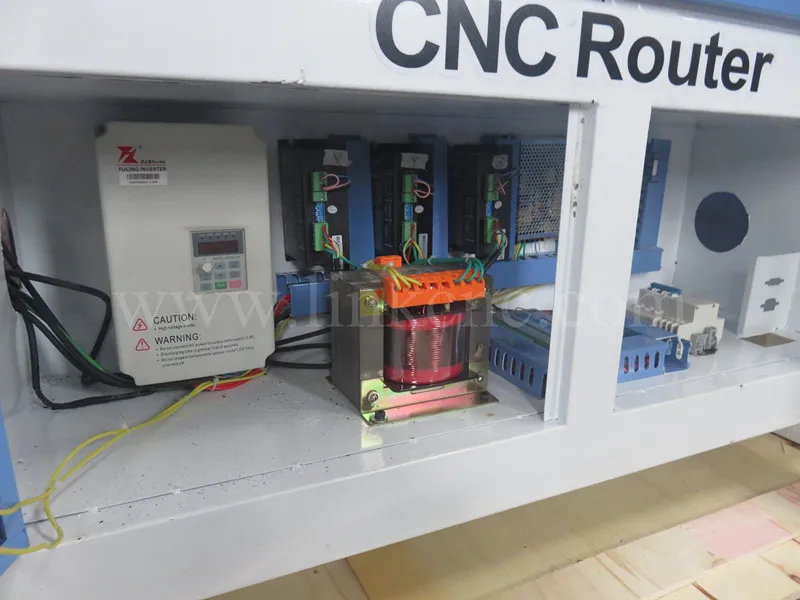

5. X/Y/Z axis with stepper motors and leadshine drivers.(Servo motors for optional)

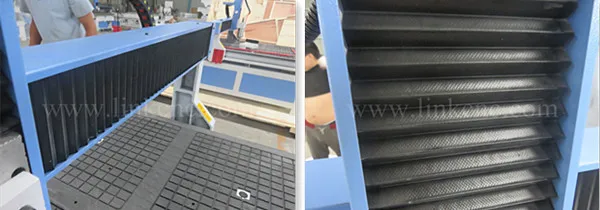

6.X/Z axis with dust cover,prevent the machine from polluted.

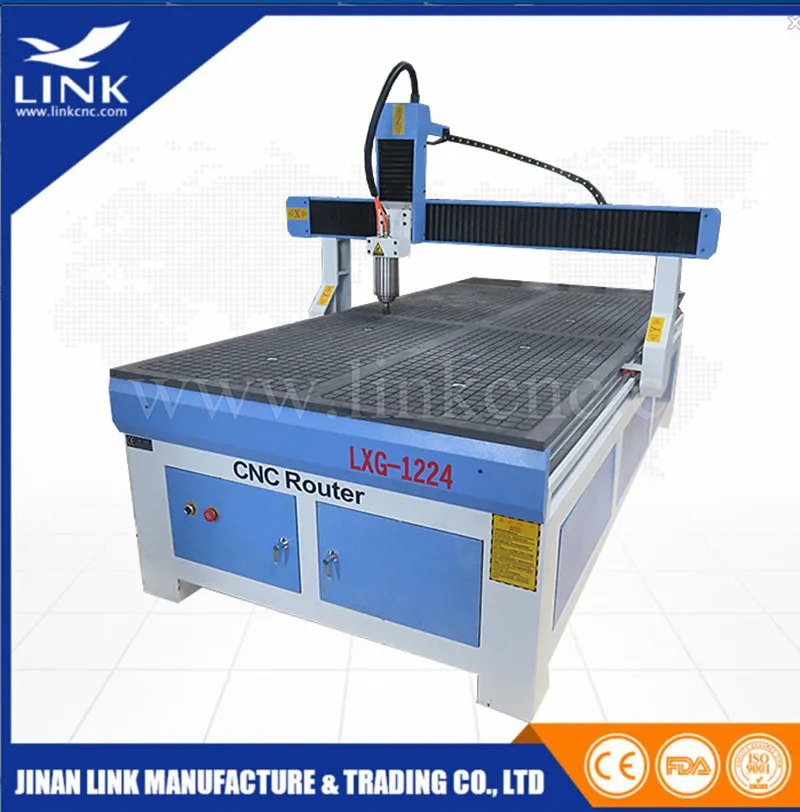

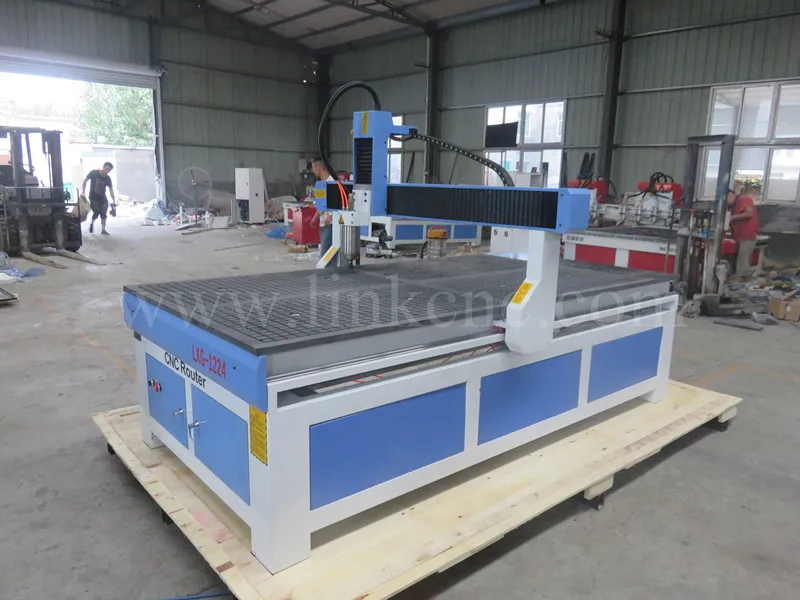

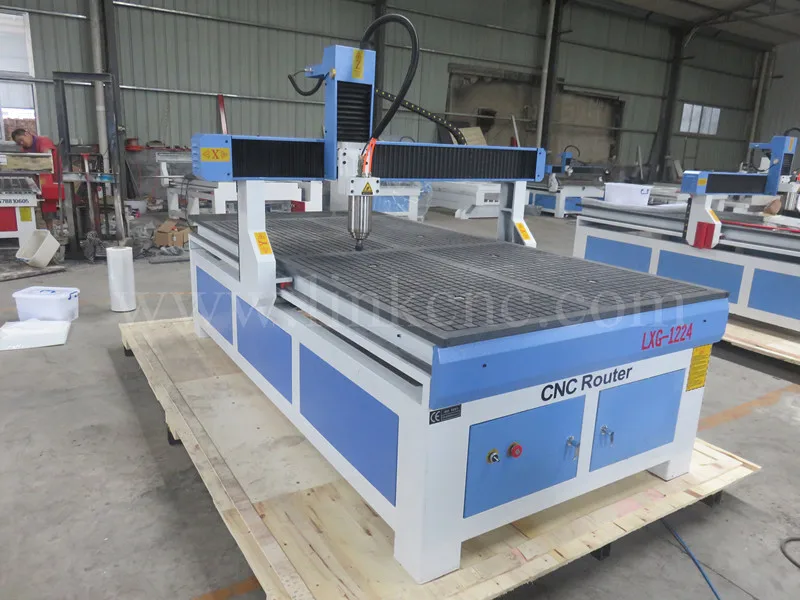

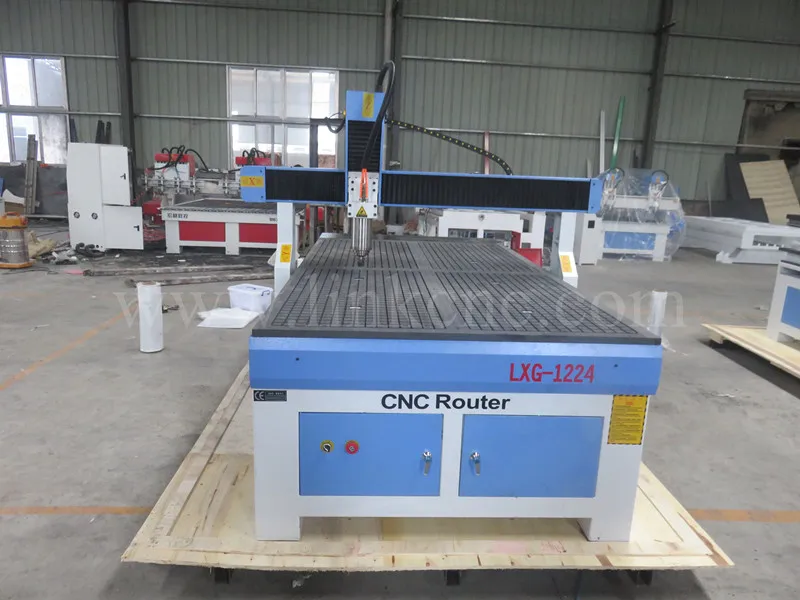

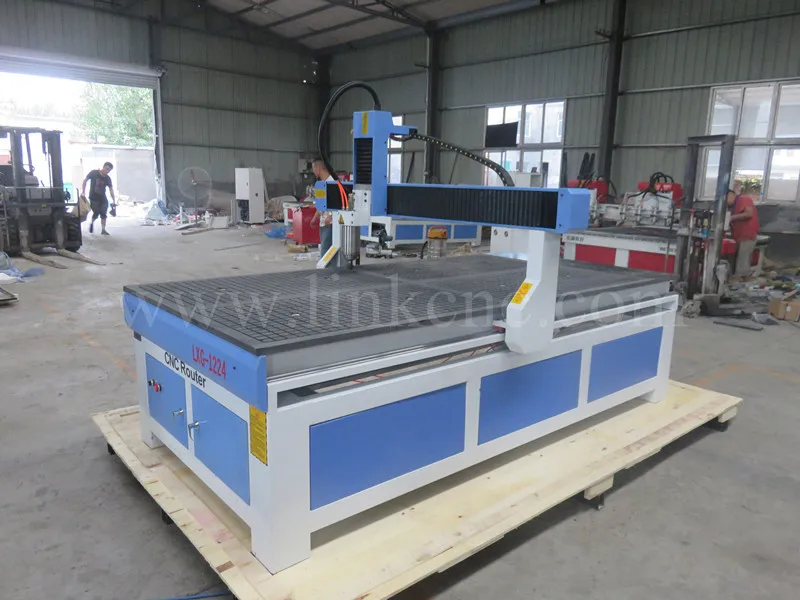

Model

LXG1224

XYZ Working Size

1200*2400*120 mm

Machine body

whole cast iron

Table surface

Vacuum table (T slot table optional)

XY structure

TBI Ball screw drive, Hiwin rail

Z structure

TBI Ball screw drive, Hiwin rail

Spindle

3 kw water cooling spindle

Spindle speed

24000 RPM

Drive motor

Stepper system

Max. Rapid Travel Rate

33000 mm/min

Max. Working speed

25000 mm/min

Control system

NC studio (Machs / DSP optional )

Software

Type3, Artcam, Ucancam

Command

G code

Machine precision

0.01 mm

Repositioning precision

0.03 mm

Working voltage

AC 220/380V

Machine packing Size

3200mmX2040mmX1960mm

Net weight

700KG

Dust collector

optional

Remark

We can customize the model for any processing size

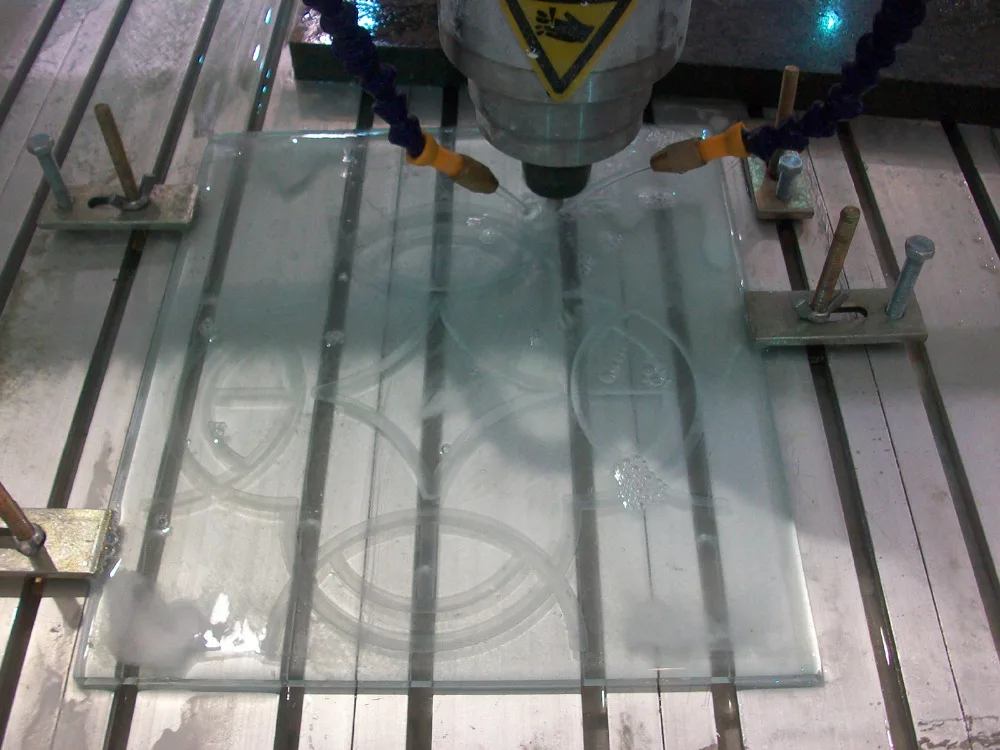

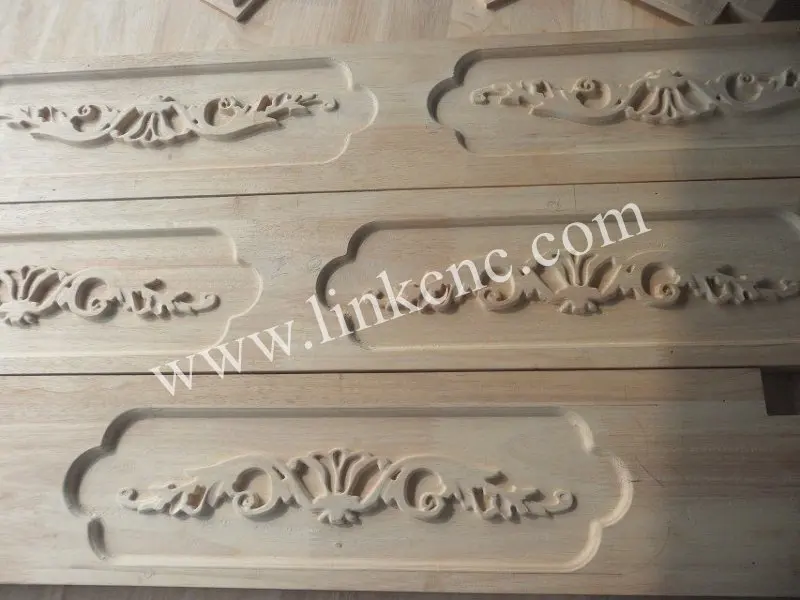

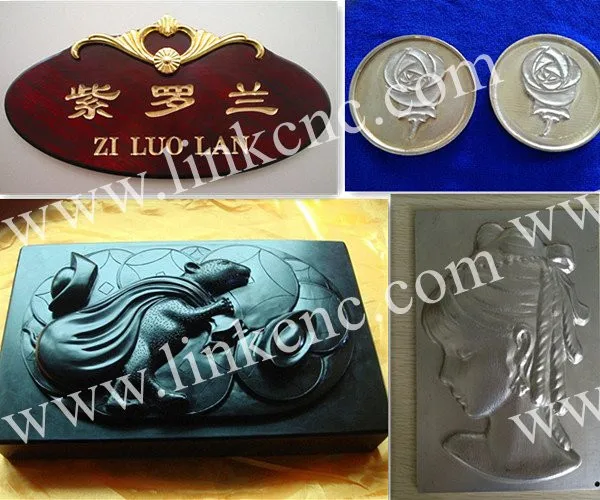

For wood / stone / metal / glass / acrylic and many other materials engraving and cutting.

1. Service before sale: our salesman will try to know more about your demands ,  including the

max working size, main processing materials and the thickness , so we will offer you suit machine

2.Service during production : we will send the production the machine pictures for customer in time , customer can know more the detailed machine parts

3.Service before shipping : the machine parts will be installed and tested by our professional technician, send the test video according to customer’s processing materials for customer confirmations

4.Service after shipping : we will check when the machine arrive your sea port or the approximate arrival date, so that the customer can know the arrival date and to prepare to pick the machine up

5.Service of teaching : the English manual and operating video will be sent to customers with the machine together, it will help customer how to operate the machine , it there is any question about the operation , we will have the professional technician to help them how to operate by online ,until the customer can use it freely

6.Service of warranty : we guarantee the machine for  2 years, some machine parts ( quality problems ) can be free charge to replace it within warranty
