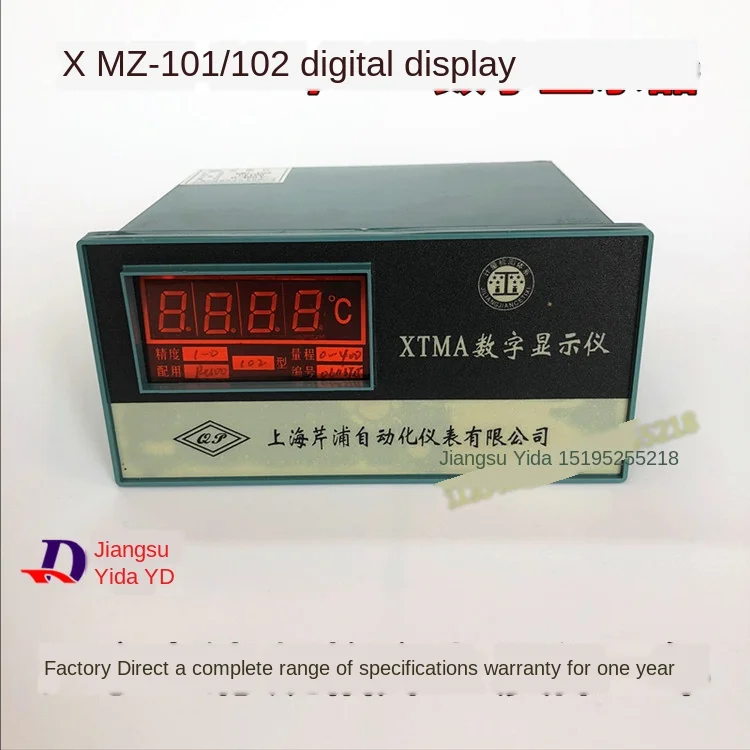

XMZ-101/102 Electronic Thermometer Thermometer Thermometer 0-1800 degrees K E S B Pt100

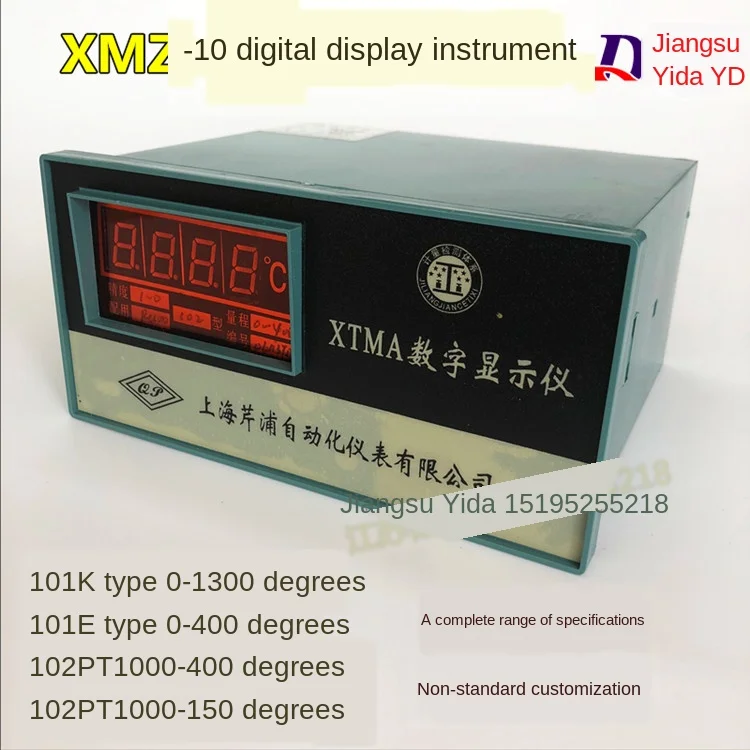

Product specification classification:
101 K type 0-1300 ℃
101 E type 0-400 ℃
101 S type 0-1600 ℃
101 Type B 0-1800 ℃
102 PT100 type 0-400 ℃
102 CU50 type 0-150 ℃
This baby is a single meter price, without probe
The input model of this instrument: thermocouple thermal resistance
The instrument index number (thermocouple) is: K (0-1300 degrees) E (0-400 degrees) S (0-1600 degrees) B index (0-1800 degrees)
Instrument indexing number (thermal resistance): PT100 indexing -200~400 degrees CU50 indexing -50~150 degrees
Please confirm the index number you need before buying, if you don't understand, please contact the owner to determine the index number!
1. Working power: 220V50HZ
2. Power consumption is less than 3W
3. Working environment: non-corrosive gas with temperature 0~50℃ and relative humidity<85%RH
4. Dimensions (mm): 160X80X120
5. Opening: 150*75
Accessories: Mounting bracket*2 sets, transparent protective cover for panel*1pcs, instruction manual*1pcs, certificate*1pcs

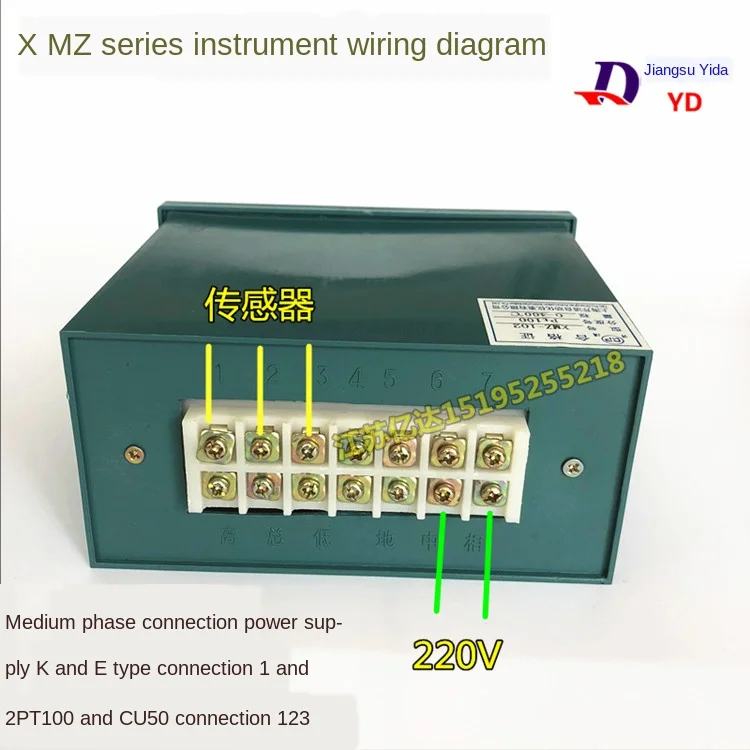

Instrument wiring:
(Phase) Connect to 220V FireWire,
(Middle) pin connected to 220V neutral line,
Pins 1, 2, and 3 are respectively connected to thermocouple or PT100 and other temperature sensor signals
Note: When ordering, the product model, specifications, adjustment range, sensor matching, etc. must be stated. If there are special specifications, please also indicate.
![]()
![]()
