Thank you for your inquiry,we will do you our best to provide high-quality products and
full range of servicess!!

Notice

Payment reminder: Please do not pay on Aliexpress. If you want to place an order, please send your email address to our customer service. We will provide you with an Alibaba trade assurance payment link or bank information. We guarantee that your payment is safe and effective!

(Reason: Because Aliexpress can only ship by air, but the generator doesn’t allow air transportation, we can’t arrange for delivery on Aliexpress, so we need to transfer the payment to Alibaba for delivery, please understand!)

Inquiry reminder

When inquiring about prices with online customer service, please copy the content below to fill in the requirements for the purchase of equipment, and provide your email and Wechat/whatApp, we will help you to develop an accurate detailed price list and send it to you!

Please copy the following content and send it to our customer service:

1. Email:

2. Wechat/whatApp:

3. How many kw do you need:

4. Required brand (such as: Cummins, Perkins, Yuchai, Weichai, Ricardo, Volvo, MTU, Shangchai):

5. Destination Ocean Port:

6. Optional configuration (such as: silent canopy, mobile trailer, control system, ATS):

The advantages of our generator

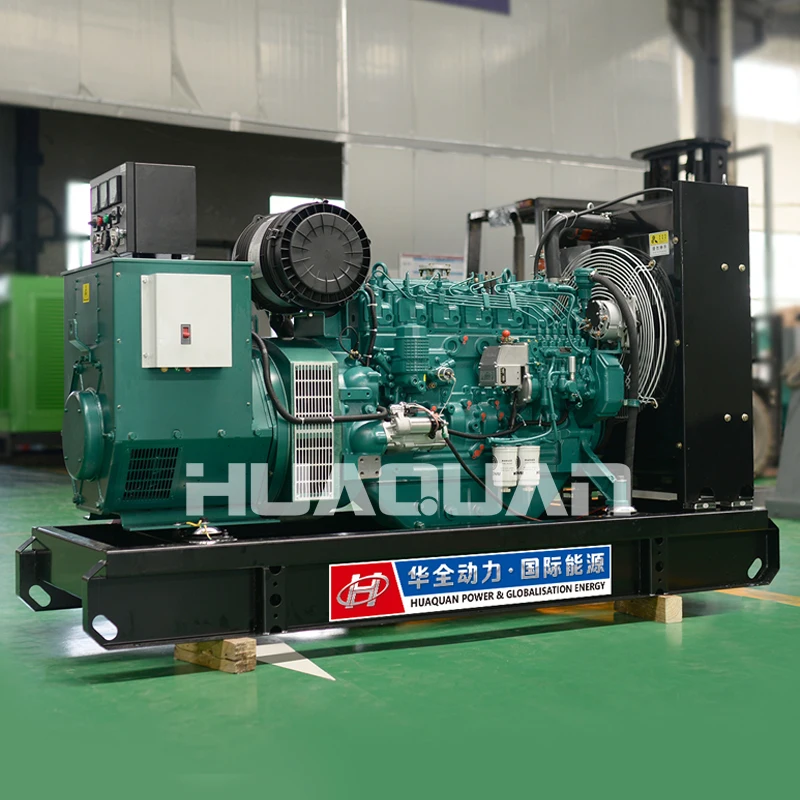

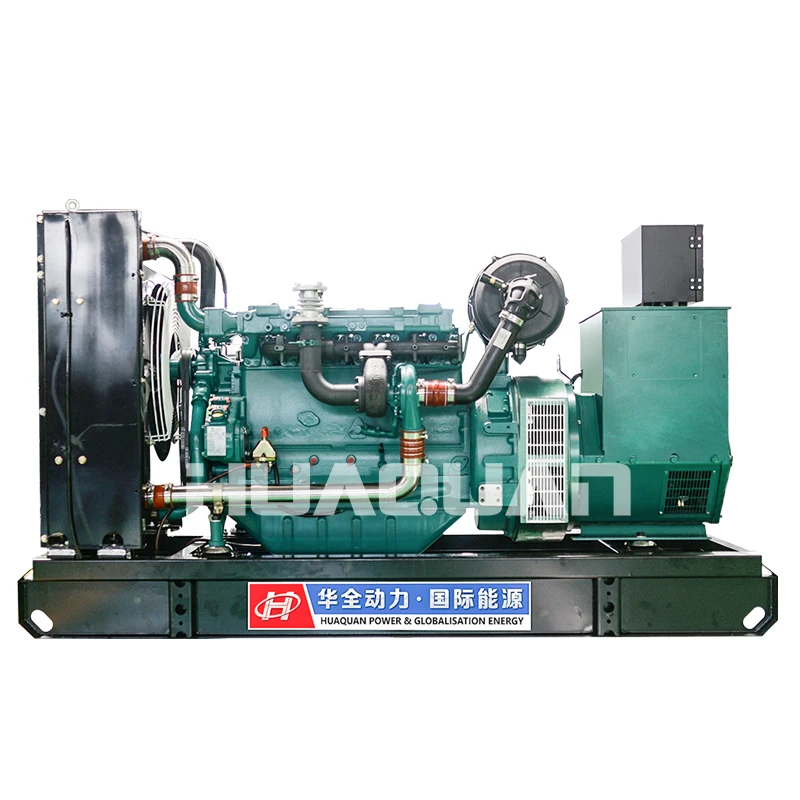

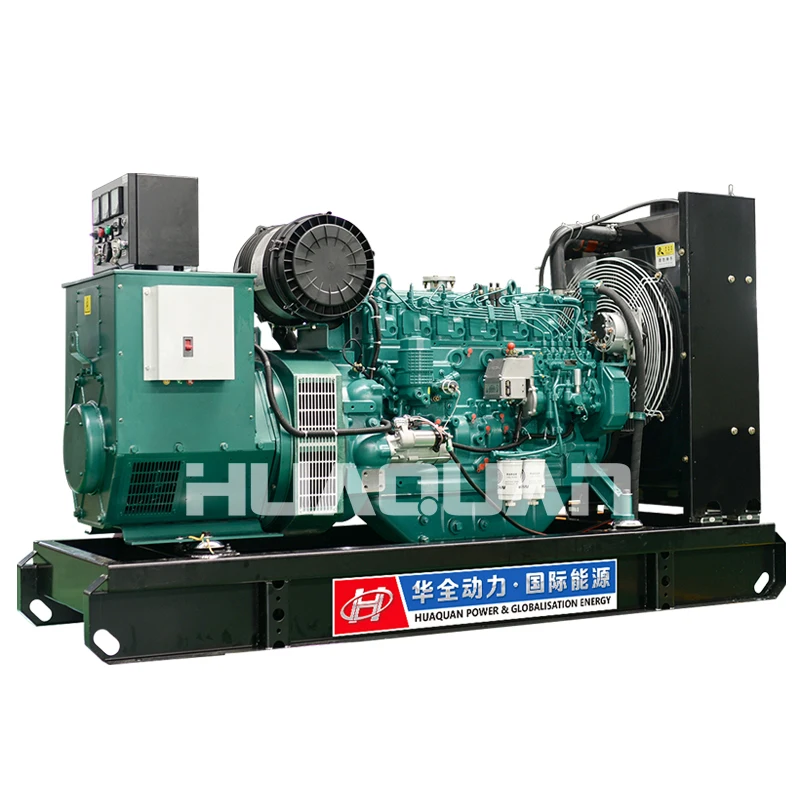

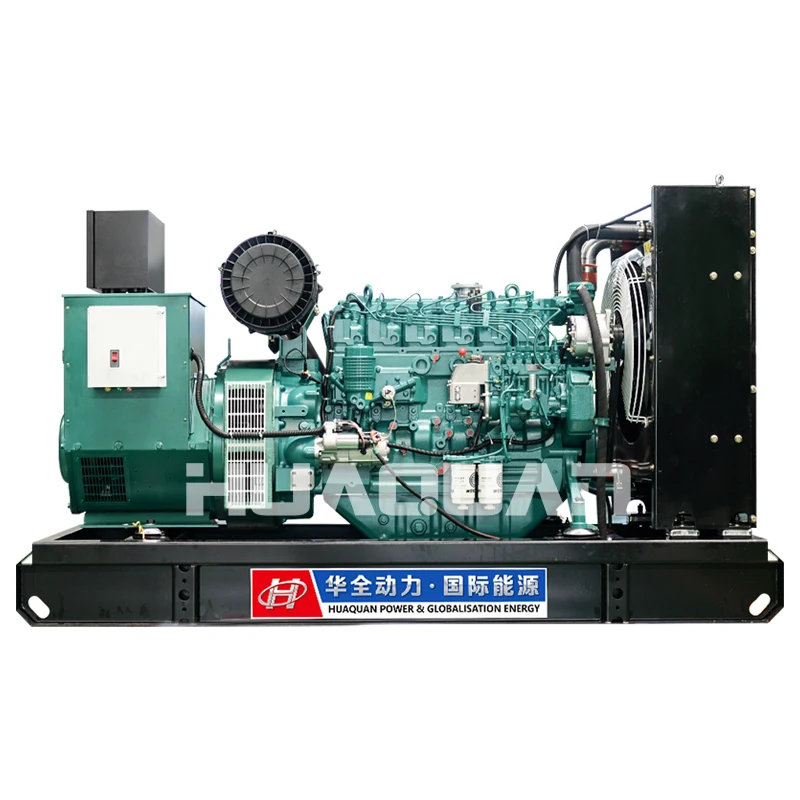

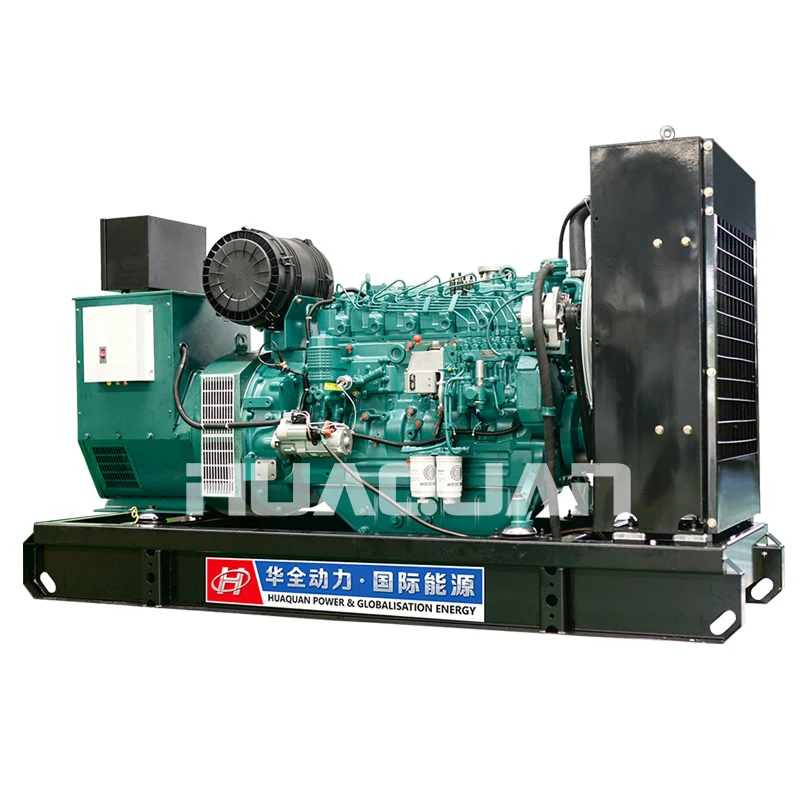

Huaquan 100kw diesel generator set is powered by Weichai engine. Its external dimensions are approximately: 2100*770*1320 (L×W×H mm), and its weight is about 980kg.

This generator set is electronically regulated, with turbocharging, sufficient power, direct injection fuel supply, 24V electric start.

With Huaquan pure copper brushless generator, maintenance-free, low failure rate and stable operating voltage.

Standard intelligent four protection control system, with overload, overcurrent, low oil pressure, high water temperature, four protection modes to protect your electricity.

Warranty period of Huaquan generator set: (domestic) 12 months after the acceptance of the unit's commissioning test or 1000 hours of cumulative operation; whichever comes first.

100kw Weifang medium-sized diesel engine series diesel generator set technical specifications

Technical parameters of generator set:

Unit Type:

HQ100GF

Steady state voltage adjustment rate（％）：

≤± 1

Output Power:

100KW

Voltage fluctuation rate (%):

≤ ± 0.5

Power factor:

COSΦ = 0.8 (lagging)

Transient voltage adjustment rate (%):

+ 20 ～ －15

Output voltage:

400V / 230V

Voltage stabilization time (s):

≤1

Output current:

180A

Steady state frequency adjustment rate (%):

≤ ± 1

Rated frequency:

50Hz

Frequency fluctuation rate (%):

≤ ± 0.5

Rated speed:

1500rpm

Transient frequency adjustment rate (%):

+ 10 ~ -7

Fuel grade:

(standard) 0 # light diesel (normal temperature)

Frequency stabilization time (S):

≤3

Dimensions:

2100*770*1320（L×W×H mm，reference）

Fuel consumption (100% load):

204g/kW·h

Weight

980kg (reference)

Acoustic noise (LP7m):

≤95dB（A）

Technical parameters of diesel engine:

Brand/origin：

Weichai medium-sized diesel engine

Cooling method:

Closed water-cooling

model:

WP6D132E200

Oil supply method:

Direct

Engine rated power :

132KW

Number of cylinders / Dare to mention structure:

6/ L Type

Governor Type：

Electric

Bore stroke:

105×130 mm

Air inlet system：

Turbo

Compression ratio:

18：1

Overload capacity:

110%

Starting ：

DC24V Electric

Speed:

1500rpm

Displacement:

4.5L

Oli capacity：

10L

Coolant Intake Size：

Φ58mm

Coolant Outlet Size：

Φ45mm

Alternator Specifications：

Brand：

Huaquan Brushless

Indication of Protection：

IP23

Model：

HQF-XN100

Connecting：

3-phase 4-wire Y type

Rated power:

100KW

Governing：

AVR（Automatic Voltage Regulator）

Rated voltage:

400V / 230V

Output frequency:

50Hz

Insulation class:

H class

Output factor:

COSΦ = 0.8 (lag)

The standard configuration of the generator set is as follows:

Direct injection internal combustion engine (diesel);

AC synchronous generator (single bearing);

Suitable for environment 40℃-50℃ radiator water tank, belt driven cooling fan, fan safety shield;

Power generation output air switch, standard control screen;

Unit steel common base (including: unit vibration damping rubber pad);

Dry air filter, fuel filter, lubricating oil filter, starter motor, and equipped with self-charging generator;

Start battery and battery start connection cable;

Industrial 9dB silencer and standard parts for connection.

Random information: original technical documents of diesel engines and generators, instructions for generator sets, test reports, etc.

Optional accessories (additional cost):

Motor oil, diesel, water jacket, anti-condensation heater

Battery floating charger

Self-protection and self-starting unit control screen

Unit control screen with "three remote" functions

ATS automatic load conversion screen

Split daily fuel tank, integrated base fuel tank

Rainproof unit (box)

Silent unit (box)

Mobile trailer type power station (cabinet trailer)

Silent mobile power station (cabinet trailer)

Executive standard：

Ø ISO9001：2000

Ø GB/T2820.1997

Shipping policy：

ocean shipping

FAQ

1.What's your power range of Generators?

Answer:  We can offer the range from 10kva~1000kva.

2.What's your delivery time?

Answer:  Generally,we can delivery in 7 days after we get the deposit.

3.What are the payment methods for buying equipment?

Answer:
1、We accept T/T ,and 30% as the deposit,the balance payment should be paid before shipping.
2、We accept Alibaba credit guarantee payment.
3、We accept bank wire payment.

4.What's your warranty?

Answer:  All our products we offer on year warranty.

5.What's your MOQ?

Answer:We accept the MOQ  is 1 set.
