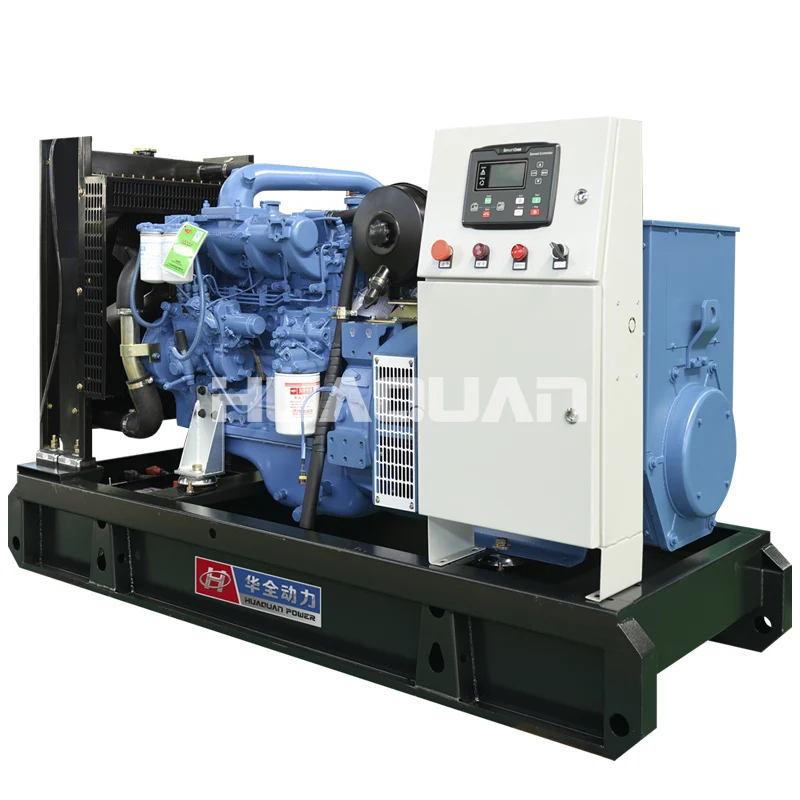

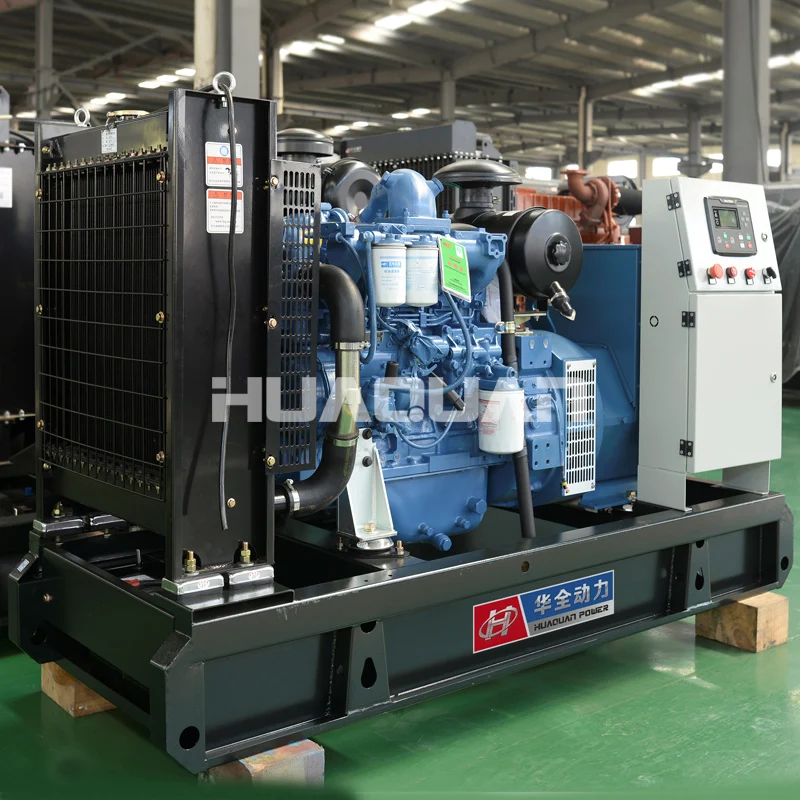

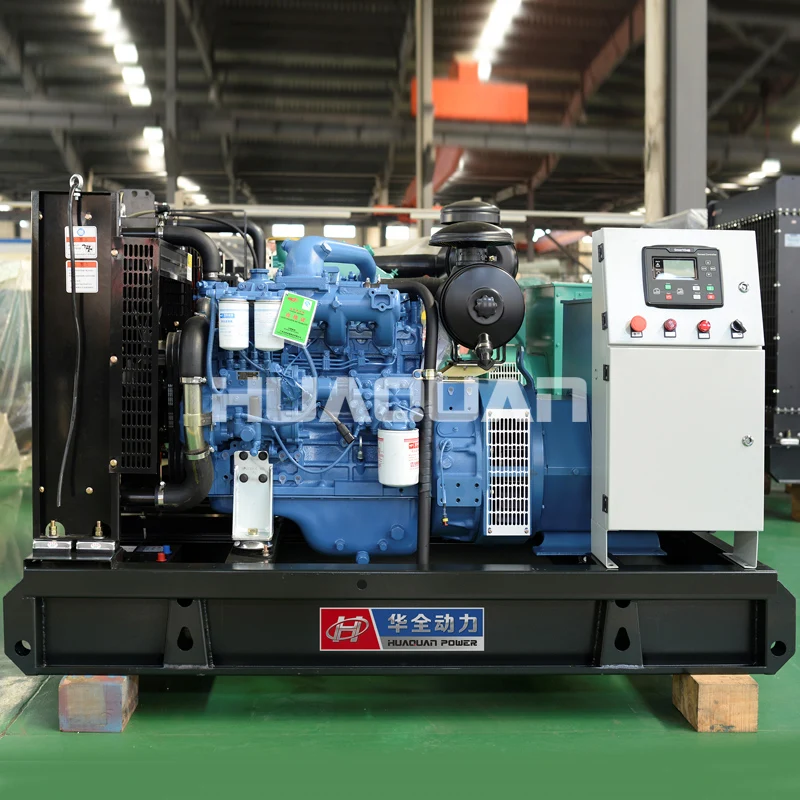

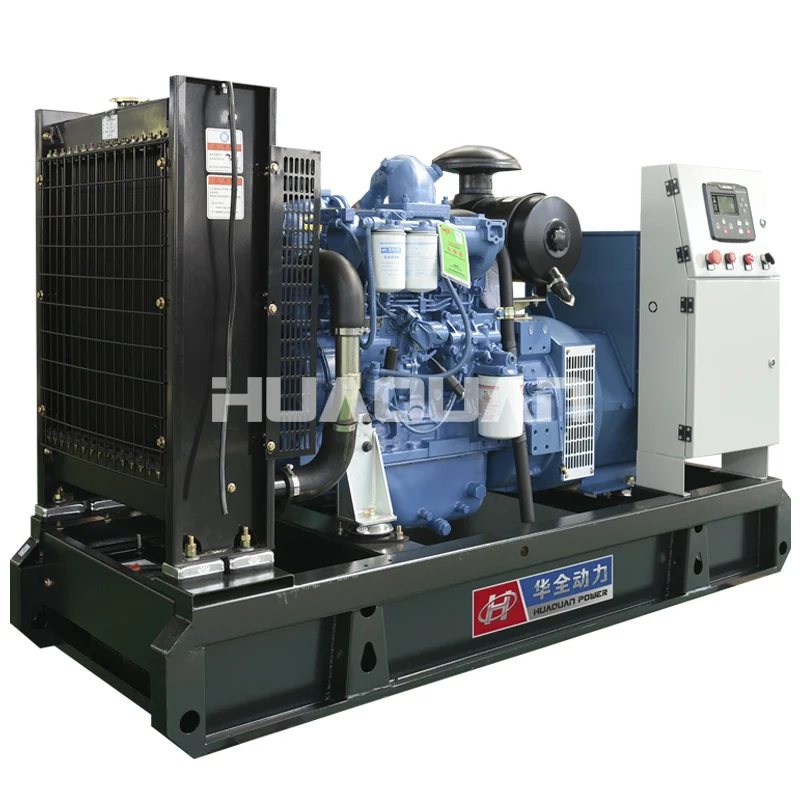

OEM 60kw yuchai engine small diesel generator | Обустройство дома



Сохраните в закладки:

Цена:339 629,18RUB
*Стоимость могла изменится

Количество:


Новое поступление

Характеристики

OEM 60kw yuchai engine small diesel generator | Обустройство дома

История изменения цены

*Текущая стоимость 339 629,18 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"

Месяц Минимальная цена Макс. стоимость Цена
Feb-18-2026 431329.69 руб. 439956.40 руб. 435642.5 руб.
Jan-18-2026 349818.5 руб. 356814.79 руб. 353316 руб.
Dec-18-2025 424536.45 руб. 433027.85 руб. 428781.5 руб.
Nov-18-2025 421140.71 руб. 429563.99 руб. 425351.5 руб.
Oct-18-2025 336233.78 руб. 342958.45 руб. 339595.5 руб.
Sep-18-2025 414347.35 руб. 422634.30 руб. 418490.5 руб.
Aug-18-2025 410951.46 руб. 419170.67 руб. 415060.5 руб.
Jul-18-2025 407555.91 руб. 415706.30 руб. 411630.5 руб.

Описание товара

OEM 60kw yuchai engine small diesel generator | Обустройство домаOEM 60kw yuchai engine small diesel generator | Обустройство домаOEM 60kw yuchai engine small diesel generator | Обустройство домаOEM 60kw yuchai engine small diesel generator | Обустройство домаOEM 60kw yuchai engine small diesel generator | Обустройство домаOEM 60kw yuchai engine small diesel generator | Обустройство дома

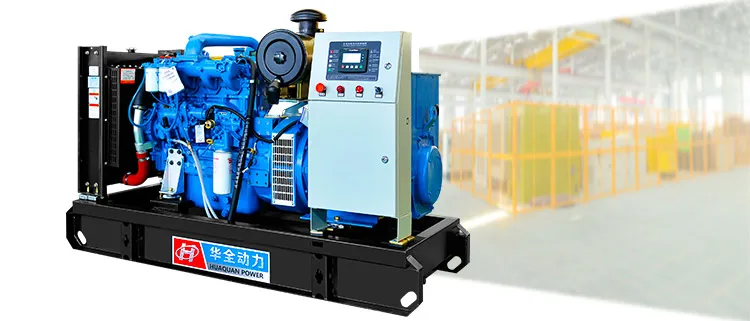

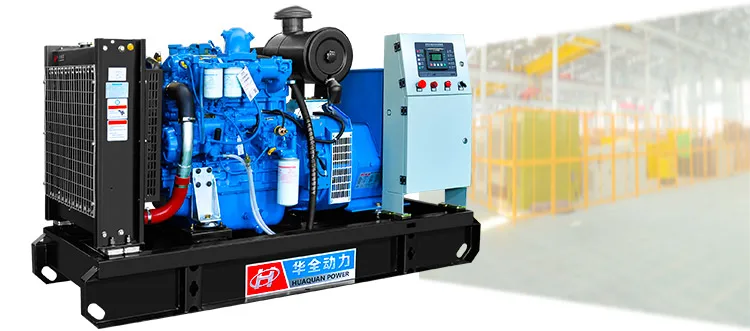

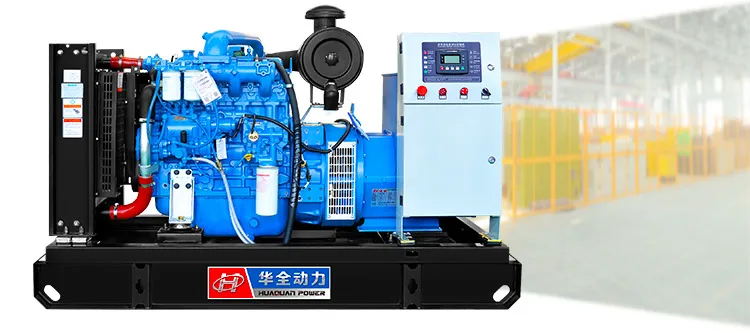

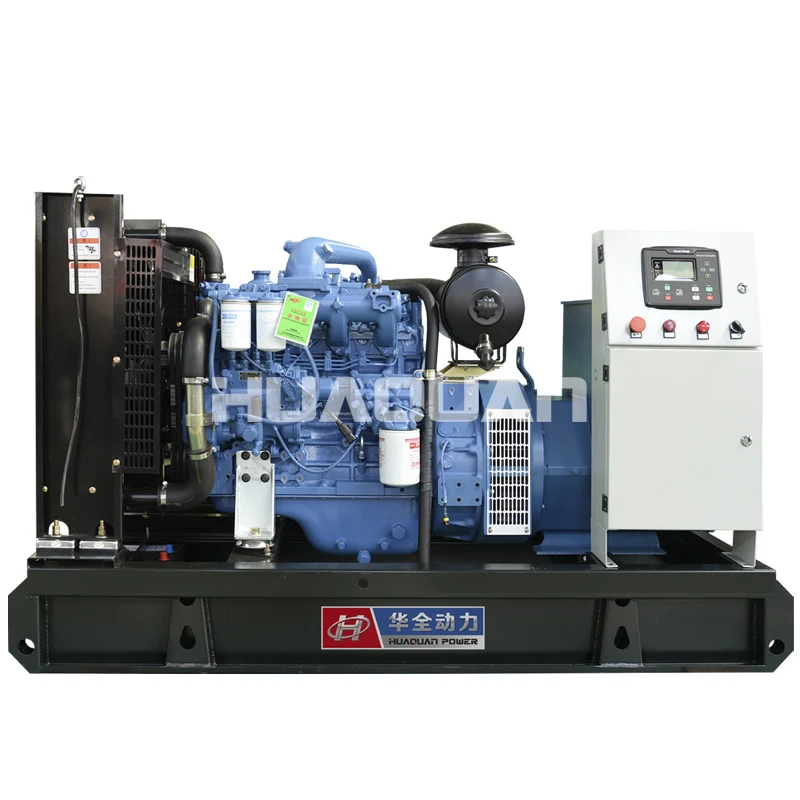

1、60 kW three-phase generator set, leading speed control performance: the application of independent electronic control calibration technology, combined with variable electronic valve technology, fast transient response.

2、AC synchronous generator, electronic speed regulation: speed regulation and energy saving, providing a reliable power system for you to seamlessly deploy in the project.

3、The three-phase generator is equipped with a common steel base and vibration-damping rubber pad to reduce friction and extend the service life of the unit.

4、The standard belt-driven cooling fan and fan safety shield provide timely heat dissipation to protect the safe operation of the unit, and at the same time provide certain protection for the operator.

5、The unit has strong adaptability and can be matched with oil, diesel, water jacket, anti-condensation heater, mobile trailer,rainproof shed, etc.

Genearal

Unit model:

HQ60GF

Steady state voltage adjustment rate (%):

≤± 1

Output power:

60KW

Voltage fluctuation rate (%):

≤ ± 0.5

Power factor:

COSΦ = 0.8 (lagging)

Transient voltage adjustment rate (%):

+20 ~-15

Output voltage:

400V / 230V

Voltage stabilization time (s):

≤1

Output current:

108A

Steady state frequency adjustment rate (%):

≤ ± 1

Rated frequency:

50Hz

Frequency fluctuation rate (%):

≤ ± 0.5

Rated speed:

1500rpm

Transient frequency adjustment rate (%):

+ 10 ~ -7

Fuel grade:

(standard) 0 # light diesel (normal temperature)

Frequency stabilization time (S):

≤3

Dimensions:

1700×700×1400(L×W×H mm)

Fuel consumption (100% load):

209g/kW·h

Start mode:

850kg

Acoustic noise (LP7m):

95dB(A)

Technical parameters of diesel engine

Brand/origin:

Yuchai

Cooling method:

Closed water-cooling

Model:

YC4D90Z-D20

Oil supply method:

direct injection

Number of cylinders / Dare to mention structure:

4 / L Type

Speed regulation method:

Mechanical

Bore stroke:

108×115 mm

Intake method:

Natural inhalation

Compression ratio:

17.5:1

Overload capacity:

110%

Weight:

DC 24V Electric start

Speed:

1500rpm

Technical parameters of generator

Brand:

Huaquan Brushless Generator

Protection level:

IP22

Model:

HQF-60

Wiring mode:

Three-phase four-wire, Y-connection

Rated power:

60kW

Adjustment method:

AVR (Automatic Voltage Regulator)

Rated voltage:

400V / 230V

Output frequency:

50Hz

Insulation class:

H class

Output factor:

COSΦ = 0.8 (lag)

Genset standard features

Ø Direct injection internal combustion engine(Diesel);

Ø AC synchronous generator(Single Bearing);

Ø Water Radiator design for 40-45℃ Ambient belt-driven fans and guards;

Ø Generation output air switch、Standard control panel;

Ø Steel common base with shock absorber;

Ø Dry-type air filter fuel filter,oil filter、starting motor、Self-charging alternator;

Ø starter battery and connecting cables;

Ø Industrial 9dB muffler and accessories;

Ø The engine and alternator’s original technical papers,manuals and testing reports ship with GenSet;

Optional accessories(Extra charged)

Ø Engine oil、diesel、water jacket、Anti-condensation heater

Ø Battery floating charger

Ø Self-protection unit/self-starting control panel

Ø Tree-remote control panel

Ø ATS AUTO-loaded transferring screen

Ø Daily fuel tank、Integral fuel tank

Ø Waterproof type(Cabinet)

Ø Mobile trailer(Drip proof)

Ø Mobile trailer(Silent type)
