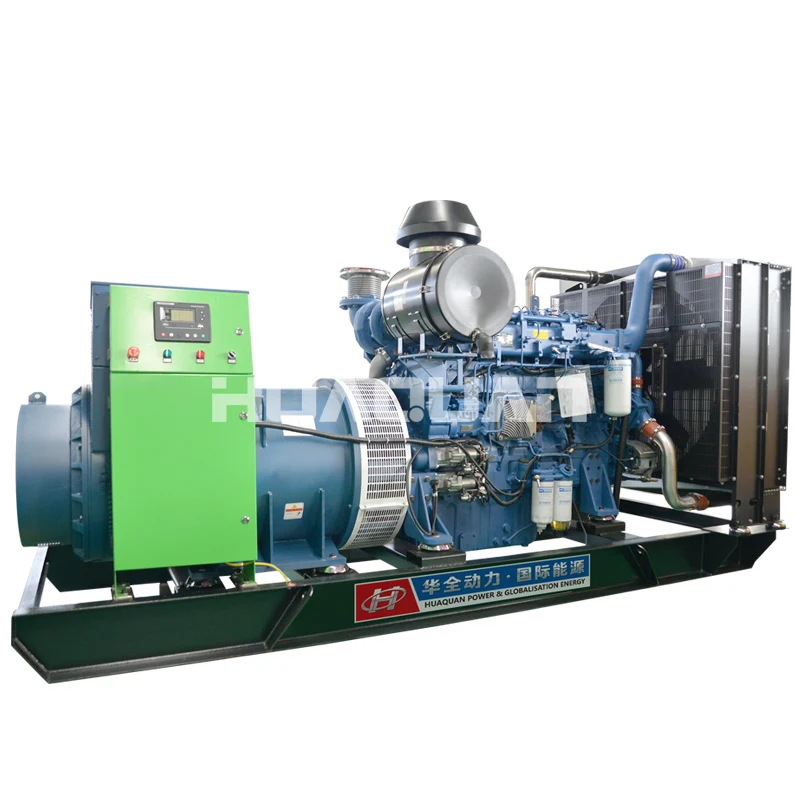

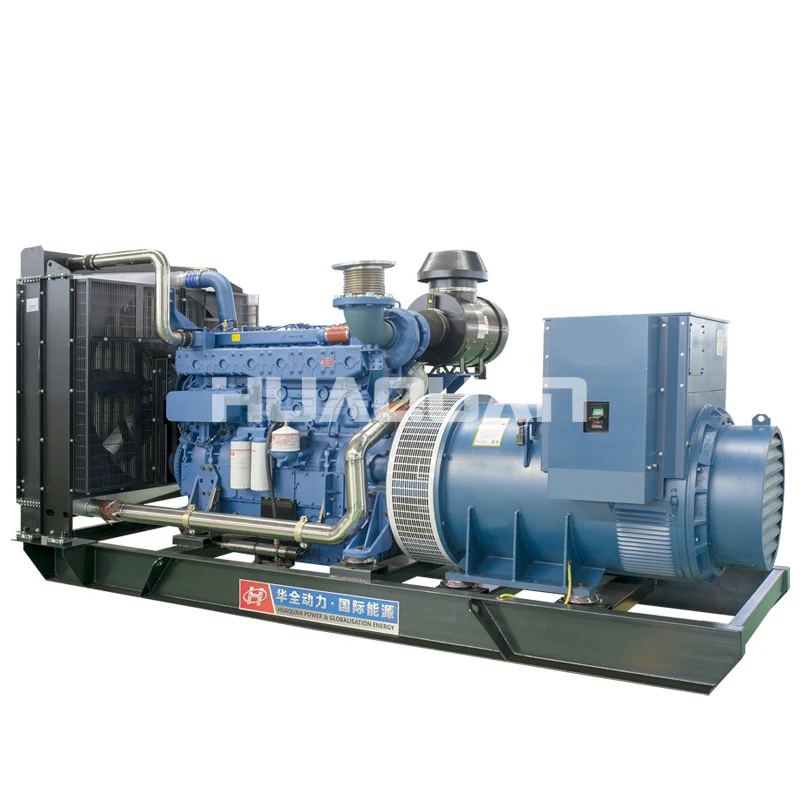

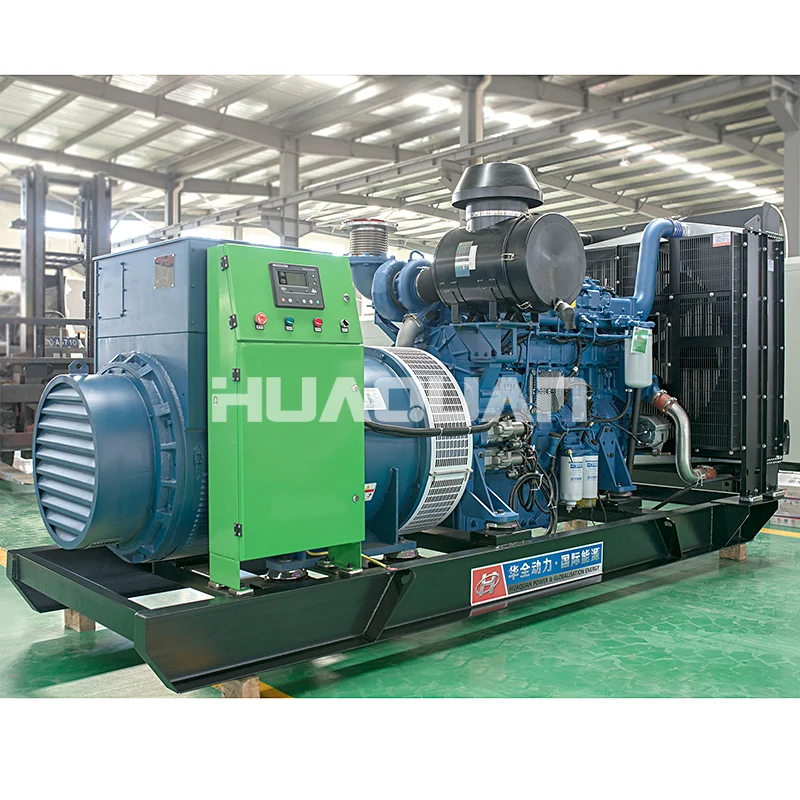

875kva diesel generator set big power yuchai engine | Обустройство дома

1、Huaquan 700kw diesel generator set, select Guangxi Yuchai engine, speed regulation mode: electronic speed regulation, intake mode:turbocharging.

2、Using Wuxi Xingnuo pure copper brushless generator, maintenance-free, low failure rate, and very stable operating voltage.

3、It has the characteristics of reliability, durability, stable performance, and strong loading capacity.

4、Huaquan generator set has good speed regulation consistency, and can easily realize the automatic parallel or grid operation of multiple units.

5、This diesel generator set is widely used in commercial centers, hotels, etc. as a backup emergency power supply.

Genearal

Unit model:

HQ700GF

Steady state voltage adjustment rate (%):

≤± 1

Output power:

700KW

Voltage fluctuation rate (%):

≤ ± 0.5

Power factor:

COSΦ = 0.8 (lagging)

Transient voltage adjustment rate (%):

＋20 ～－15

Output voltage:

400V / 230V

Voltage stabilization time (s):

≤1

Output current:

1260A

Steady state frequency adjustment rate (%):

≤ ± 1

Rated frequency:

50Hz

Frequency fluctuation rate (%):

≤ ± 0.5

Rated speed:

1500rpm

Transient frequency adjustment rate (%):

+ 10 ~ -7

Fuel grade:

(standard) 0 # light diesel (normal temperature)

Frequency stabilization time (S):

≤3

Dimensions:

4200×1500×1880（L×W×H mm）

Fuel consumption (100% load):

209g/kW·h

Start mode:

4650kg

Acoustic noise (LP7m):

95dB（A）

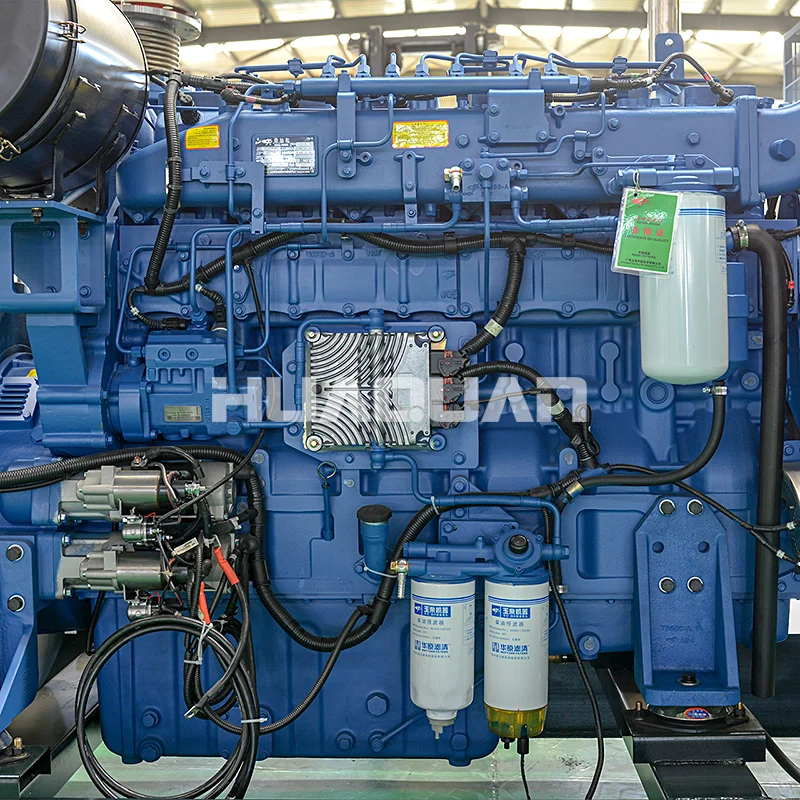

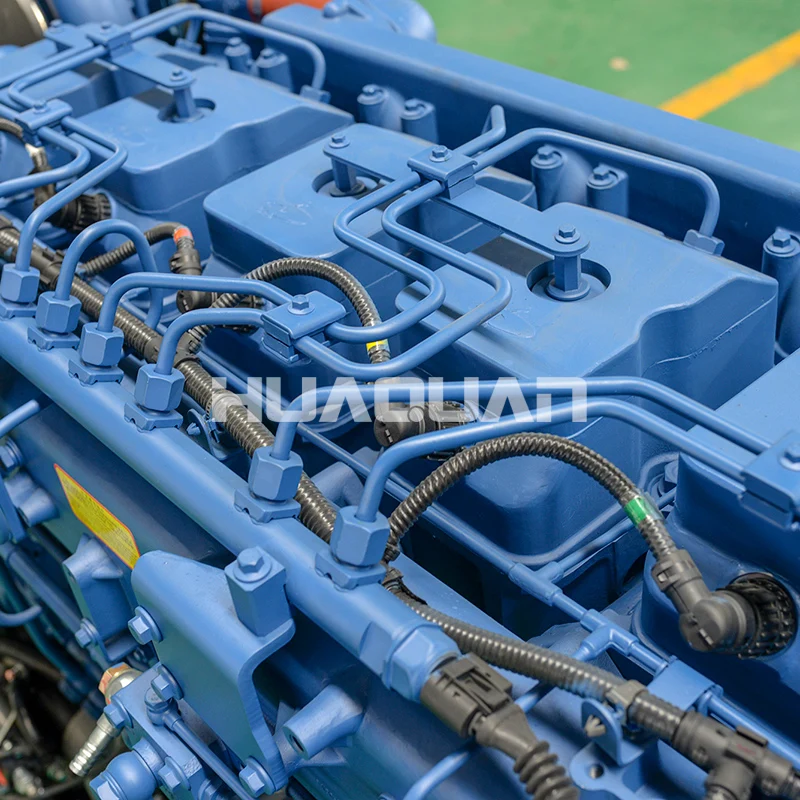

Technical parameters of diesel engine

Brand/origin：

Yuchai Engine

Cooling method:

Closed water-cooling

Model:

YC6C1020L-D31

Oil supply method:

direct injection

Number of cylinders / Dare to mention structure:

6 / L Type

Speed regulation method:

Mechanical

Bore stroke:

200×210 mm

Intake method:

Natural inhalation

Compression ratio:

14.5 ：1

Overload capacity:

110%

Weight：

DC 24V Electric start

Speed:

1500rpm

Technical parameters of generator

Brand：

Huaquan Brushless Generator

Protection level：

IP22

Model：

HQF-700

Wiring mode：

Three-phase four-wire, Y-connection

Rated power:

700kW

Adjustment method:

AVR (Automatic Voltage Regulator)

Rated voltage:

400V / 230V

Output frequency:

50Hz

Insulation class:

H class

Output factor:

COSΦ = 0.8 (lag)

Genset standard features

Ø Direct injection internal combustion engine(Diesel)；

Ø AC synchronous generator（Single Bearing）；

Ø Water Radiator design for 40-45℃ Ambient belt-driven fans and guards；

Ø Generation output air switch、Standard control panel；

Ø Steel common base with shock absorber；

Ø Dry-type air filter fuel filter，oil filter、starting motor、Self-charging alternator；

Ø starter battery and connecting cables；

Ø Industrial 9dB muffler and accessories；

Ø The engine and alternator’s original technical papers,manuals and testing reports ship with GenSet；

Optional accessories（Extra charged）

Ø Engine oil、diesel、water jacket、Anti-condensation heater

Ø Battery floating charger

Ø Self-protection unit/self-starting control panel

Ø Tree-remote control panel

Ø ATS AUTO-loaded transferring screen

Ø Daily fuel tank、Integral fuel tank

Ø Waterproof type(Cabinet)

Ø Mobile trailer(Drip proof)

Ø Mobile trailer(Silent type)
