Packing list（1.2L Fog Machine/Whole Set):

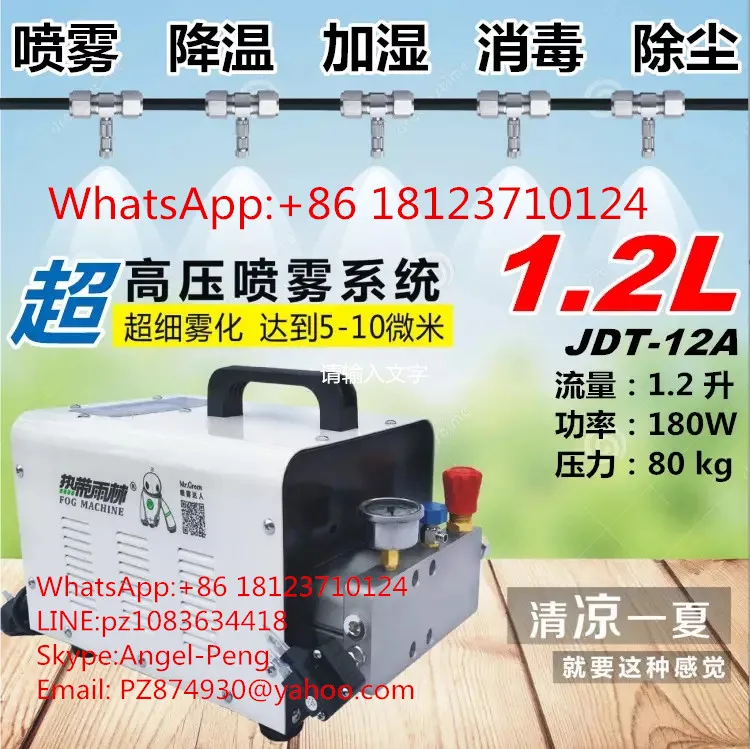

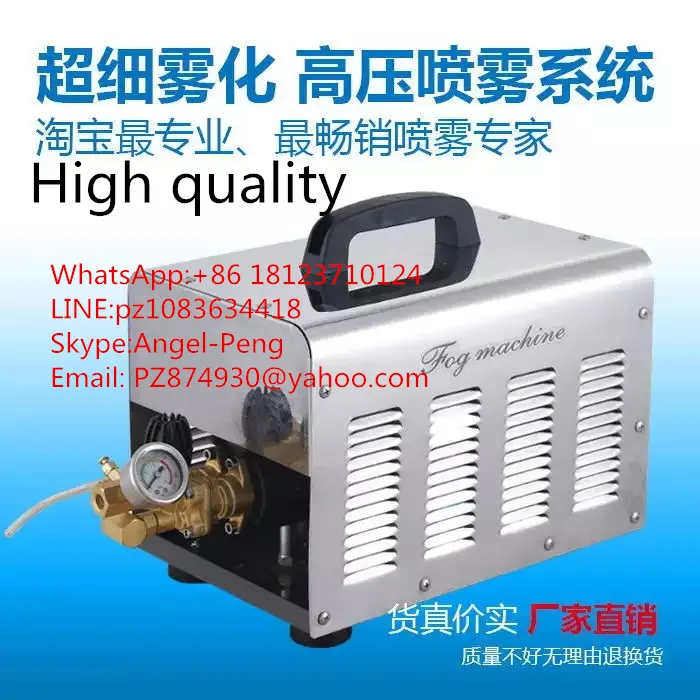

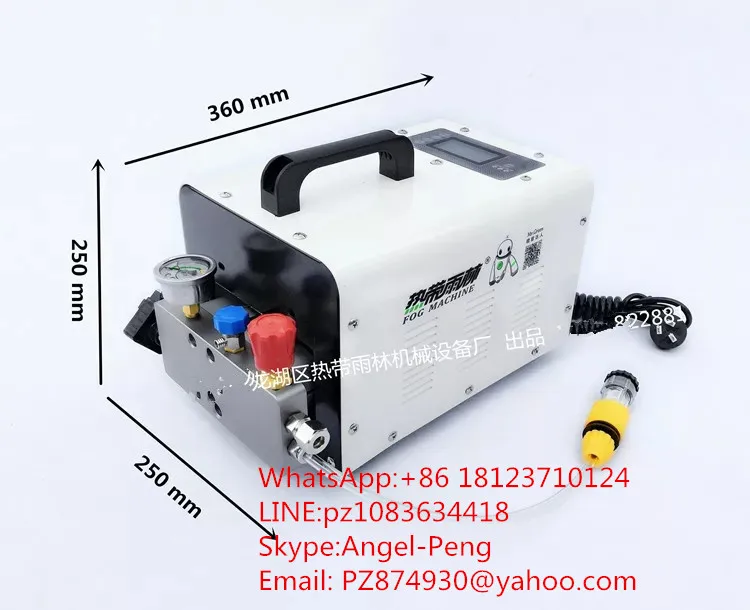

1,1.2L/PM High Pressure Fog Machine                              1pcs

2,High pressure Nylon pipe(good quality)                            30m

3,Slip lock single spray nozzle seat                                       21pcs

4,Slip lock end plug                                                                 1pcs

5,Tee Connector                                                                       2pcs

6,Fog nozzle                                                                              22pcs

7,Elbow connector                                                                   2pcs

8, Tubing clamps                                                                      15pcs

9, Four-way connector                                                             1pcs

10,Valve Connecting mainframe                                             1pcs

11, Valve switch                                                                        1pcs

12,With filter

13,With timer

Designing high pressure fog misting systems for your project can be confusing. With over 10 years in the industry, we have the expertise to simplify the process. Whether for cooling, humidification, greenhouse propagation, or dust/odor control, we can help define the products and the placement of the system to provide maximum performance.

Our product range includes stainless steel fog lines, a proprietary line of cooling and humidification misting fans, specialized humidity and temperature controllers, and both standard and cleanable fog nozzles.

Our product range also includes standard and custom pump designs. The pump selection provides an extensive list of custom pump additions including variable frequency drive, 1 phase or 3 phase voltages, multiple zones, remote control capability, and integration with existing controllers and low voltage signaling.

High Pressure Fine Misting System, Cooling Misting System for Chicken House.

  1. Nozzle Material: Brass, SS

  2. Orifice:Ruby,Ceramic,SS

3.Connection Type: Quick Slip Lock, Thread type

3.Tube size: 3/8" (9.52mm)

  3. Working Pressue: 9bar to 100bar (100PSI to 1000PSI)

  4. Droplet size: 5-40 Micron

  5. Motor Model: 220V/50HZ, 220V/60HZ, 380/50HZ

  6. Fittings Models: Nozzle, Nozzle connector, Tubing, Tubing Cutter, Water filter, Tee, Elbow, End, End Plug, Union, Male/female adapter, ball valve and water filter, etc.

Huajue  Spray Professional make high quality misting system kits for cooling and misting, DIY mist cooling system simple for any applications.

We also separately supply the Fog misting nozzle, connectors, coupling, tubing and pumps.

1. Fog Misting Nozzle:

Orifice diameter: 0.1mm up to 0.5mm

Working pressure: 60-80 bar

Body material: 304SS, brass and 316ss

orifice material: SS, ceramic and ruby

Inlet thread: 10/24, 12/24, 3/16 and 1/8

2. 3/8 Connectors,Fittings and Couplings:

Material: brass and SS

Nozzle thread: 10/24,12/24UNC

Tubing Size: 3/8" (9.52mm)

Working Pressure: 70bar/1000PSI

3. Nylon Tubing & PE Tubing:

Outside diameter: 3/8"

Working Presure: 70 bar up to 120 bar

Temperature:40C.degree

4.Technical data sheet for Fog Nozzles:

5. Misting Pump Capacity:

0.3LPM,0.5L, 1LPM, 2LPM,3LPM, 4L, 5LPM,6LPM,7LPM,8L,11LPM,12LPM,15.4LPM,17LPM,18LPM,21LPM,25LPM

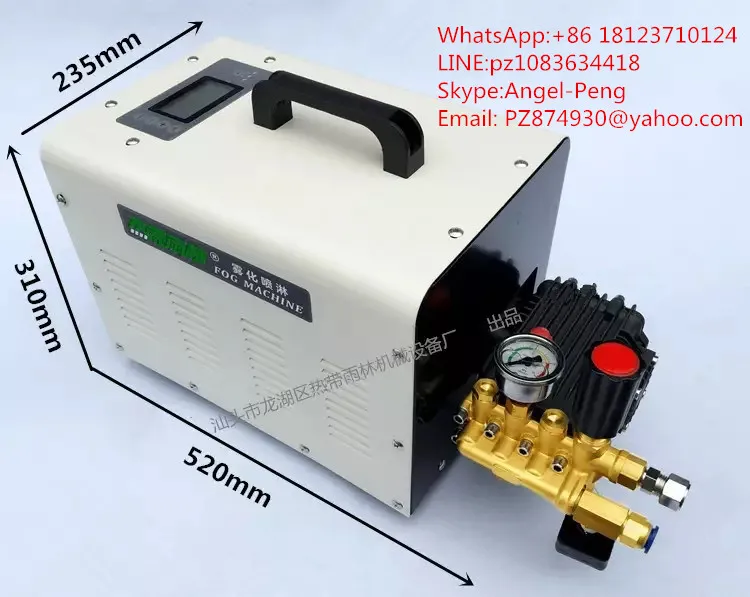

6. Pump Specification:

Application

This pump can be applied into farming usage,such as cooling,humidification,dedusting,deodorization,insect control etc. It can be operated easily and simplely. with such kind of pump machine, user can save lots of energy and time to manage their farming place .Beside, the pump can be used for other functions mentioned flike follows:

1. Cooling

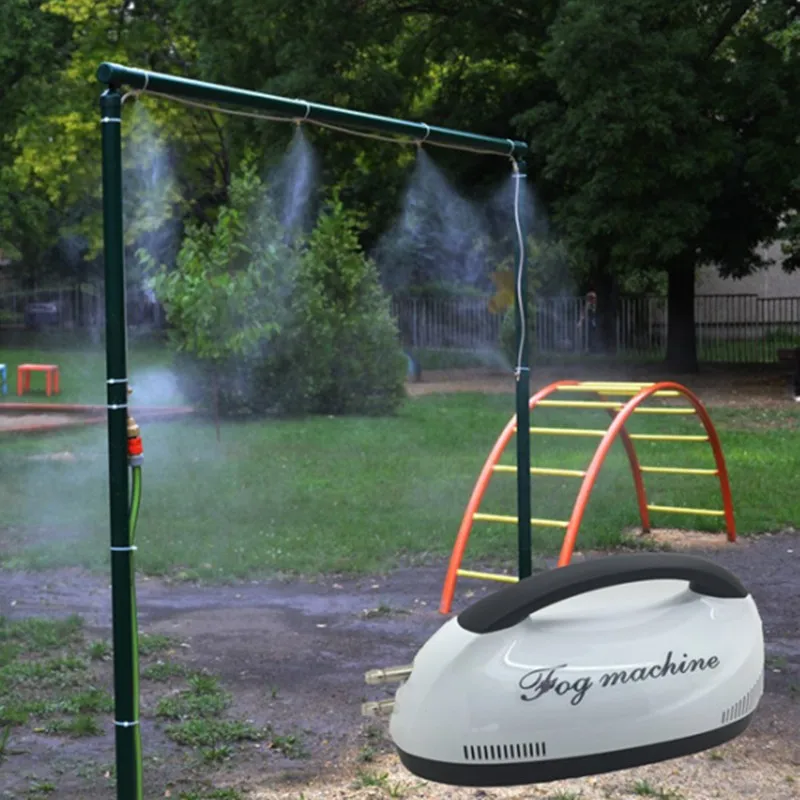

Residential cooling, outdoor cooling, commercial place cooling

2. Humidification

Industrial, agricultural and horticultural: green house, garden, livestock farming

3. Dedusting and Deodorization

Industry process, bulk powder, cement plant, foundry dust, fly ash control, waste transfer, recycling process

4. Insect Control

garden or agriculture , kill the insect effenciently.
