roduct Description

Product Application

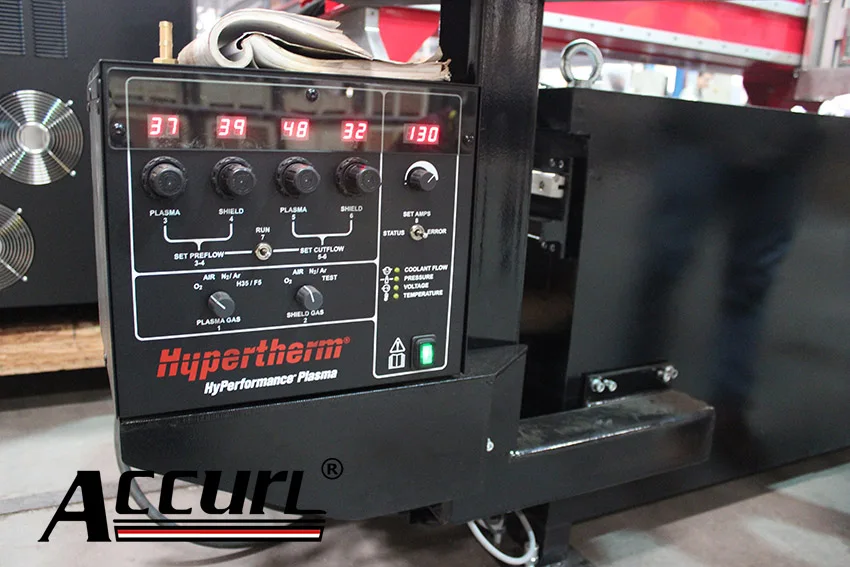

The Micro EDGE Pro CNC cutting system is designed to be reliable, cost-effective, and meet your high performance cutting requirements. The Micro EDGE Pro CNC series are built to ensure a smooth and accurate performance. It is equipped with cnc control system, precision linear guide ways and self aligning plasma torch collision device, automatic height control and automatic ignition system.

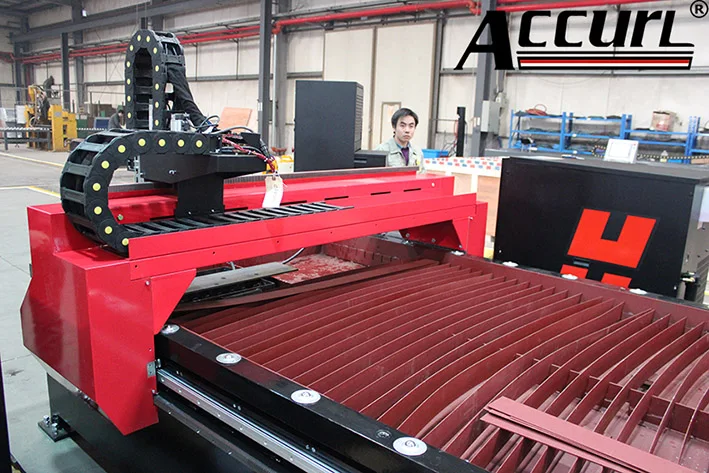

The ACCURL base, consists of welded profiles over the entire length which result in an extremely rugged machine frame. The gantry of the machine rests on oversized linear guides, mounted on the welded profiles, and is driven by two brushless AC Servo motors with rack-and-pinion system (double X-axis drive).

Perfect parallel movement：
The correct positioning is assured by high-resolution encoders, directly mounted on the motors. The synchronised system of the two motors assures perfect parallel movement of the gantry over the linear guides. Cutting Table: dry sectionized downdraft or water table is separately from the rails.

Automatic height positioning：

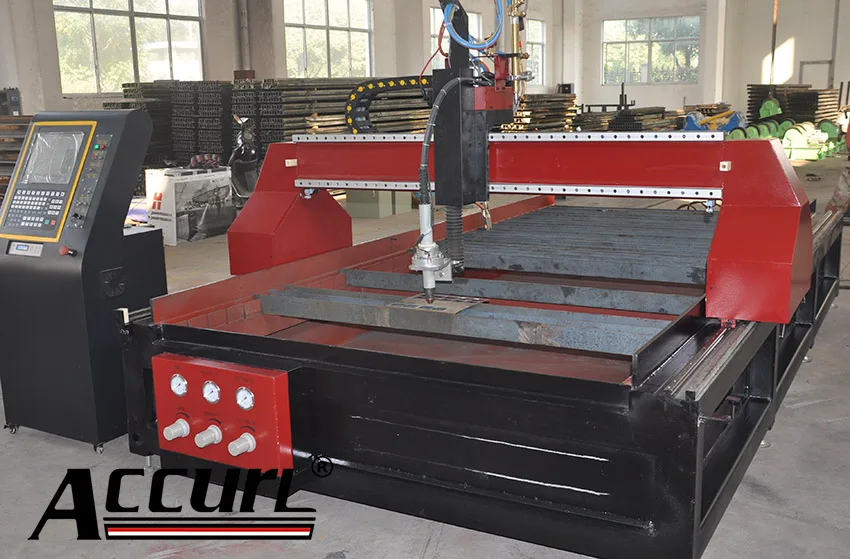

The ACCURL's gantry can accommodate multiple stations such as plasma and/or oxy torches. Included is a MicroEDGE Pro CNC Control unit, monitoring the Z-axis (by brushless AC Servo motor) for the automatic height positioning of the torch during the cutting process.

During the cutting process, the MicroEDGE Pro CNC unit measures the Arc Voltage and adjusts the Z-axis height to maintain a constant distance from the sheet for optimum cutting results.

Correct cutting height：

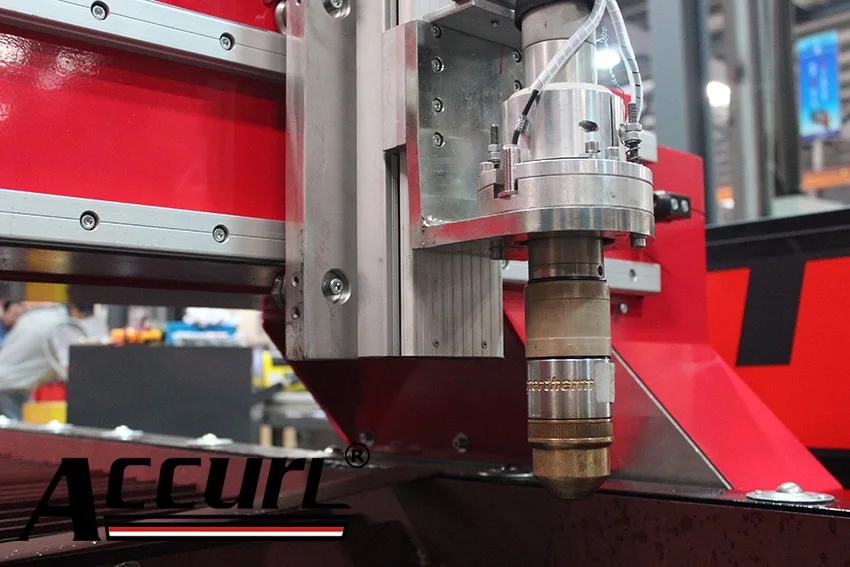

Each oxy-fuel torch carrier has an automatic flame ignition for the torch, as well as an integrated capacitive sensor "Hypertherm OHC" that controls the Z-axis movement (by brushless AC Servo motor ) for correct setting of the cutting height.

SPECIFICATIONS FOR CNC PLASMA CUTTING MACHINE
No.	Name	Value	Unit
1.	Table Width	1500	mm
2.	Length Table	3000	mm
3.	Under Torch Height	150	mm
4.	Width Machine	2350	mm
5.	Length Machine	4450	mm
6.	Height Machine	1750	mm
7.	Height Table	850	mm
8.	X-axis	1500	mm
9.	Y-axis	3000	mm
10.	Weight	3550	Kgs
11.	Max (X-Y)Positioning-speed	30	m/min
12.	Total Power consumption(without Plasma system )	4	Kw

Main Features

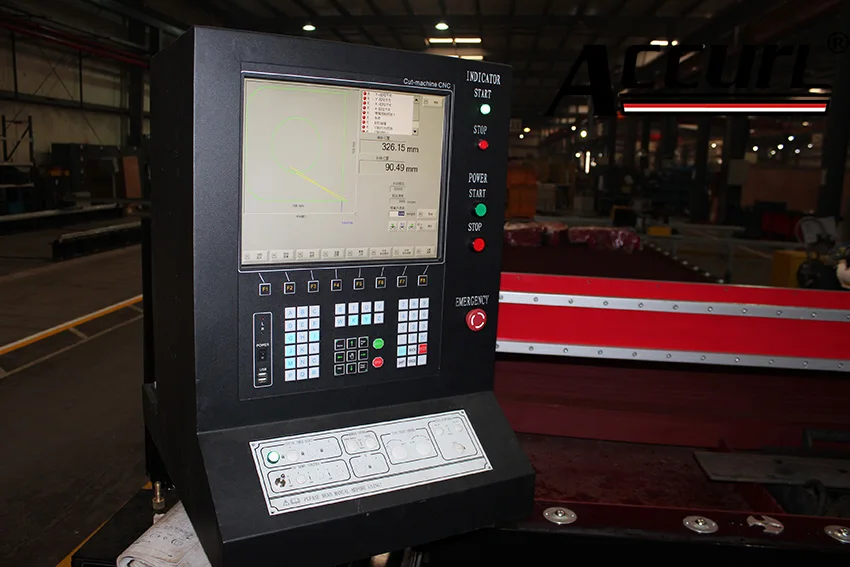

The machine is equipped with the Hypertherm Micro Edge Pro touch screen CNC with easy to use functions such as: Cutpro wizard, cutting optimization tips, built in process databank allowing the operator to select the material type and thickness.

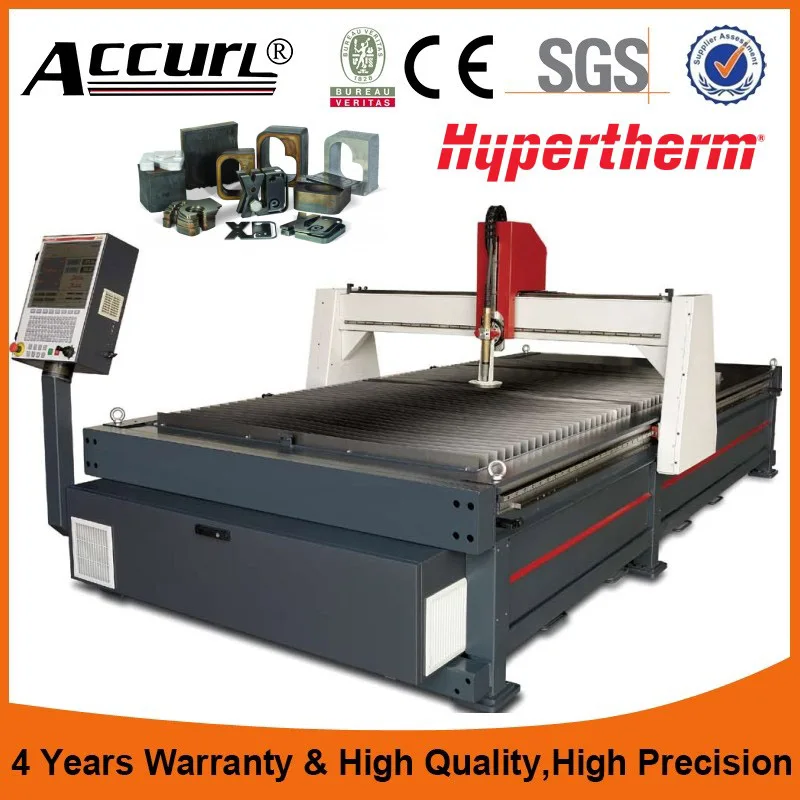

→Portable monoblock construction with small footprint.
→Easy installation,
→Dual side AC servo Y motorization with direct planetary gear box, helical rack and pinion drive system
→Precision Linear Rail Guide Ways in X and Y axis
→High speed torch lifter with automatic arc voltage height control
→Fully enclosed hose and cable carriers
→Hypertherm Micro Edge Pro CNC
→Integrated downdraft table with CNC electro pneumatic multi zone selection
→Integrated dross bins
→Magnetic Torch anti collision protection system
→Laser pointer for plate alignment
→CE safety specifications Our Service
