Описание товара

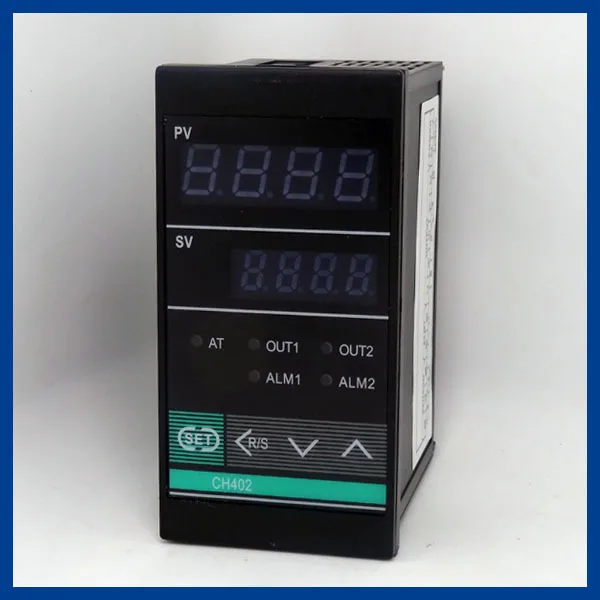

CH series Dual Digital PID TEMPERATURE CONTROLLER
Input: Thermocouple/RTD
Output: Relay
Alarm: 1
Power: 100-240VAC, 50/60Hz
Product Features:
- Dual display for both set temperature and process temperature
- Vertical Size 48*96mm, 1/8 DIN
- Universal input, support 10 different types of thermocouples and RTD inputs by customers selected at panels.
- Auto-tune function can find the best PID parameter automatically
- Displays temperature in Celsius °C
- Four digits LED display can go up to "9999"
- Can be powered by either DC or AC power source
- Uses it for Kiln,Furnace,Oven,Incubator temperature control
- Uses it in heating control as well as for cooling control
- It is used in various industries to control and monitor process temperatures
Product Main Specifications:
| Input type | TC: K, E, S, R, J, T, B, WRe3-WRe25. RTD: Pt100, Cu50 DC voltage: 0~5V, 1~5V,0~10V. DC current: 4~20mA |
| Input range | K (-200~+1300ºC), S (-50~+1600ºC), WRe3-WRe25 (0~2300ºC ), R (-50~+1600ºC), T (-200~400ºC), E (-200~900ºC), J (-200~1200ºC), B (350~1800ºC), Pt100 (-99.9~600.0ºC) or (-200~+600ºC), Cu50 (-50~150ºC) |
| Display | Two lines, Four digits. °C. |
| Display Resolution | 1°C, or 0.1°C with Pt100 |
| Accuracy | ±0.5% or ±1 unit of full input range |
| Control mode | PID, On-Off |
| Output mode | Relay contact: 3A at 240 VAC. SSR: 12VDC, Current: 4~20 mA Voltage: 0~10V |
| Alarm | Upper-limit bias alarm |
| Power consumption | <2 Watt |
| Power supply voltage rating | 85~260VAC/50~60Hz |
| Dimensions | CH402 48*96*110mm |
Cautions:
- Only clean the instrument when power off.
- Please use a soft cloth or cotton paper to clean up the stain on the display.
- Do not clean up or touch the display by hard matters in case of any scrath.
- Never use sharp & hard matters such ass screwdrivers or ball pan to touch the buttons on the panel,in case of any scrath or damage.
Packages:
-
1×PID Digital Temperature Controller (NOT include thermocouple)
