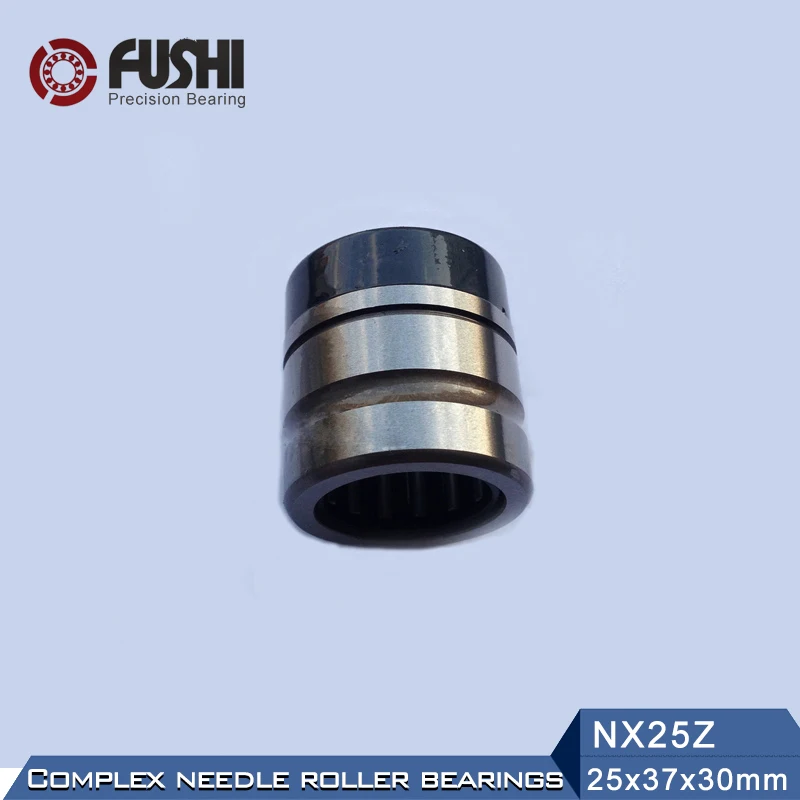

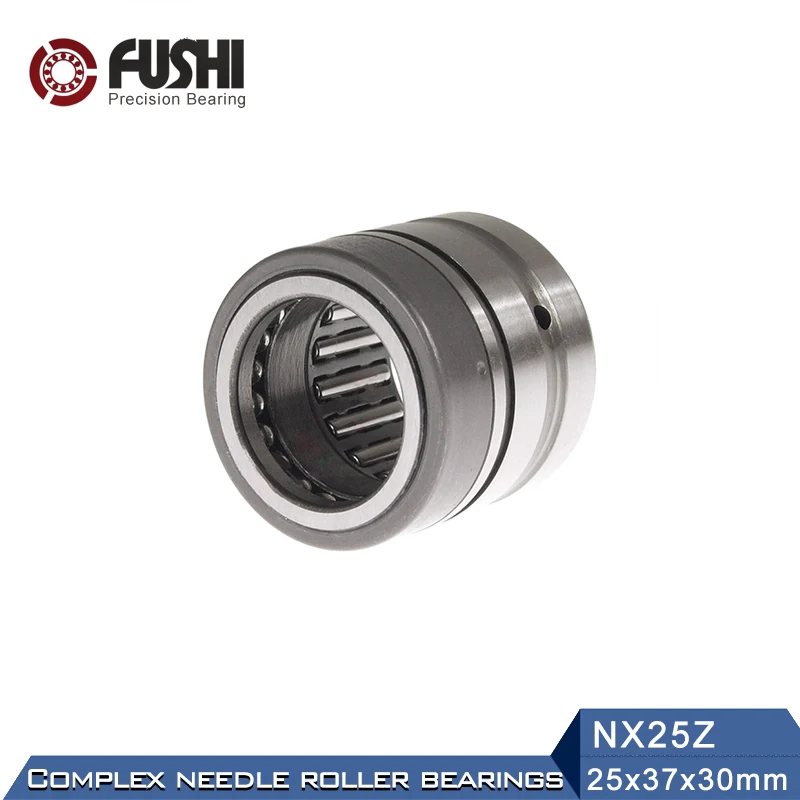

NX25Z Combined Bearings 25*37*30mm ( 1 PC) Needle Roller Full Complement Thrust Ball Bearing NX25 Z | Обустройство дома

NX25Z Combined Bearings 25*37*30mm ( 1 PC) Needle Roller Full Complement Thrust Ball Bearing NX25 Z | Обустройство дома

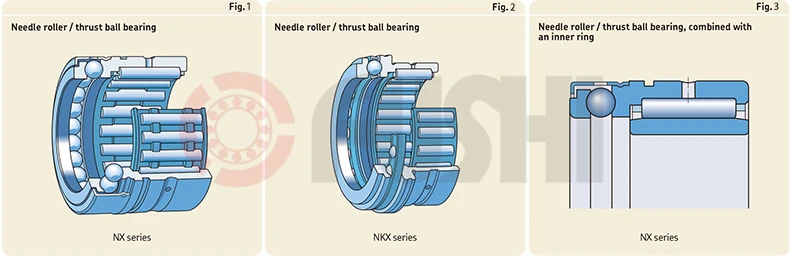

  Needle roller / thrust ball bearings combine a radial needle roller bearing and a thrust ball bearing. FUSHI supplies these bearings in the following two series:  NX series ( fig. 1), a needle roller bearing with a full complement thrust ball bearing  NKX series ( fig. 2), a needle roller bearing with a thrust ball bearing with a cageFUSHI supplies the bearings in both series without an inner ring. However, for applications where it is not possible to harden and grind the shaft, the needle roller bearing can be combined with an inner ring ( fig. 3). Appropriate inner rings are listed in the product tables and can be ordered separately.  Needle roller / thrust ball bearings,NX series  FUSHI needle roller / full complement thrust ball bearings in the NX series are suitable for applications where there are moderate radial loads and lighter, single direction axial loads. Their extremely low sectional height enables shaft centerlines to be positioned close together as is the case for multi-spindle drilling machines.  For axial support, the bearings may be mounted against a shoulder or snap ring in the housing bore. The snap ring groove in the outer ring provides a cost-effective and axially space saving arrangement. The appropriate snap rings are listed in the product tables.  Needle roller / thrust ball bearings in the NX .. Z series should be grease lubricated. FUSHI supplies the thrust ball bearing in this series filled, as standard, with a high-quality grease with good rust inhibiting properties. The cover, which has no lubrication holes, forms a gap-type seal with the shaft washer to retain the grease in the bearing. DIMENSIONSModel: NX25ZType: Needle roller / thrust ball bearingsSize: 25x37x30 mm Quantity: 1 Pc
