Through Coating Ultrasonic Metals Plastic Ceramics Composites Epoxies Glass Thickness Gauge Meter Tester MT600 with P-E E-E mode |

---

Through Coating Ultrasonic Metals Plastic Ceramics Composites Epoxies Glass Thickness Gauge Meter Tester MT600 with P-E E-E mode

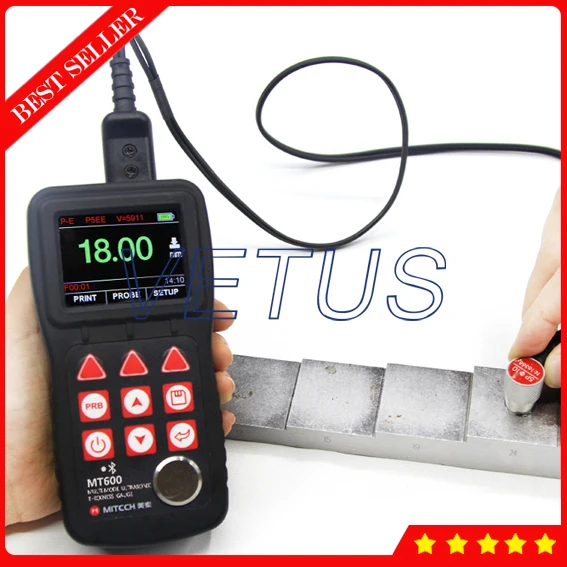

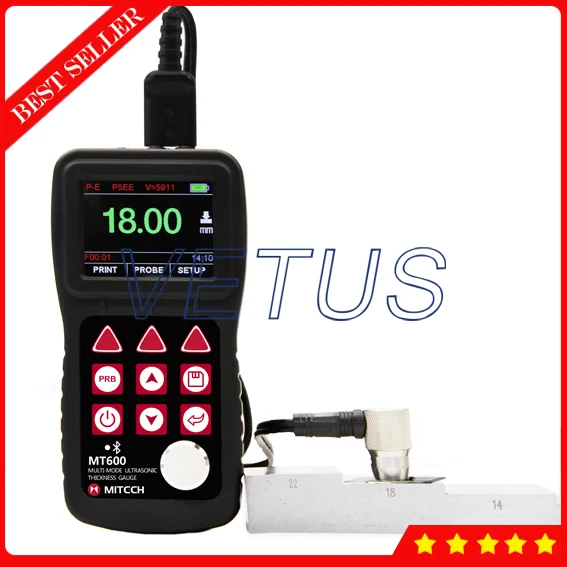

1.Product Overview    The model MT600 is a multi-mode ultrasonic thickness gauge. Based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. The Multi-mode feature of the gauge allows the user to toggle between puluse-echo mode (flow and pit detection), and echo-echo mode ( eliminate paint or coating thickness )   2.Function & application Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.Transducer models are available for special application, including for coarse grain material and high temperature applications.   3.Instrument Features    Multi-mode: Pulse-Echo mode (P-E mode) and Echo-Echo mode (E-E mode). In Echo-Echo mode, it can test the wall thickness eliminating paint or coating thickness.Wide measuring range：Pulse-Echo mode: (0.65～600)mm (in Steel). Echo-Echo mode: (2.5～60)mm V-Path correction to compensate the nonlinearity of the probe.Color TFT display (320×240 TFT LCD) with adjustable backlight, allow the user to work at worksites with low visibility.Non-volatile memory can store 100 groups of test thickness. One hundred records max for each group.Two AA size alkaline batteries as the power source. Continuous operating period of no less than 100 hours (default brightness setting). Display Standby and Auto Power Off functions to save power.With internal Bluetooth module, it can print test report wirelessly. USB 2.0 communication port. Online transfer of the measured data to PC via USB.   4.Working Principle The digital ultrasonic thickness gauge determines the thickness of a part or structure by accurately measuring the time required for a short ultrasonic pulse generated by a transducer to travel through the thickness of the material, reflect from the back or inside surface, and be returned to the transducer. The measured two-way transit time is divided by two to account for the down-and-back travel path, and then multiplied by the velocity of sound in the material. The result is expressed in the well-known relationship: H=v×t/2     Where：  H－Thickness of the test piece. v－Sound Velocity in the material.  t－The measured round-trip transit time.    Working Conditions Operating Temperature: －20℃～＋60℃;  Storage Temperature：-30℃～＋70℃  Relative Humidity ≤90％；  The surrounding environment should avoid of vibratin, strong magentic field, corrosive medium and heavy dust.

Measuring Range	0.65-600mm( P-E), 3-100mm (E-E)
Working Frequency	(2.5-7）MHZ
Probe Diameter	Standard Probe P5EE is 10mm, Probe N05 is10MM、Probe N07 is 6MM、Probe HT5 is12MM、Probe N02 is12MM

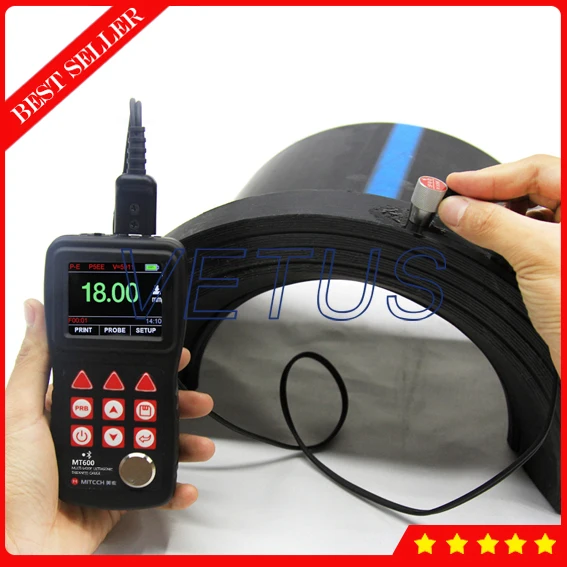

Min. Pipe Diameter	Φ15mm×2.0mm
Resolution	0.1/0.01/0.001mm
Accuracy	±0.04mm（<10mm）；±0.4%Hmm(>10mm)
Display	320x240 TFT color LCD screen, adjustable backlight brightness
Single /Scan Mode	Single mode,Scan Mode, and and diff mode
Probe Calibration	Zero calibration, two-point calibration, automatic error correction system
Velocity Range	1000-9999m/s
Unit	Metric/Imperial unit selectable
Language	English
Memory	100 groups (100values for each group) of stored values

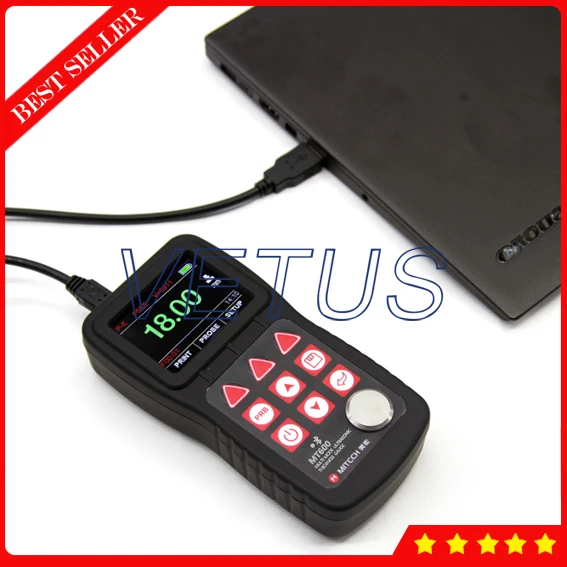

Communication Port	USB.Bluthtooth
Data Printing	yes

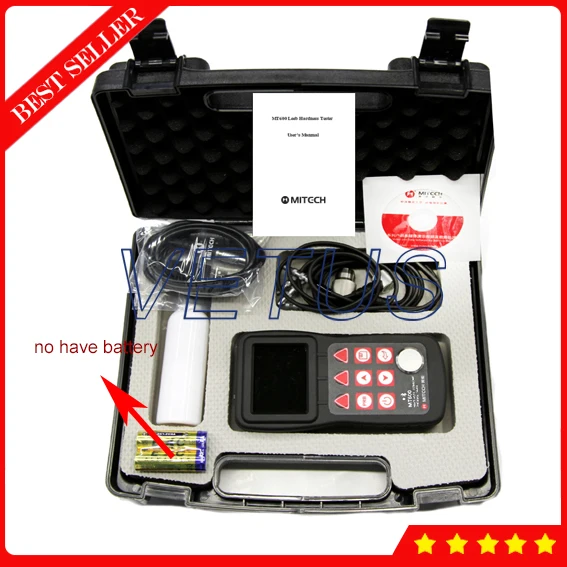

Power supply	Two “AA” size, 1.5 Volt alkaline batteries(not included)
Lower Power Comsumption	Yes
Working Hours	30h
Operating Temperature	-20℃-+60℃
Relative Huminity	≤90％
Appearance	ABS Plastic
Outline	150mm×76mm×38mm
Gross Weight	295g
PC Datapro Software	Yes
Speech Function	Yes
