DEERACE 24/24 holes 29'' 27.5'' 26'' 24mm x 23.5mm MTB CARBON CLINCHER WHEELS BIKE WHEELSET for XC NOVATEC D791SB/D792SB |

DEERACE HOOKLESS TUBELESS MTB WHEELS FOR XC

SPECIFICATIONS:

Material: Toray T700

Rim size: 29ER/ 27.5ER(650B)/ 26ER

Rim depth/width: 23.5mm/24mm

Rim type: Hookless

Rim drills: 24 front 24 rear

Rim finish: UD MATTE

Hubs: NOVATEC D791SB/D792SB - 15mm*100mm front, 12mm*142mm rear (QR version also available, default THRU AXLE version), black.

Freebody: Shiman 8/9/10/11S or S-RAM XD XX1 X01 11V 11S 12V 12S compatible.

Spokes: Pillar psr 1420 Aero Bladed Spokes, black

Nipple: sapim Alloy, black/red (default black)

Wheels weight: 26er - 1350g; 27.5er - 1380g; 29er - 1410g. All+-40g

Tubeless ready: Yes

Accessories: 4 spare spokes and nipples.

RIM PROFILES

SECTIONAL VIEW

TECHNOLOGIES

Hookless Design - TUBELESS READY

2.5mm thickness, 35 layers pregreg to reinforce the side wall and to prevent air leaking.

Bead Lock

An 3°angled bead lock to keep the tire bead positioned on the shelf when air is released from the tire and also adds a level of safety if a tire is leaking. This features allows you to refresh sealant without having the tire bead fall into the center of the rim, resulting in a tire that is more difficult to inflate and re-seat.

Nipple Bed

Extra carbon fiber strip has a good characteristics to reinforce the spoke hole.

Impact Resistant Construction

Extra layers of prepreg that increases the impact strength and helps distribute energy and shock from impacts to the rim All rims use a blend of Toray 700 and 800 carbon fiber with the Toray 800, which is 25% stronger,used in high impact areas.

HUBS

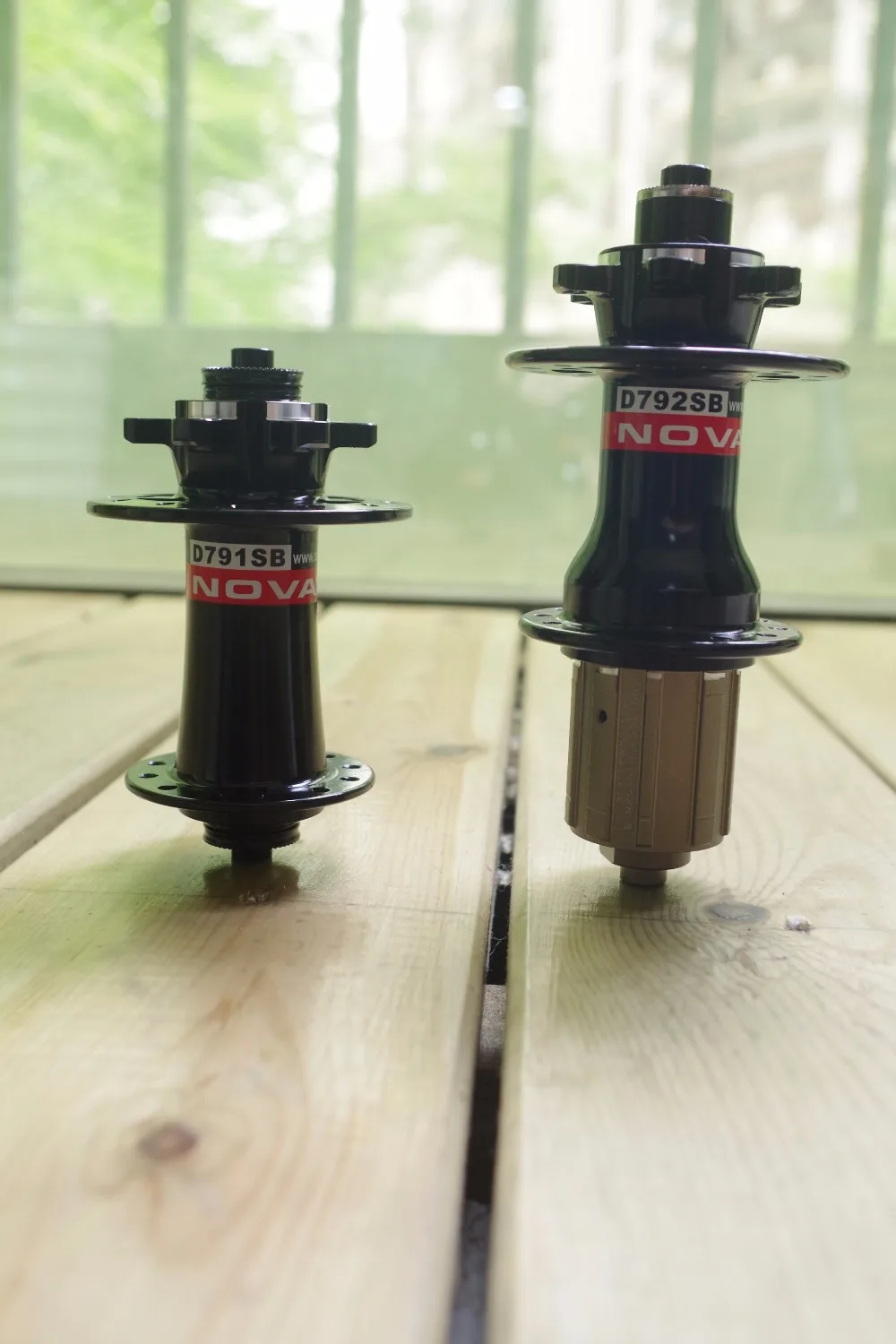

NOVATEC D791SB/D792SB - THRU AXLE/ QR CONVERTIBLE

options for d791sb: QR/12MM/15MM X 100MM (DEFAULT 15MM)

options for d792sb: QRX135MM, 10MMX135MM, 12MMX135MM, 12MMX142MM (DEFAULT 12MMX142MM)

SPOKES

PILLAR PSR 1420 AERO BLADED SPOKES

INCREASE WHEELS STRENGTH AND AERODYNAMICS

ABOUT CUSTOMS TAXES:

Please be noted that our offer does not include any customs taxes/duties, and we will not be responsible for any extra charges. But usually we will declare $120 only for your customs to help you pay less taxes/duties. If payment proof is required by your customs, we strongly suggest two separated payments, otherwise the package will be returned due to insufficient clearance documents. Please contact us if you don't know how to proceed. If you have particular requirements, please leave the comments. Your understanding and support will be highly appreciated.

WARRANTY:

LIBERTY carbon wheels are guaranteed 18 MONTHS WARRANTY.

Any quality issues occur within 18 months, we are obliged to repair/replace neccessary components for free.

What’s more, if there is unlucky crash/accidents with your wheels with 24 months, we are willing to offer you new wheels at minimum cost.

This warranty is non-transferable and valid to the original purchaser of the product only.

·         The following improper use will void your warranty

·         1 Crashes and accidents

·         2 Misuse (off-road riding, jumping, trick riding, Cyclocross, etc)

·         3 Modification of wheels or Improper assembly

·         4 Tire pressure exceeding 140psi

·         5 Normal wear and tear

·         6 Improper follow-up maintenance or maintenance by an unauthorized technician.

·         7 Installation of parts or accessories not originally intended for, or not compatible with the wheelset as sold

·         8 Damage or deterioration on the surface finish or appearance which has no effect on the function

·         9 Damages caused by natural disaster

·         This warranty does not cover

·         10 Normal wear items (bearings, skewers, spokes etc)

·         11 Surface finishes and cosmetic treatments (anodizing, decals, etc)

·         12 All other bicycle components

·         13 Consequential or incidental damages (where applicable)

·         Warning: If you do not follow these guidelines the warranty will be void.

·         14 Use brake pads for carbon rims only. Change brake pads when wear is indicated.

·         15 Use high pressure rim tape for clincher wheels.

·         16 Clean rim surface and brake pads before you use your wheels.

·       17 Exceed the maximum tire inflation pressure recommended. Road: 130psi; MTB: 65psi

For wider rims for all mountain bicycle wheels, please refer to this product.

AM MTB Carbon Wheelset
