The whole control DDS function signal generator / pulse wave source /PWM embedded test instrument | Инструменты
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-19-2026 | 0.95 руб. | 0.40 руб. | 0 руб. |
| Feb-19-2026 | 0.60 руб. | 0.54 руб. | 0 руб. |
| Jan-19-2026 | 0.95 руб. | 0.5 руб. | 0 руб. |
| Dec-19-2025 | 0.90 руб. | 0.67 руб. | 0 руб. |
| Nov-19-2025 | 0.93 руб. | 0.90 руб. | 0 руб. |
| Oct-19-2025 | 0.18 руб. | 0.10 руб. | 0 руб. |
| Sep-19-2025 | 0.75 руб. | 0.71 руб. | 0 руб. |
| Aug-19-2025 | 0.29 руб. | 0.51 руб. | 0 руб. |
| Jul-19-2025 | 0.94 руб. | 0.22 руб. | 0 руб. |
Описание товара

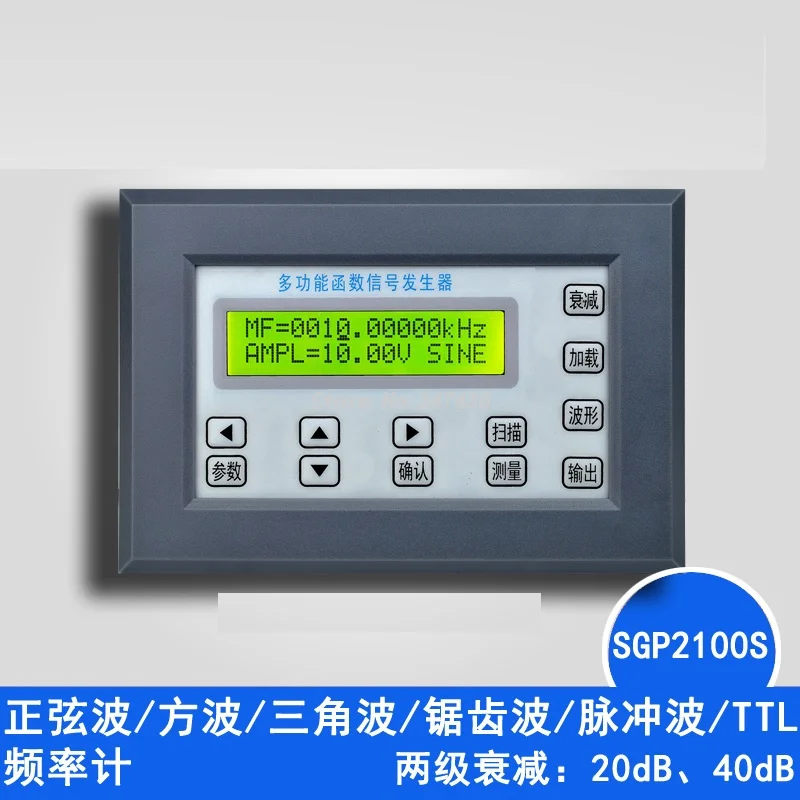

SGP2100S series
Whole process controlDual channel function generator
SGP2100SseriesDDSSignal generator signal generator is the product of in 2015 launched a cost-effective and versatile instrument, using large scaleFPGAIntegrated circuits and high speedMCUMicroprocessor, the internal circuit uses active crystal oscillator as the benchmark, high signal stability. Surface mount technology greatly improves the anti-interference and service life of the instrument. Display interface adoptionLCD1602LCD display is divided into two lines, the top line shows the current frequency, the following line shows variable other parameters or functions. The instrument has great advantages in signal generation, waveform scanning, parameter measurement and application. It is an ideal test and measurement equipment for electronic engineers, electronic laboratories, production lines and teaching and scientific research.
SGP2100SThe last two digits in the instrument model00Represents the sine wave frequency upper limit of this type of instrumentMHz). Cases:SGP2102S,02The sine wave output frequency is the highest2MHz.
Three indicators signal source is the most important: the frequency, amplitude and offset level, so we must consider when purchasing a signal generator that several important parameters, so that we can get a most suitable for their own products.1. about frequency:When purchasing, as long as the highest output frequency of the instrument is greater than the maximum frequency you need to use, you need to remind that the highest output frequency of the equipment mentioned in the market generally refers to the sine wave maximum output frequency. If you need Fang Bo, you need to confirm the maximum output frequency of the square wave you buy.2. about the magnitude:When purchasing instruments, you should consider the maximum amplitude range of the instrument output signal. If you purchase the instrument range is too small, then the use of the instrument in the future will be greatly restricted.3. about offset level:A normal standard signal generator bias level can be arbitrarily adjusted. In the experimental circuit, this signal with arbitrary DC bias is extremely common. If the signal generator can not output a bias greater than 5V, the peak value is less than 1V signal, such products can be said that basically no practical value.The characteristics of our company's instrument are introduced as follows:
1., signal stability is high
The instrument can output 20VPP waveform signal stably, and the machine has 20DB and 40DB attenuation circuit, which can output small signal of 10mVpp stably. So that it can be widely used in the field of instruments.
2. waveform diversity Can outputSine wave, Fang Bo, triangle wave, pulse wave, Jie Tibo, rising sawtooth wave and sawtooth wave 3. measuring functions are diverse Shortcut key operation, with a key into the measurement function interface, the instrument can not only measure the frequency, but also has a 10 bit 10 decimal number counter. 4. bias level adjustment precision The instrument bias level from -10V to +10V between the precision of continuous adjustment, this function is essential in the field of sensor, signal simulator experiment and teaching experiment, so the purchase of the former must consider whether the bias level instrument can be arbitrarily set size. 5. sweep frequency is more flexible Shortcut key operation, with a key into the sweep function interface, the machine can achieve linear sweep and logarithmic sweep,The maximum sweep time can be up to 999 seconds, and the starting frequency and the termination frequency of the sweeping frequency can be arbitrarily set. 6. convenient installation Embedded panel mounting structure facilitates user product integration. 7. wide voltage supply range This machine supports DC14V-DC35V wide voltage power supply range
*The frequency accuracy is high: the frequency accuracy can reach 10-6Order of magnitude
*High frequency resolution: full range frequency resolution10mHz
*Dutycycle independent regulation(1%~99%)
No range limit: the full range of the frequency shift, direct digital set
The high precision of the output waveform waveform calculated by the function of waveform synthesis, high precision, small distortion
The scanning characteristics: high frequency linear scanning and logarithmic scanning, scanning the starting and ending points can be set arbitrarily.
The storage characteristics: can store 20 groups of instrument state parameters set by the user, can be called up again
The mode of operation: all the key operation,LCD1602LCD display in English

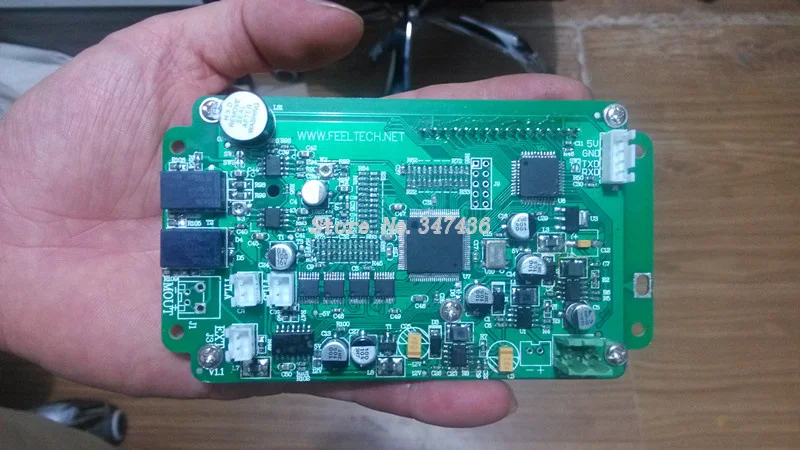

The high reliability: large scale integrated circuit, surface mount technology, high reliability, long service life
The frequency measurement with:60MHzFrequency meter function, frequency measurement of internal / external signals
| Product specification | SGP2102S | SGP2105S | SGP2110S | SGP2112S |
| Sinusoidal frequency range | 0Hz - 2MHz | 0Hz - 5MHz | 0Hz - 10MHz | 0Hz - 12MHz |
| 0Hz - 2MHz | 0Hz - 5MHz | 0Hz - 5MHz | 0Hz - 5MHz | |
| 0Hz - 2MHz | 0Hz - 5MHz | 0Hz - 5MHz | 0Hz - 5MHz | |
| 0Hz - 2MHz | 0Hz - 5MHz | 0Hz - 5MHz | 0Hz - 5MHz |
| ) | |
| ≥20Vp-p() | |
| 50Ω±10% | |
| ±10V | |
| 0.01Hz(10mHz) | |
| ±5×10-6 | |
| ±2×10-6/3 | |
| ≤0.8% ( 1kHz) | |
| ≥98% (0.01Hz~10kHz) | |
| ≤100ns | |
| 1%~99% |
| TTL | |
| >3Vp-p | |
| >20 TTL | |
| TTL | ≤20ns |
| 0-4294967295 | |
| 1Hz~60MHz | |
| 1Vp-p~20Vp-p |
| M1~M2 | |
| 1s~999s/ |
| LCD1602LCD display in English | |
| M0-M19(M0:) | |
| 120mm ()×70mm() ×30mm() | |
| 0~40 80% | |
| DC14V-DC35V |
