FY2000S series 10MHzDDS function signal source generator \60MHz frequency meter can be operated by computer | Инструменты
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.22 руб. | 0.44 руб. | 0 руб. |
| Feb-18-2026 | 0.90 руб. | 0.33 руб. | 0 руб. |
| Jan-18-2026 | 0.4 руб. | 0.16 руб. | 0 руб. |
| Dec-18-2025 | 0.19 руб. | 0.44 руб. | 0 руб. |
| Nov-18-2025 | 0.92 руб. | 0.53 руб. | 0 руб. |
| Oct-18-2025 | 0.91 руб. | 0.56 руб. | 0 руб. |
| Sep-18-2025 | 0.94 руб. | 0.15 руб. | 0 руб. |
| Aug-18-2025 | 0.83 руб. | 0.9 руб. | 0 руб. |
| Jul-18-2025 | 0.2 руб. | 0.45 руб. | 0 руб. |
Описание товара

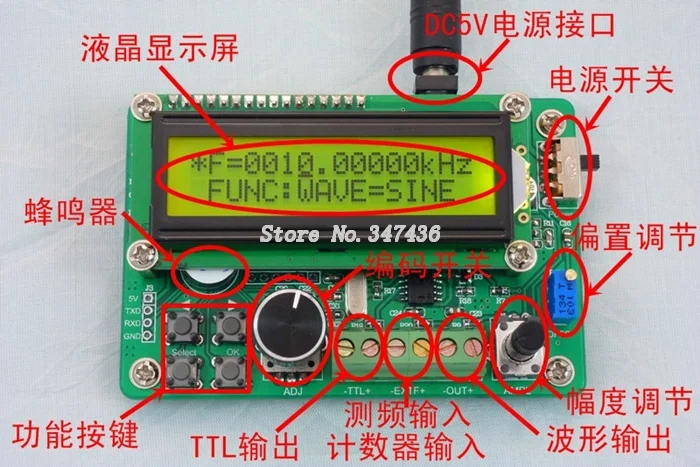

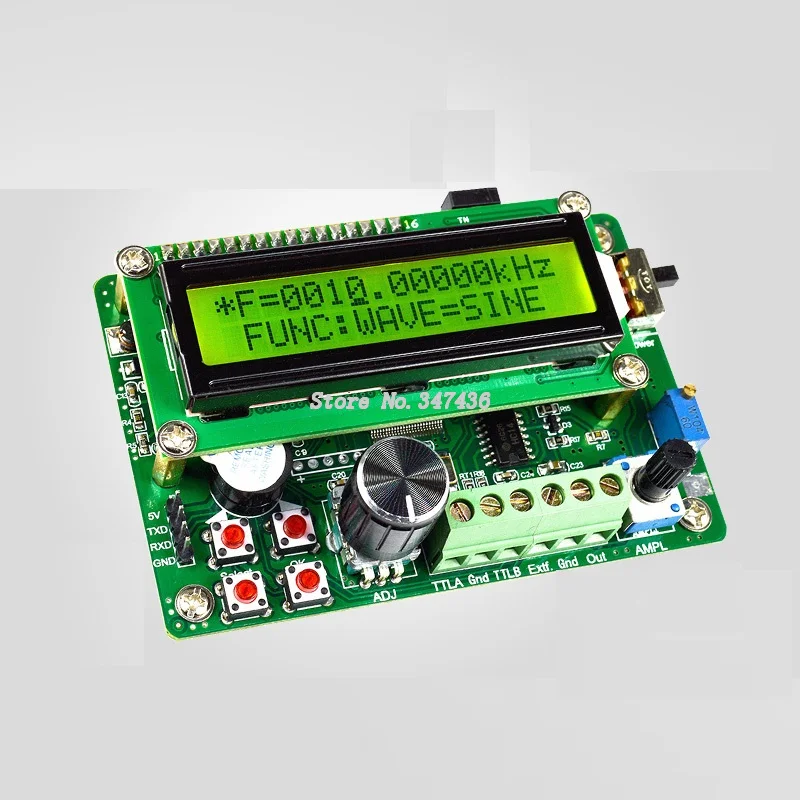

FY2000S seriesfunctionSignal generator
The FY2000S series is based on direct digital synthesis technology(DDS) of the signal generator, using FPGA design, DC5V power supply, which can output sine wave, square wave (duty ratio 1%-99% regulation), triangular wave, sawtooth wave and other function waveform, frequency resolution of 10mHz, at the same time withDual differential TTL levelIt has many functions, such as counter, 60MHz frequency meter and so on. It has the advantages of easy operation, high signal stability, adjustable output amplitude and DC bias, and FY2000S series has sweep frequency function,Two scanning methods, linear scanning and logarithmic scanning, are supportedThe scanning frequency range and scanning time can be set arbitrarily.It is an ideal equipment for electronics enthusiasts, laboratories, production lines and teaching and scientific research. It can also be used as a supporting module of industrial equipment.

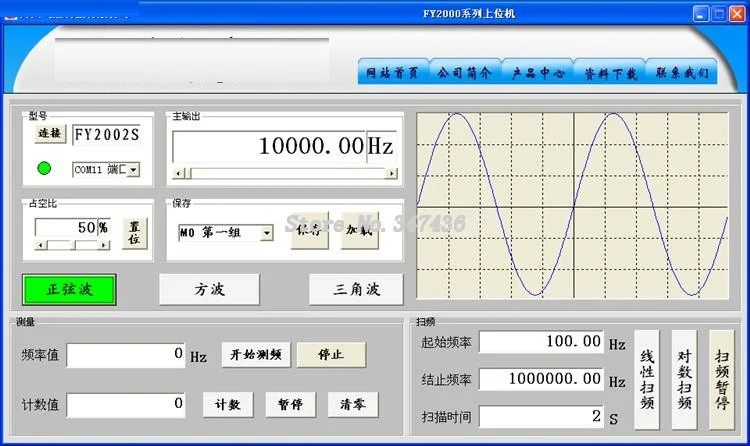

FY2000S series DDS computer control software
It has the advantages of small volume, multiple functions, convenient carrying
*The instrument can be controlled by sending coMmands through the computer
The frequency of high precision frequency accuracy can reach the order of magnitude of 10-6
The high frequency resolution: full range frequency resolution 10mHz
No range limit: the full range of the frequency shift, direct digital set
The high precision of the output waveform waveform calculated by the function of waveform synthesis, high precision, small distortion
The variety of waveforms: sine, square wave, triangle wave, sawtooth wave,Dual channel TTL level differential output
The scanning characteristics: high frequency scanning function, scanning the starting and ending points arbitrarily set
The storage characteristics: can store 20 groups of instrument state parameters set by the user, can be called up again
The mode of operation: all the key operation, LCD1602 liquid crystal display English, direct digital set or continuous adjustment knob
The high reliability: large scale integrated circuit, surface mount technology, high reliability, long service life
The frequency measurement: 60MHz frequency meter with function of internal / external signal frequency measurement
The buzzer beep: when the operation of the instrument, the buzzer will send operation tone, tone users can open or close.
| Product specification | FY2002S | FY2005S | FY2008S | FY2010S |
| Sinusoidal frequency range | 0Hz - 2MHz | 0Hz - 5MHz | 0Hz - 8MHz | 0Hz - 10MHz |
| Square wave frequency range | 0Hz - 2MHz | 0Hz - 2MHz | 0Hz - 2MHz | 0Hz - 2MHz |
| Frequency range of triangle wave | 0Hz - 2MHz | 0Hz - 2MHz | 0Hz - 2MHz | 0Hz - 2MHz |
| Other waveform frequency range | 0Hz - 2MHz | 0Hz - 2MHz | 0Hz - 2MHz | 0Hz - 2MHz |
| Signal output parameter | |
| Output channel | Main waveform output and two way TTLDifferenceLevel output |
| Output waveform | Fang Bo (sine wave, adjustable duty cycle), triangle wave, sawtooth wave rise,Sawtooth wave. |
| Output amplitude | More than 10Vp-p(no load) |
| Output impedance | 50 + 10% |
| DC offset | + 3V |
| frequency resolution | 0.01Hz (10mHz) |
| Frequency accuracy | 5 x 10-6 |
| Frequency stability | 2 x 10-6/3 hours |
| Sine wave distortion | Less than or equal to 0.8%Reference frequency1KHz) |
| Linearity of triangle wave | More than 98%(0.01Hz~10kHz) |
| Rise and fall time of square wave | Less than 50ns |
| Square wave duty cycle range | 1%~99% |
| TTLoutput | |
| Range | >3Vp-p |
| Fan-out | >20 TTLload |
| TTL levelRise and fall time | Less than 20ns |
| Frequency counter function | |
| Counting range | 0-4294967295 |
| Range of frequency measurement | 1Hz~60MHz |
| Input amplitude | 2Vp-p~20Vp-p |
| Scanning function | |
| Scanning mode | Linear scan and logarithmic scan |
| Frequency setting range | The starting point and termination point are arbitrarily set (the starting frequency is less than the termination frequency) |
| Frequency scanning range | M1Preset frequency~M2Preset frequency |
| Scan rate | 1s~99sStep by step |
| Other characteristics | |
| Display mode | LCD1602LCD display in English |
| Storage and call in function | M0-M19(M0:Default transfer) |
| Buzzer prompt function | It can be switched on or off by program setting |
| Power supply condition | DC5V 1A, random with AC220V to DC5V power adapter |
| manufacturing process | surfaceSurface mount technology, lsi,High reliability and long service life |
| Operating characteristics | All buttons are operated, and the knob is adjusted continuously |
| environment condition | Temperature:0~40 temperature Humidity:< 80% |
| size | 95Mm (long*)65Mm(wide*)30mm(high) |
| weight | 230g |

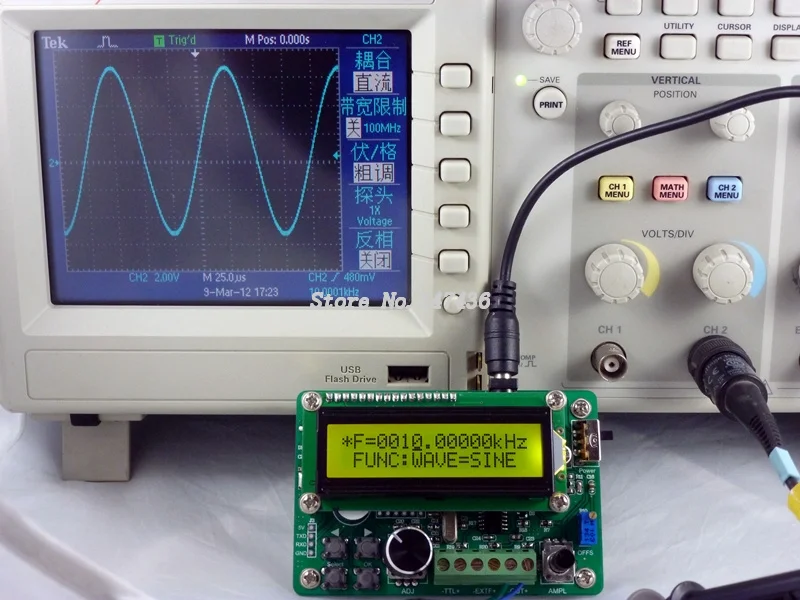

1. standard sine wave

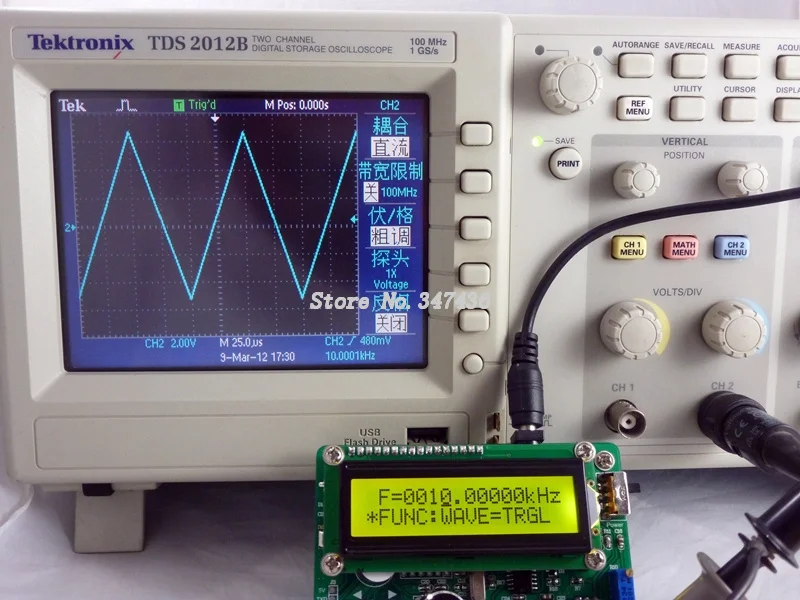

2. standard triangle wave

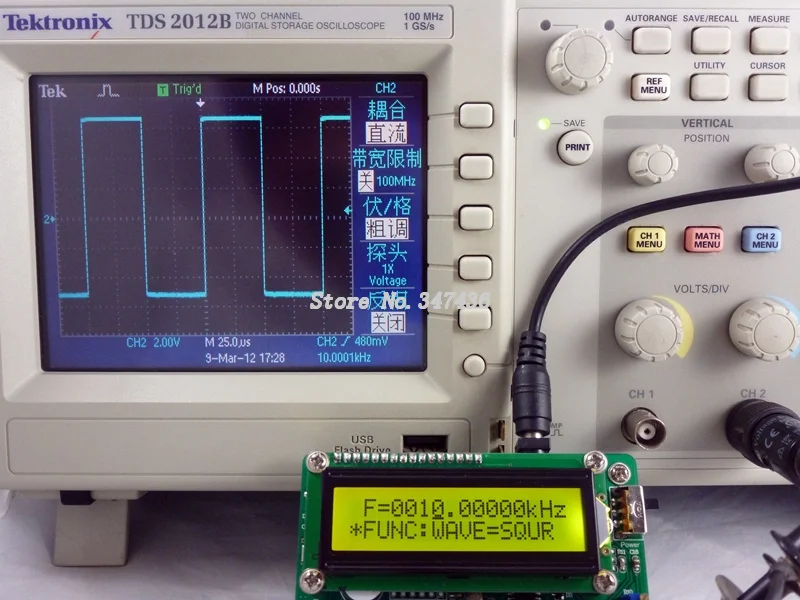

3. standard Fang Bo

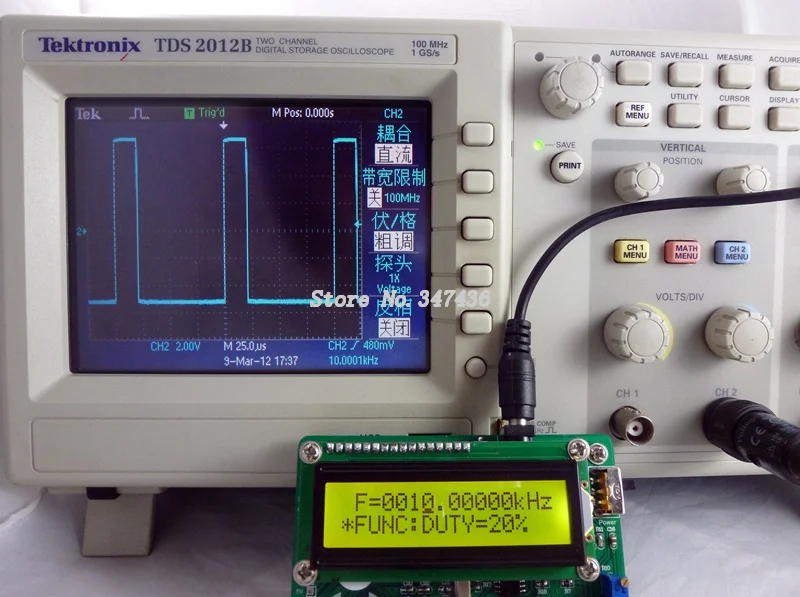

4.DUTY=20% square wave

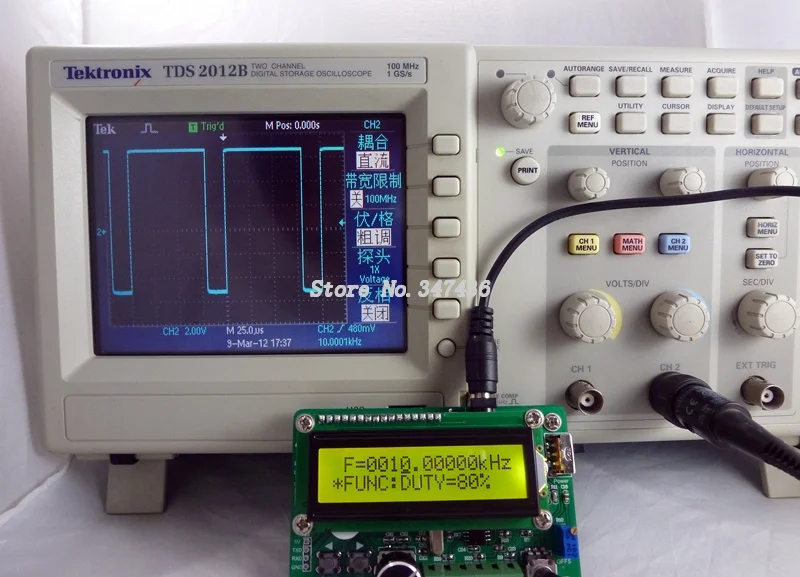

5.DUTY=80% square wave

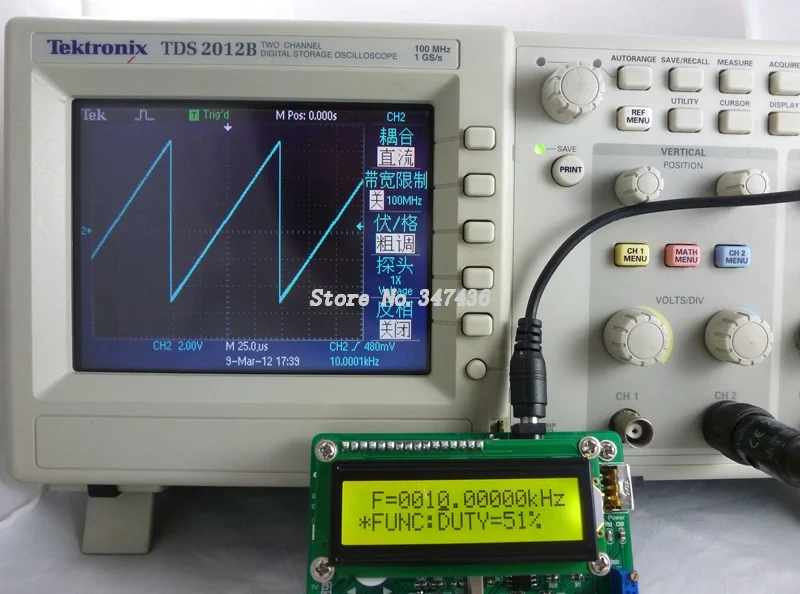

6.DUTY>50% triangle wave sawtooth wave I rise

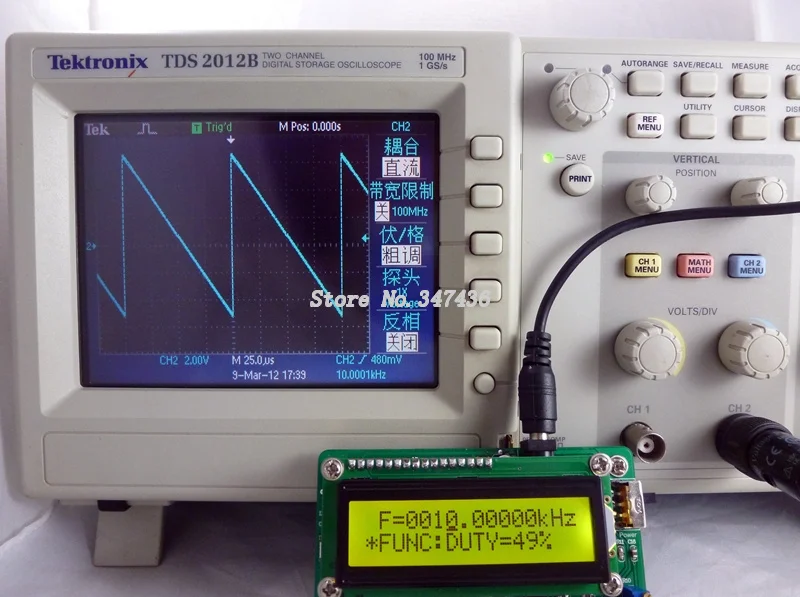

7.DUTY<50%--->Sawtooth wave

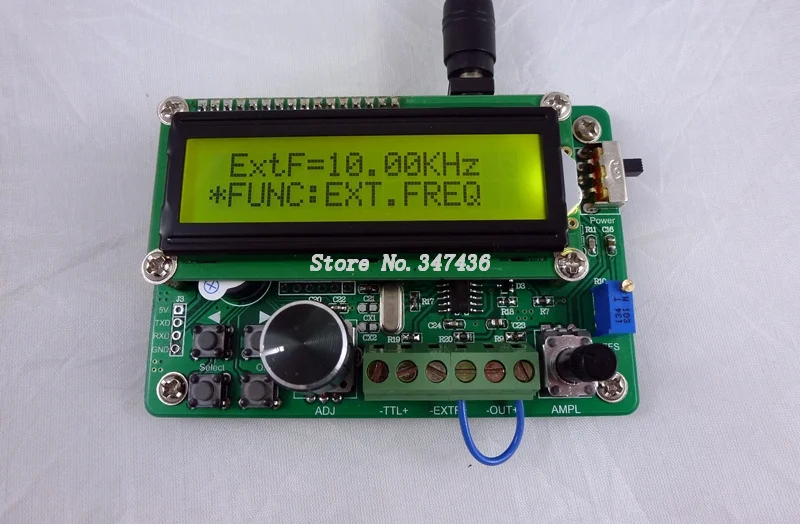

8. external frequency measurement function

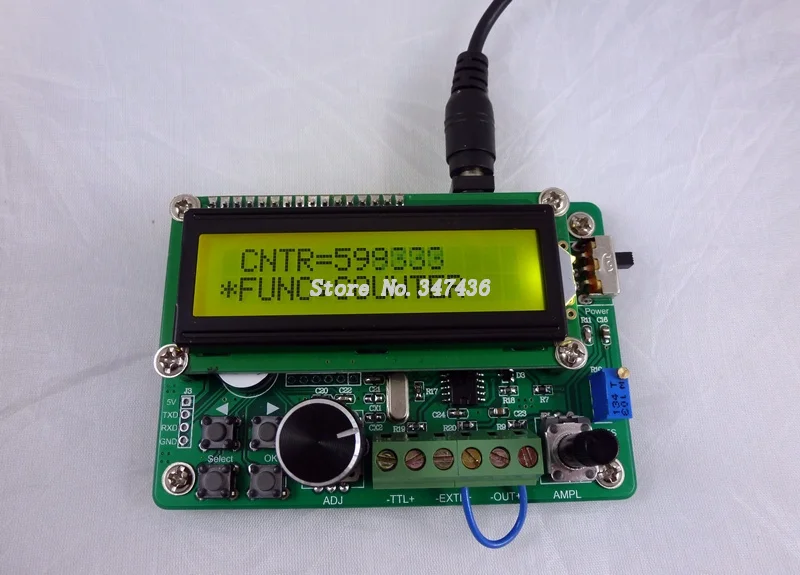

9. counter function
