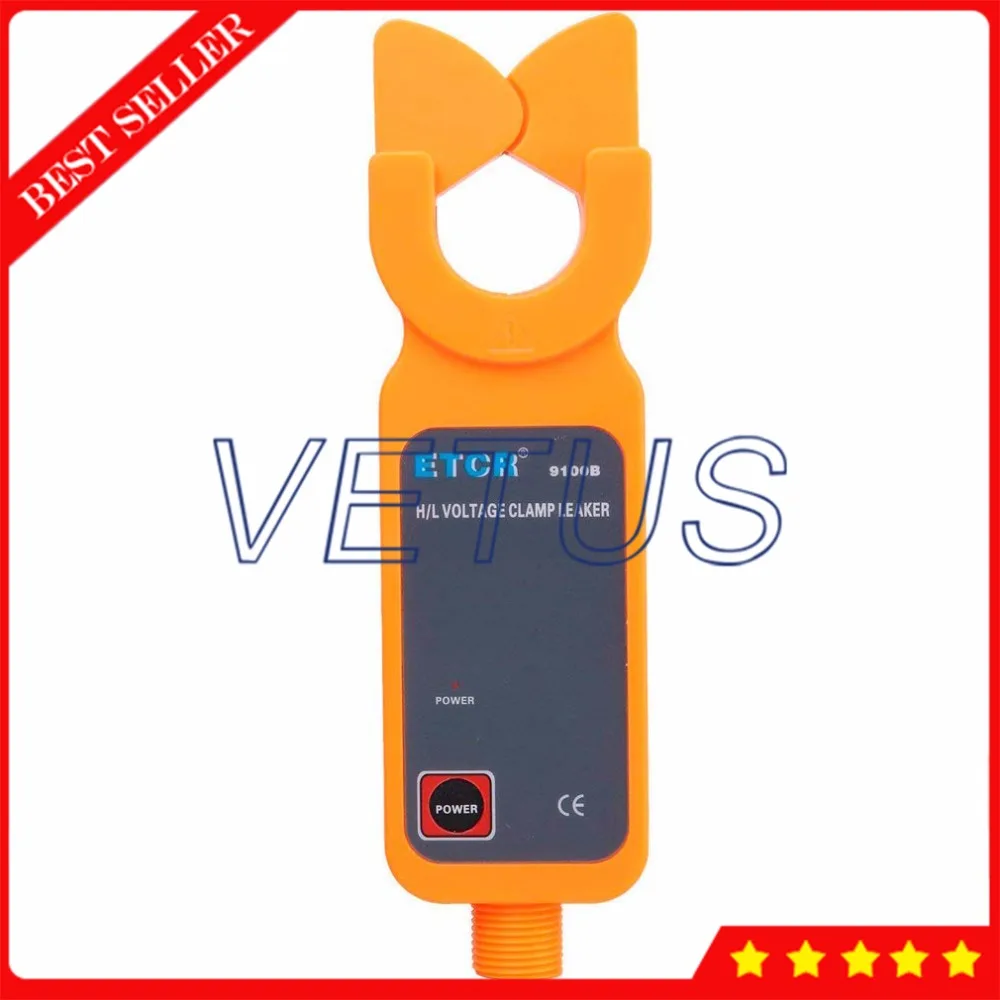

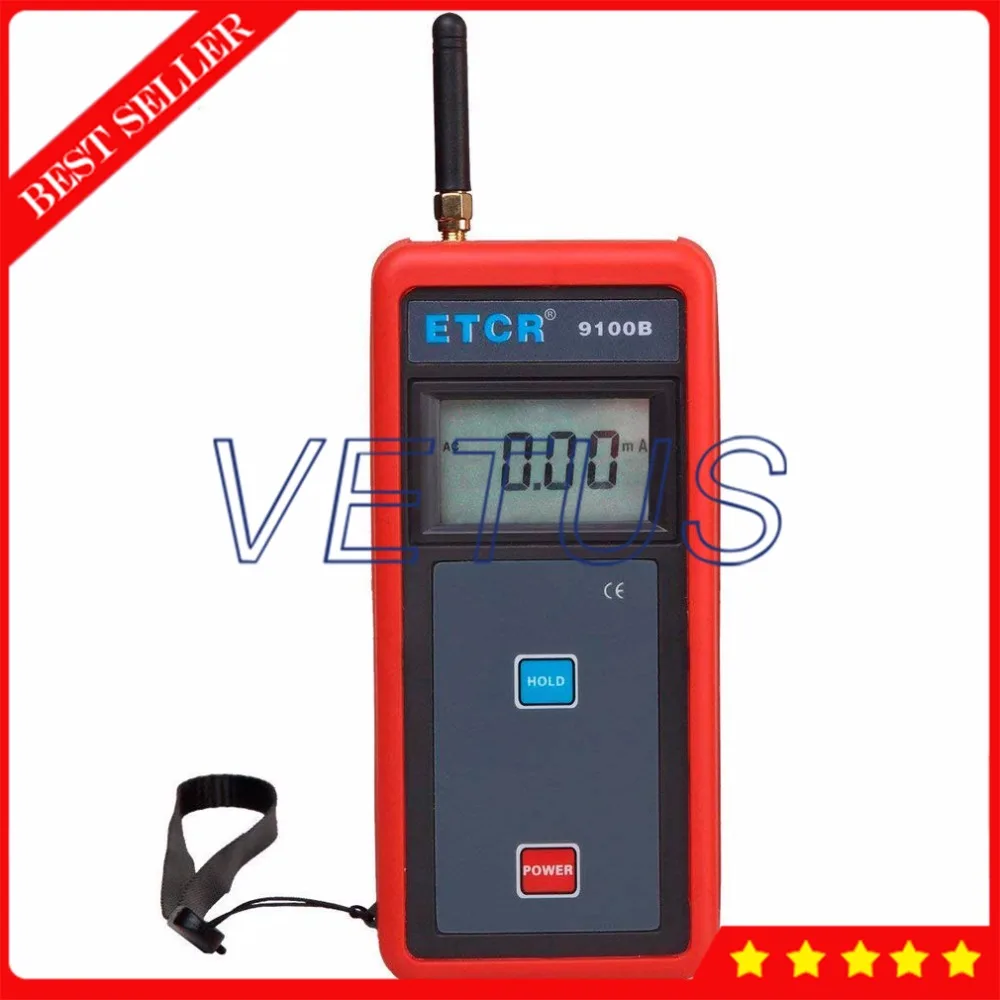

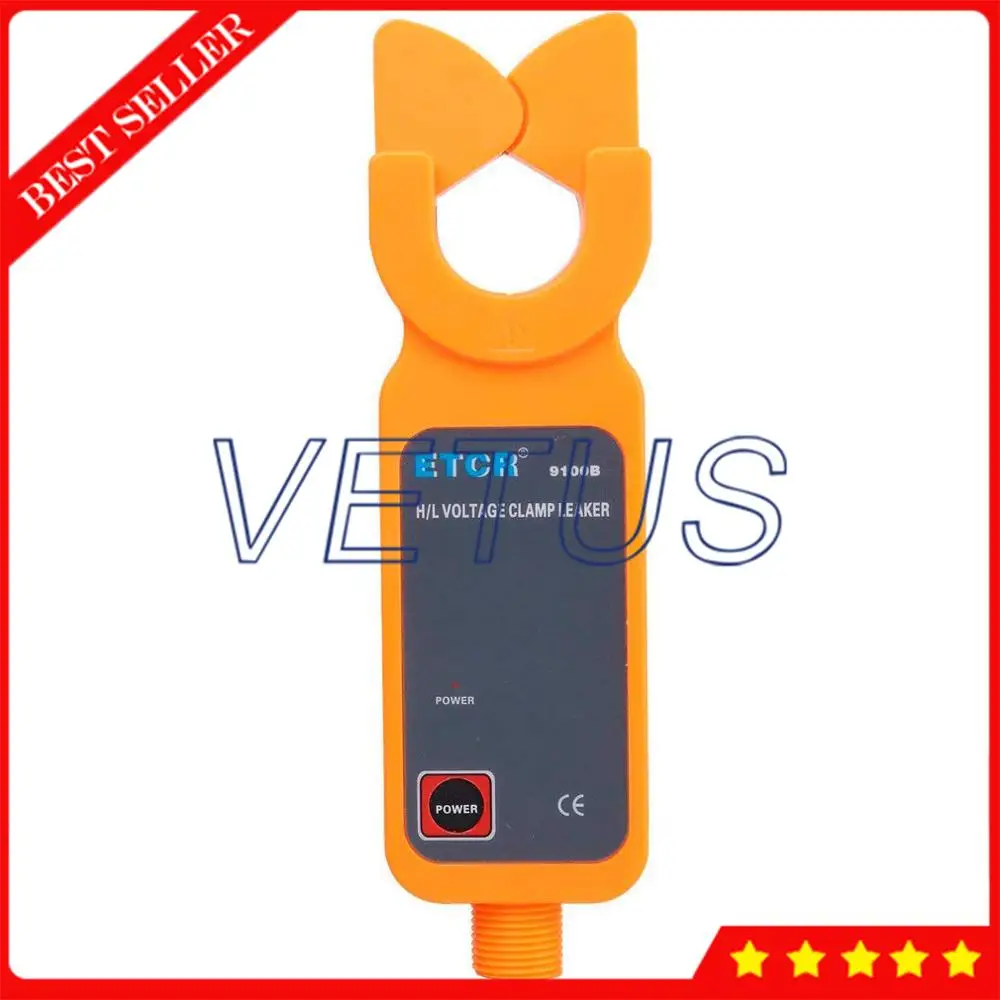

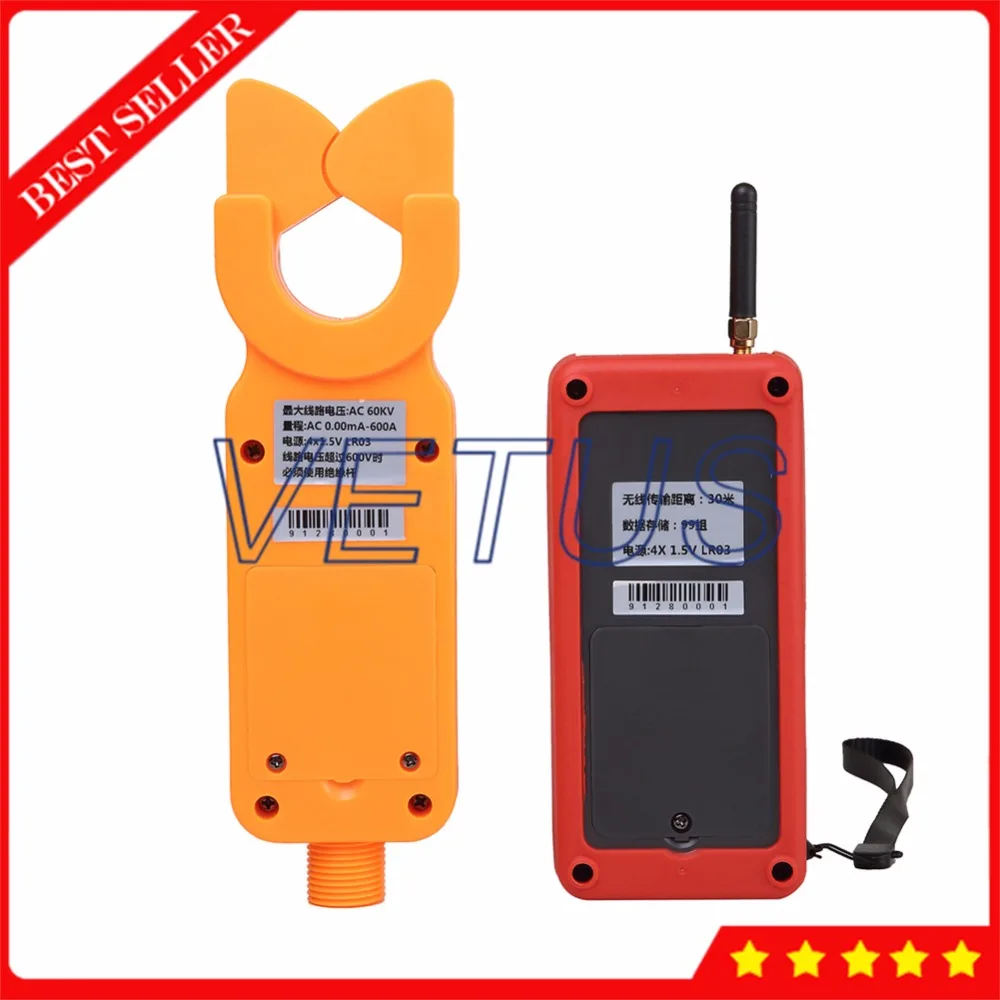

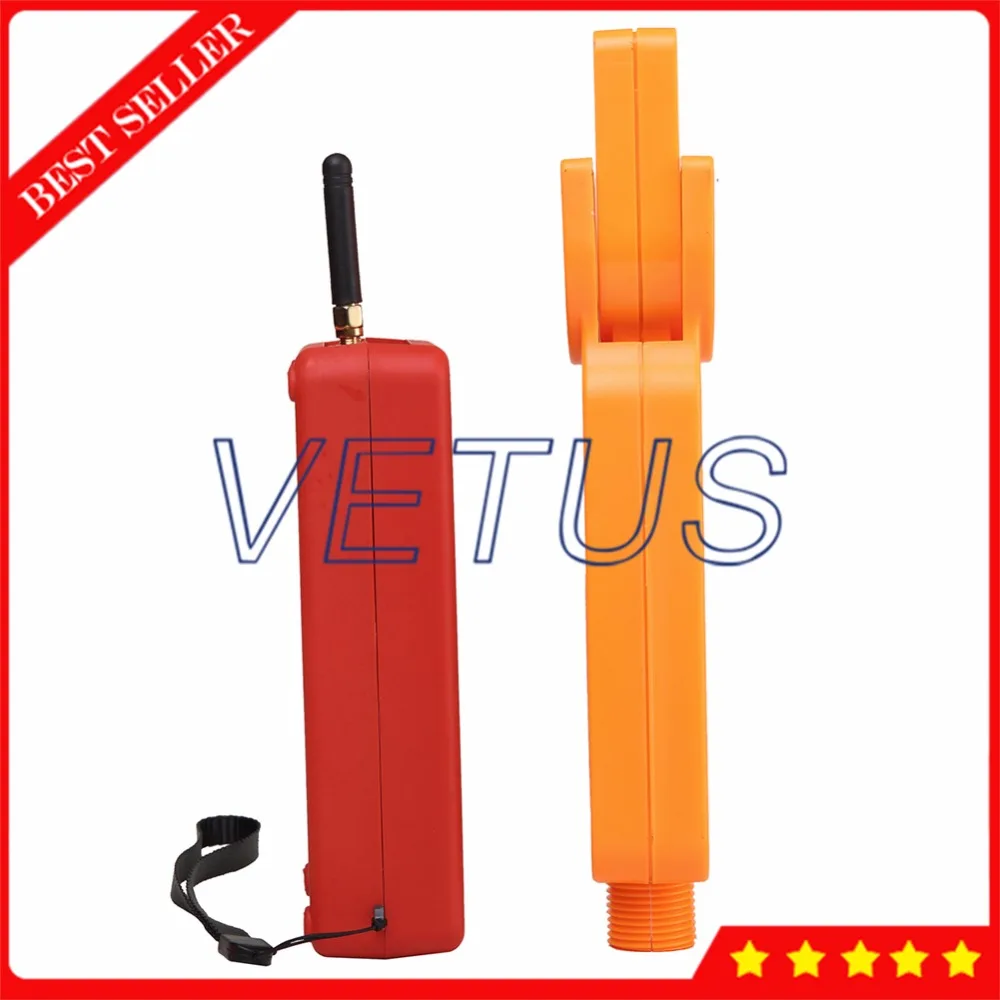

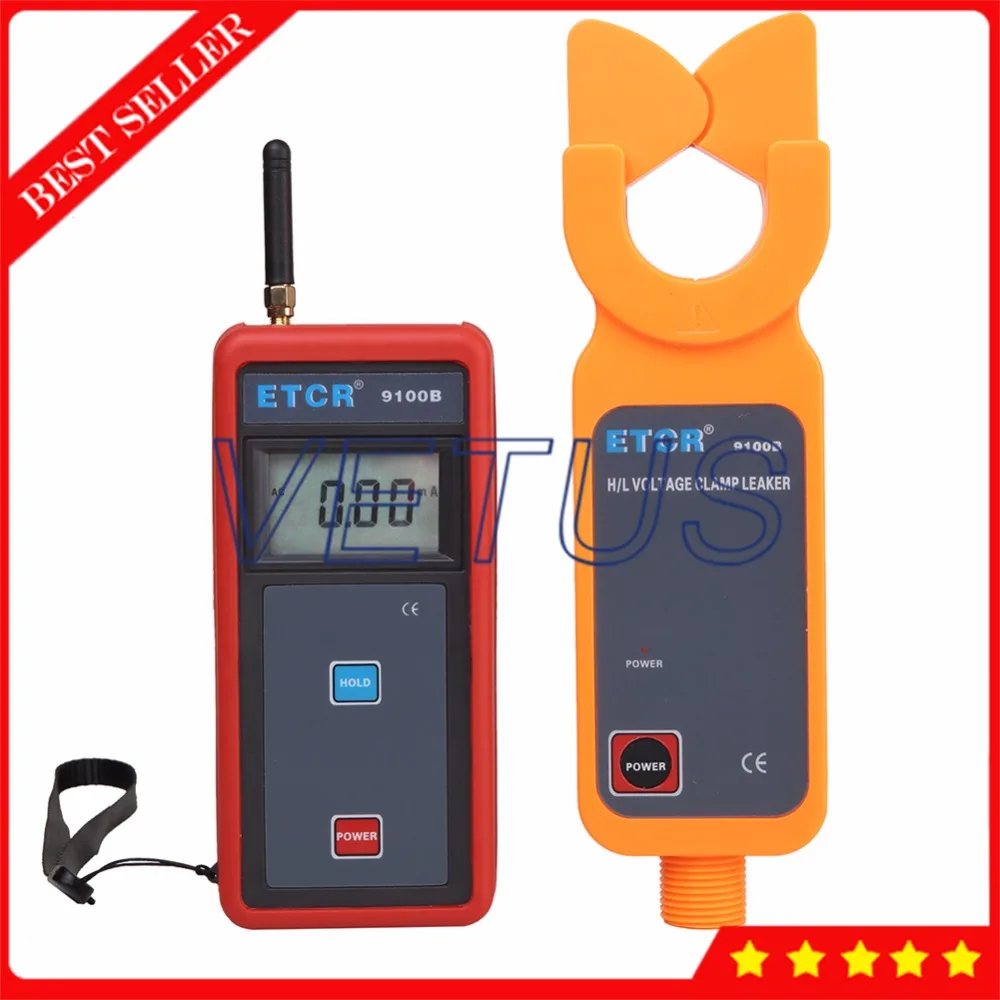

ETCR9100B Portable High/Low Voltage AC Leakage Current Clamp Meter Measurement with test data wireless transmission

Technical Specifications
Function	High voltage AC current measurement, low voltage AC current, leakage current measurement, on-line AC current supervision.
Power Supply	DC6V Alkaline Dry Battery (1.5V AAA X 4/8)
Test Method	Clamp CT, Integral Method
*Transmission Method	Wireless Transmission, the maximum distance for direct transmission is about 30m.
Display Mode	4 digital LCD display, backlight function, suitable for dark place.
LCD Dimension	47mm×28.5mm
Meter Dimension	W/H/T: 68mm×245mm×40mm
Clamp Diameter	Φ33mm
Sampling Speed	About 2 times/second
Range of measurement	0.00mA~600.0A                 （50/60Hz  Auto Identification）
Resolution	0.01mA
Shift	0.01mA~600.0A  Automatic Shift
Test Accuracy（23°C±5°C,Below 80%RH）	0.00mA~100.0A:±1%±5dgt
	100.0A~200.0A:±2%±5dgt
	200.0A~600A:±3%±5dgt
Data Storage	99 Groups, during storage, the symbol “MEM” gives indication, “FULL” mark will flash to indicate the memory has been full.
Circuit Voltage	Test for the circuit below 60KV (operated with insulation rod)
Peak Maintenance	Automatically maintain the height of the test value, usually in the test mode press PEAK key, PEAK lights, that is, to keep open the PEAK function, then press PEAK key to cancel this function
Data Preservation	Under general test mode, press HOLD button to preserve data, “HOLD” symbol display. then press HOLD Key to cancel this function
Data Access	“MR” symbol indicates, it can read the stored data by turning upwards and downwards.
Overflow Display	Exceed measurement range overflow function: “OL  A” symbol display
* No signal Indication	When the receiver has not received transmit signal, it will display “no- -”symbol
Auto Shut Down	About 15 minutes after booting, the meter will shut down automatically, in order to decrease the battery consumption.
Battery Voltage	When the battery voltage is below 4.8V, the symbol of battery voltage“    ”will show to remind to replace battery.
Weight	Tester: About 335g (Including battery), total quality of meter: about 2.5Kg (including insulation rod and battery.)
Work Temperature and Humidity	-10°C ~40°C; Below 80%Rh
Storage Temperature and Humidity	-10°C ~60°C; Below 70%Rh

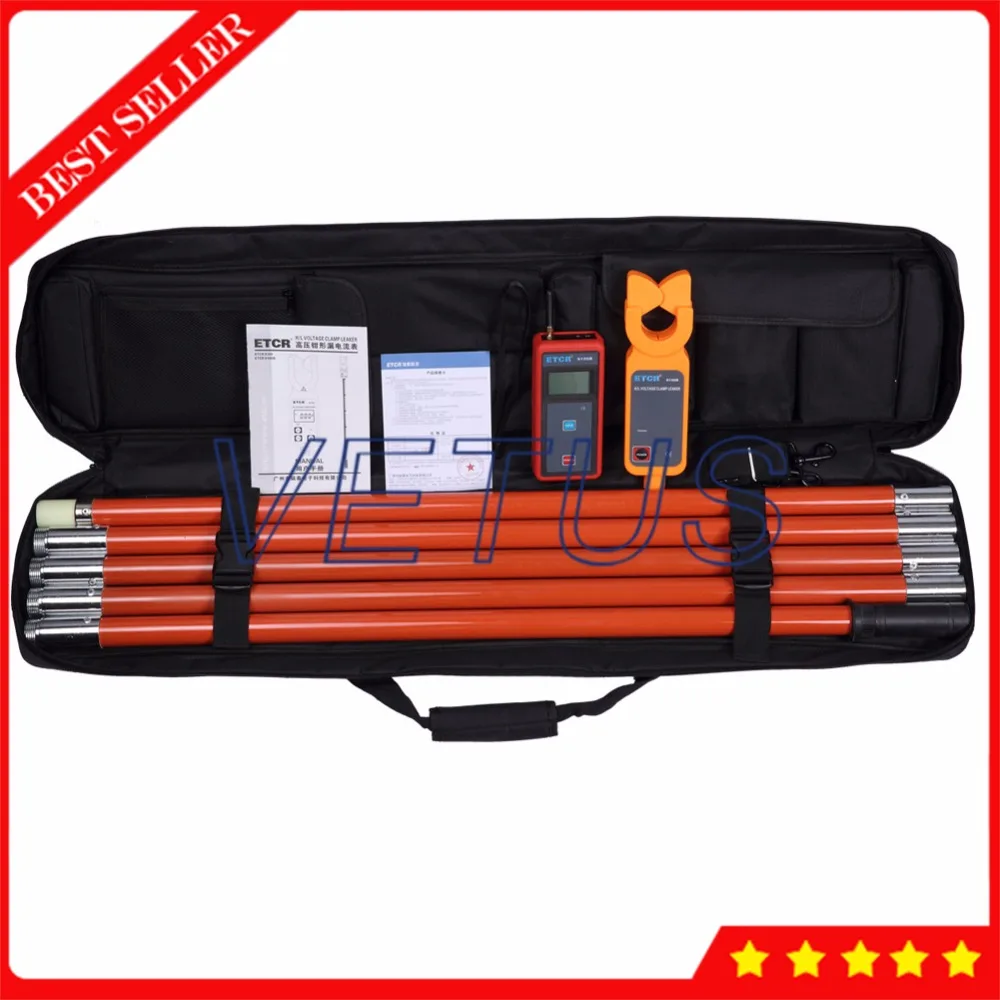

Insulated Rod Dimension	Φ32mm, 1m/Section（5 Sections）
Insulation Intension	AC 100KV/rms (Between insulation rod and clamp core)
Structure	Anti-Dripping Type II
