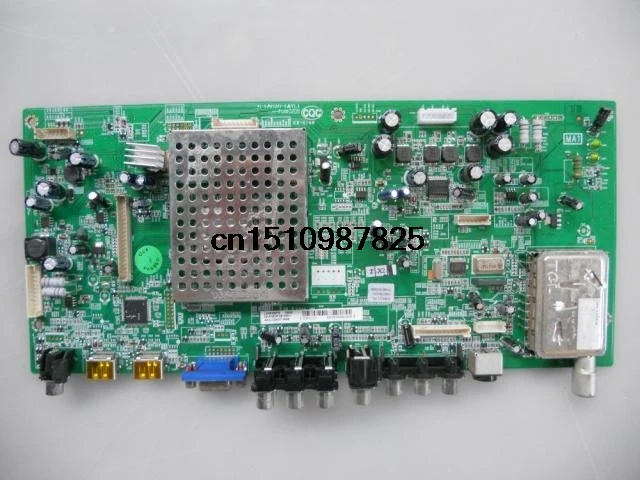

L40E9SFR motherboard 40-02MS91-MAD2XG/MAC2XG with screen LTA400HA08 | Электроника
10 шт 100% новый FDMS7602S 7602S QFN-8 Чипсет |
Sony 1-893-421-11 APS-376(CH) 147458211 1-474-582-11 Power Supply Board for XBR-85X950B KD-85x9505B | Электроника
5 444,46 руб.
1 шт.-10 шт. S2MU004X-C для Samsung G570F A520 A720 A320F мощность IC чип |
455,43 - 2 270,25 руб.
20 шт HT7533 сот HT7533-1 СОТ-89 HT7533-A SOT89 SMD новый регулятор напряжения IC | Электроника
69,14 руб. / набор
Douk Audio Store
Магазина Douk Audio Store работает с 02.08.2012. его рейтинг составлет 91.73 баллов из 100. В избранное добавили 7555 покупателя. Средний рейтинг торваров продавца 4.7 в продаже представленно 501 наименований товаров, успешно доставлено 8552 заказов. 1124 покупателей оставили отзывы о продавце.
Характеристики

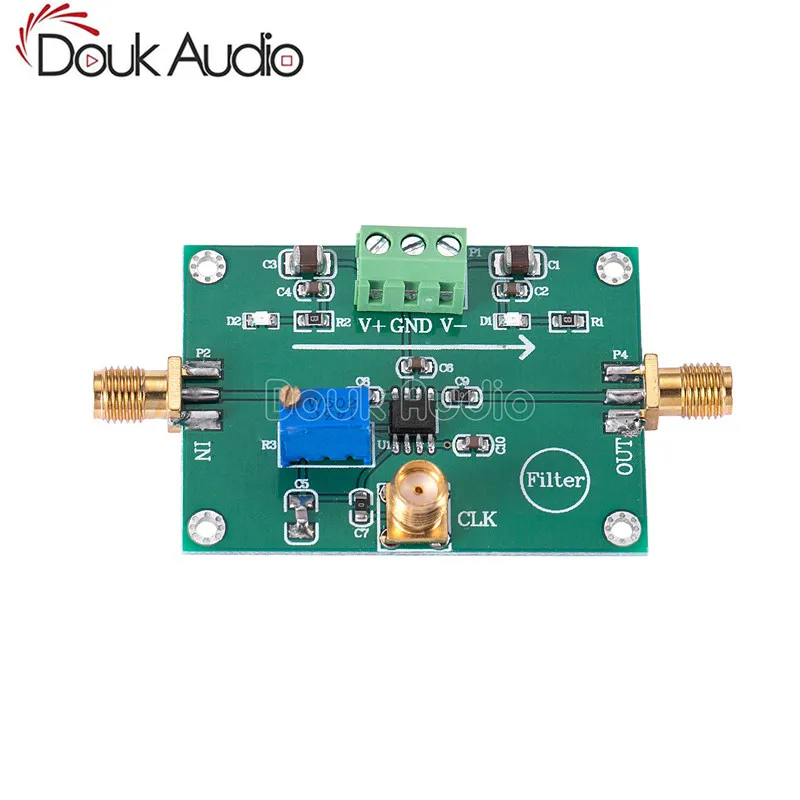

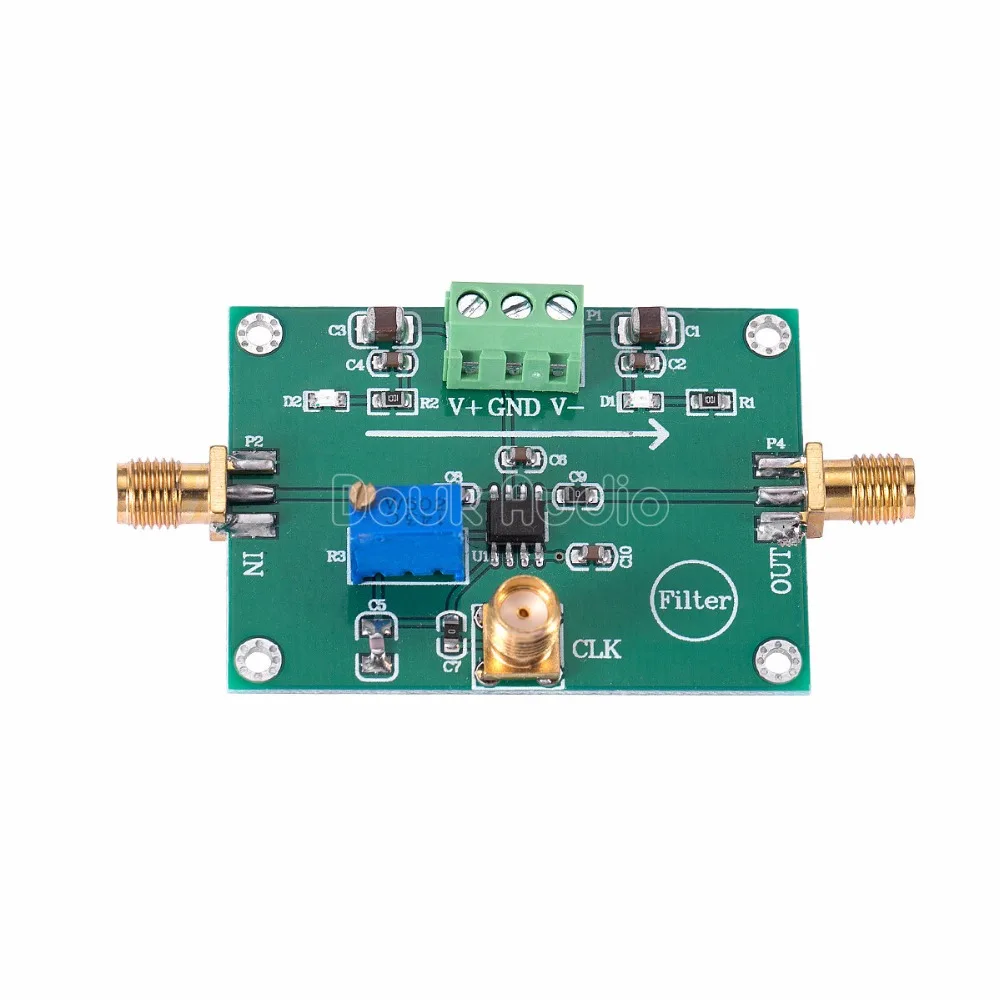

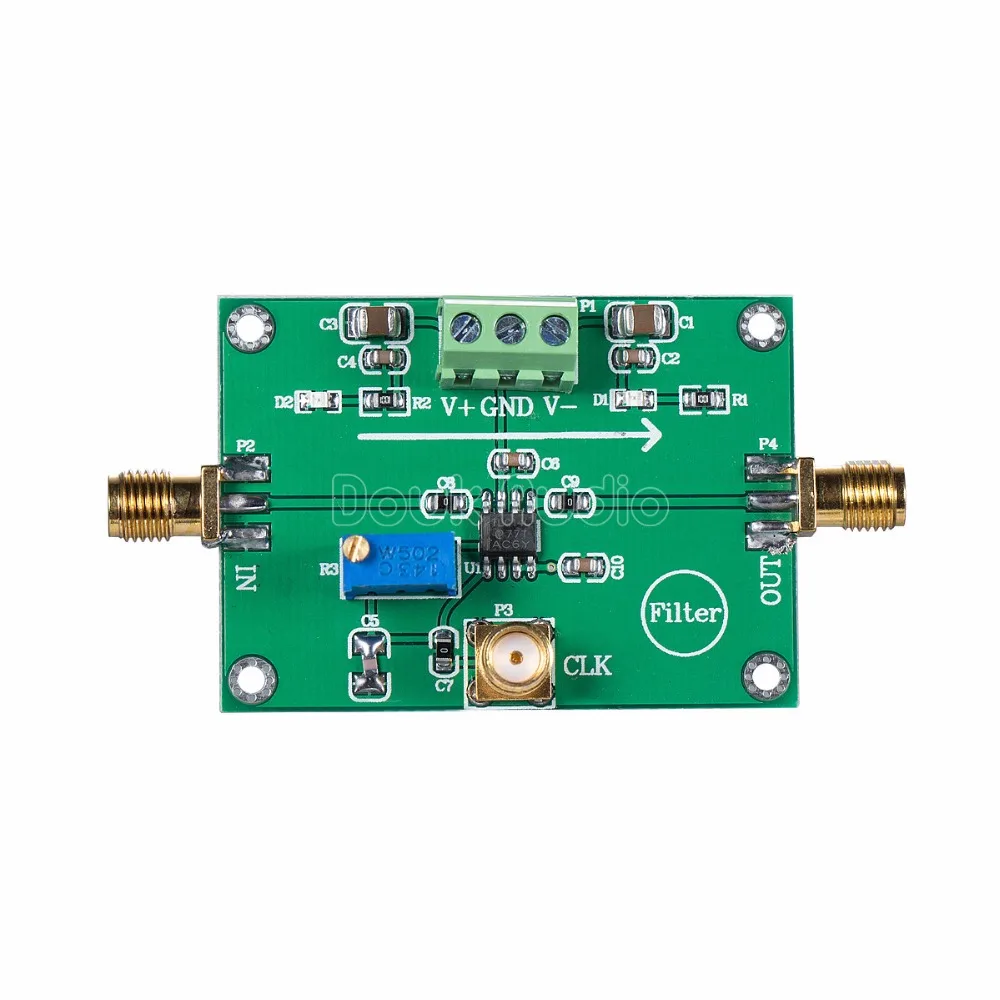

TLC14 Low-pass Filter Module Butterworth Cutoff Frequency Adjustable 30K |
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.22 руб. | 0.82 руб. | 0 руб. |
| Feb-18-2026 | 0.4 руб. | 0.10 руб. | 0 руб. |
| Jan-18-2026 | 0.40 руб. | 0.10 руб. | 0 руб. |
| Dec-18-2025 | 0.25 руб. | 0.31 руб. | 0 руб. |
| Nov-18-2025 | 0.4 руб. | 0.91 руб. | 0 руб. |
| Oct-18-2025 | 0.38 руб. | 0.58 руб. | 0 руб. |
| Sep-18-2025 | 0.65 руб. | 0.21 руб. | 0 руб. |
| Aug-18-2025 | 0.28 руб. | 0.28 руб. | 0 руб. |
| Jul-18-2025 | 0.31 руб. | 0.20 руб. | 0 руб. |
Описание товара

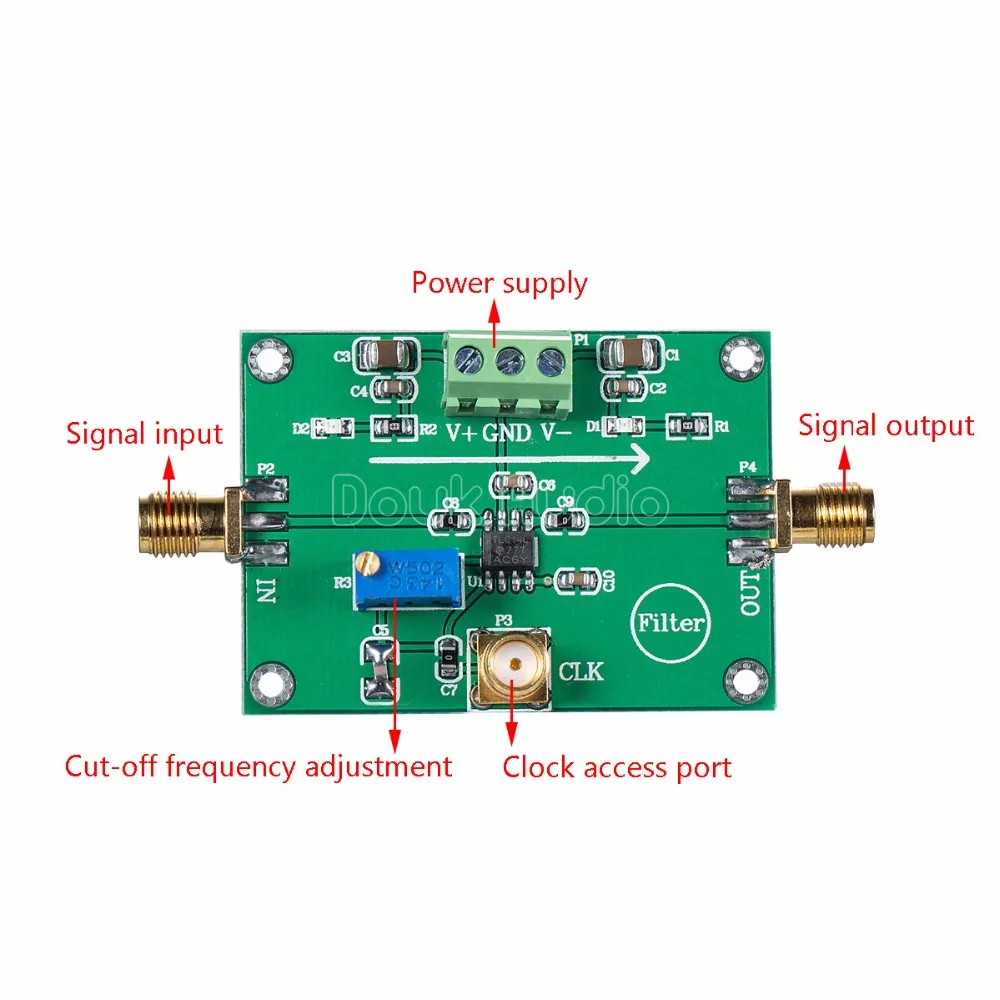

Highlights:
- TLC14 Bartworth type low-pass switched capacitor filter (within 30K)
- Its cut-off frequency stability depending on external clock frequency stabilty
- Cut-off frequency slide adjustment (within 0.1Hz~30KHz)
- Error of clock cut-off frequency is small
Supply Voltage Range: ±2.25V~±6V

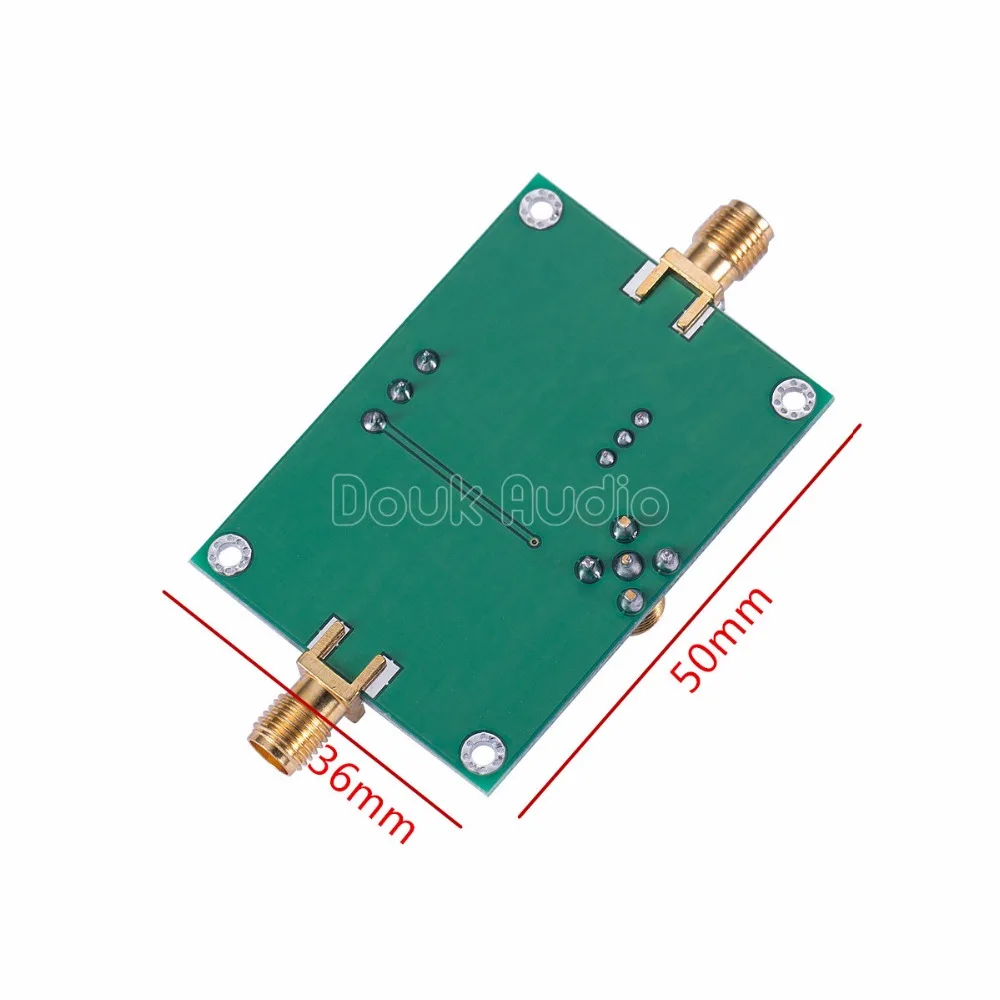

Dimensions: 50mm * 36mm
Chip Features:
- Low Clock-to-Cutoff-Frequency Ratio Error
- TLC04/MF4A-50... ±0.8%
- TLC14/MF4A-100 . . . ±1%
- Filter Cutoff Frequency Dependent Only on External-Clock Frequency Stability
- Minimum Filter Response Deviation Due to External Component Variations Over Time and Temperature
- Cutoff Frequency Range From 0.1 Hz to 30 kHz, VCC± = ±2.5 V
- 5-V to 12-V Operation
- Self Clocking or TTL-Compatible and CMOS-Compatible Clock Inputs
- Low Supply-Voltage Sensitivity
- Designed to be Interchangeable With National MF4-50 and MF4-100
Description
The TLC04/MF4A-50 and TLC14/MF4A-100 are monolithic Butterworth low-pass switched-capacitor filters. Each is designed as a low-cost, easy-to-use device providing accurate fourth-order low-pass filter functions in circuit design configurations.
Each filter features cutoff frequency stability that is dependent only on the external-clock frequency stability. The cutoff frequency is clock tunable and has a clock-to-cutoff frequency ratio of 50:1 with less than ±0. 8% error for the TLC04/MF4A-50 and a clock-to-cutoff frequency ratio of 100:1 with less than ±1% error for the TLC14/MF4A-100. The input clock features self-clocking or TTL- or CMOS-compatible options in conjunction with the level shift (LS) terminal.
The TLC04C/MF4A-50C and TLC14C/MF4A-100C are characterized for operation from 0°C to 70°C. The TLC04I/MF4A-50I and TLC14I/MF4A-100I are characterized for operation from –40°C to 85°C. The TLC04M/MF4A-50M and TLC14M/MF4A-100M are characterized over the full military temperature range of –55°C to 125°C.
Package include
- 1× Module
