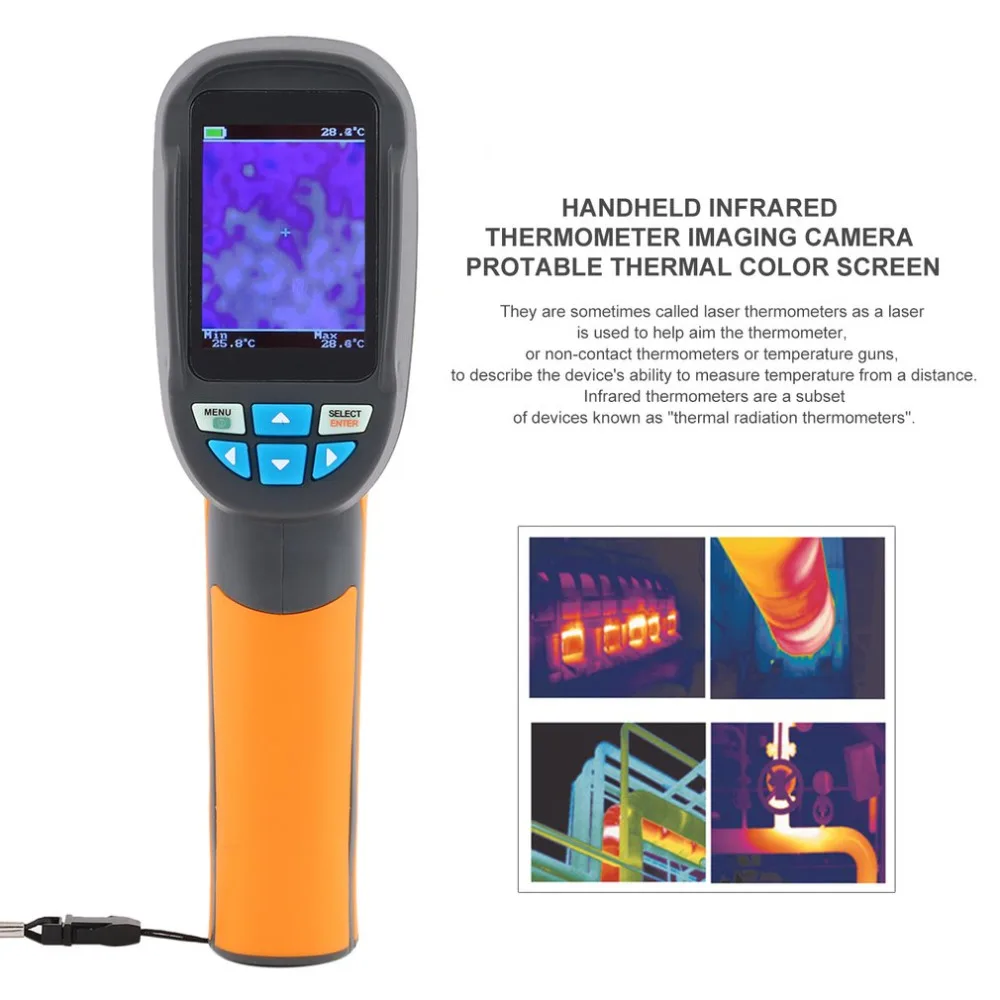

HT-02/HT-175/HT-02D Precision Thermal Imaging Handheld Infrared Camera Thermometer -20 to 300 Degree with High Resolution Color Screen

Features:
Multi using,it can be applied for medical, archaeological, transport, agriculture and so on.
It combines the functions of surface temperature and real-time thermal imaging
Long using time and so durable.

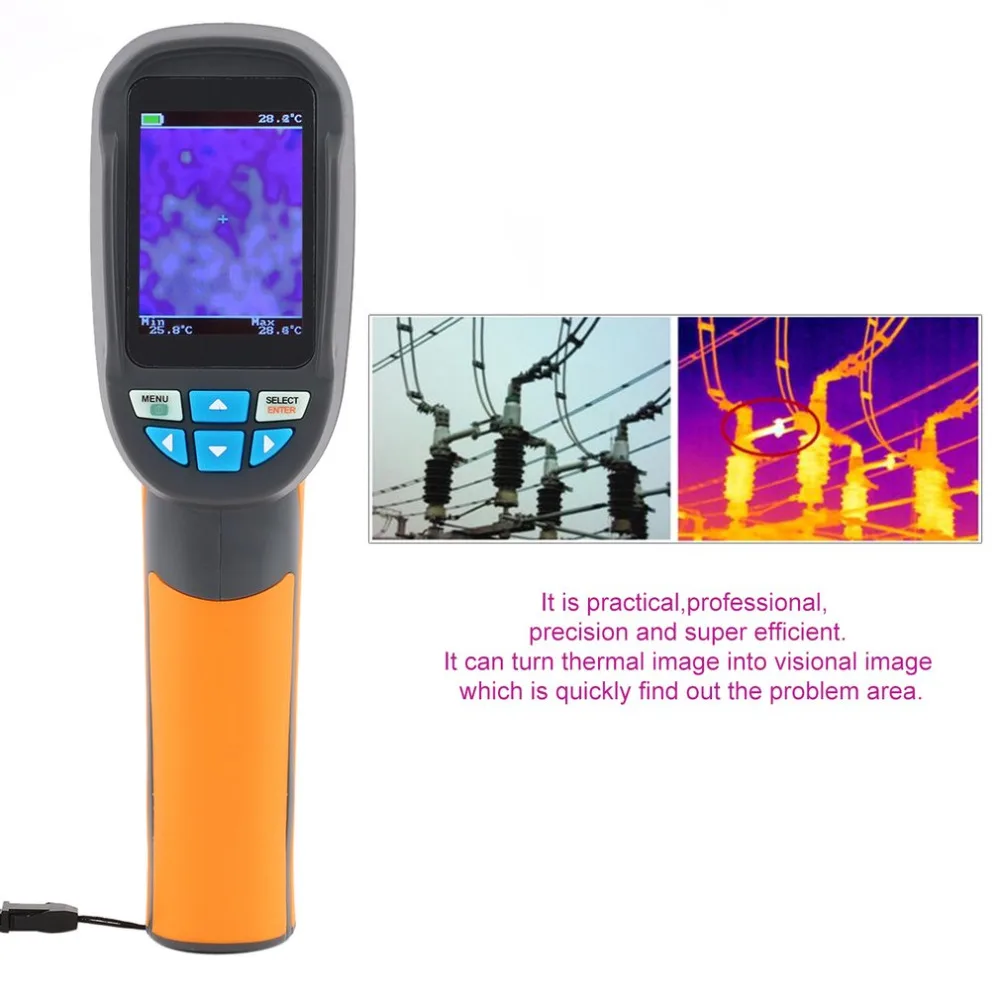

It is practical, professional, precision and super efficient.
It can turn thermal image into visional image which is quickly find out the problem area.

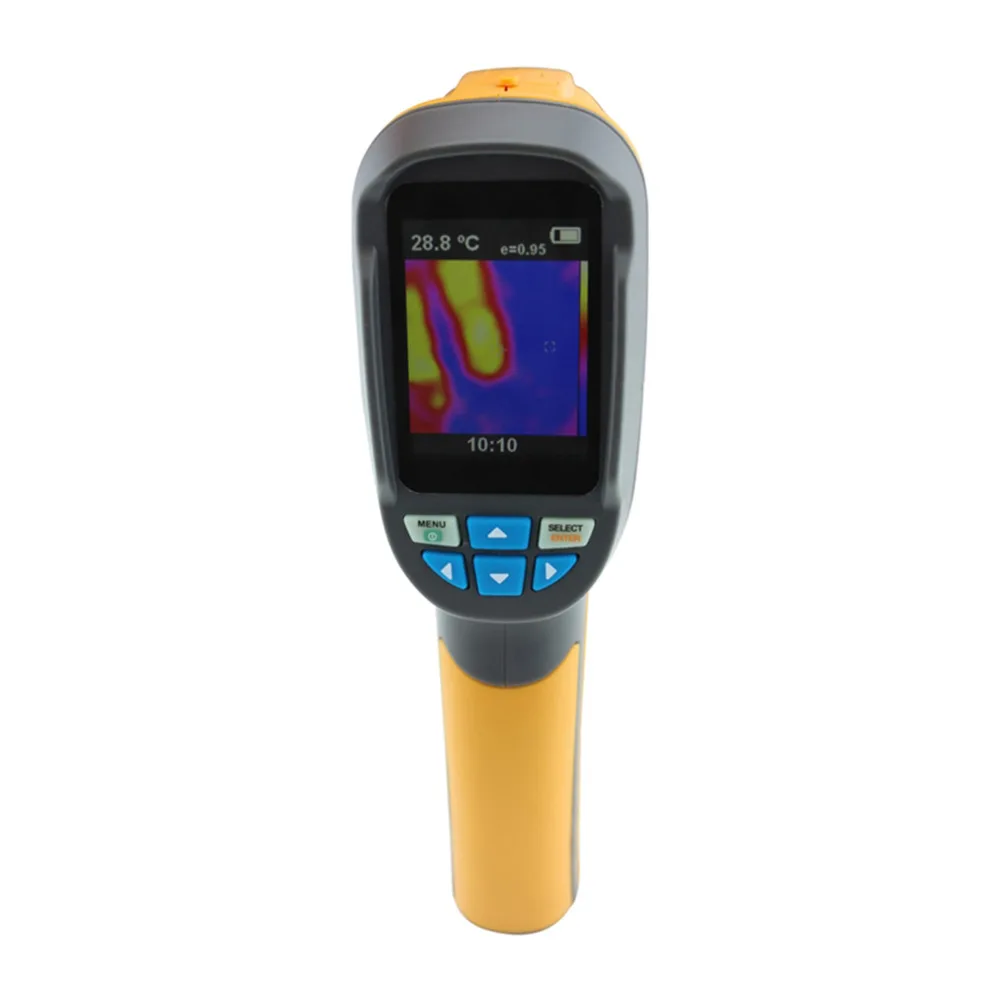

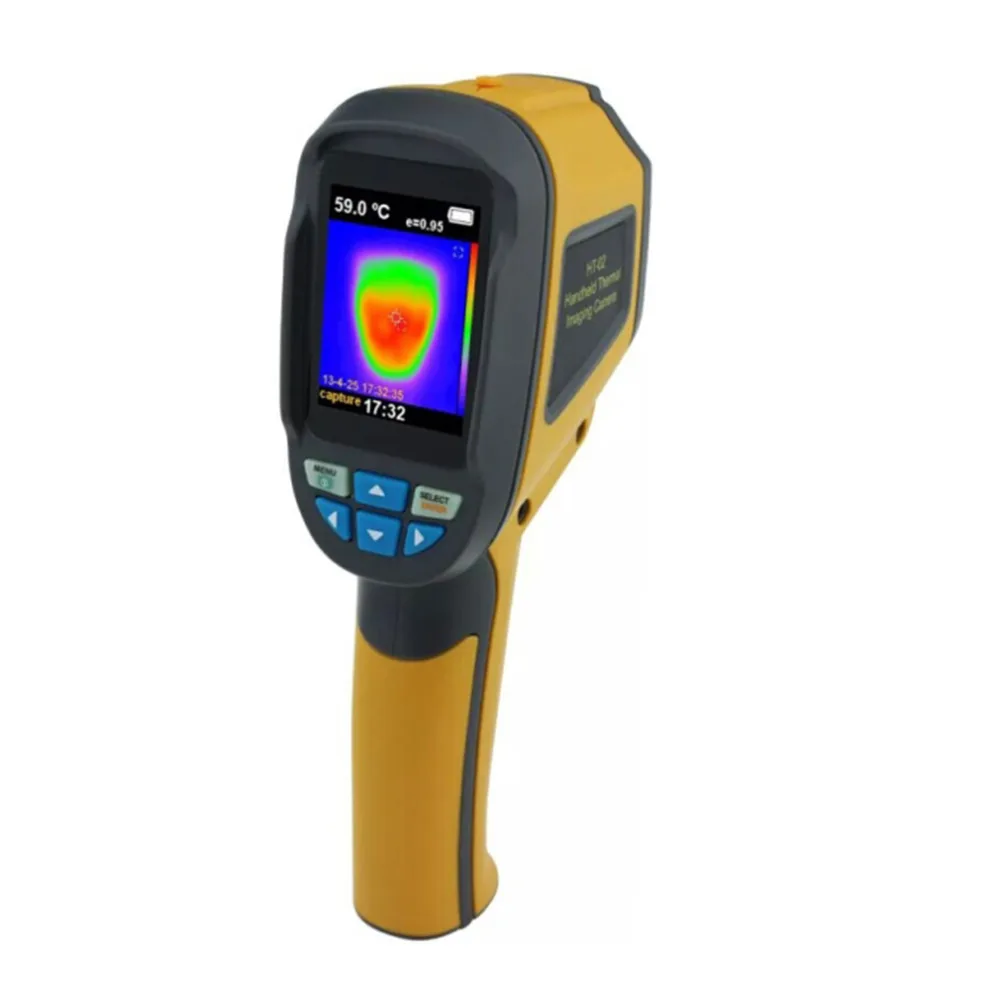

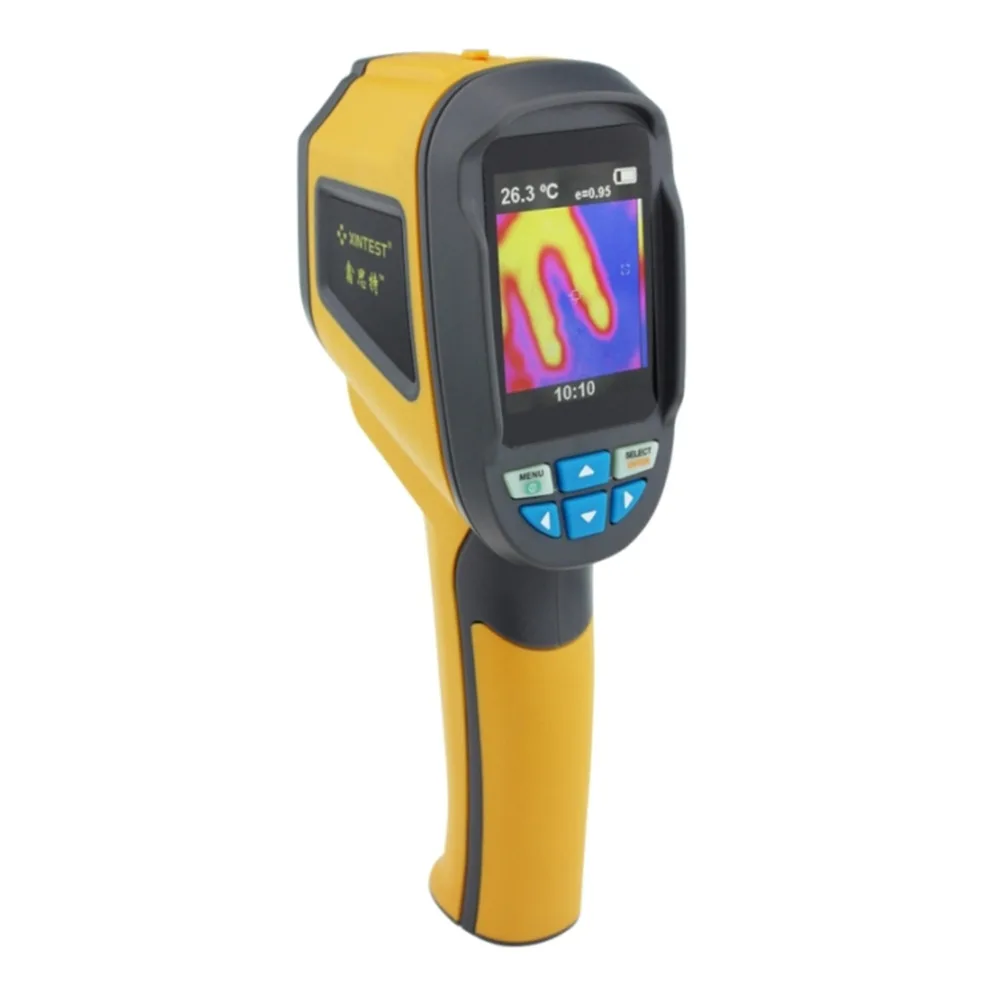

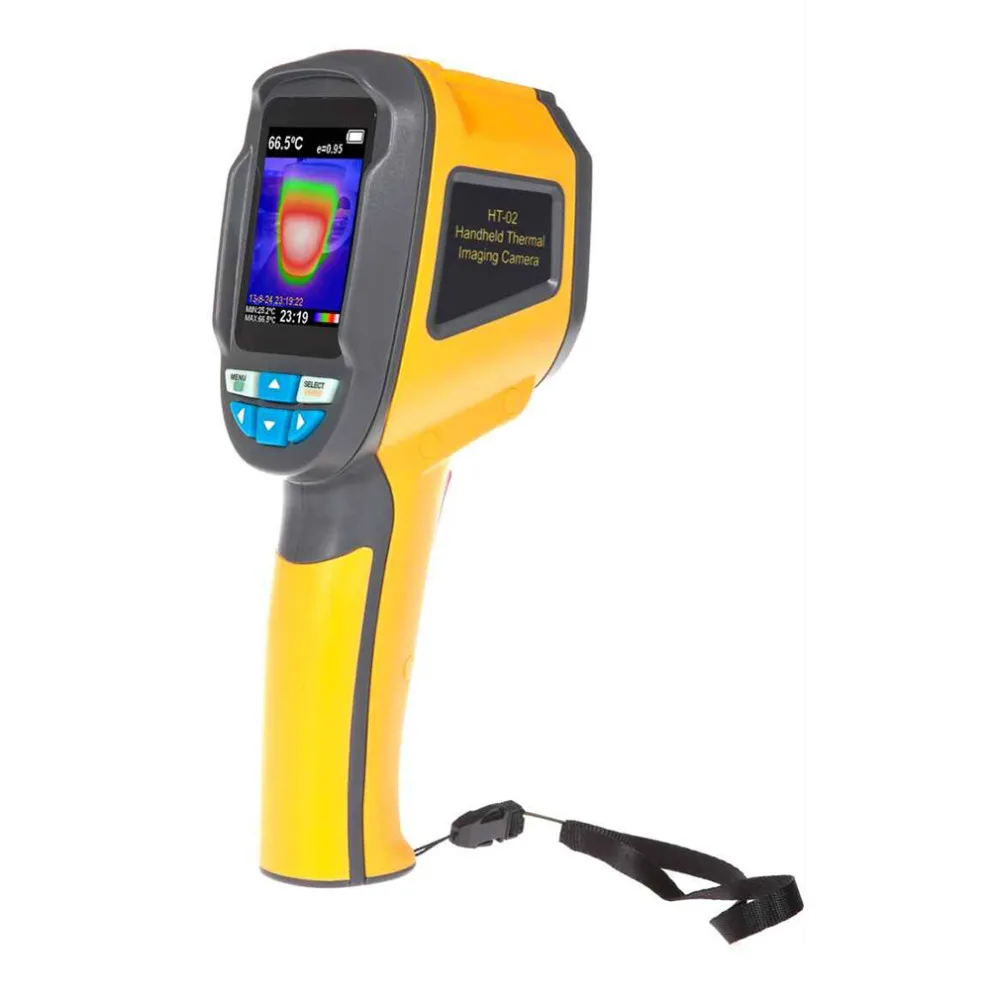

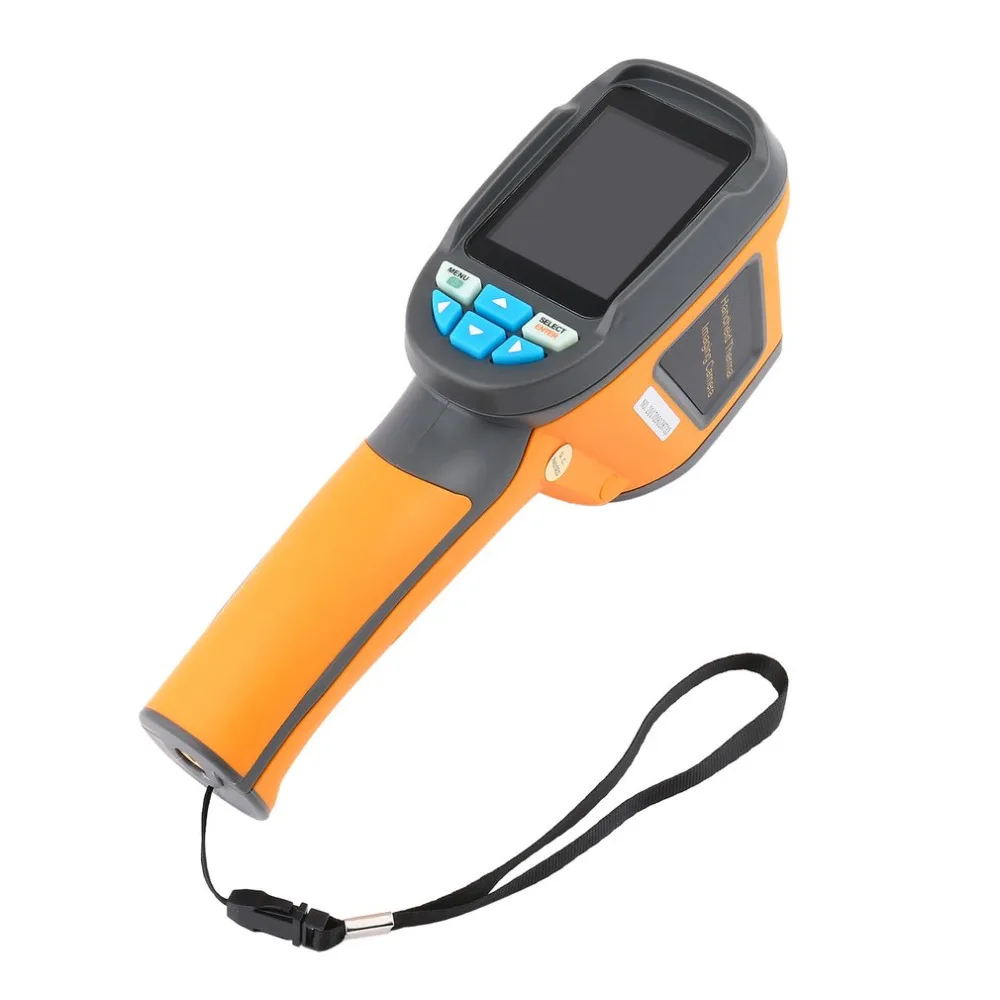

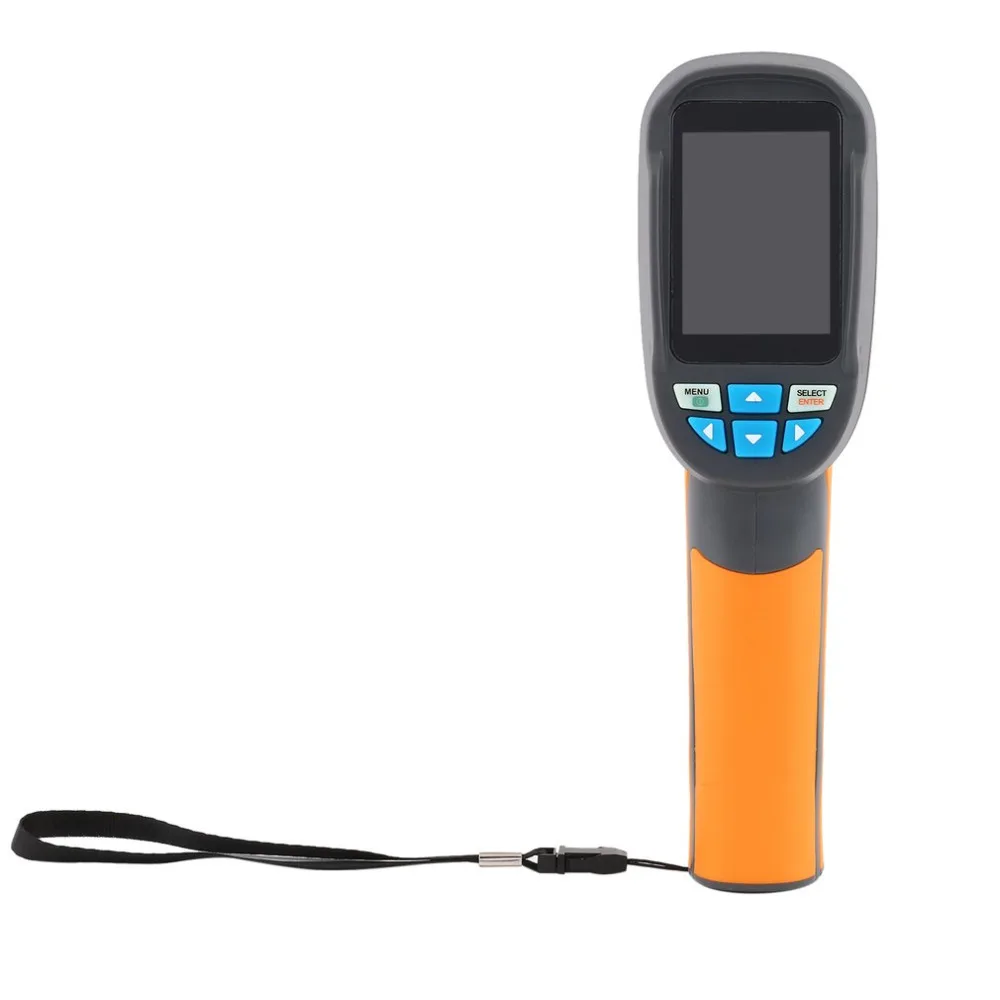

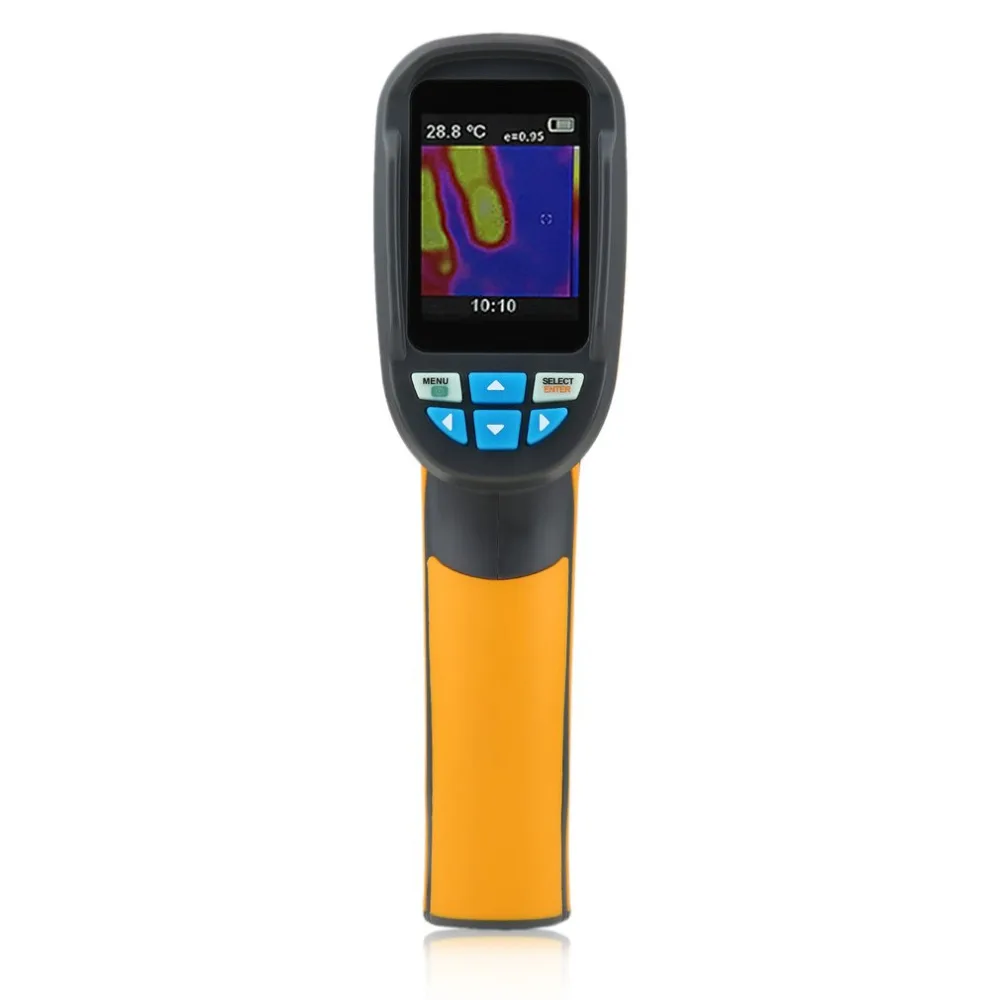

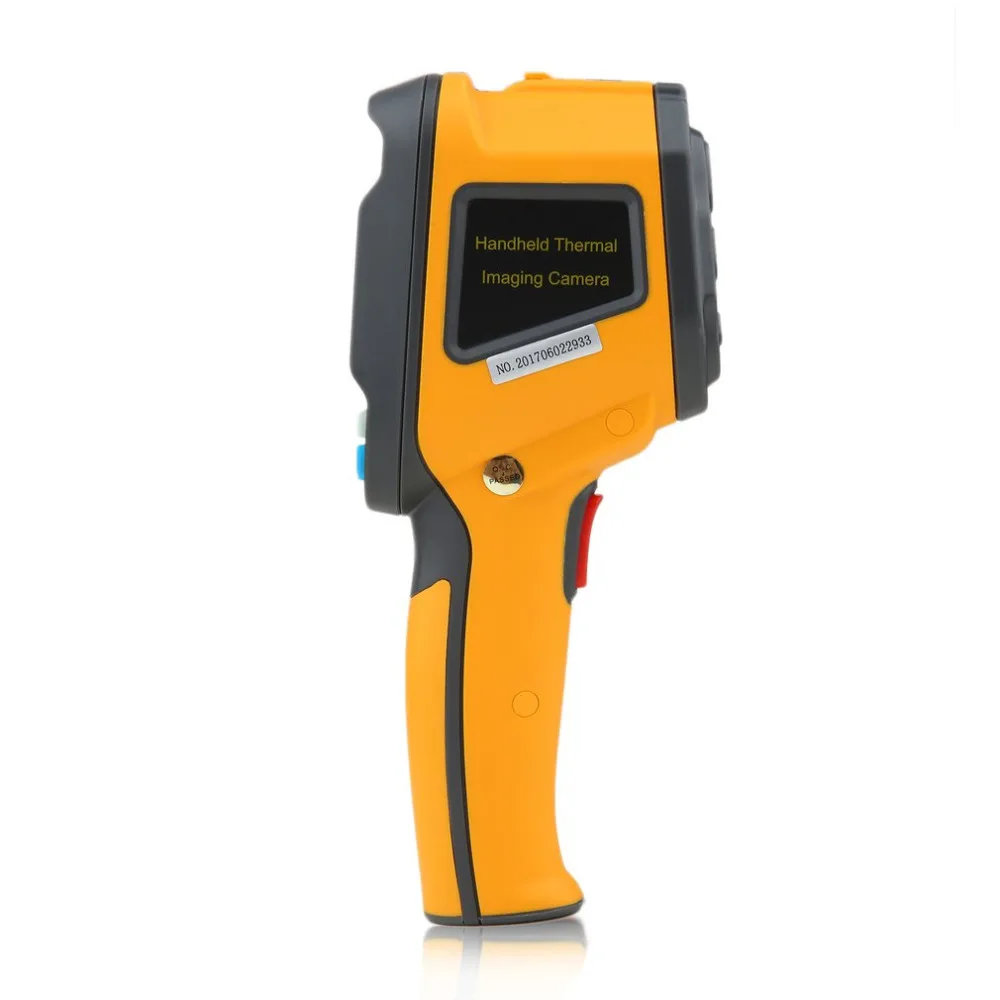

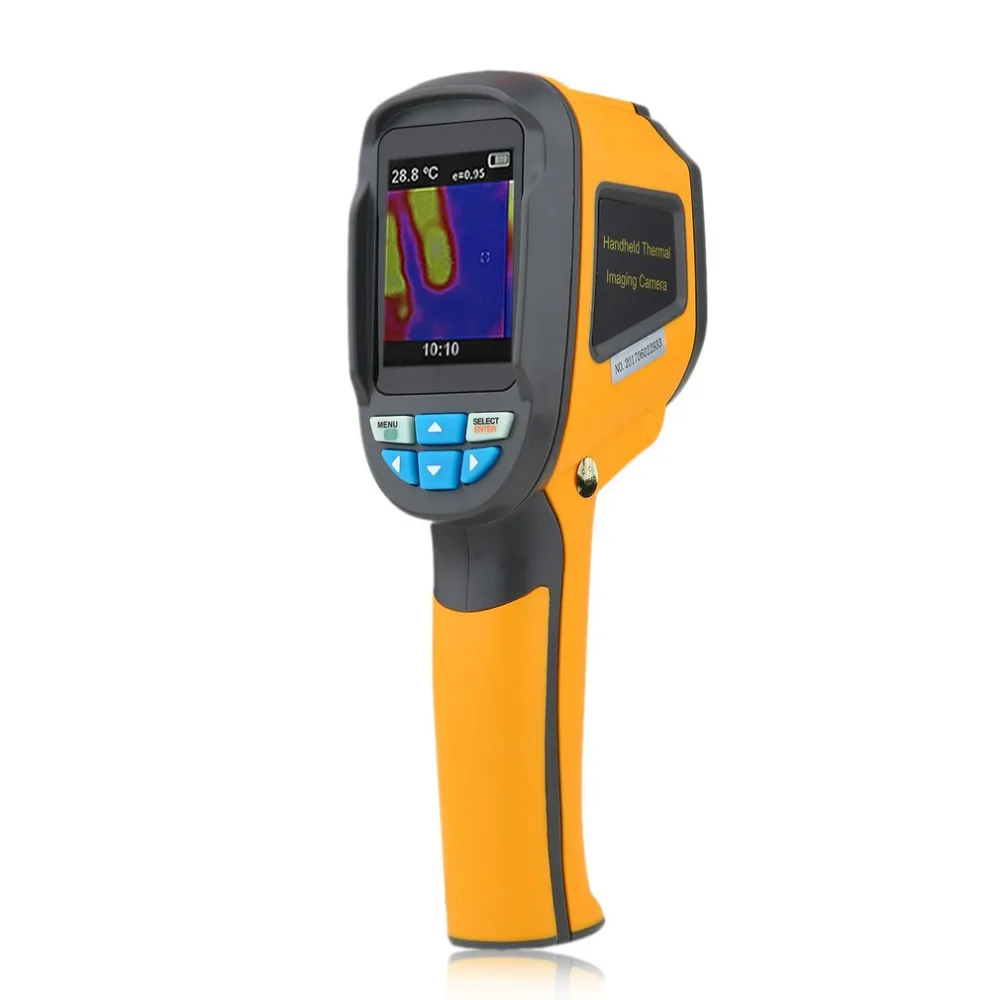

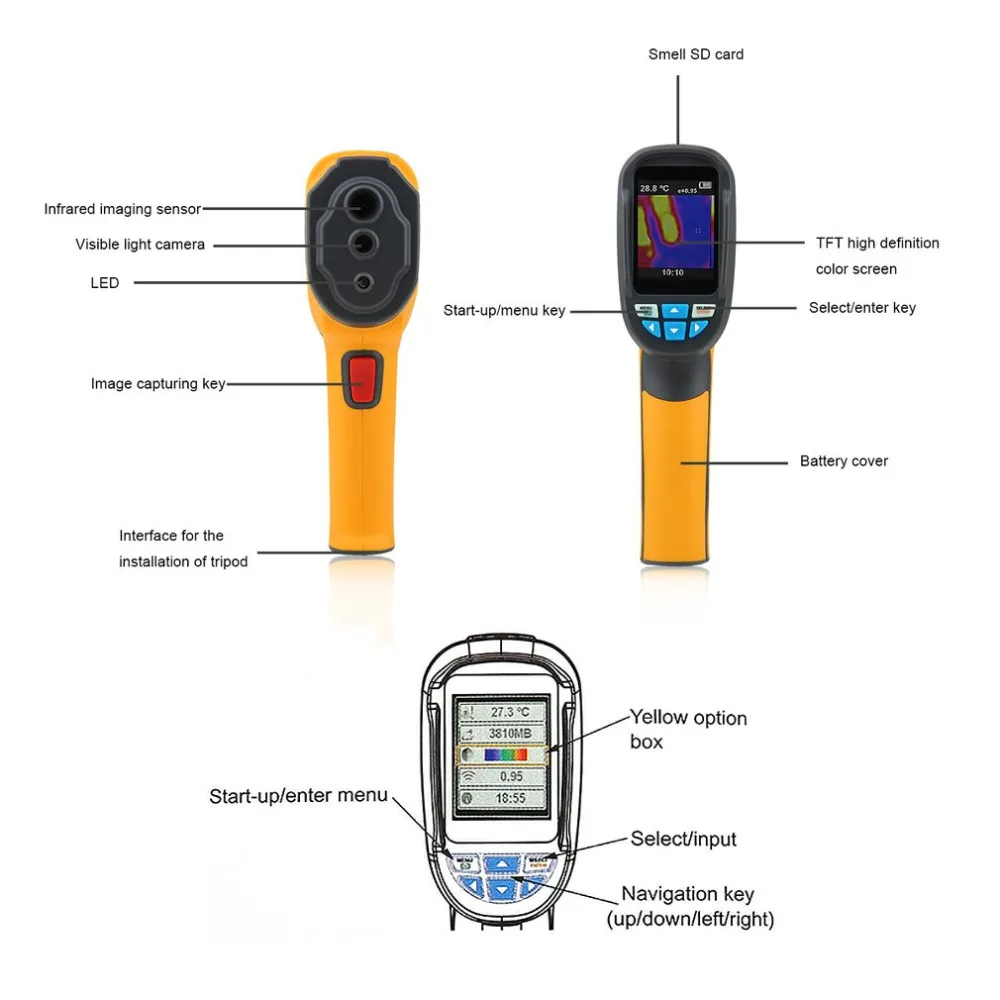

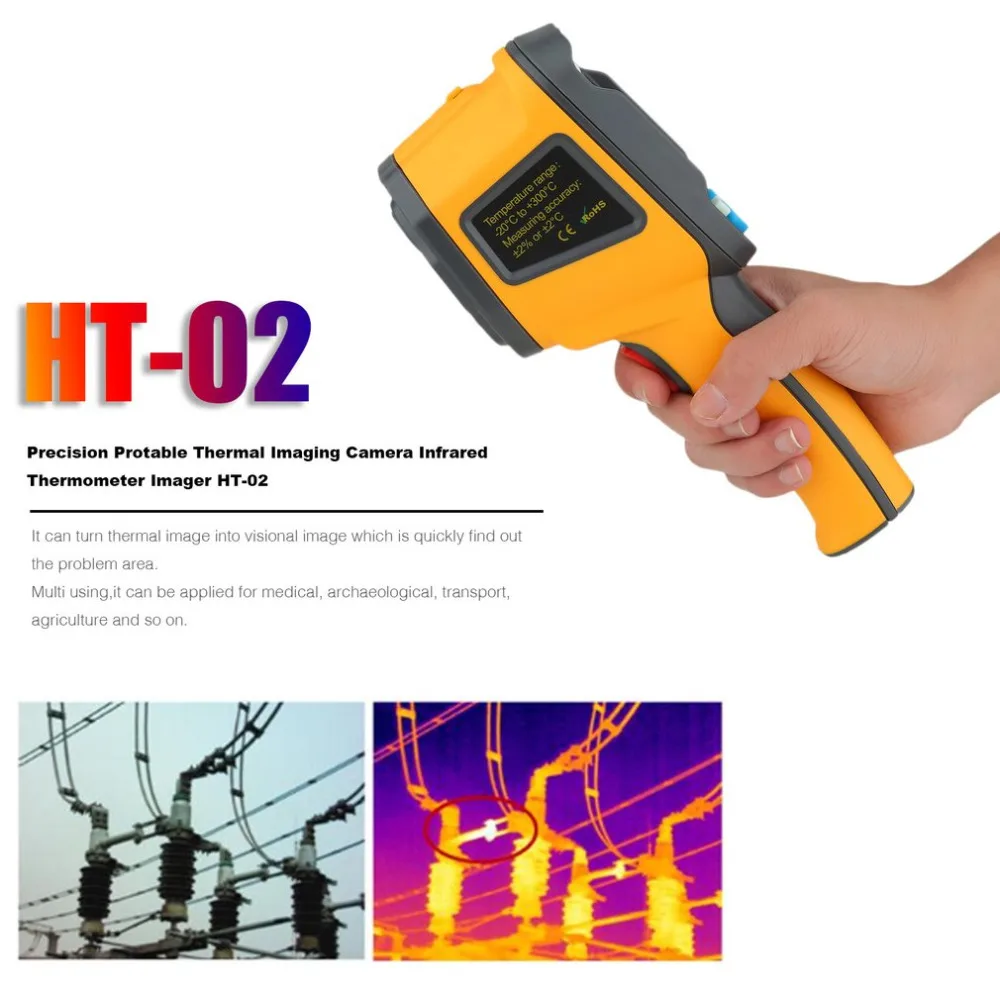

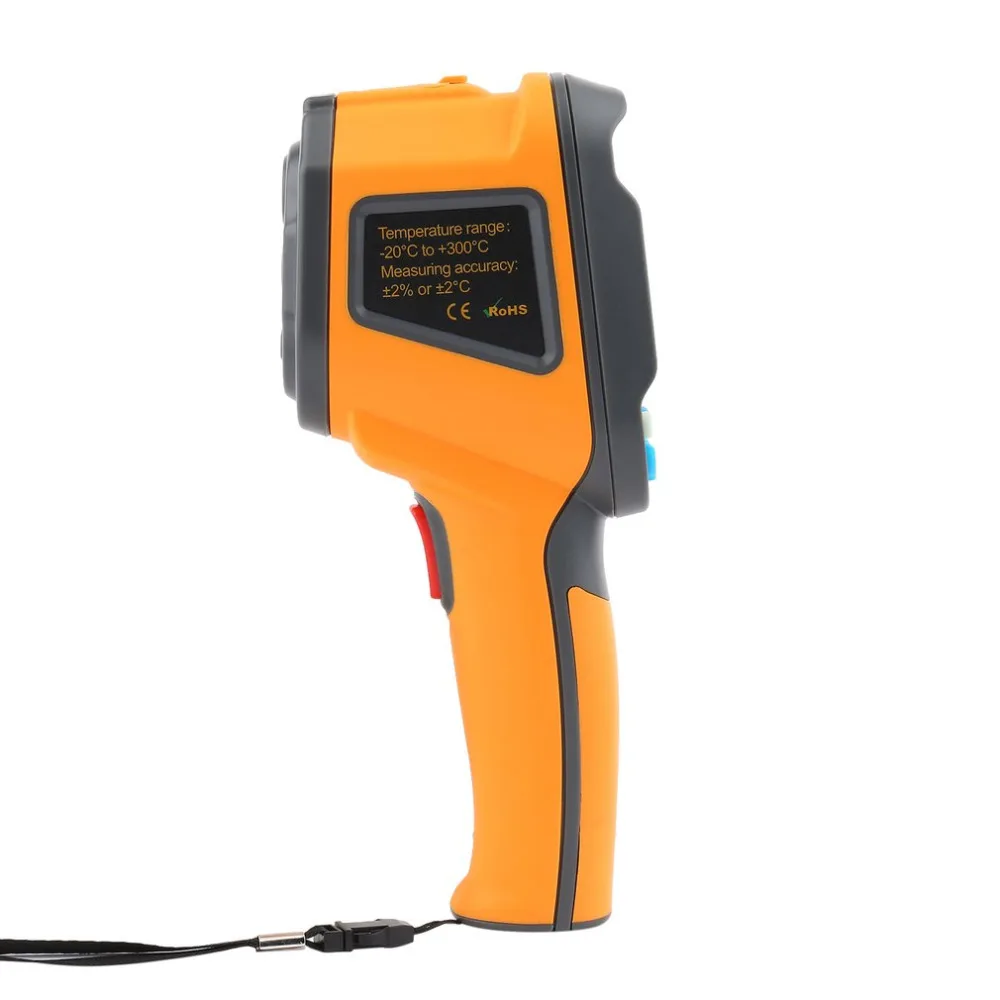

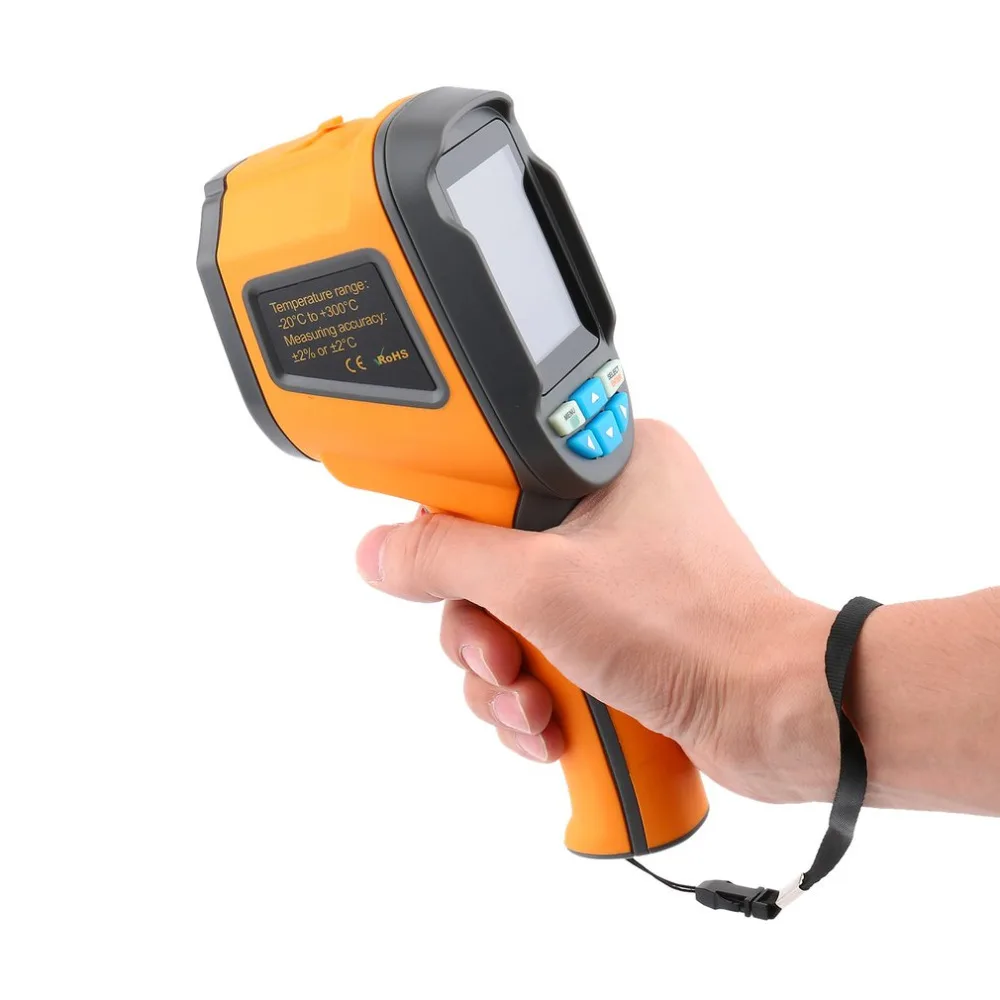

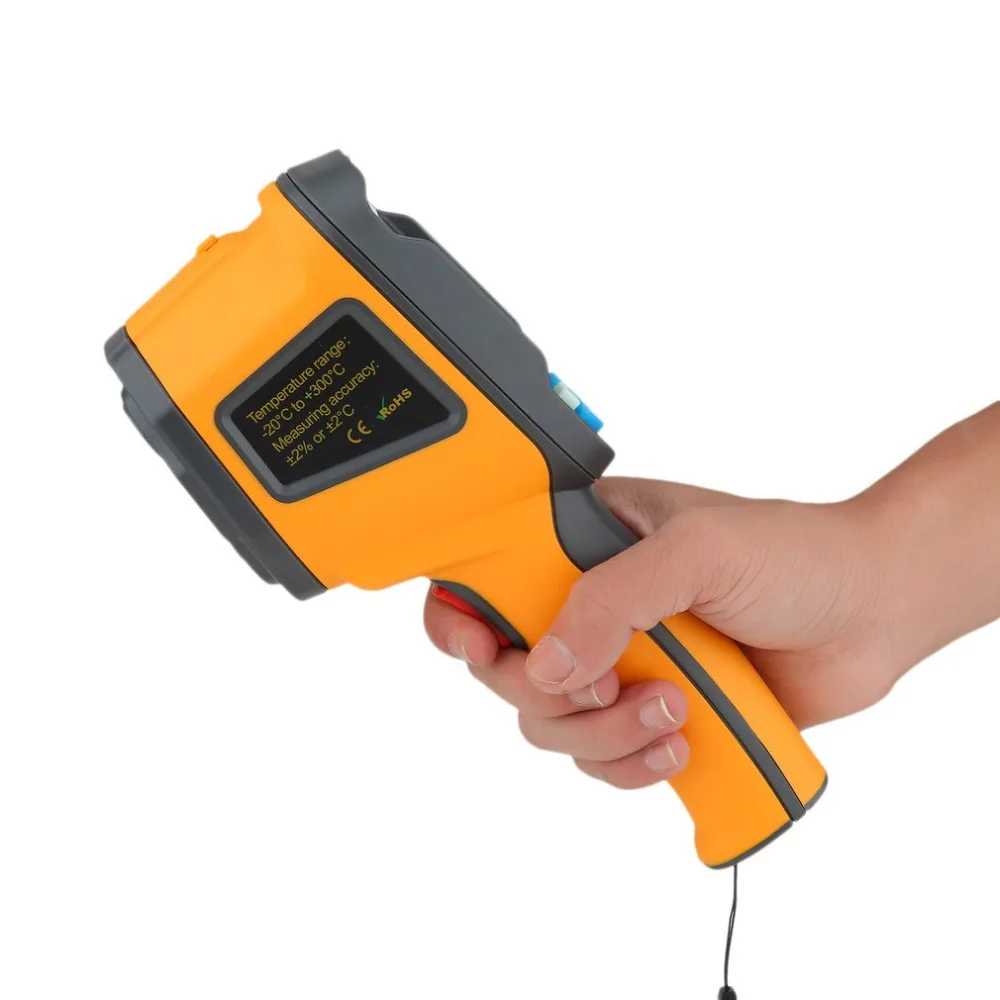

Type A: HT-02

Specifications:
Color: Yellow
Display: 2.4 inch full viewing angle high-resolution color screen
Resolution: 60 x 60
Resolution of visible image: 0.3 mega pixels.
Total Pixel: 3600
FOV/Shortest Focal Length: 20 x 20/0.5m
Thermal Sensitivity: 0.5 Degrees Celsius
Measuring Mode: Thermopile
Temperature Range: -20 Degrees Celsius to 300 Degrees Celsius(-4 Fahrenheit to 572 Fahrenheit)
Measuring Accuracy: +/-2% or +/-2 Degrees Celsius(+/-4 Fahrenheit)
Wavelength Range: 8-14μm
Emissivity: 0.1-1.0 Adjustable
Image Frequency: 6HZ
Focus Mode: Fixed
Palette: Iron red, rainbow, rainbow high contrast, gray scale(white glow) and gray scale(black glow)
Vision Option: 5 kinds of full infrared to the full visual, mixing visible and infrared.
Image Storage: Secure Digital Memory Card(4G)
File Format: bmp
Set Control: Unit Adjustment/Language/Date Time Format/automatic shut down

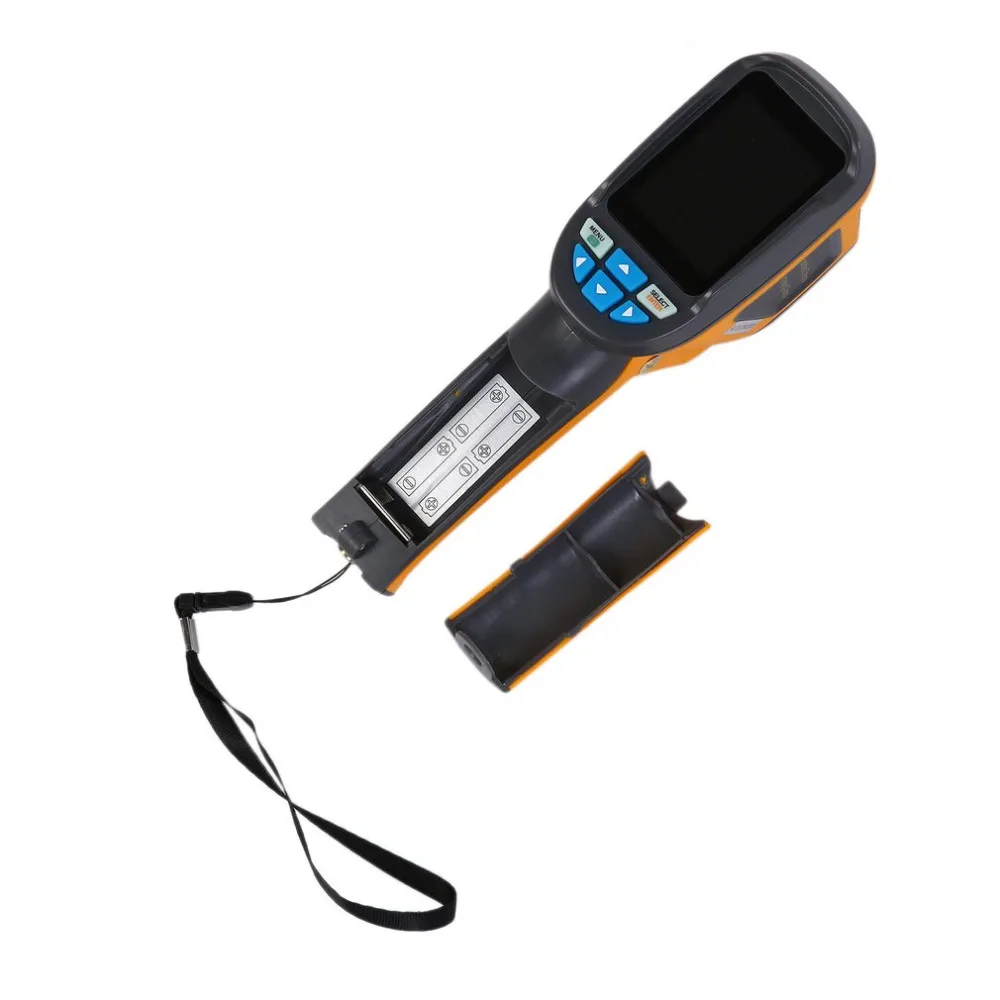

Battery Type: 4 x 1.5V AA battery (Not Included)
Battery Life: 6 Hours
Auto Power-off Time: 12 Minutes
Authentication: CE, RoHS
Operating Temperature: -5 Degrees Celsiusto 40 Degrees Celsius (23 Fahrenheit to 104 Fahrenheit)
Storage Temperature: -20 Degrees Celsius to 50 Degrees Celsius (-4 Fahrenheit to 122 Fahrenheit)
Relative Humidity: 10%RH to 80%RH
Item Size: 21.2 x 9 x 6.2cm
Package Size: 27 x 19 x 11cm

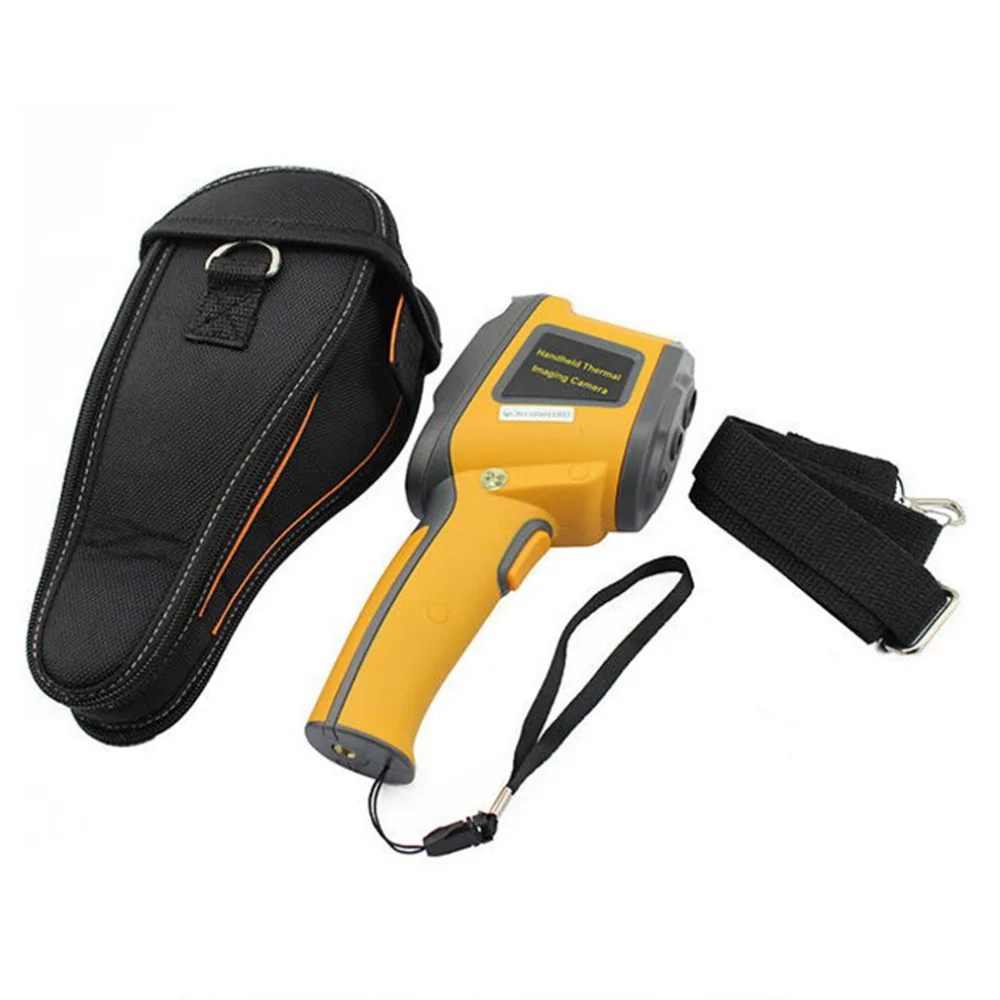

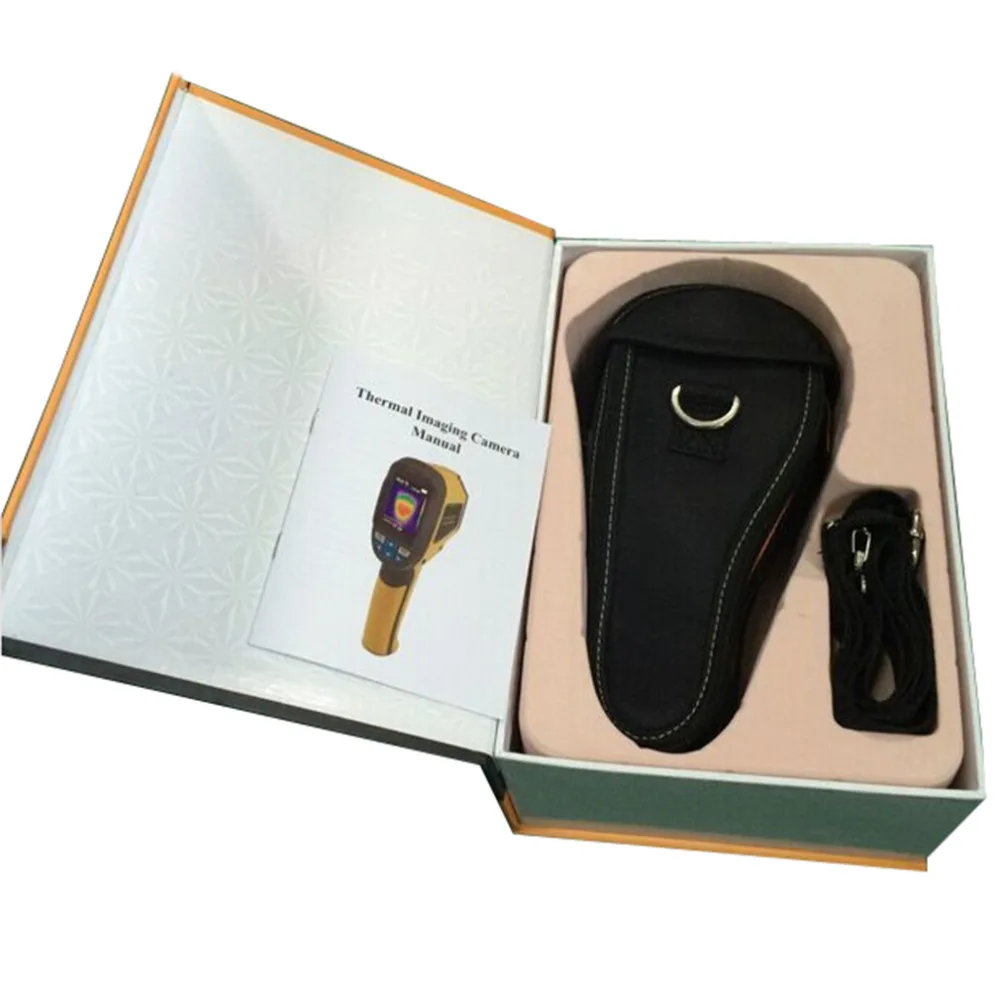

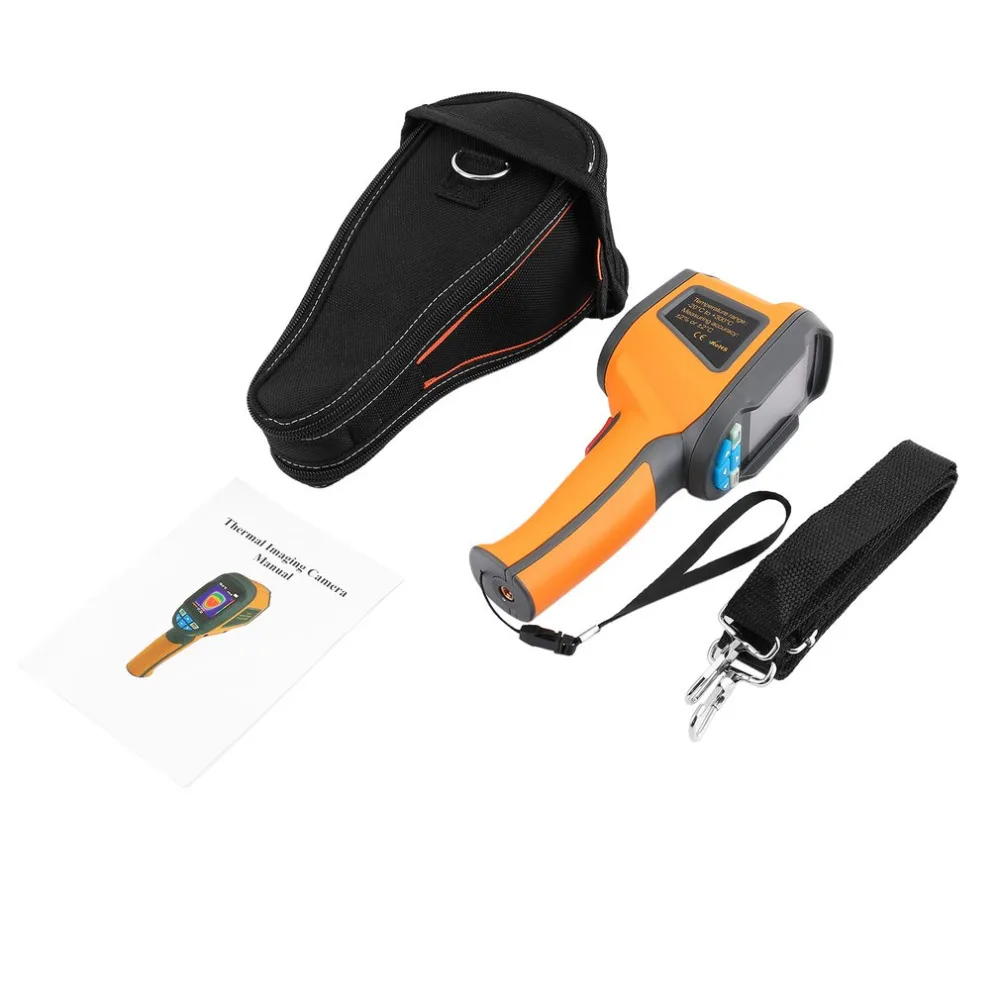

Package Includes:
1 x Thermal Infrared Imager
1 x SD Card(4G)
1 x User Manual
1 x Drop Resistance Rope

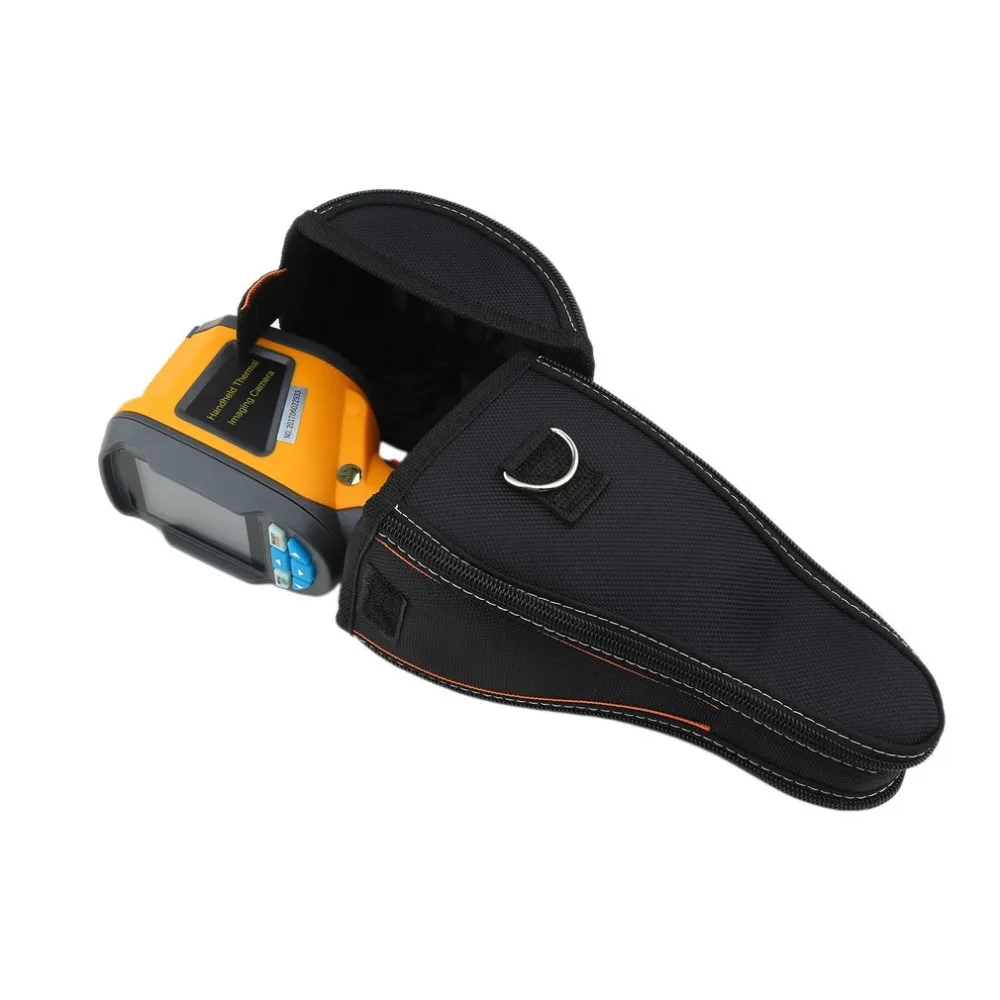

1 x Protecting bag

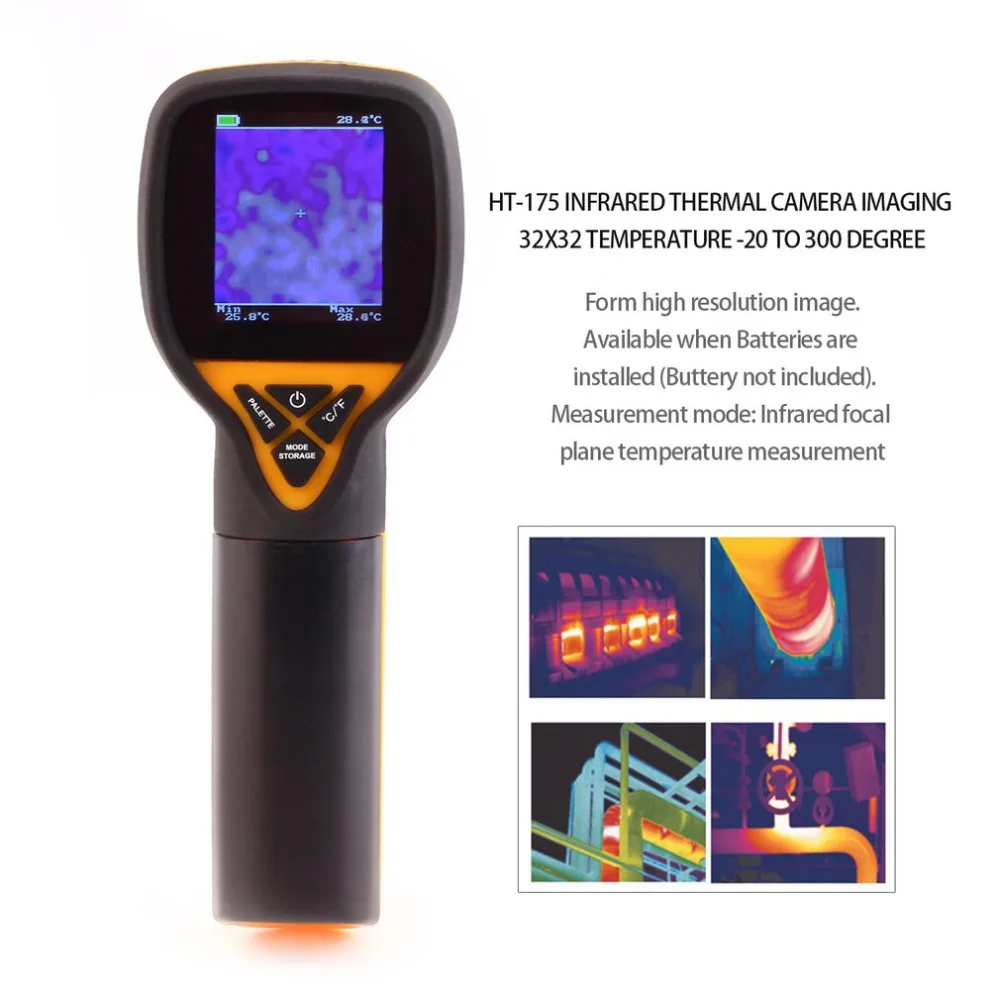

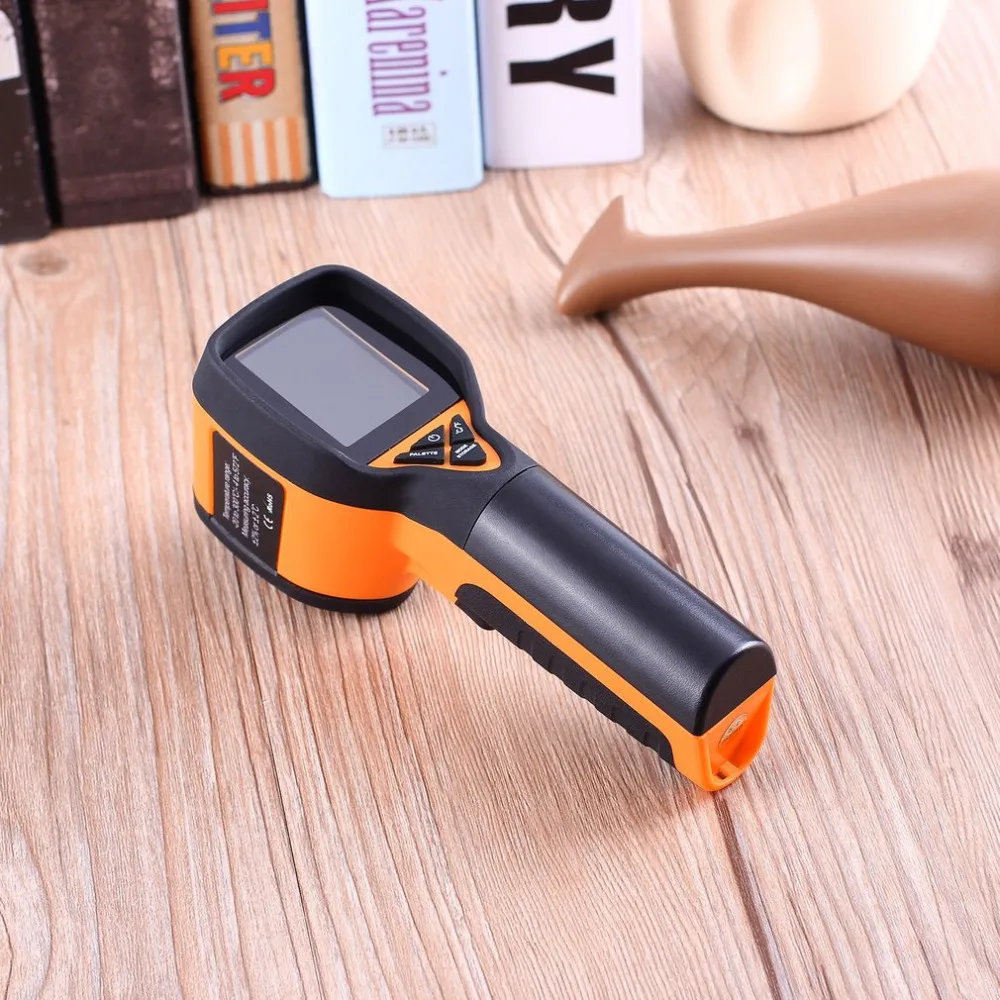

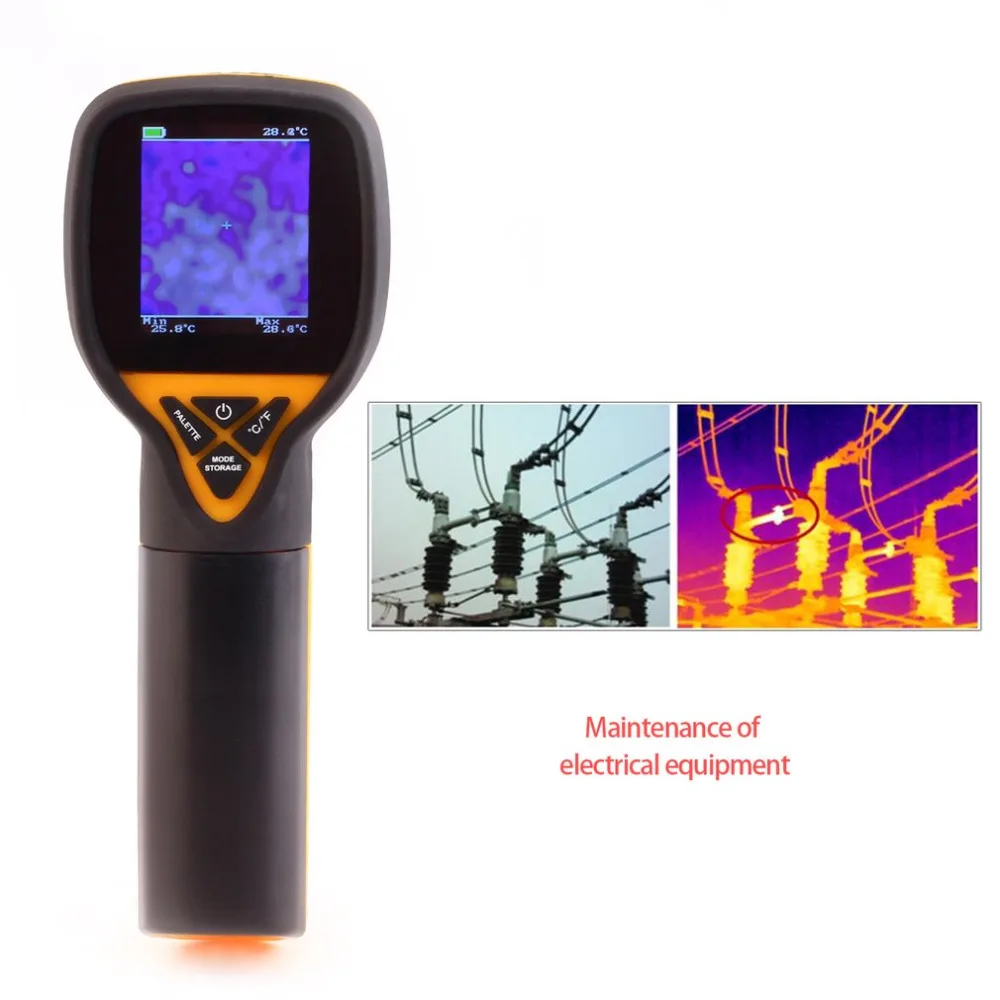

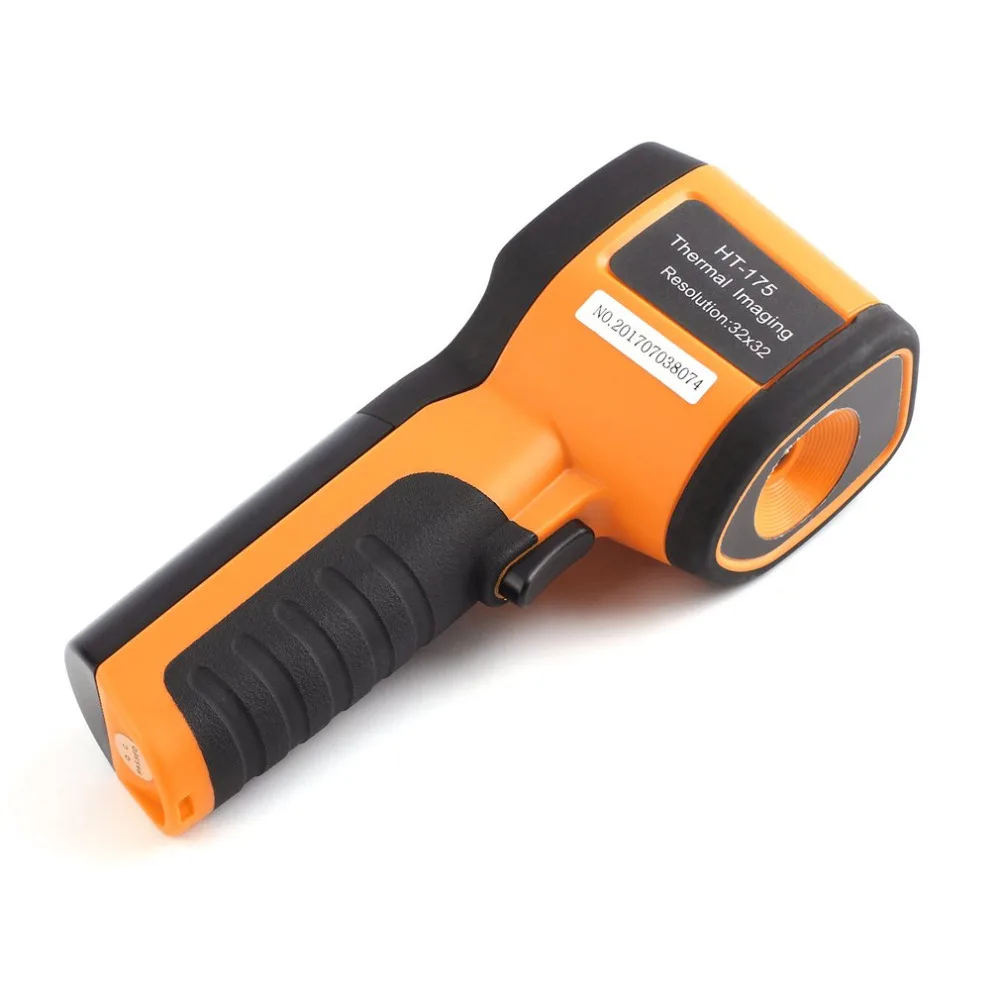

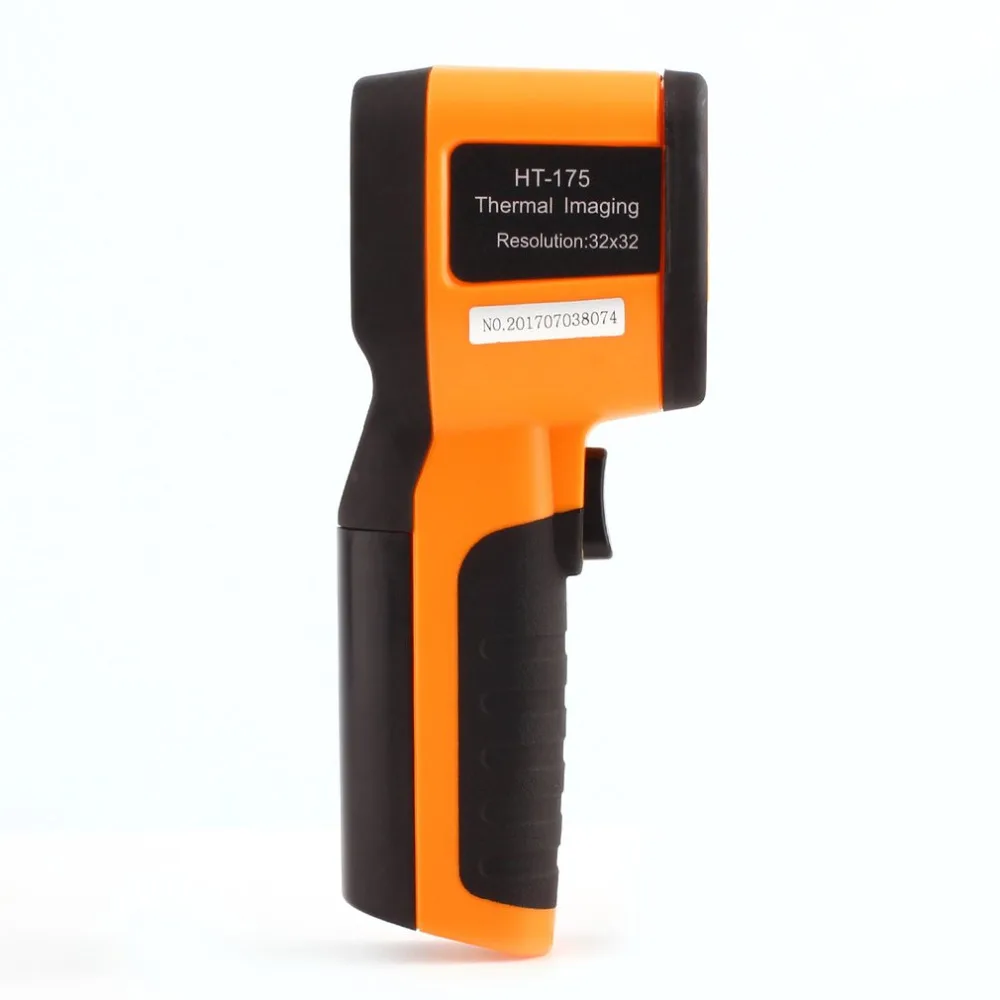

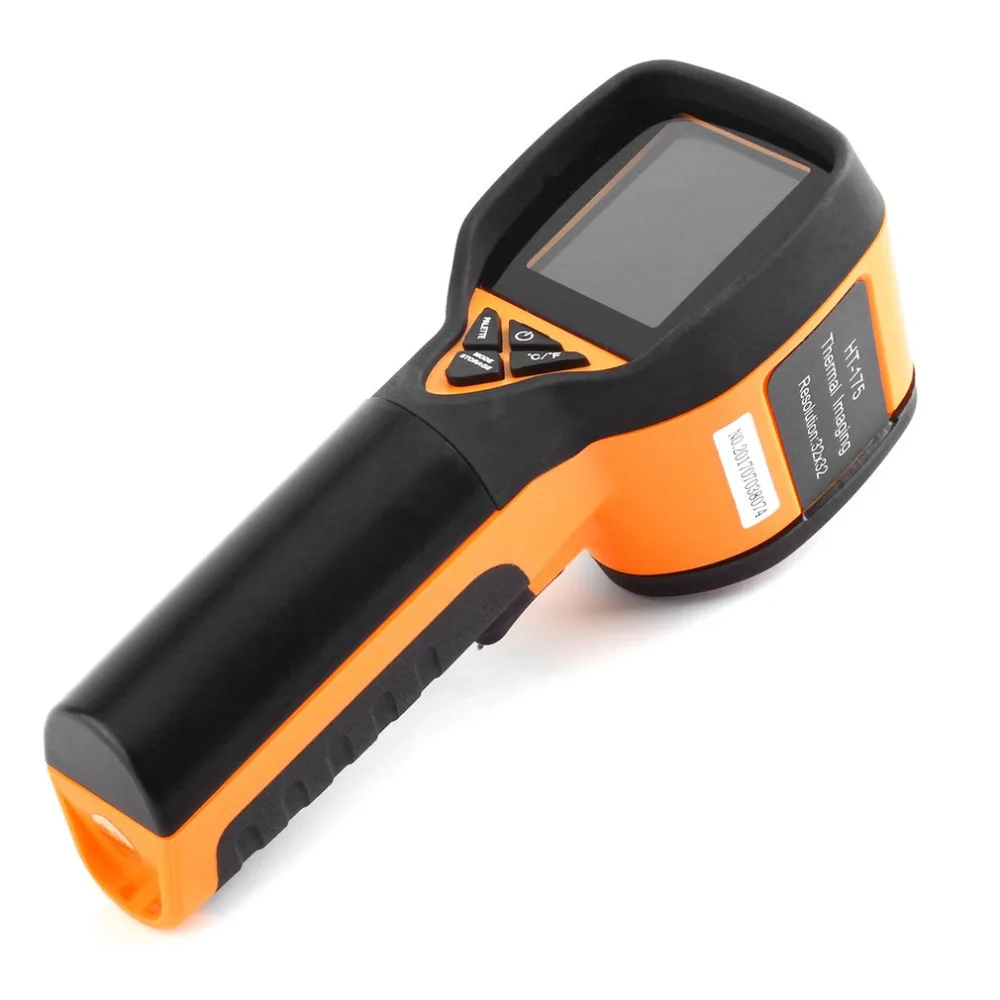

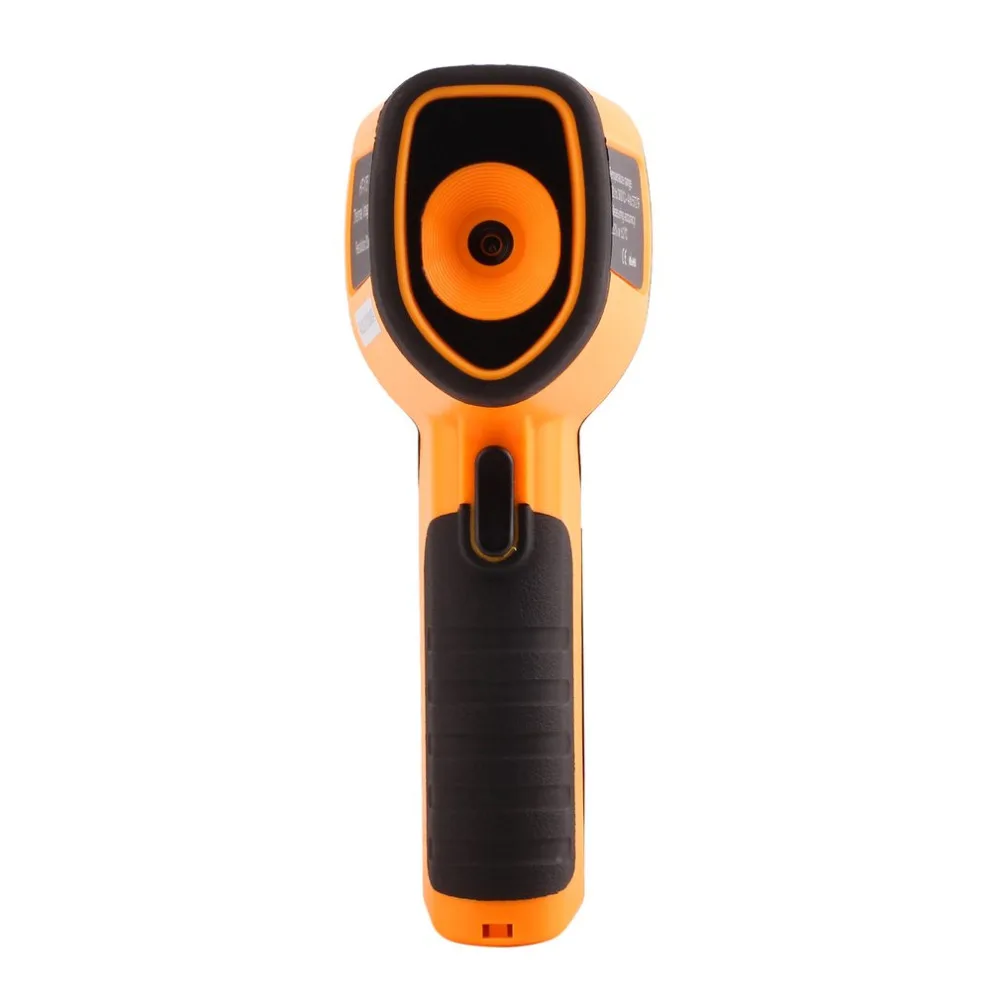

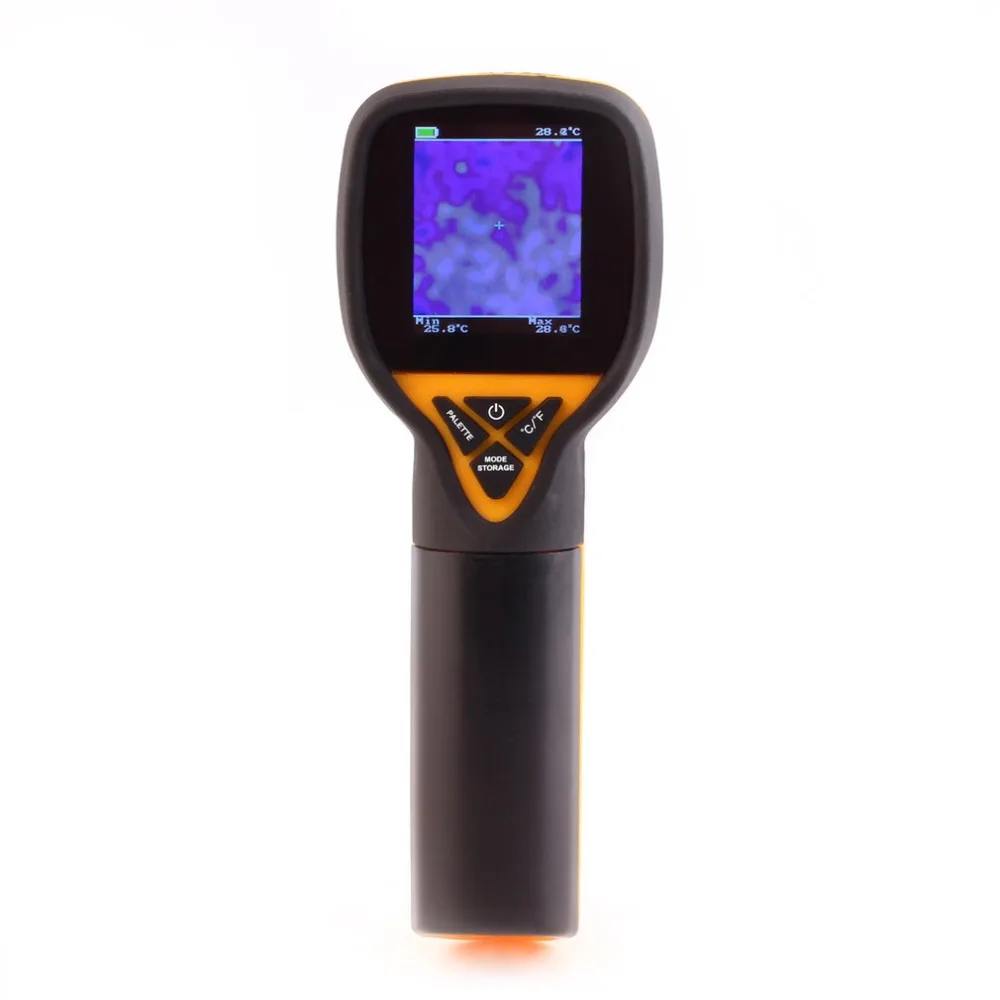

Type B: HT-175

Specifications:
Display Screen: 2.0 color screen
Infrared Image Resolution: 32×32
Pixel: 1024
Measurement Range: -20～300°
Measurement Precision: ±2%/±2°
Wavelength Coverage: 8-11.5um
Focusing Mode: fixed
Color Palette:  iron oxide red and white glow

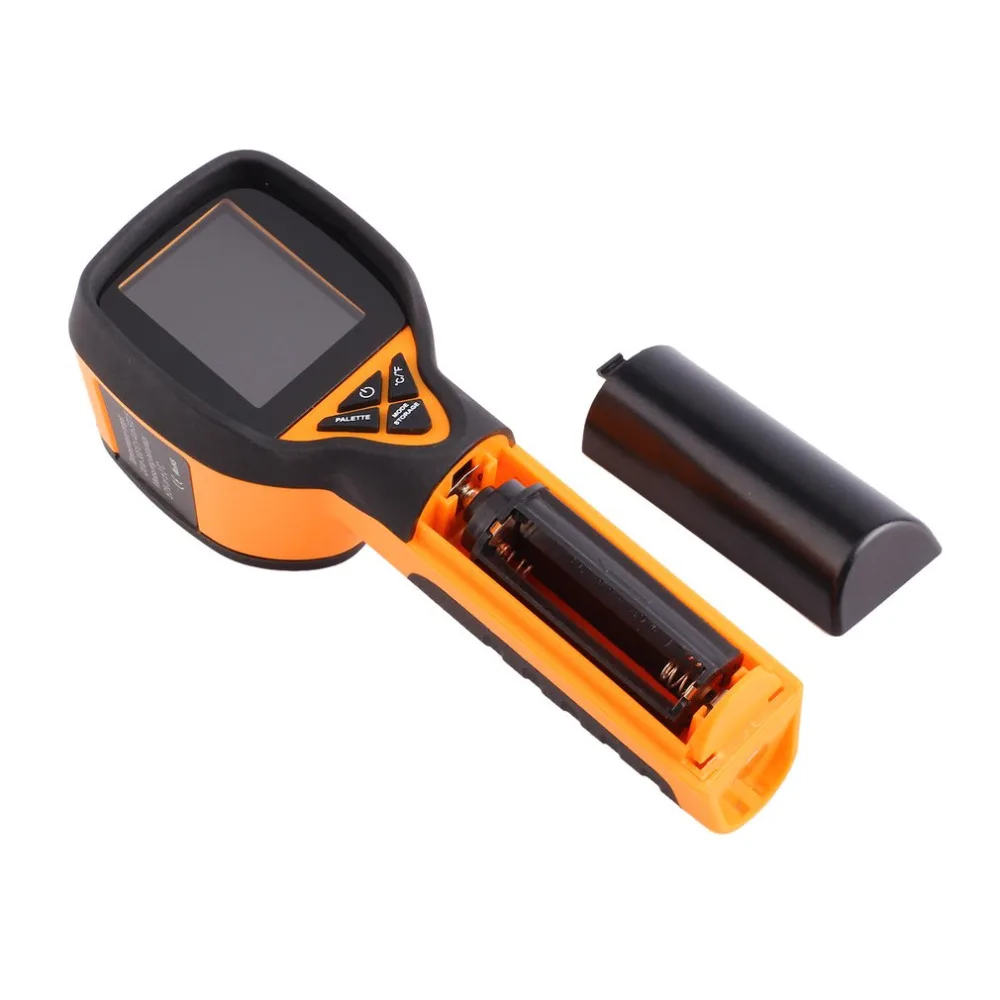

Power Supply: 3 × AAA alkaline battery (Buttery not included)
Working Temperature: 0-50°
Storage Temperature: -20°～50°
Size: 165 x 58 x 64mm
Package Size: 191 x 97 x 76mm

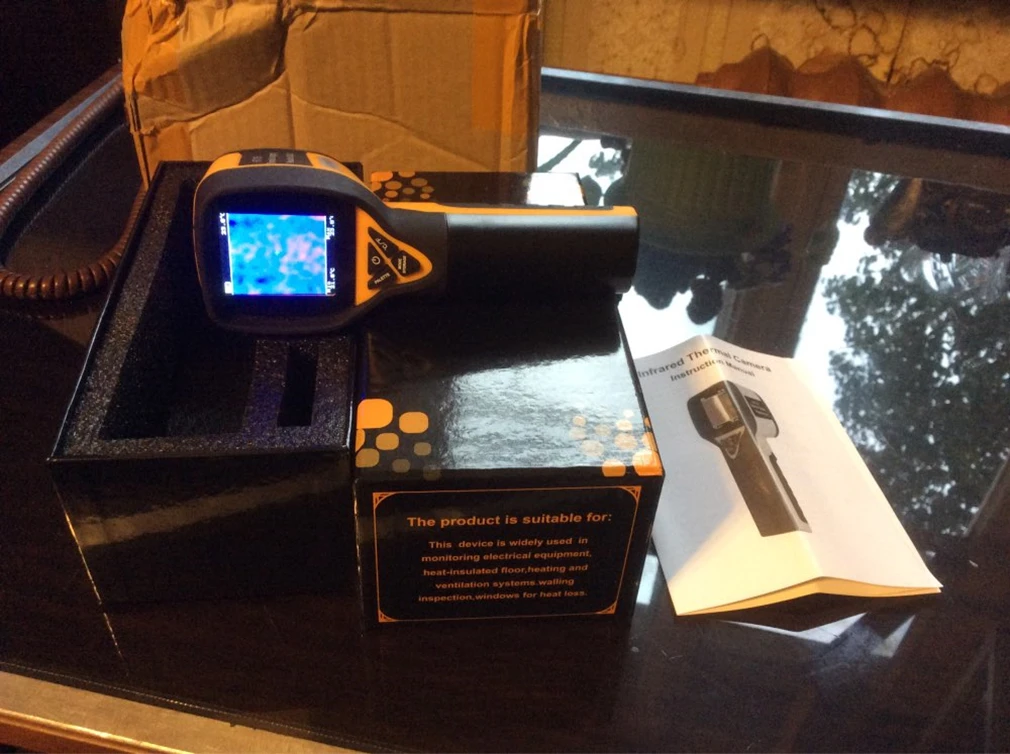

Package included:
1 x Infrared Thermal Camera
1 x Instruction Manual

Type C: HT-02D

Specifications:
Model: HT-02D
Display Screen: 2.4 Inch High Resolution Color Screen
Resolution of infrared image: 32 * 32(1024 pixels)
Resolution of visible image: 0.3 mega pixels
Field angle/shortest focal distance: 33*33/0.5m
Thermal sensitivity: 0.3 °C
Temperature range: -20~300 °C
Measuring accuracy: +/-2% or +/-2 °C(+/-2% or +/-4 °F)
Emissivity: adjustable 0.1-1.0
Image capturing frequency: 6hz
Range of wave length: 8-11.5um
Color palette: iron red, rainbow, rainbow high contrast, gray scale(black glow) and gray scale (white glow)
Vision option: 25% step infrared to visional to infrared and visional image
Memory card: 4GB
File format: bmp
Power battery: 4 x AA Battery(not included)
Battery life: 6h
Auto power-off time: 12min
Relative Humidity: 10%RH to 80%RH
Warranty: 1 year
Size: 213 x 61 x 87.4mm

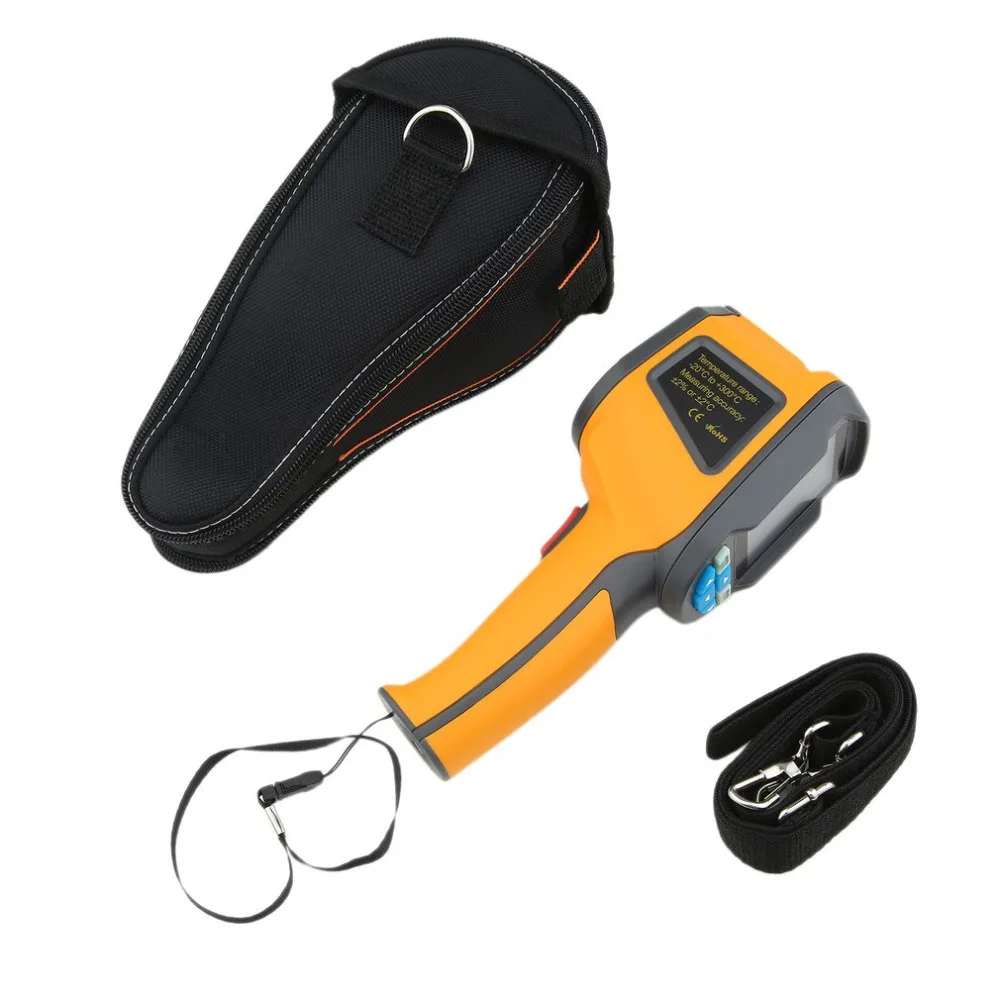

Package includes:
1 x Handheld  Infrared Thermometer Imaging Camera
1 x Lanyard
1 x Strap
1 x Cover Bag
1 x Manual
