XFCAM1080PHD-2M Auto-focus C-mount HDMI+WIFI CMOS Camera

1920x1080, 60fps via HDMI, 25 fps via WIFIdigital camera kit allows for live viewing and recording of your microscope image with ease and extremely high quality!

XFCAM1080PHD is a multiple interfaces (HDMI+WiFi+SD card, so X here means multiple interfaces) CMOS camera with autofocus function (F means autofocus) and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+WiFi are used as the data transfer interface to HDMI display or computer.

       For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.
       In HDMI output, the camera embedded Auto/Manual focus function can obtain the clear image at ease. No hand rotation of the microscope Coarse/Fine knob is needed.
       For WiFi output, unplug the mouse and plug in the USB WiFi adapter, connect the computer WiFi to the camera, then the video stream can be transfer to computer with the advanced software .   you can control the camera, process the image as our other USB series camera.

Potiential Application

Scientific research, education (teaching, demonstration and academic exchanges);
Digital laboratory, medical research
Industrial visual (PCB examination, IC quality control)
Medical treatment (pathological observation)
Food (microbial colony observation and counting)
Aerospace, military (high sophisticated weapons)

Autofocus HD 1080p digital SONY 2M IMX185 CMOS sensor  C mount trinocular microscope auto focus Wifi HDMI microscope camera

Model :XFCAM1080PHD-2M

1080p HDMI camera for microscope with SONY sensor, WIFI and SD card

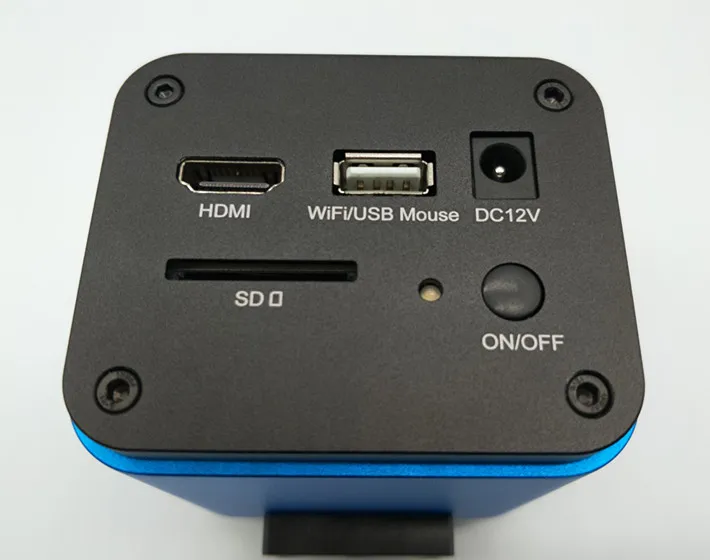

• All in 1( HDMI+WIFI+SD card SLOT) C-mount camera with high sensitivity CMOS sensor;
• Auto/Manual focus with the movement of the sensor;
• Simultaneous HDMI & WIFI output;
• Built-in mouse control;
• Built-in image capture & video record to SD card;
• Built-in camera control panel for mouse control;
• Built-in toolbar including zoom,mirror,comparison,freeze,cross,browser functions;
• Built-in image & video browsing,display & play;
• Ultra-Fine color engine with perfect color reproduction capability(USB);
• With advanced video & image processing application ;
• Support standard SDK for Windows/Linux/Mac(USB);
• CNC shell molding design;

Quick Function Show :

For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.

In HDMI output, the camera embedded Auto/Manual focus function can obtain the clear image at ease. No hand rotation of the microscope Coarse/Fine knob is needed.

For WiFi output, unplug the mouse and plug in the USB WiFi adapter, connect the computer WiFi to the camera, then the video stream can be transfer to computer with the advanced software

HDMI+USB+SD Card All in 1 CMOS Camera Specification

Difference  between XFCAM1080PHB and XFCAM1080PHD

All in 1( HDMI+USB+SD card) C-mount camera with high sensitivity CMOS sensor;
Simultaneous HDMI & USB output;
Built-in mouse control;
Built-in image capture & video record to SD card;
Built-in camera control panel for mouse control;
Built-in toolbar including zoom,mirror,comparison,freeze,cross,browser functions;
Built-in image & video browsing,display & play;
Ultra-Fine color engine with perfect color reproduction capability(USB);
With advanced video & image processing application ImageView, ;
Support standard UVC for Windows/Linux/Mac(USB);
CNC shell molding design;

XFCAM1080PHD camera install SONY sensor 1/1.9" IMX185

SONY Exmor COMS sensor

1) Low noise and High Sensitivity

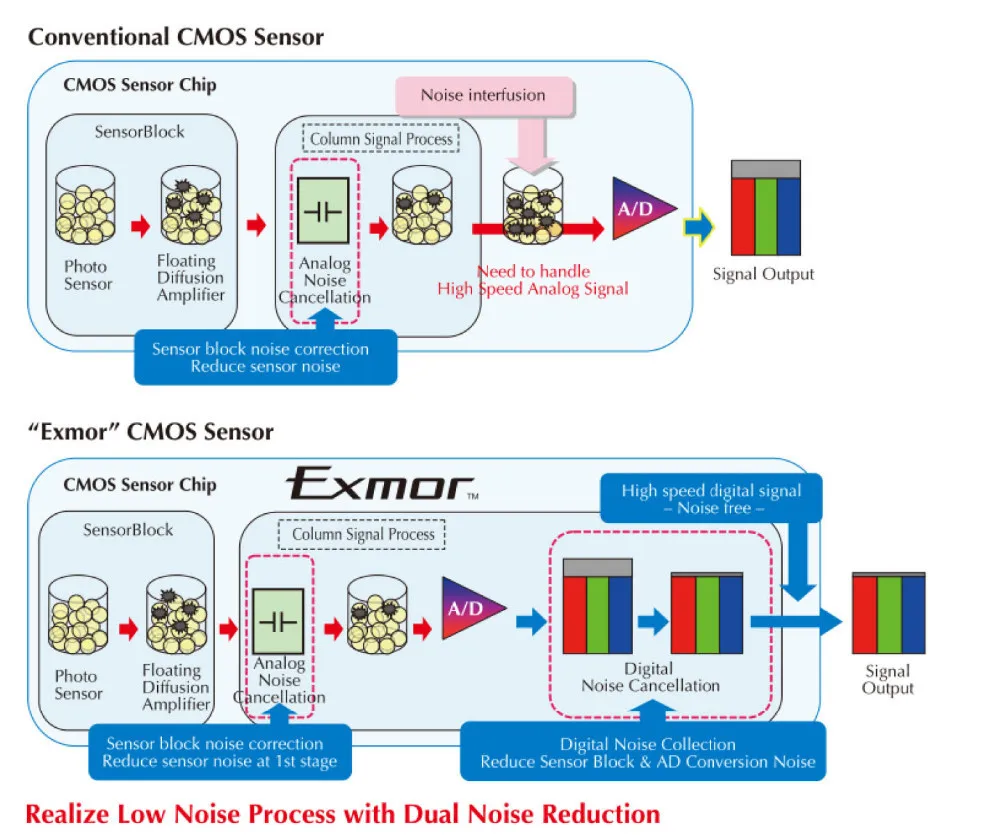

1.  As you can see from the above diagram, the “Exmor” sensor has 2 noise reduction process
including analogue noise reduction and digital noise reduction while the traditional one has
only analogue noise reduction.

2.  Even the smallest amount of signal noise can have a negative impact on a photo. Noise is
introduced into an image if defects are present in the silicon from which the pixel is made.
By minimizing the occurrence of defects and contamination, and by shielding areas that are
vulnerable to defects, Sony has decreased the amount of noise that may be possible in other
sensors.

3.  Sony enhanced sensitivity of the CMOS sensor by modifying the transistor array and layout,
and by making the photodiode as large as possible and creating a system that increases the
accuracy of light that is guided to the photodiode.

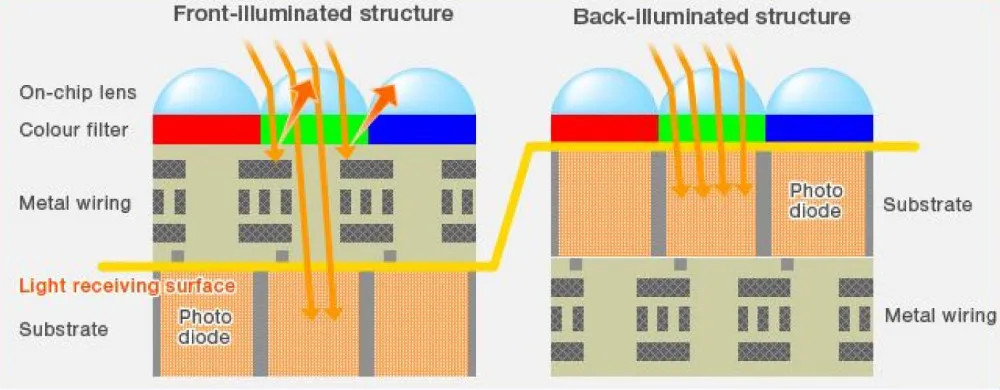

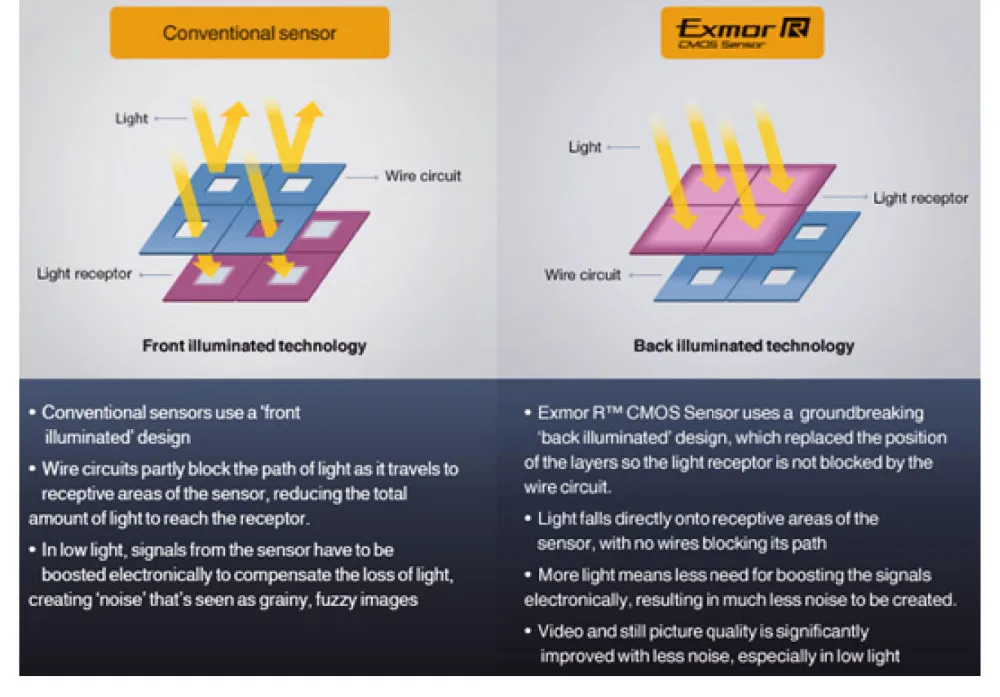

Back-illuminated, High Sensitivity and no CRA Related Defects ("Exmor R")

Sony further improved the capabilities of the CMOS sensor by developing a back-illuminated
structure, with the aim of creating a camera capable of taking exceptional photographs even by
candlelight. "Exmor R" is approximately twice as sensitive as a conventional front-illuminated
CMOS sensor and also features low noise. In a back-illuminated CMOS sensor, light is directed
onto the silicon substrate from behind, allowing light to be used with a level of efficiency not
possible with conventional front-illuminated pixel structures. Photographers can now create
smooth, high-quality images in low light settings, including night scenes.

1)The CRA related problem (background not uniform) does not exist anymore.
2) Fast Frame Speed

3) Global Shutter (Some Sensors)
4) Good Continuity
.
