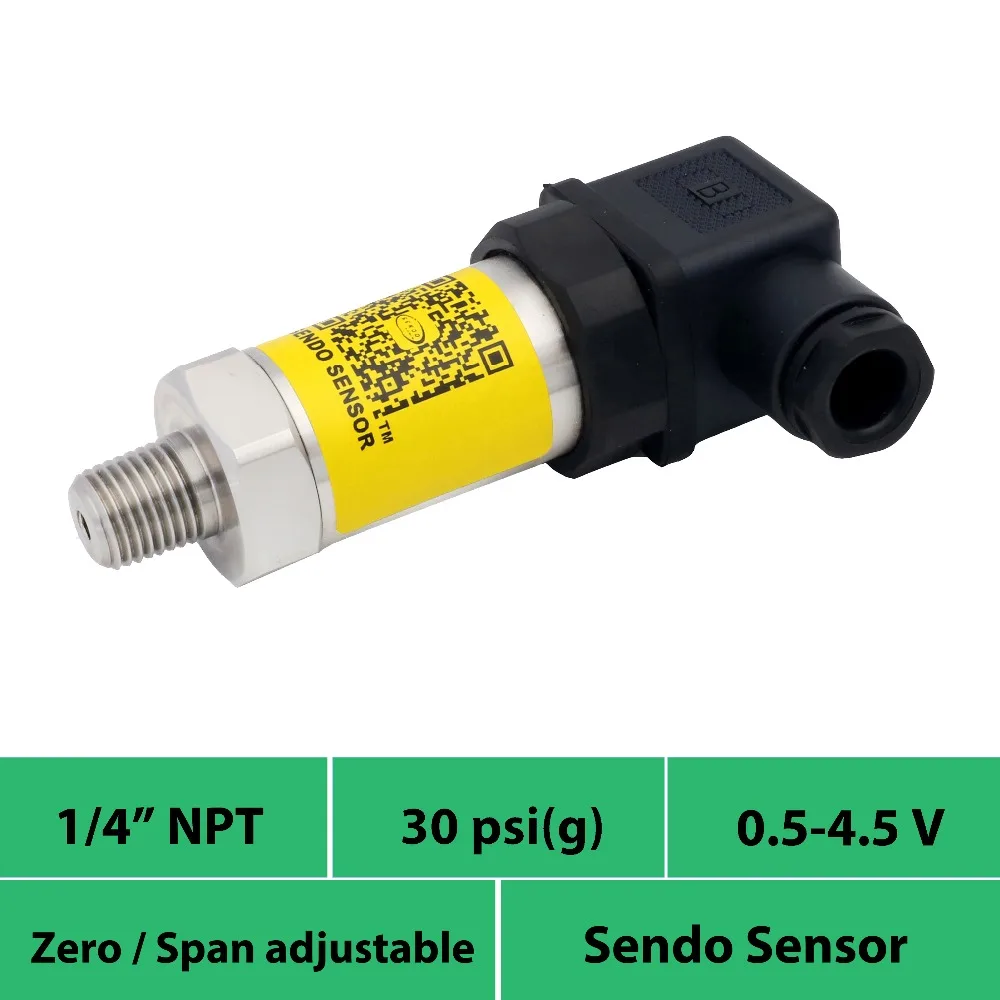

0.5 to 4.5v signal 5V pressure sensor chinese general industry transmitter 0 30psi gauge inexpensive 1/4 in npt male thread | Инструменты

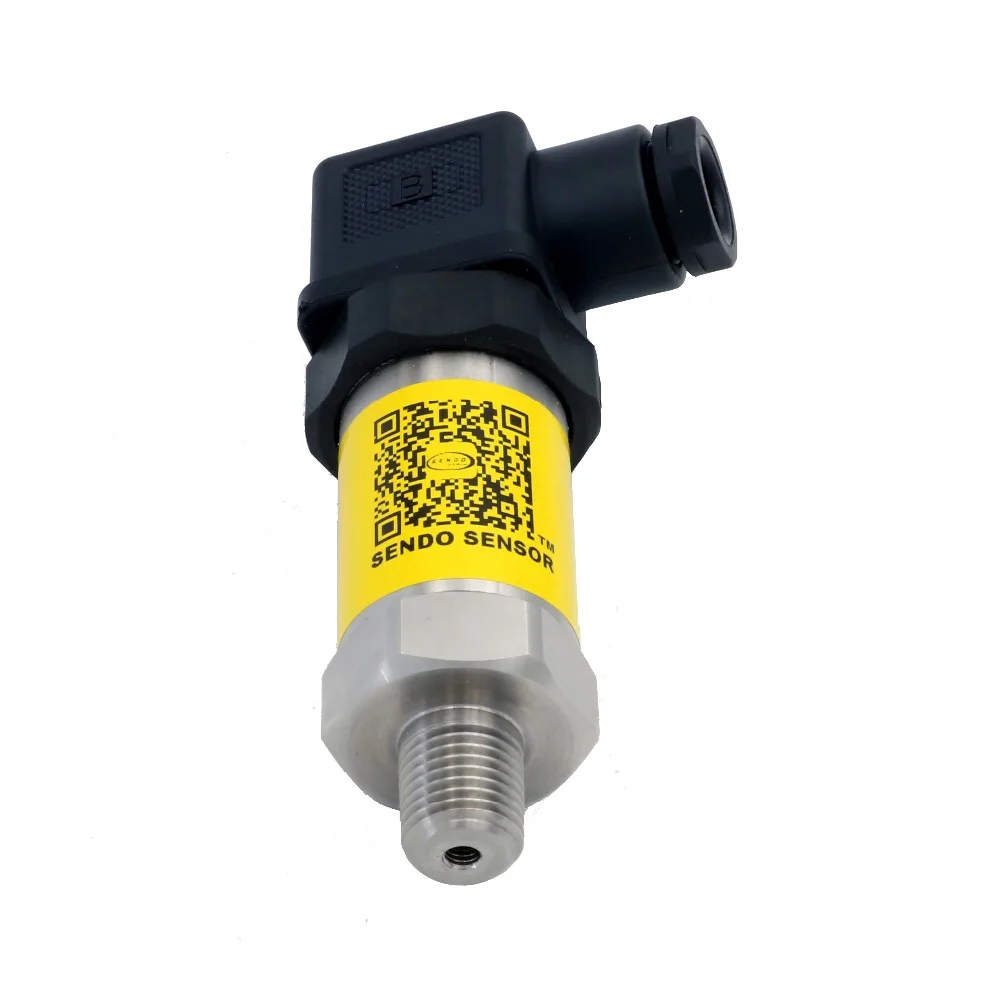

SS302 series piezoresistive pressure transmitters are the basic type in sendo sensor, also it is the most widely used one, work following the piezoresistive principle, standard medium working temperature from -20~100°C. These sensors adopt a high performance piezoresistive pressure transducer as the sensing part, the inner structure is O-ring sealed, 0 to 70°C wide temperature compensation, well suitable for precision applications in industrial environments for pressures ranging from 0,1 to 1000 bar, liquids or gas.

Supply Voltage

5VDC

Output Signal

0.5 - 4.5V

Pressure Range

30psi gauge

Proof Pressure

2.0*F.S.

Accuracy

0.5%F.S.

Stability

≤0.2%F.S./Year

Temp Coefficient

±0.03%F.S./°C

Response Time

≤4ms(90%F.S.)

Medium temperature range

-20°C → +100°C

Ambient temperature range

-20°C → +80°C

Compensated temp range

0°C → +70°C

EMC - Emission

EN 61000-6-3

EMC - Immunity

EN 61000-6-1

Pressure Connection

1/4"NPT

Electrical Connection

DIN43650A

Sealing Rating

IP65

Housing

Stainless Steel 304

Diaphragm

Stainless Steel 316L

4-20mA  (2 wire)

Pin1: + supply   Pin 2: + output

0-5V       (3 wire)

Pin1: + supply   Pin 2: GND   Pin3: + output

0-10V     (3 wire)

Pin1: + supply   Pin 2: GND   Pin3: + output

0.5-4.5V (3 wire)

Pin1: + supply   Pin 2: GND   Pin3: + output
