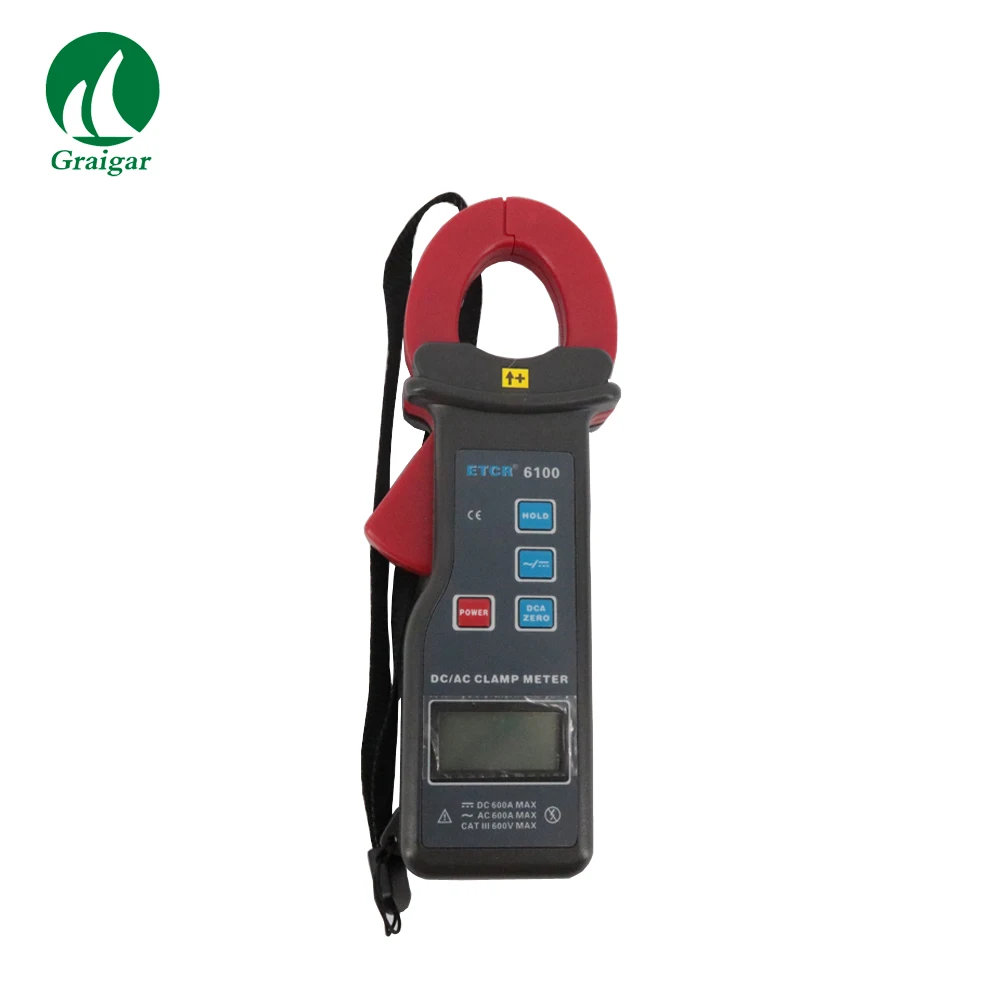

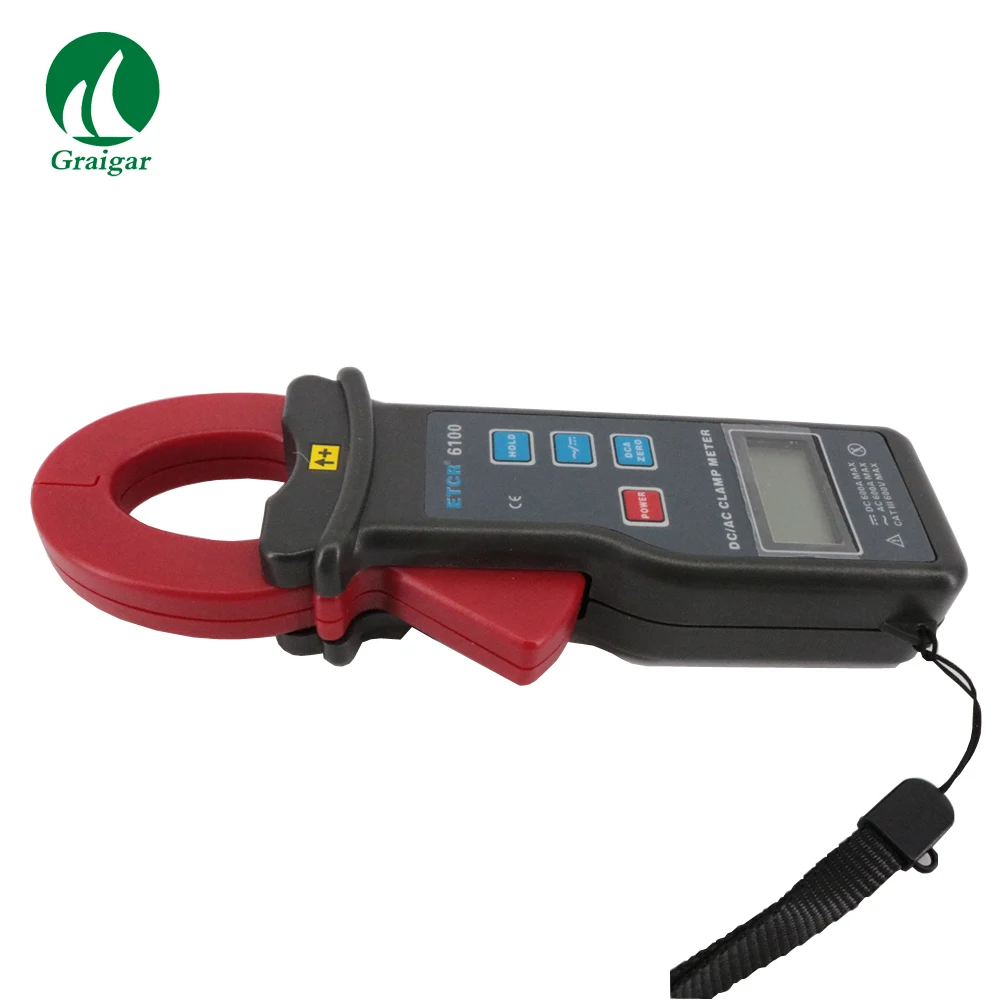

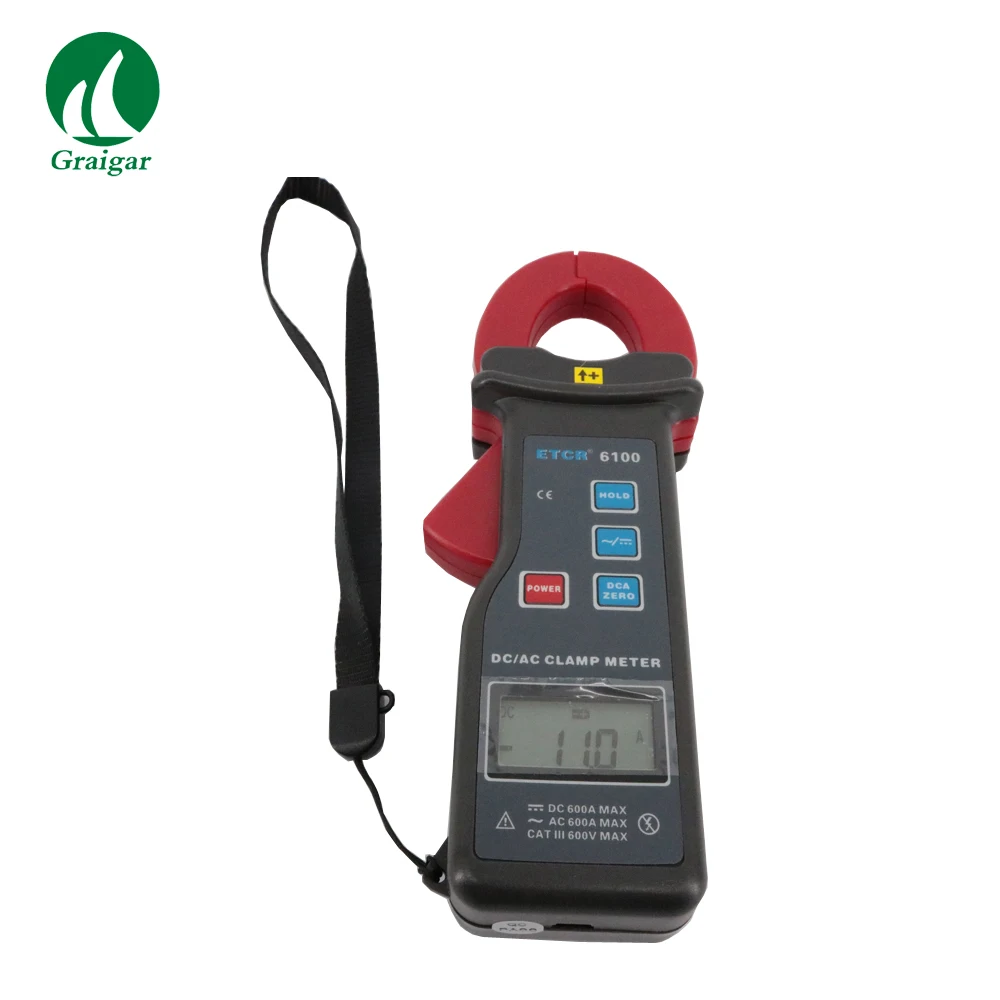

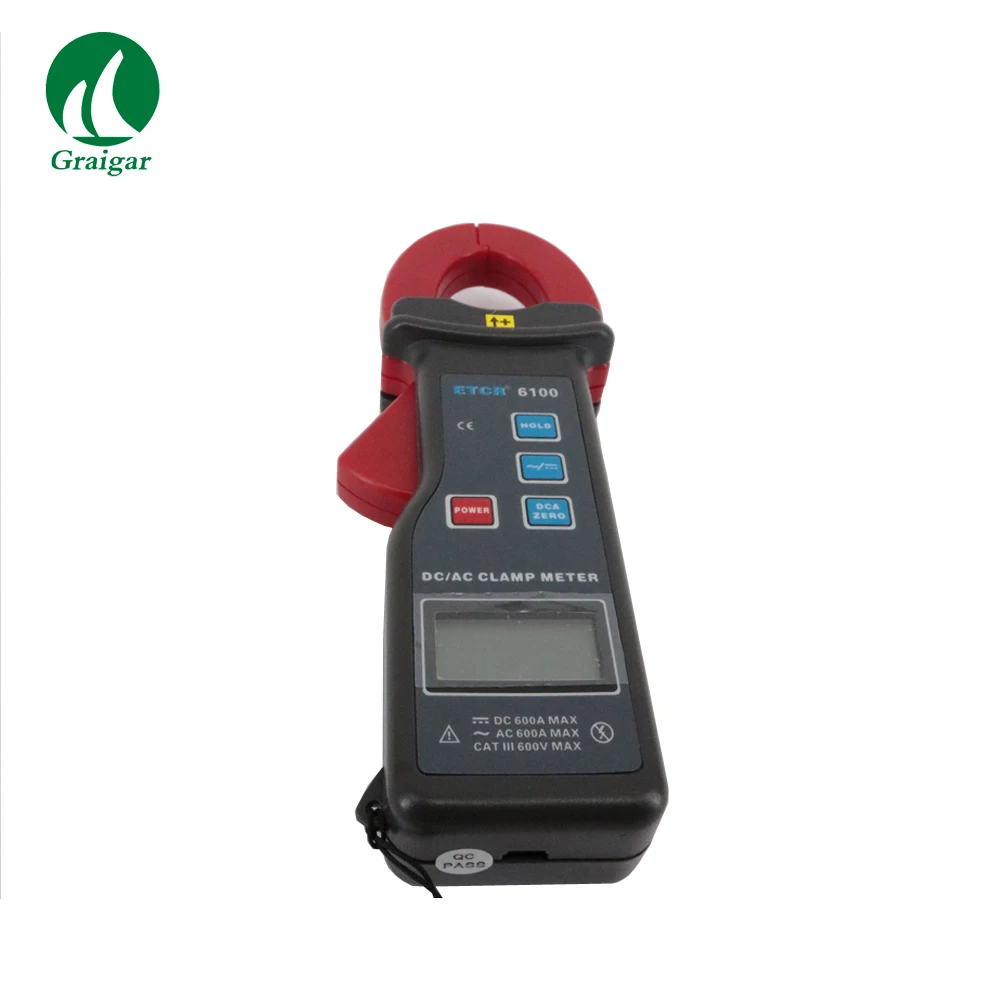

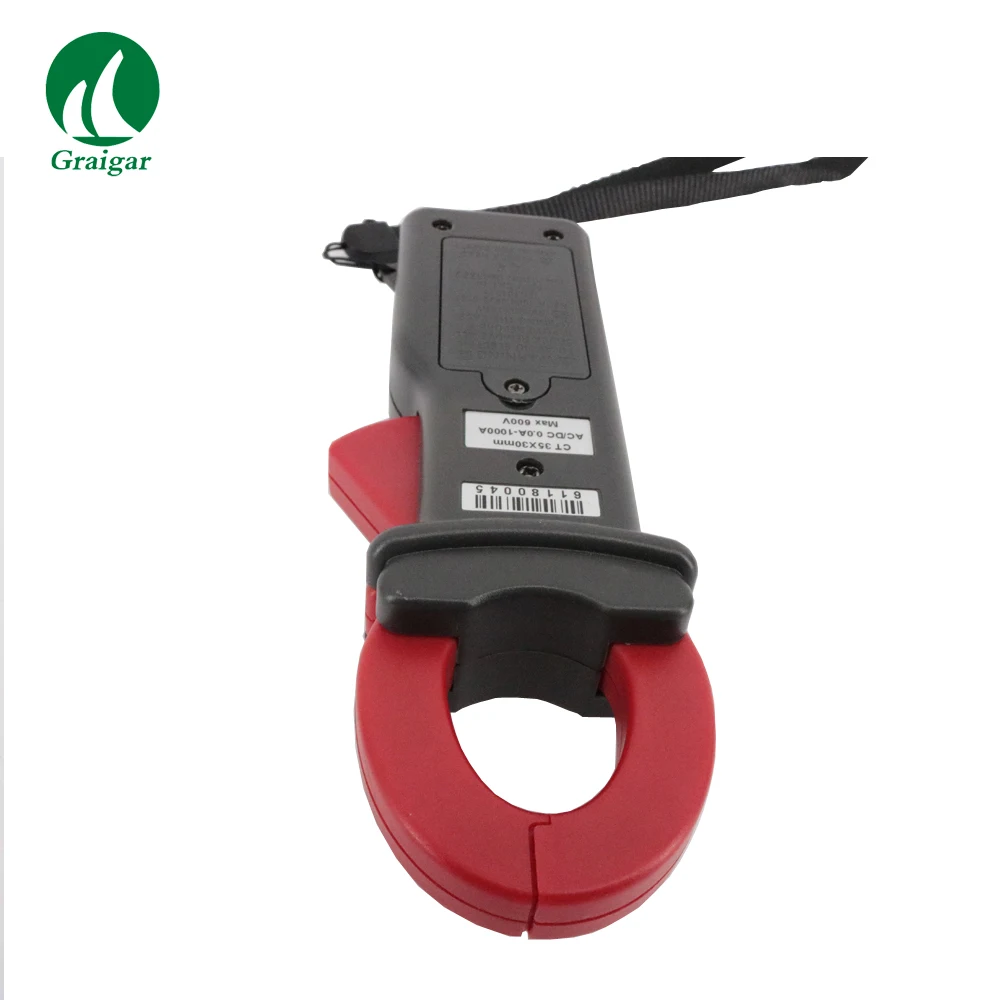

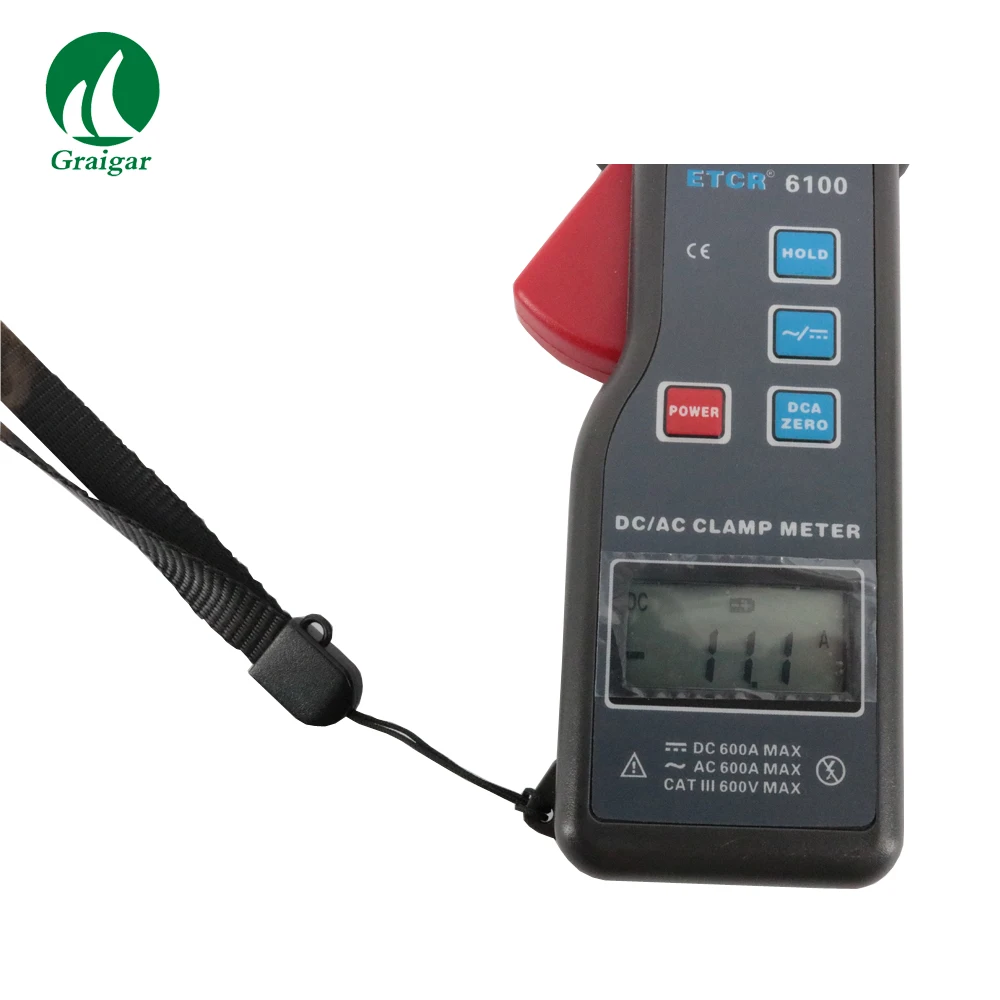

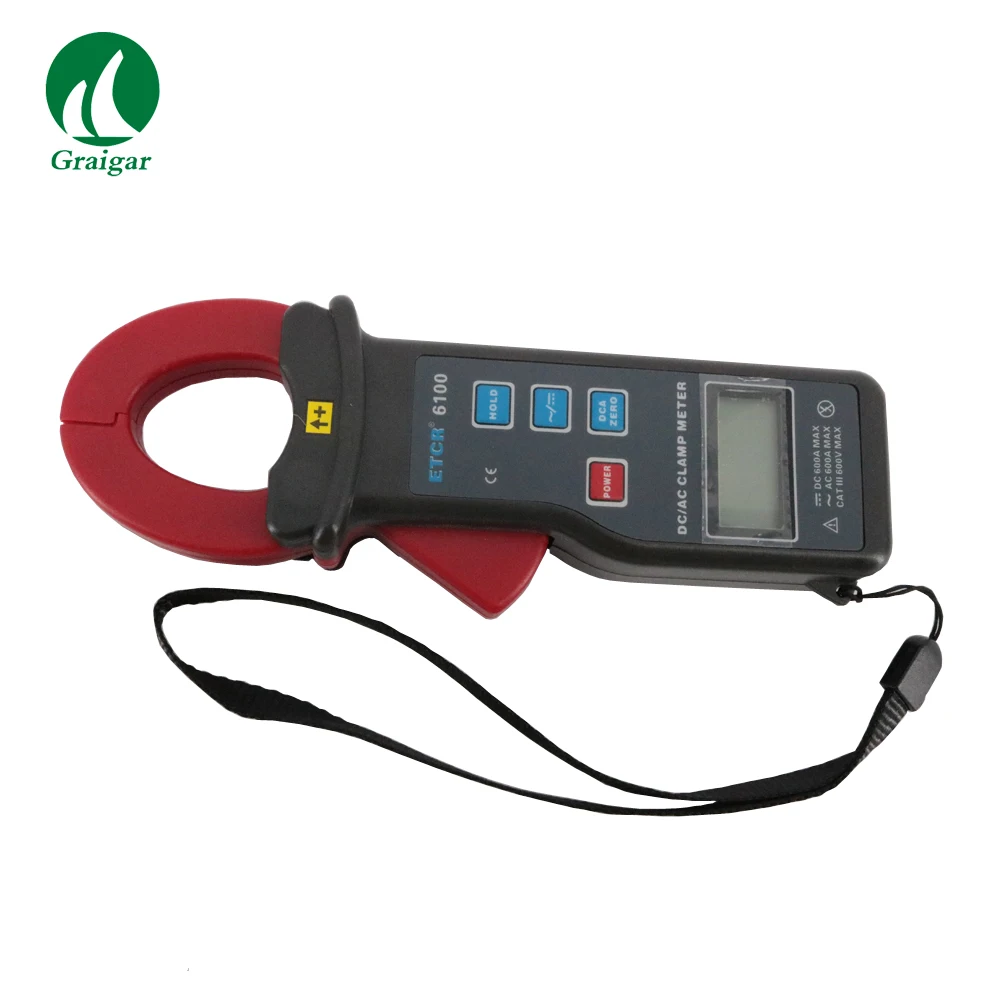

AC/DC Clamp Meter ETCR6100 AC leakage measurement current | Инструменты

Function

AC leakage measurement, AC current measurement, On-line AC current measurement

Power Supply

6F22 9V  Zi-Mn dry battery 6F22 9V

Process Type

Clamp CT, Integral Approach

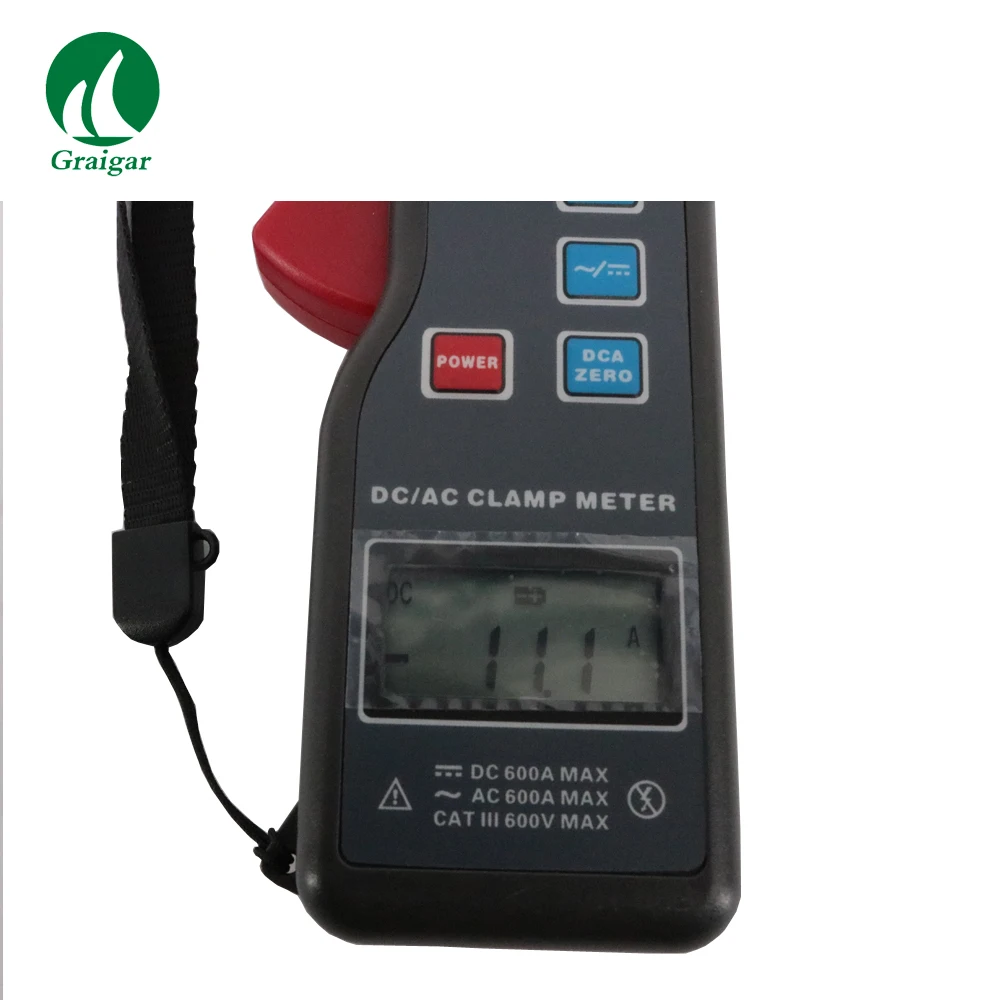

Display Type

4 Digits LCD

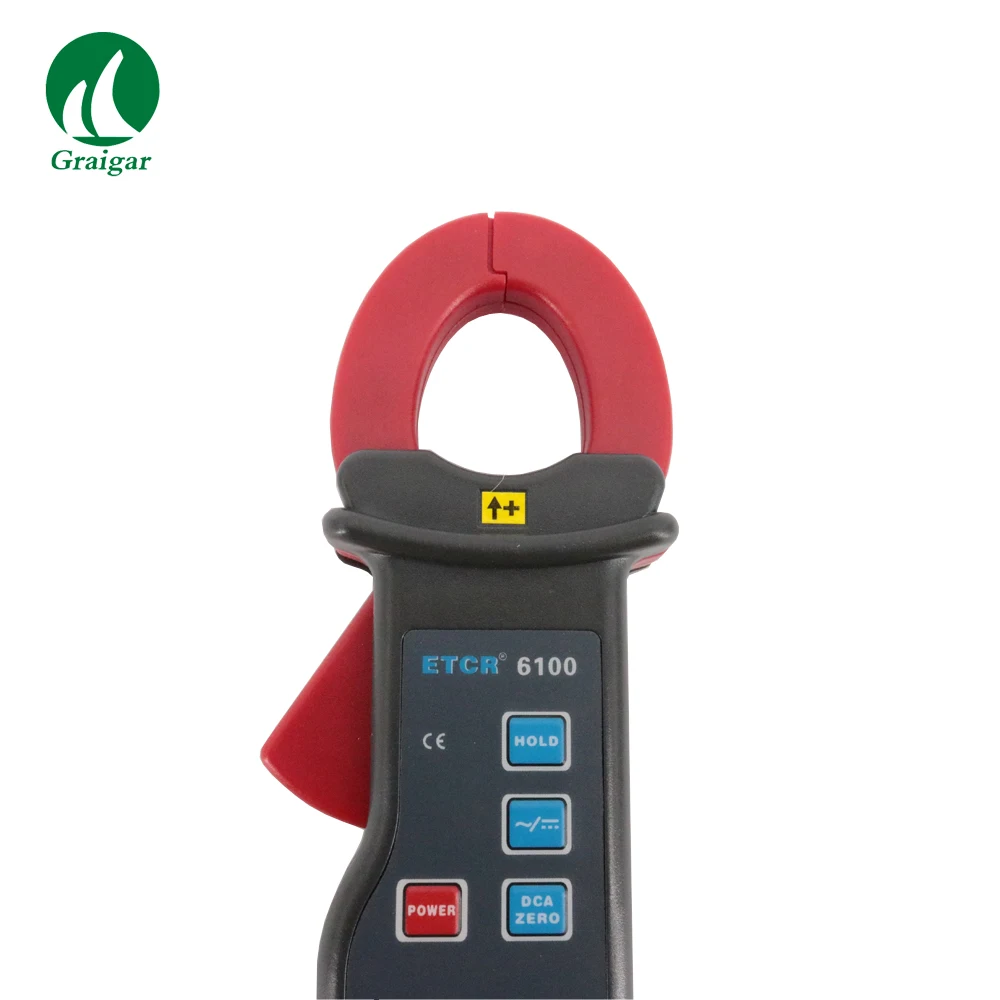

Clamp Size

25mm×30mm

Meter Dimension

LWH: 175mm×70mm×38mm

LCD Dimension

35mm×21.5mm; Display Dimension: 32mm×15mm

Sampling Rate

2 Times/Second

Frequency

50Hz, 60Hz Automatic identification

Shifting

Automatic Shift

Range

0.01mA~60.00A

Resolution

1uA

Accuracy

±1.5%±5dgt (23°C±3°C, below 70%RH)

Line voltage

Below AC 600V

RS232 Interface

With RS232 interface, Data stored in the memory can be uploaded to the computer, with software monitoring

Data Memory

99 sets, “FULL” Blinking when memory is full

Peak Maintaining

Peak value capture hold function, press HOLD without Release to display peak value

Reading Hold

Reading hold function: “DH” symbol display

Overflow display

Range overflow function: “OL” symbol display

Automatic Shutdown

5 minutes after the boot

Battery Detection

When battery voltage is lower than 7.2V, low battery symbol      will shown to remind battery replacement.

Meter Weight

120g (With battery)

Rated Power

5mW

Working Temperature and Humidity

0°C~40°C; below 80%rh

Storage Temperature and Humidity

-10°C~60°C; below 70%rh

Insulation Strength

AC2kV/rms (between core and box)

Safety Provisions

IEC1010-1, IEC1010-2-032, Pollution level 2, CAT III(600V)

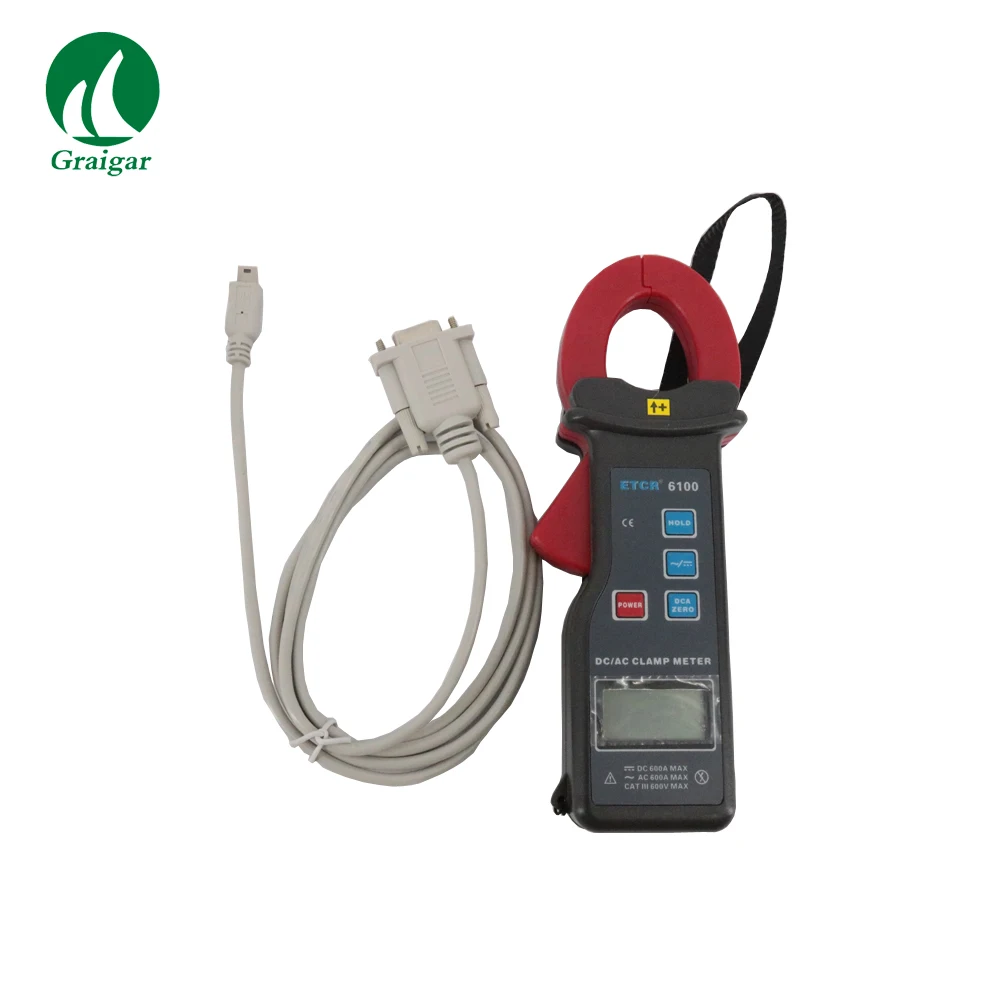

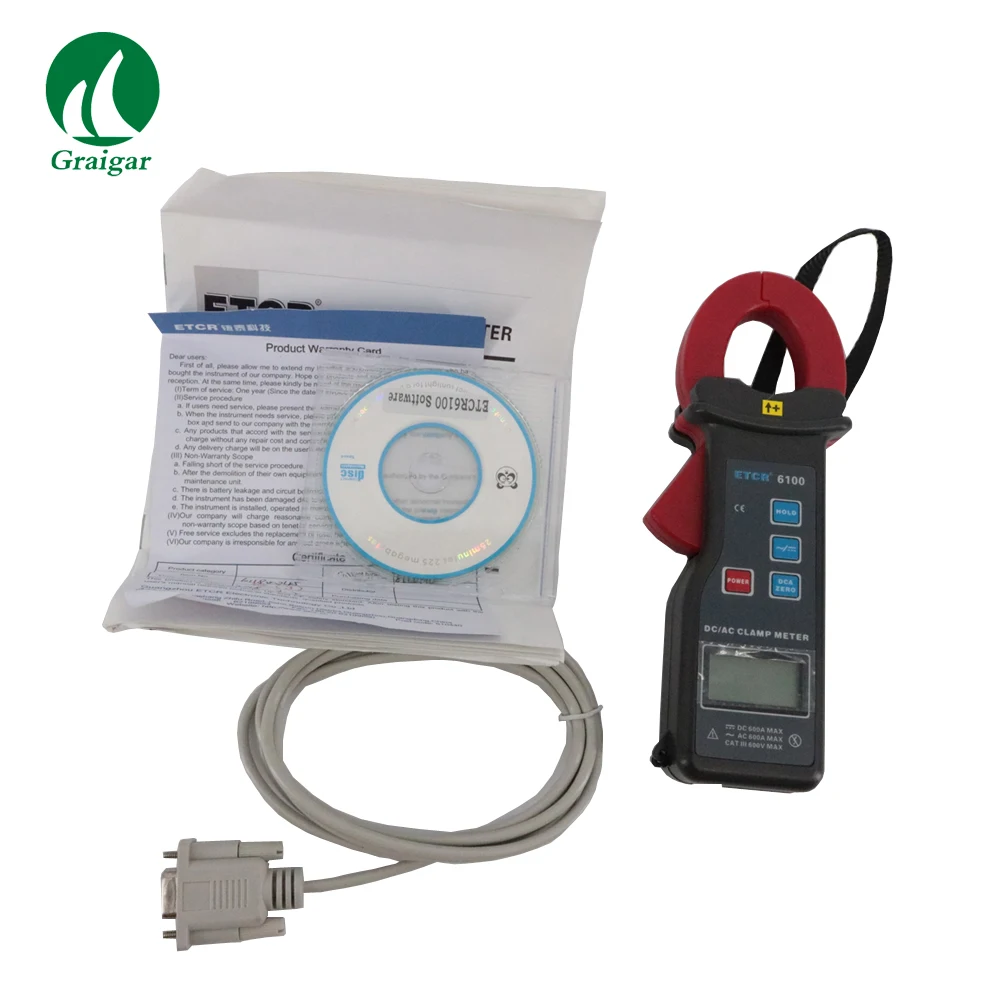

Accessories

Meter: 1 piece, RS232 Com-cable:1 piece; Software Disk: 1 piece; Battery (6F22 9V): 1 piece
