HAVOC firmware PORTAPACK with 0.5ppm TCXO clock metal case FOR HACKRF ONE SDR Software Defined radio Offline GPS simulator |

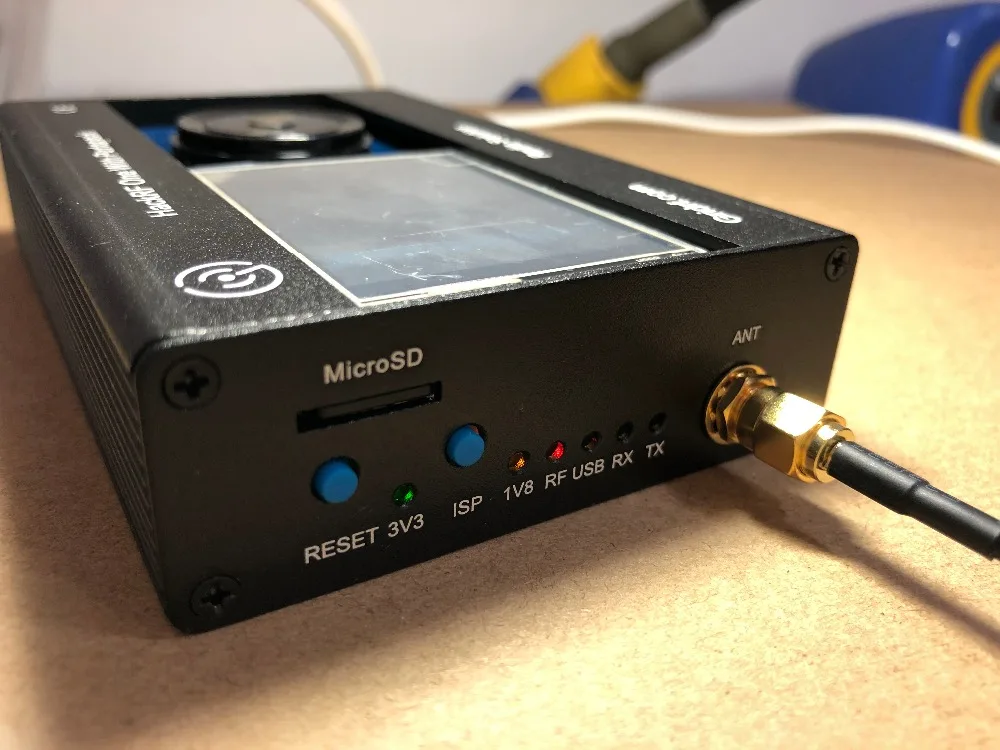

2019 new PORTAPACK with 0.5ppm TCXO clock  FOR HACKRF ONE  SDR  Software Defined Radio with metal case working  from -40  ~ 100

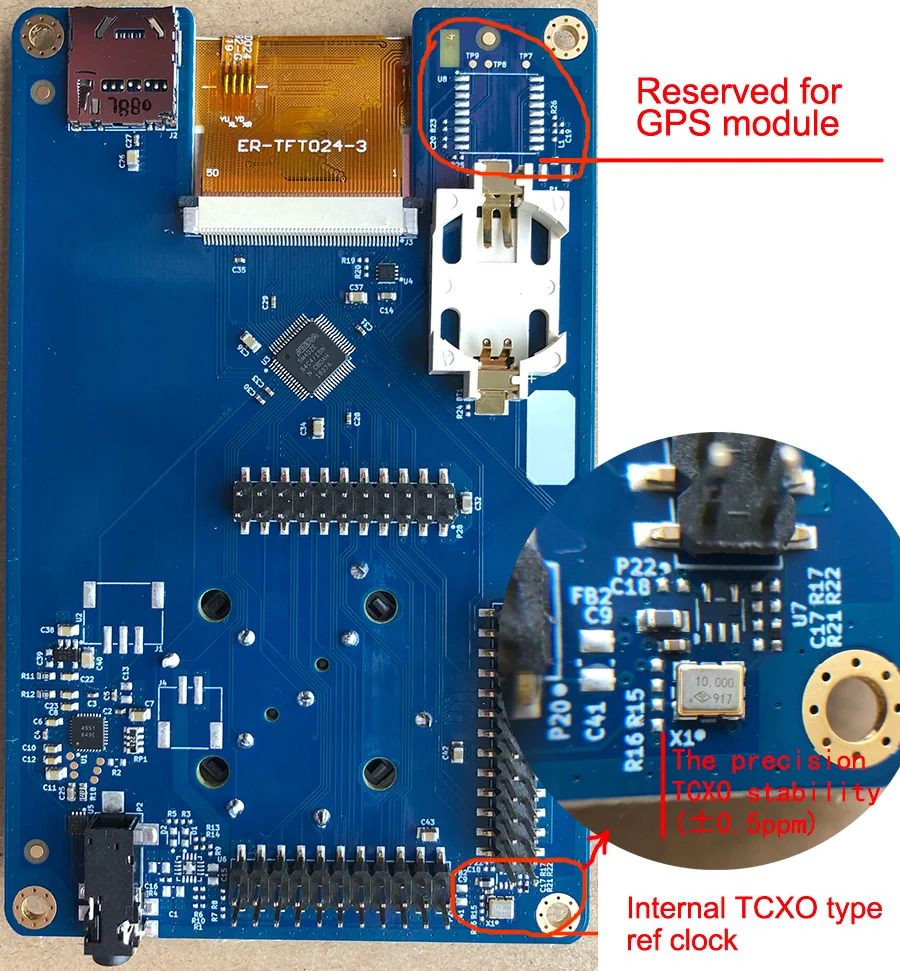

Integrated   0.5ppm TCXO

Exclusively write GPS simulator firmware for testing TCXO clocks

we customize portapack-havoc source,put gpssim baseband signal file in micro sd, through portapack send to air the result is very satisfied!

usage:

./gps-sdr-sim -e brdc3540.14n -s 2500000 -b 8 -o gpssim.c8

create text file named "gpssim.txt" context:

sample_rate=2500000

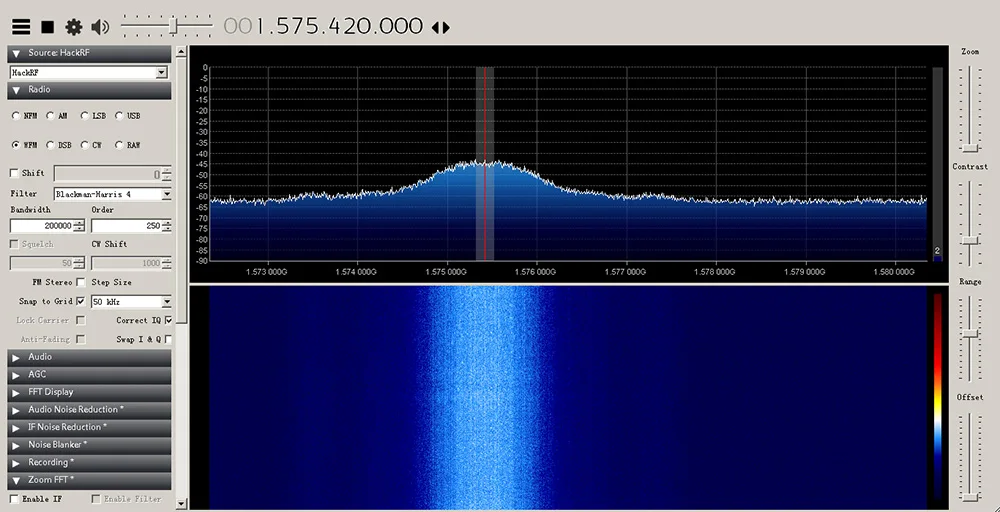

center_frequency=1575420000

and copy this two files into sd card at some dir:

./gpssim.c8

./gpssim.txt

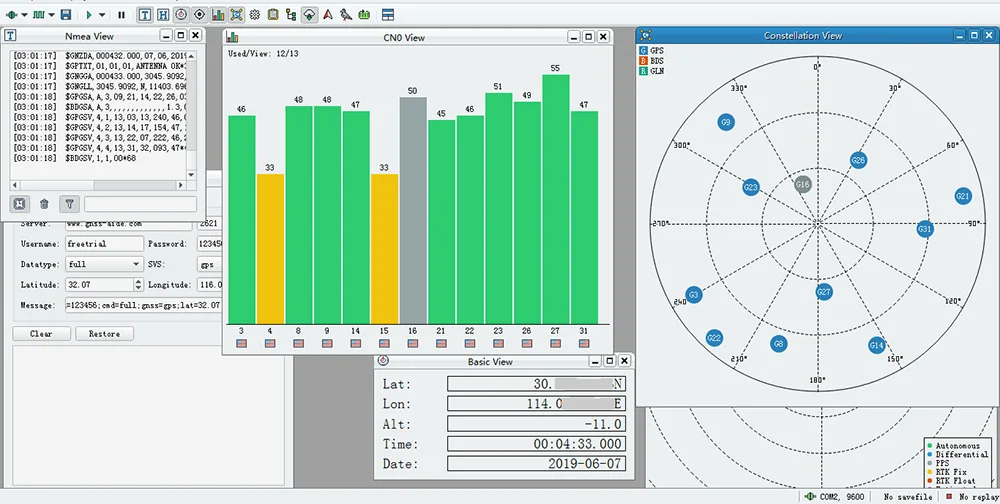

our GPS MODULE got fake gps signal.

NOW it is in stock now , we can ship it in  48 hours

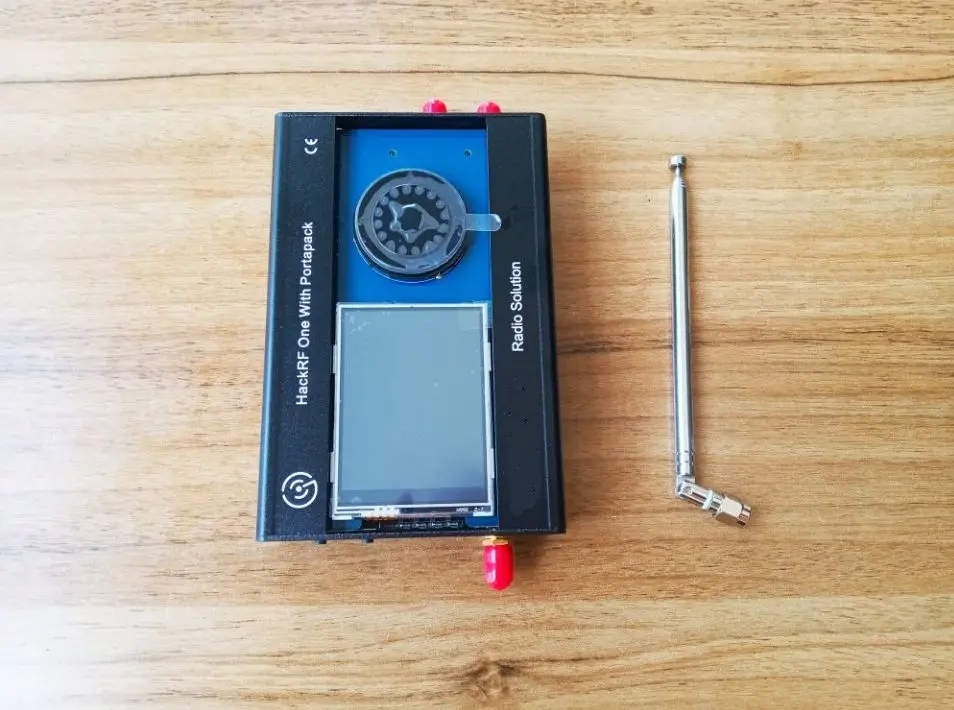

Add a PortaPack H1 to your HackRF One software-defined radio, and leave your laptop behind! The PortaPack H1 attaches to your HackRF and adds a touchscreen LCD, navigation controls, headphone jack, 0.5ppm clock reference, real-time clock, micro SD card slot, and custom aluminum case.

Just add a USB battery, and you're ready to explore radio spectrum wherever you are. The PortaPack firmware runs on the fast ARM processors in your HackRF. No computer is necessary (except for reprogramming firmware)

All of these CPLD authors use commercial grades from 0°C to 85°C, but we use industrial grades from -40°C to 100°C.

sir the hackrf one is not inlcuded

 package including : portapack for hackrf one  with a case

you have to flash the firmware from this link first before you use

//github.com/sharebrained/portapack-hackrf/releases

more information you can go to this web

//github.com/sharebrained/portapack-hackrf

//www.youtube.com/results?search_query=PORTAPACK

do it like this 1,Confirm your hackrf flash firmware is the version of 2017.02.1.

2. Confirm that the hackrf CPLD is version 2017.02.1  //github.com/mossmann/hackrf/releases/tag/v2017.02.1  //github.com/mossmann/hackrf/wiki/Updating-Firmware

Step 2: Updating the CPLD

3. flash portapack official latest firmware  //github.com/sharebrained/portapack-hackrf/releases 4. Install portapack in the off state without touching any circuit other than the ground.

5. Power on

Progress of work:

1. has completed the program validation prototype.

2. the latest 2018.10 month documents are based on improvements.

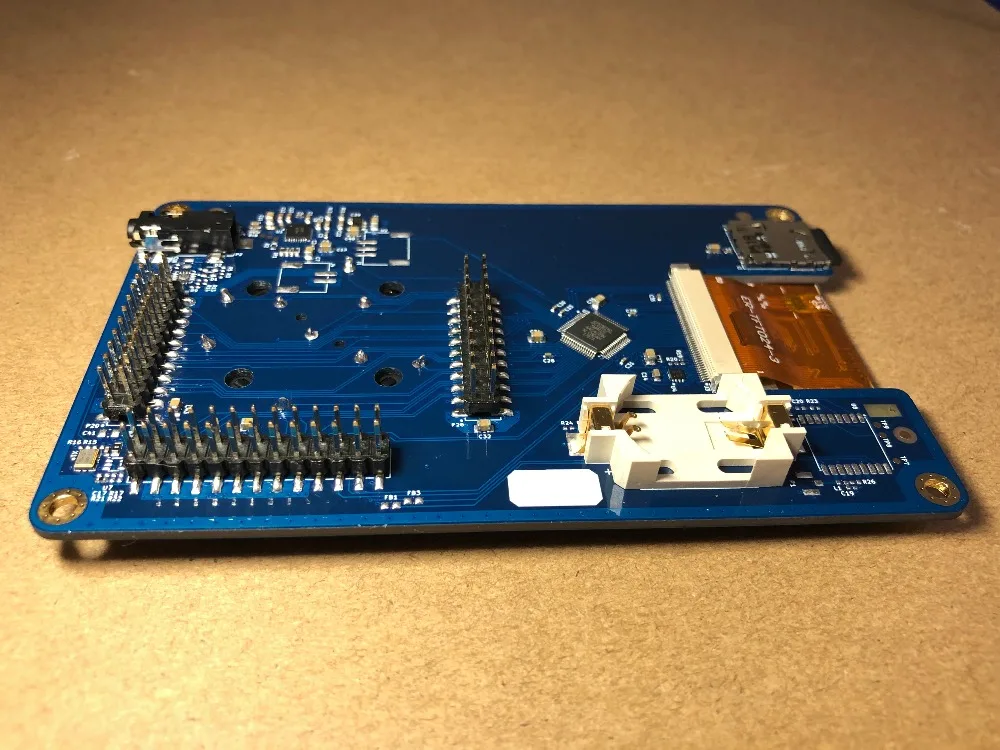

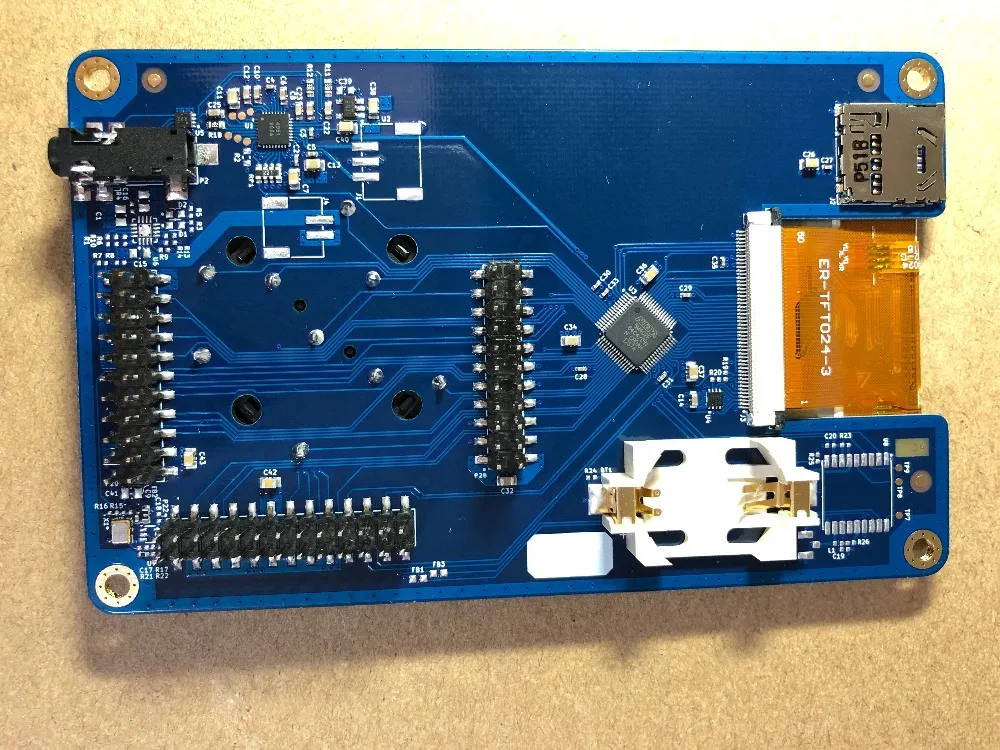

Hardware configuration:

1.TFT240*320 screen (model: ER-TFT024-3)

2. navigation switch (TSWB3NCB222)

3. audio output

4. microphone input

6.DC2.1 interface

7.4 layer gold plate

8.ROSH process (exported to Europe and America)

The latest version is updated with the latest documents in 2018.10 month

Add a PortaPack  to your HackRF One software-defined radio, and leave your laptop behind! The PortaPack  attaches to your HackRF and adds a touchscreen LCD, navigation controls, headphone jack, real-time clock, micro SD card slot,

Just add a USB battery, and you're ready to explore radio spectrum wherever you are. The PortaPack firmware runs on the fast ARM processors in your HackRF. No computer is necessary (except for reprogramming firmware).

The PortaPack  is open-source -- hardware and firmware. The source files are published on GitHub. Contributions, forks, and bug reports are welcome!

SPECIFICATIONS

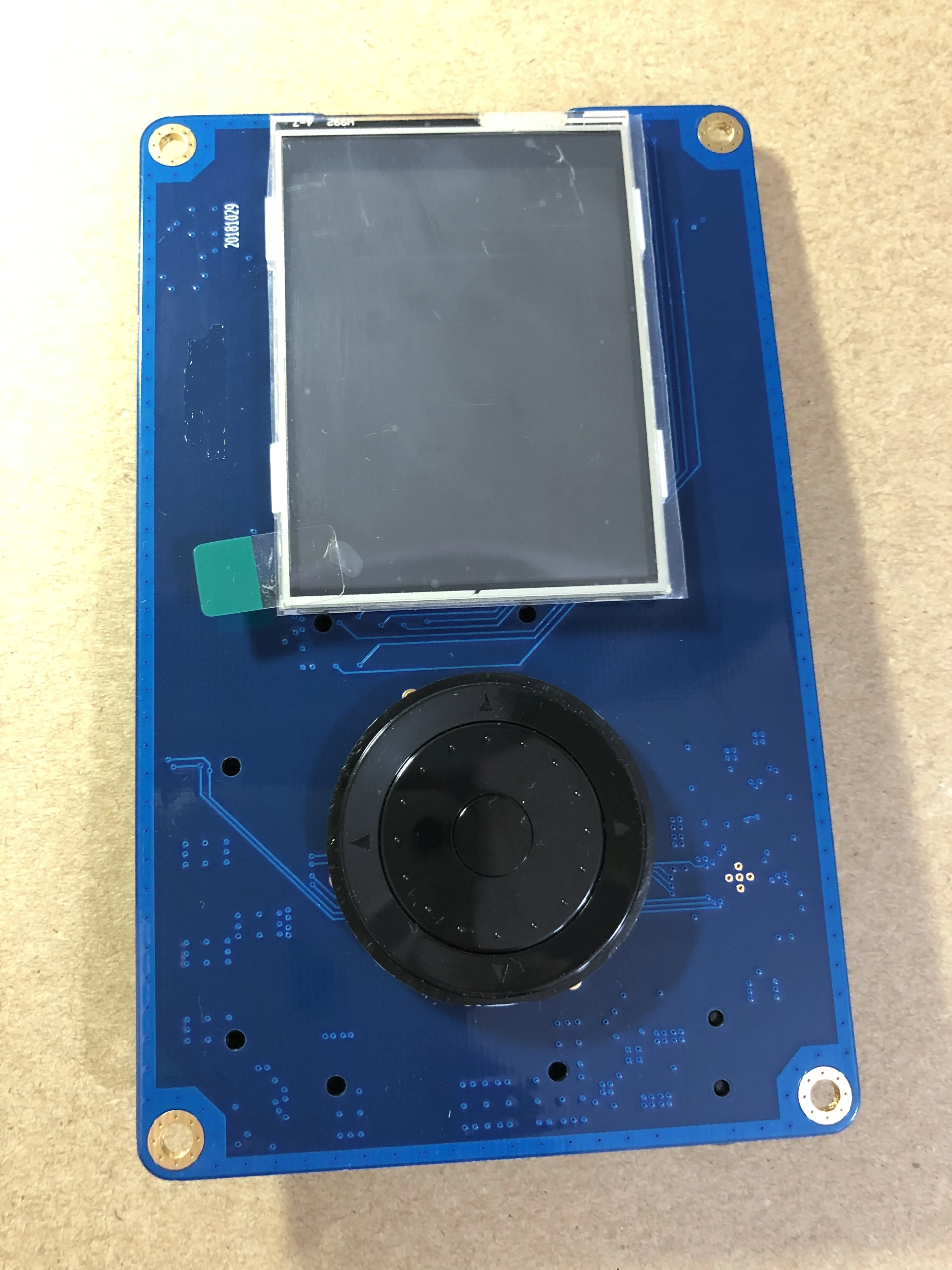

• 2.4 inch, 240 x 320 RGB LCD with resistive touch panel.
• Four-way arrow keys, rotary jog wheel, and select button.
• Headphone/microphone jack, compatible with recent Samsung and Apple mobile headsets (possibly others).
• Coin battery for preserving settings and date/time.
• Micro SD card slot for data and code storage

Some features demonstrated in 2016 February 22 firmware video:

• SSB, AM, narrowband FM, wideband FM audio reception, with spectrum waterfall. [Details]
• Wideband (18MHz) spectrum analysis and waterfall.
• Monitoring of boat (AIS), automobile (TPMS), and utility meter transponders (ITRON ERT). [Details]
• HackRF mode runs HackRF firmware for use with host computer SDR software.
• PPM calibration for more accurate tuning.
• Sleep mode saves power by turning off just the display.

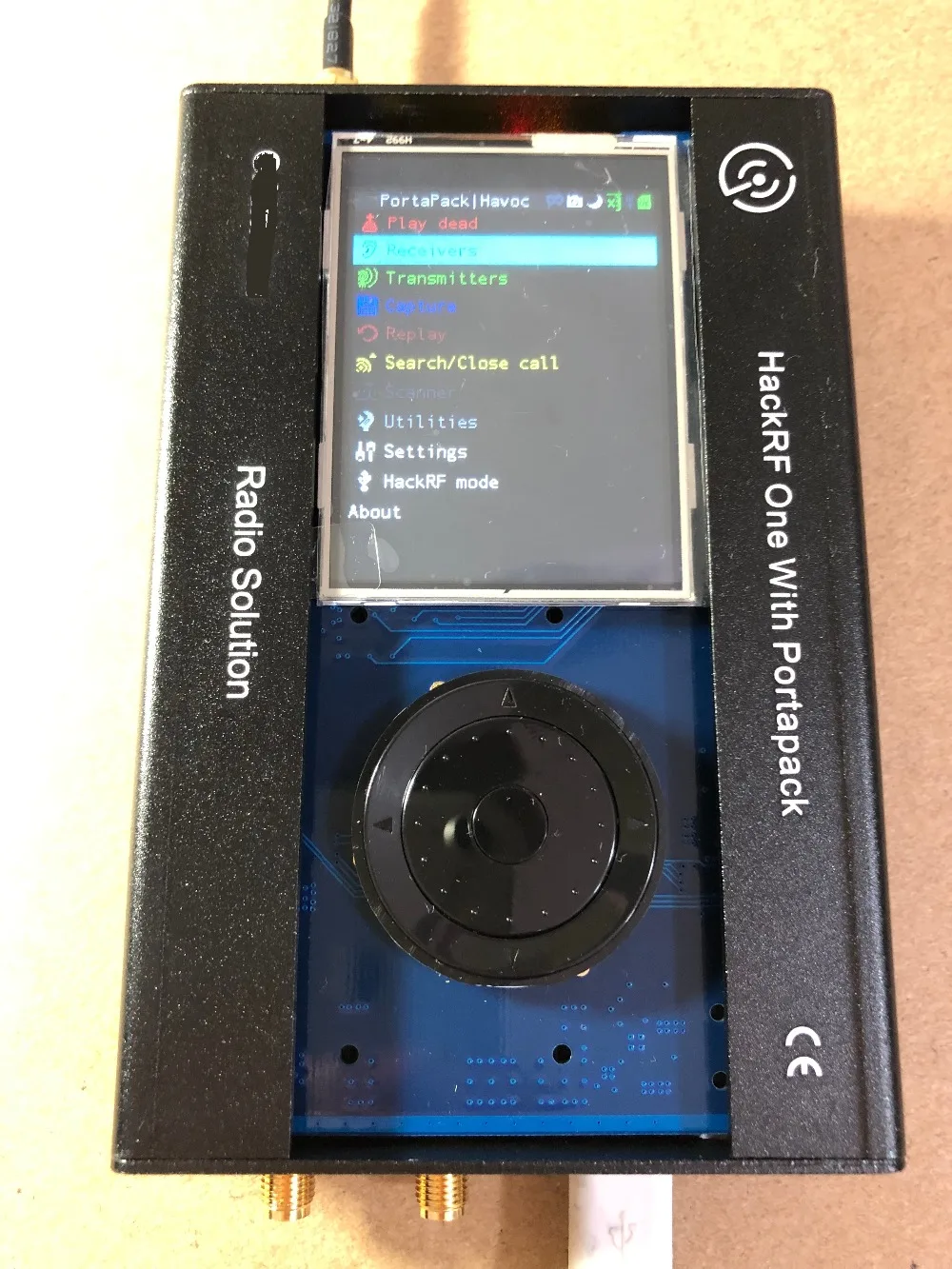

You may also find the Furrtek HAVOC firmware very interesting!

Some assembly is required. The assembly steps are documented in the support wiki and videos.

PortaPack does not include a HackRF One. You can buy a HackRF One from my store

Your HackRF will continue to function with computer-based SDR software, when you put the PortaPack into "HackRF Mode".

PortaPack is compatible only with the HackRF One. It is not compatible with the earlier HackRF Jawbreaker design. If you have an RF shield installed on your HackRF, the PortaPack should fit just fine. Compatibility with the HackRF Blue is experimental. One Blue owner has reported good results with minor mechanical interference between the PortaPack audio capacitors and the baseband header. If your HackRF Blue does not have a baseband header installed, you should have no mechanical problems.

PortaPack  requires an external battery. Any USB-connected battery should work, though they vary widely in quality and poorly-designed batteries may inject voltage regulator noise into the radio.

The PortaPack and HackRF One will not replace your handheld ham radio receiver. Receive sensitivity varies from band to band, but will not perform as well as a true ham radio receiver.

//github.com/sharebrained/portapack-hackrf
