Automatic Swing Gate Closer Garage Gate Opener

One pair electric fence gate opener includes: Two swing gate openers, Two remote control transmitters, One control box, Mounting accessories.The details plese refer to the following picture.

Automatic Swing Gate Closer Garage Gate Opener Parameters

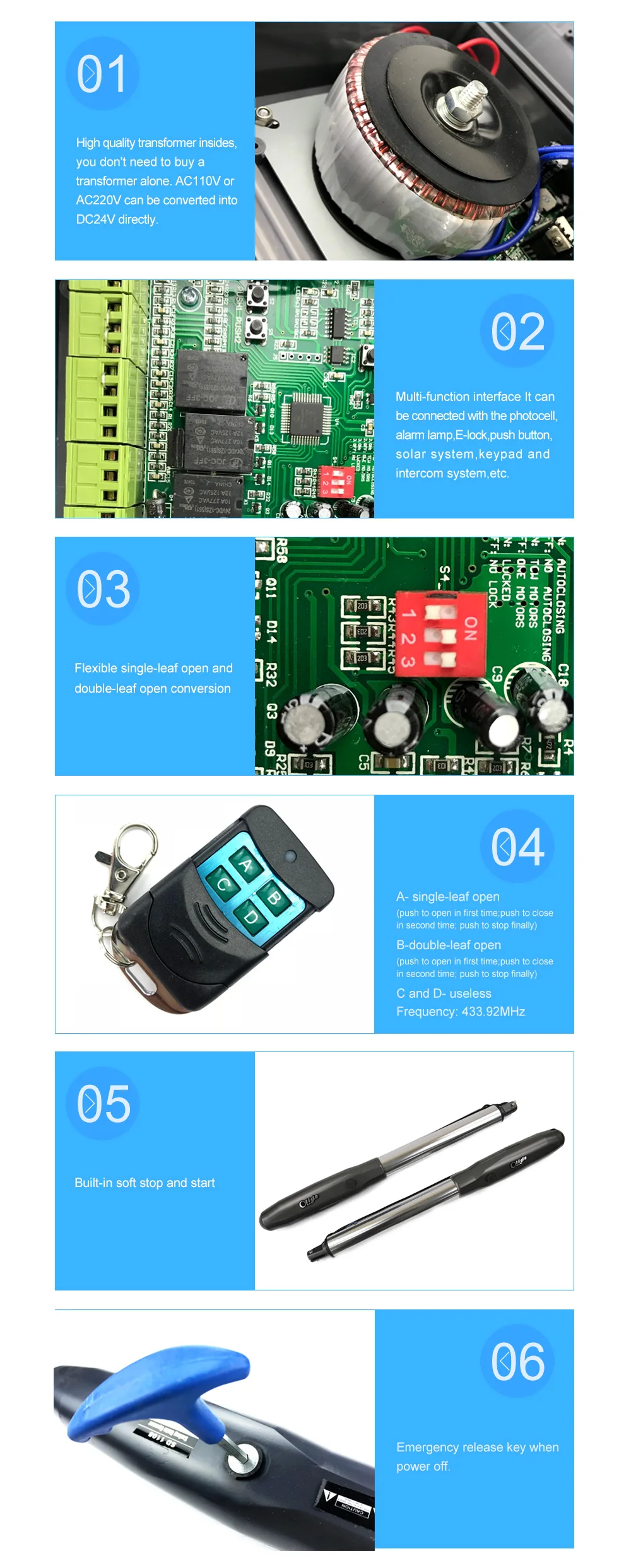

Automatic Swing Gate Closer Garage Gate Opener Feature And Advantages

1.Strong and beautiful appearance make it well equiped with the iron gate, wood gate,etc.
2.Soft start and stop, avoid damaging to gate, lower noise and longer service life.
3.Emergency release key in case of power failure.
4.Adjustable opening/closing interval between master and slave gate.
5.Stop/Reverse in case of obstruction during gate opening/closing.
6.Opening towards outside or inside is available when firstly install, only the direction is fixed,it can not be changed.

7.The rolling code remote control with no repeating code and anti-theif, ensure a safe house.

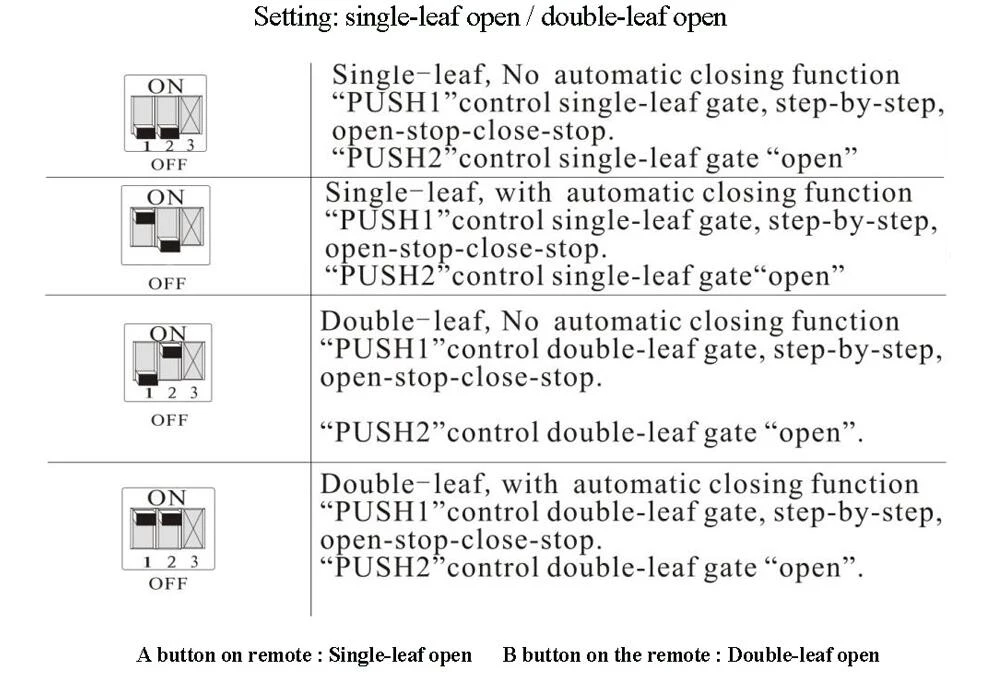

8.Control panel is adjustable to control 1 leaf or 2 leaves.

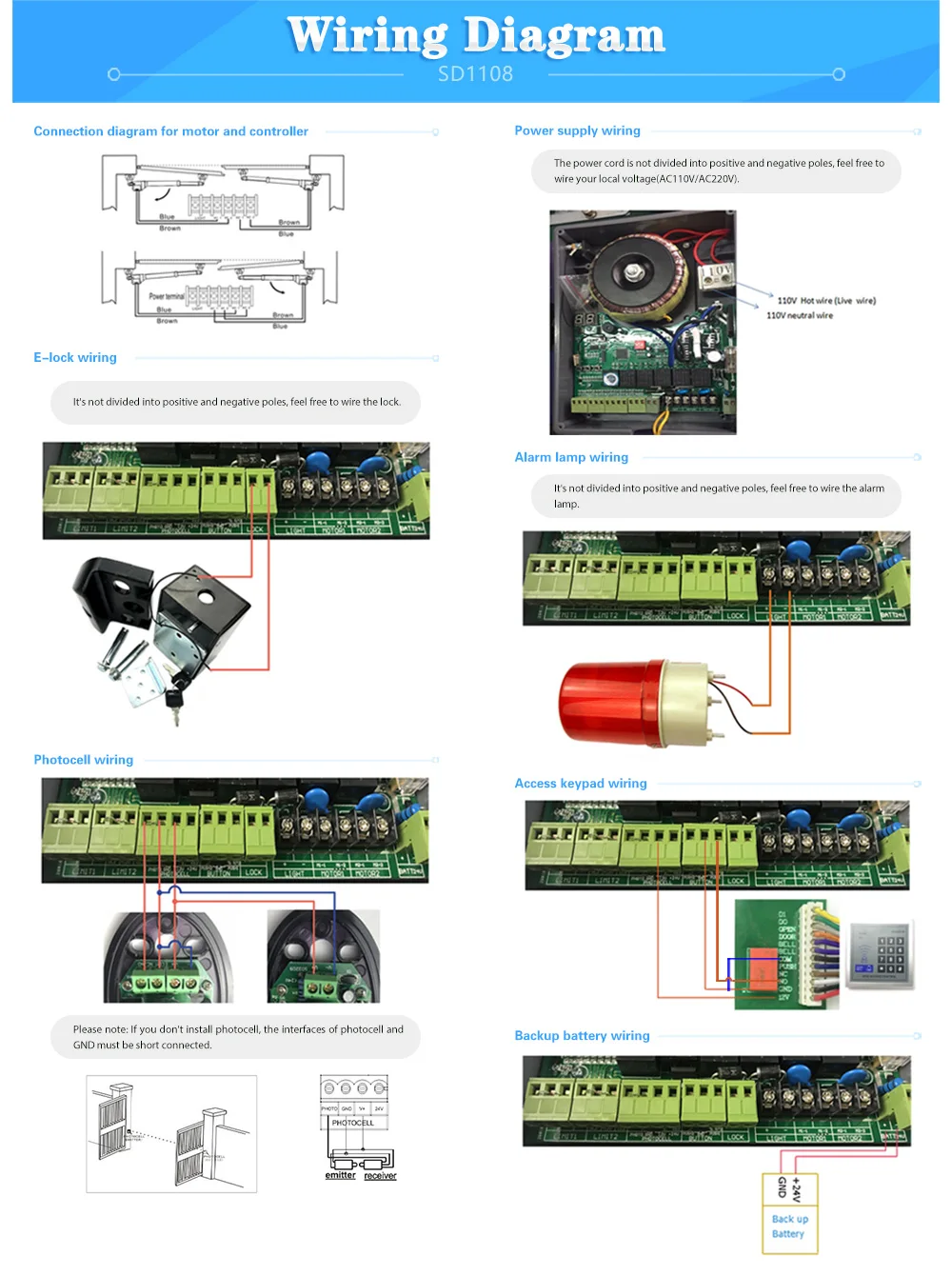

9.Control panel have the terminals for photocell, caution light,IC card reader(access keypad) ,24 V back up battery,push button etc.

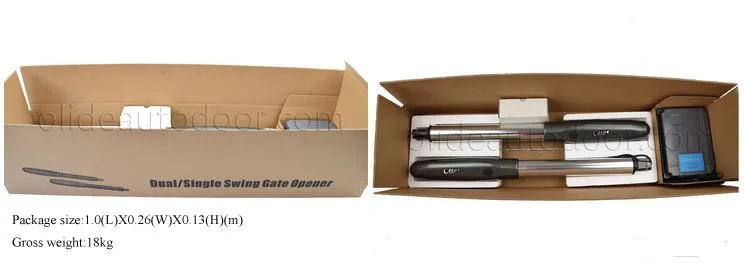

Automatic Swing Gate Closer Garage Gate Opener Packaging Details

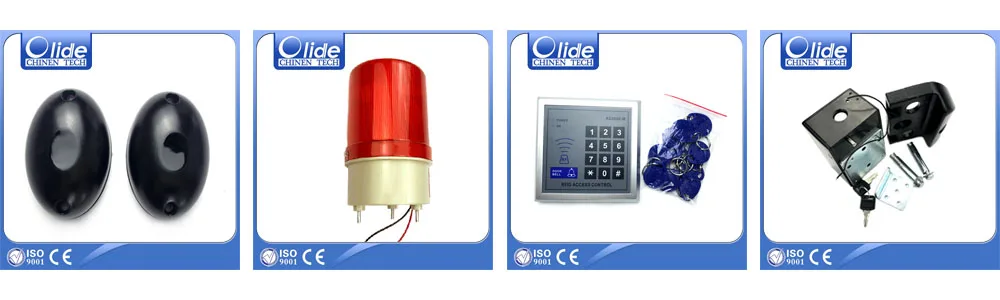

Optional Accessories

Function Introduction Of Optional Accessory

A. Photo cell
It can detect the tiny obstruction during gate closing or openning and make the gate open automatically. Avoiding people and gate opener from hurting. The valid detecting range of the photo cell is 10 meters.

B.Caution light
When the person force entering the house, the caution light will light and sound.

C. Access keypad
Connecting with the access keypad, you can set the code or using the card to control the gate access.

D. Electric latch
24V DC latch for additional safety of the gate. Release key to unlock the latch when power failure.

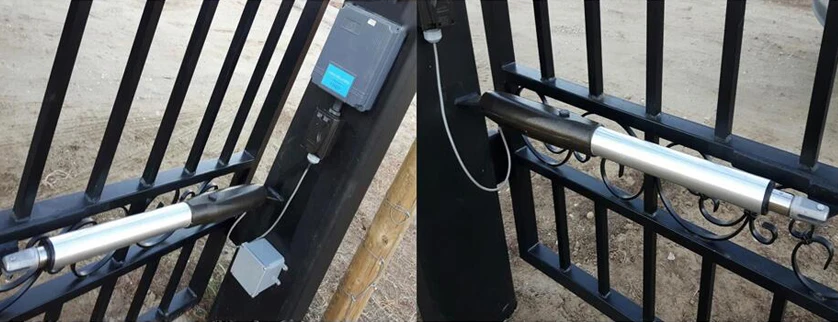

Project From Customer

User Guide

How to set transmitter code?

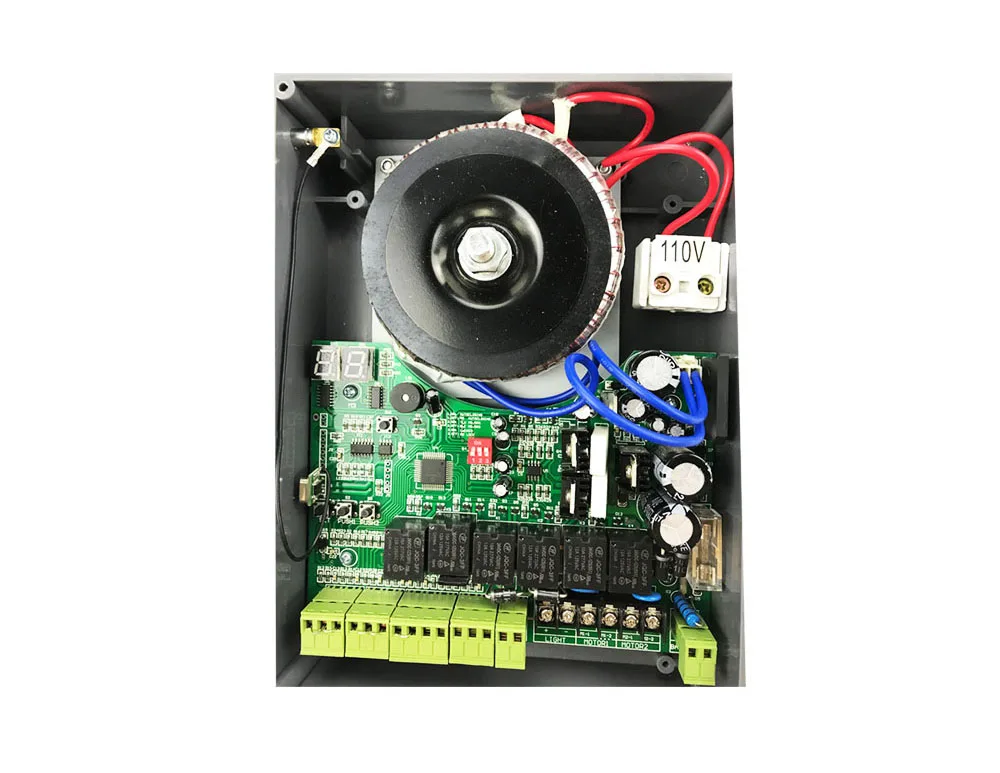

Sw1 and LED1 on the controller, A and B on the remote
SW1: leaening code
LED1: leaening code lamp
A: single-leaf open
B: double-leaf open

Learning process for adding the remote:

Please press Sw1(learning code) on the controller,then press LED1(learning code lamp) will light on, then release the Sw1(learning code),then press any key on the remote.
If the LED1(learning code lamp) turn on again, which means you add the remote successfully. If no, which means you don't add the remote successfully.

Erasing the transmitter codes:

Press Sw1 (learning code) about 10 seconds, during this 10 seconds. LED1(learning code) light on,then LED1(learning code lamp) will off.
Then release the Sw1(learning code, then LED1(learning code lamp) will off, which means, you erase the remote.
