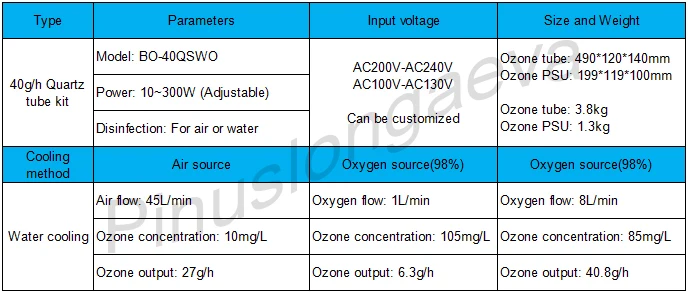

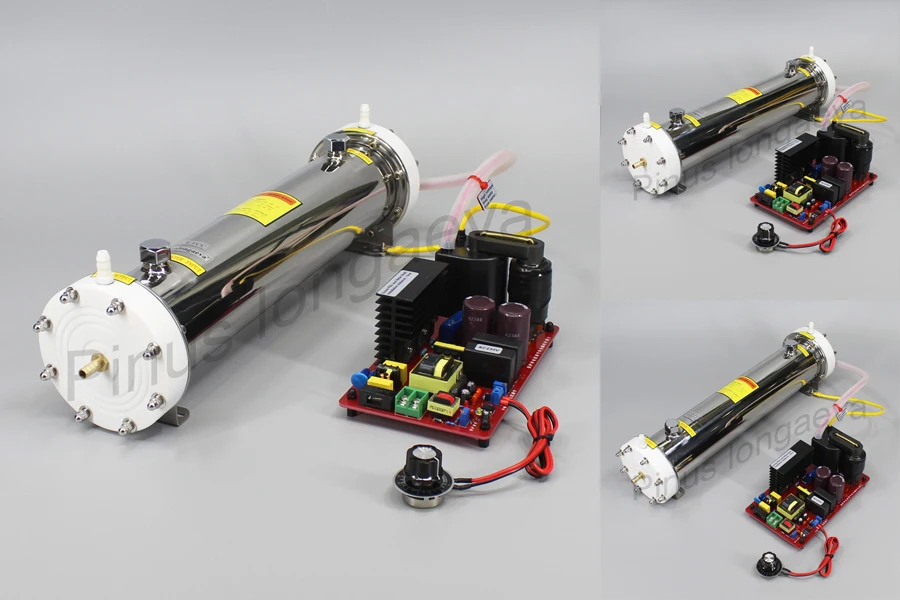

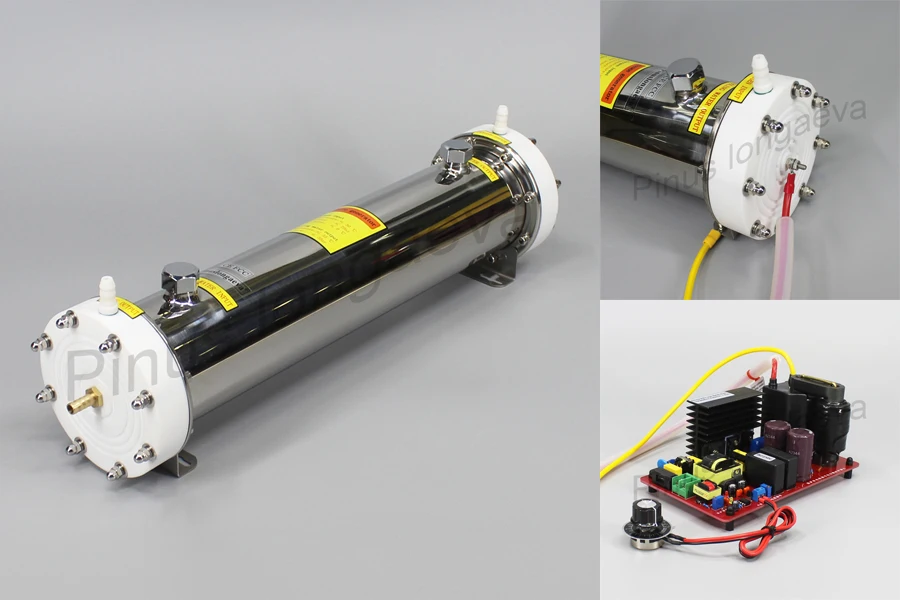

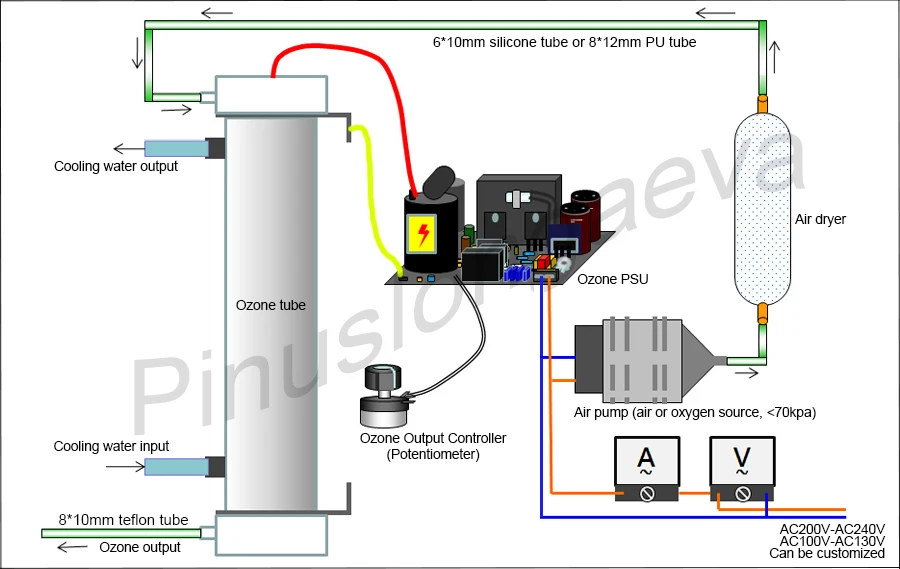

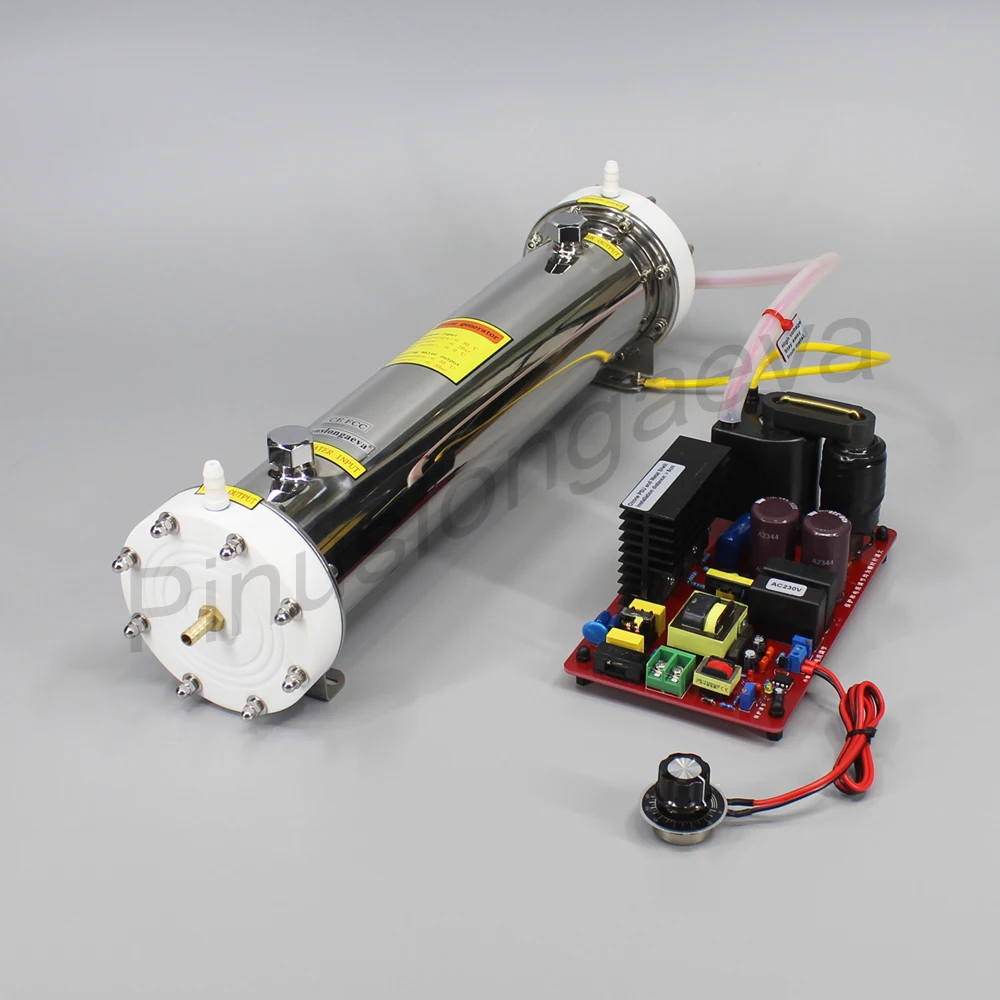

    Product picture:   There is no need to distinguish between inlet and outlet.   Inlet: We recommend that you use 6*10mm silicone tube or 8*12mm PU tube. Outlet: We recommend that you use 8*10mm Teflon tube. If you need to change the connector, please contact us.     Product parameters:     Product introduction: Product name: Quartz tube type ozone generator Kit Cooling way: Water cooling + Air cooling Gas source: Air source, oxygen source Gas pressure: <0.3Mpa (300kpa) Environment: <40 degrees Celsius, <85%RH Temperature rise: <8 degrees Celsius Heat dissipation effect: Increase 1.6 times Ozone concentration: Increase 10%-15% Inner electrode: 316L stainless steel tube External electrode: 316L stainless steel tube Shell: 304 stainless steel tube Product application: Air purification and water sterilization Service life / Warranty: More than 20000 hours / 2 years Customized: Can be customized   Low temperature rise, high efficiency, moisture-proof, low-voltage protection, over-voltage protection, over-current protection, over-heat protection, open-circuit protection, short-circuit protection, automatically stabilize the output power.     Installation requirements: Please connect the ground wire to the ozone tube shell. You can use long screws to install the ozone PSU (ozone power supply, circuit board) away from the ozone tube (metal shell or other electrical appliances) more than 6cm. (Front, back, left, right, up, down) When you get our product, you will get installation and operation instructions, which is simple.     Free upgrade: Internal electrode air cooling. External water cooling + internal air cooling, lower temperature rise and more efficient. (You can connect 20-100L/min air pump or nitrogen outlet of oxygen machine)
