When measuring, the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor (i.e., a strain gauge affixed to the middle, with a beam of white plastic cover arm) and the outside edges to form a shear force in the opposite direction, i.e., in the middle of strain beam bending necessary changes can occur under stress, strain beam side by another force can not have a barrier.
The sensor use the following three methods:
1.using a sensor with external resistors full bridge measurement range of a sensor range: 50kg. Higher requirements for external resistor
2.the use of only two full-bridge sensors measuring range is the range of the two sensors and: 50kgx2 = 100kg
3.the use of four full-bridge sensors measuring range is the range of four sensors and: 50kgx4 = 200kg

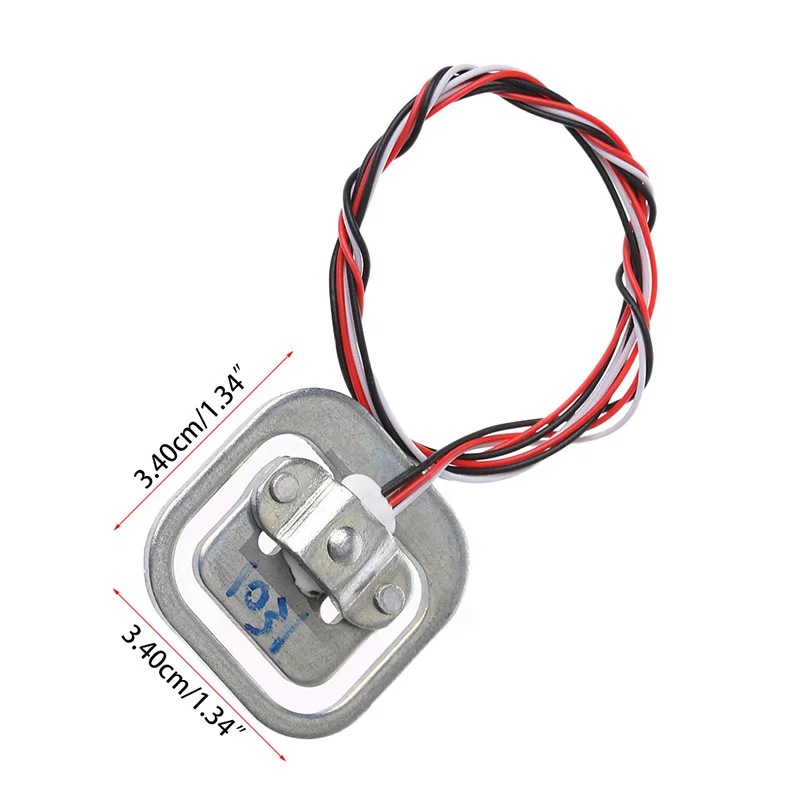

Size: 3.40*3.40cm/1.34"*1.34"

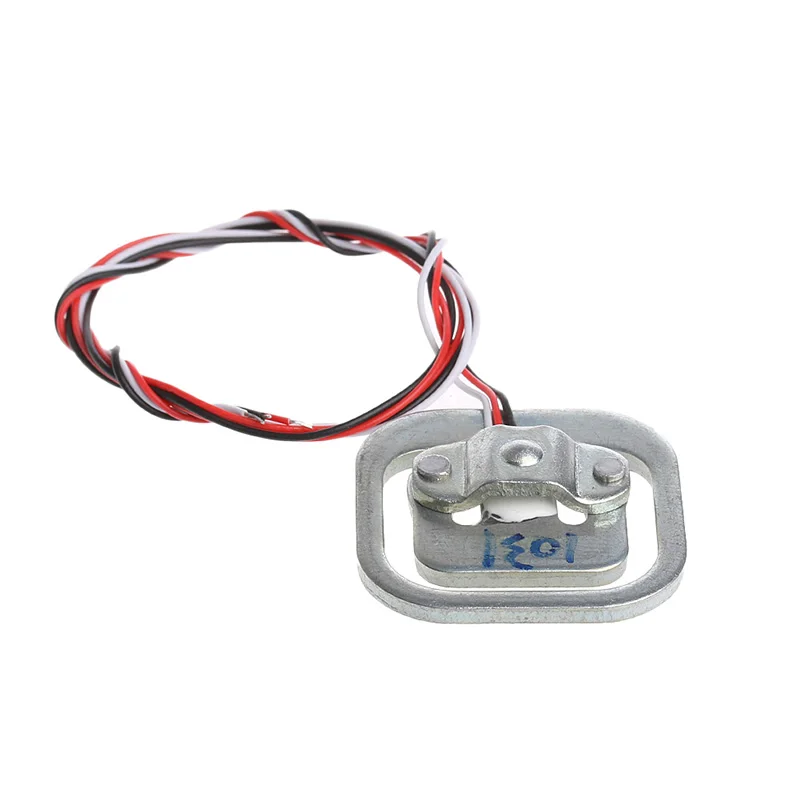

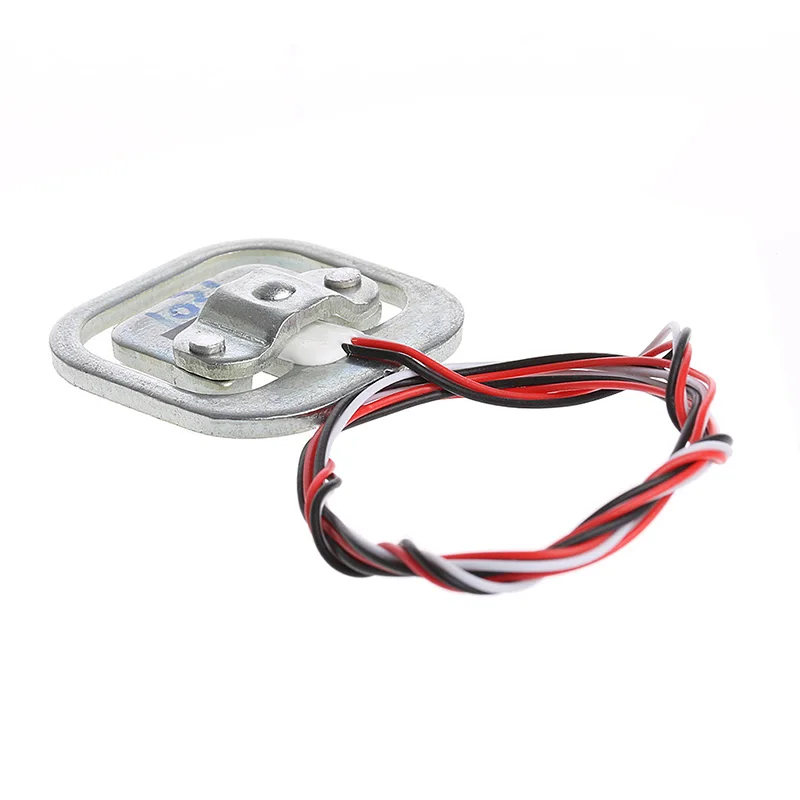

Model: Weighing Sensor Strain Of Half-bridge Sensor
Range: 50kg

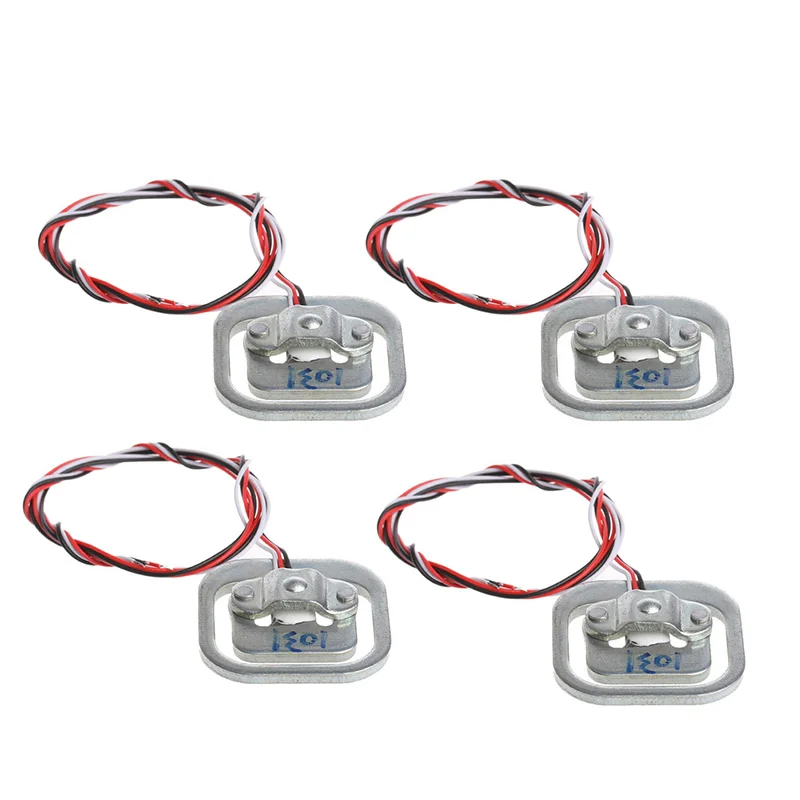

Quantity:1Set(4Pcs)
Note:
Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.
And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes(no retail package):

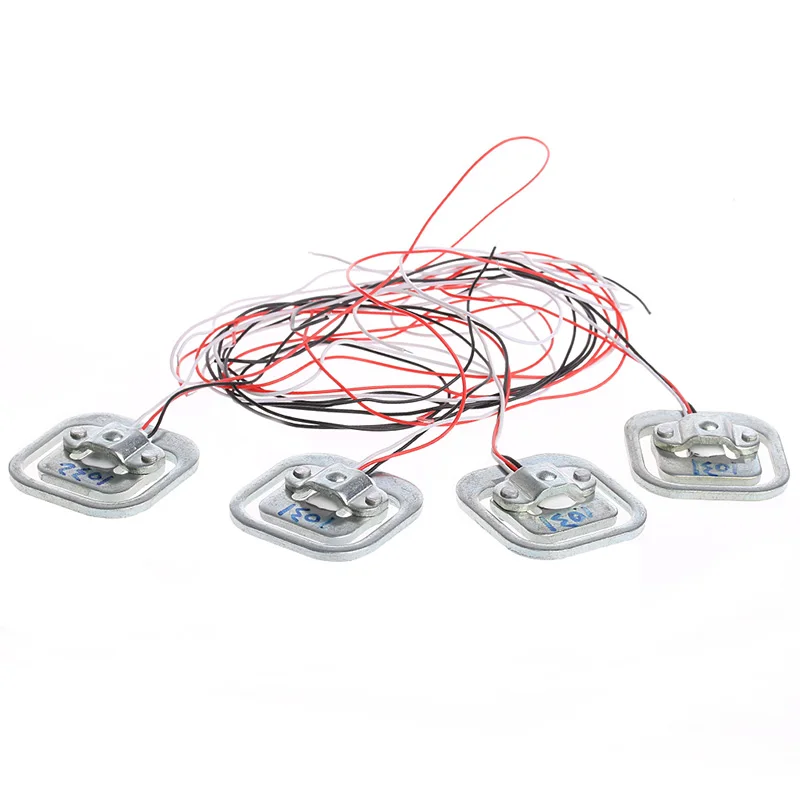

1Set(4Pcs) x Sensor
