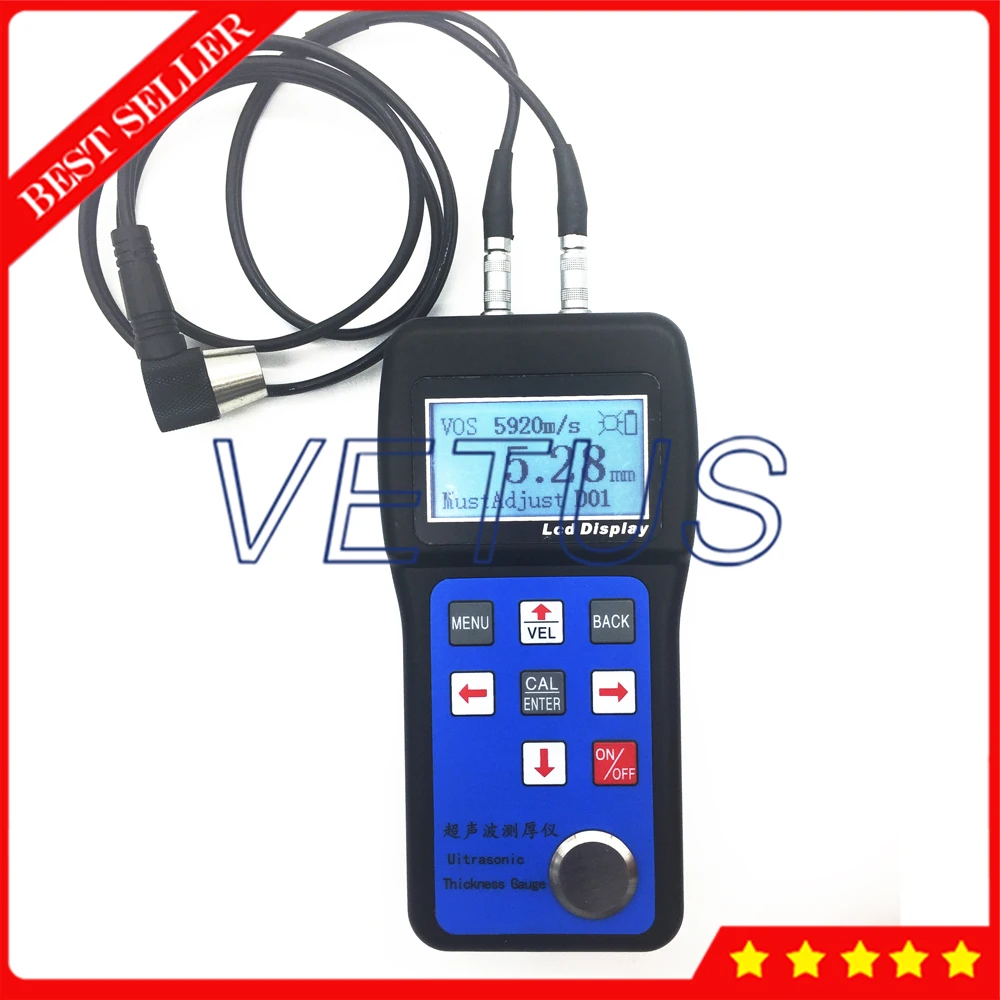

Ultrasonic Thickness Gauge Tester With 1000 to 9999 m/s Velocity Range VTS-160 For metals plastic ceramics composites Testing

Introduction:

Ultrasonic Thickness Gauge measuring with ultrasonic wave, is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected back from the other face.The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.

Main Functions:

• Capable of performing measurements on a wide range of material, including metals,plastic,ceramics,composites,epoxies,glass and other ultrasonic wave well-conductive materials.
• Can collocate variety different frequencies,wafer sizes of probes；
• Sound Velocity Calibration function as a known thickness;
• Coupling status indicator showing the coupling status;
• EL backlight, and convenience to use under dark environment；
• Have the battery indicator function, can real-time display the remaining power
• Auto sleep and auto power off function to conserve battery life；
• Smart, portable,high reliability, suitable for bad environment, resist to vibration, shock and electromagnetic interference.

Primary Theory:

The digital ultrasonic thickness gauge determines the thickness of a part or structure by accurately measuring the time required for a short ultrasonic pulse generated by a transducer to travel through the thickness of the material,reflect form the back or inside surface, and be returned to the transducer.The measured two-way transit time is divided by two to account for the down-and-back travel path,and then multiplied by the velocity of sound in the material.

The result is expressed in the well-known relationship:

H=v*t/2

Where: HmdashThickness of the test piece.

v----Sound Velocity in the material.

t----The measured round trip transit time.

Technical Specification:

Display：128*64 LCD with LED backlight;

Measuring Range：(0.75~600)mm（Steel）

Velocity Range：(1000~9999) m/s;

Resolution：0.01mm

Measuring accuracy：plusmn（0.5%H+0.04mm);H is thickness value;

Measurement cycle：Single point measurement 6 times/per；

Storage：40 values of saved data

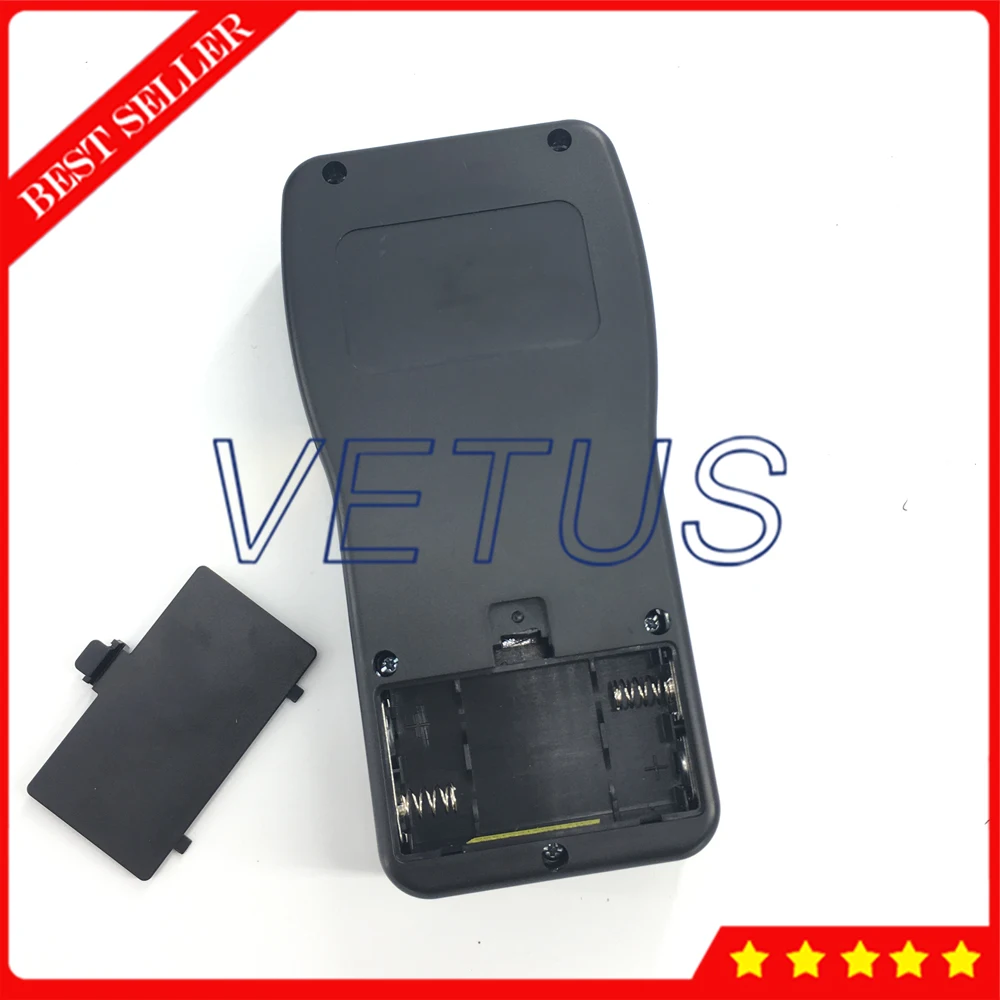

Power Source:2pcs 1.5V AA size(not included)

Working Time:more than 50 hours (LED backlight off).

Outline Dimensions:145mm*74mm*32 mm

Weight：245g

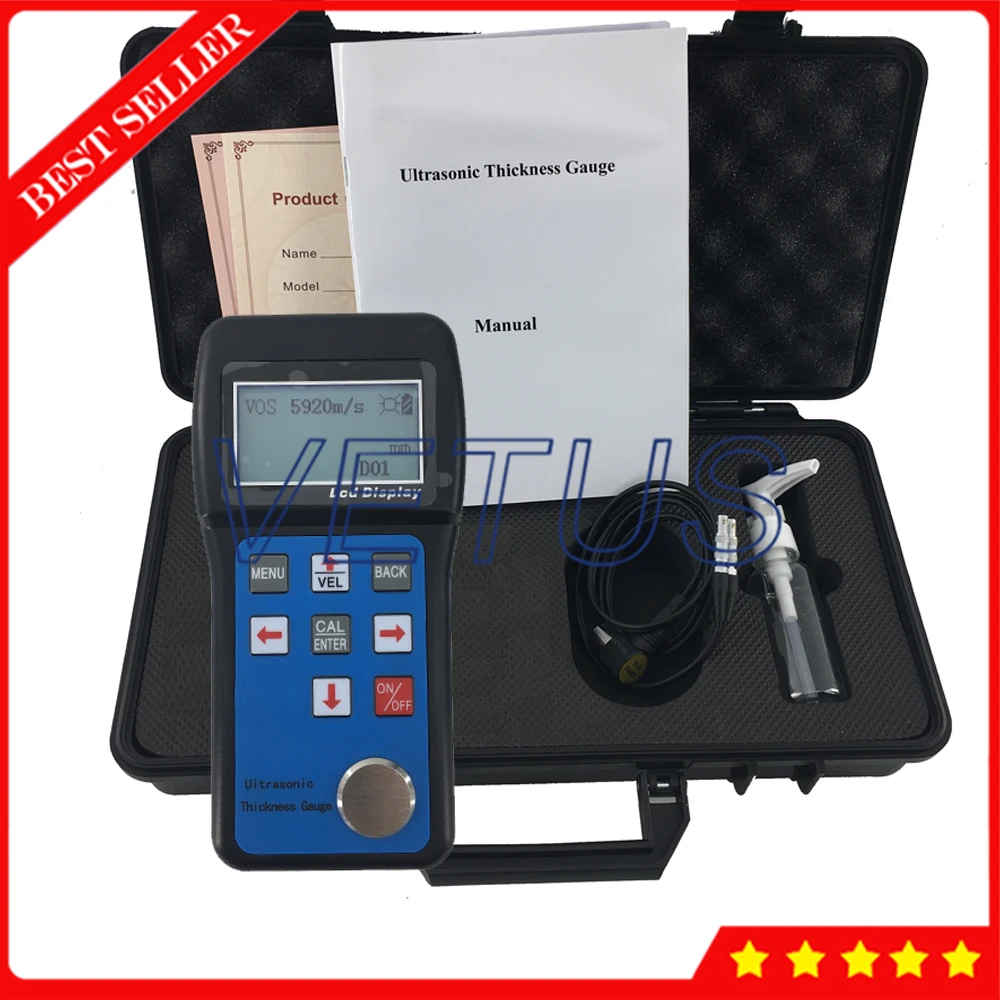

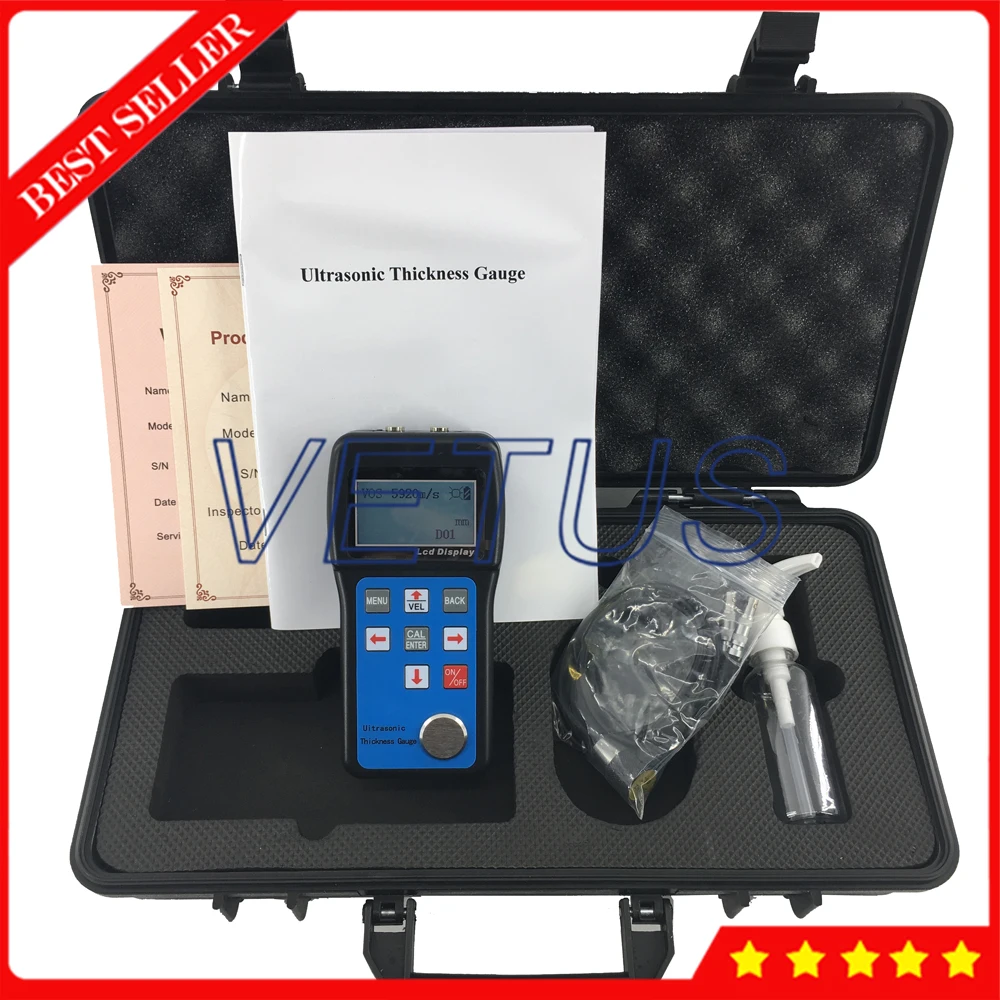

Instrument Configuration：
