Характеристики
Digital Oscilloscope Hantek DSO5102P Portable 100MHz 2Channels 1GSa/s Record Length 40K USB Osciloscopio Handheld Oscilloscopes |
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.50 руб. | 0.96 руб. | 0 руб. |
| Feb-18-2026 | 0.89 руб. | 0.15 руб. | 0 руб. |
| Jan-18-2026 | 0.17 руб. | 0.5 руб. | 0 руб. |
| Dec-18-2025 | 0.68 руб. | 0.11 руб. | 0 руб. |
| Nov-18-2025 | 0.66 руб. | 0.64 руб. | 0 руб. |
| Oct-18-2025 | 0.85 руб. | 0.94 руб. | 0 руб. |
| Sep-18-2025 | 0.25 руб. | 0.89 руб. | 0 руб. |
| Aug-18-2025 | 0.37 руб. | 0.88 руб. | 0 руб. |
| Jul-18-2025 | 0.56 руб. | 0.96 руб. | 0 руб. |
Описание товара
modname=ckeditor

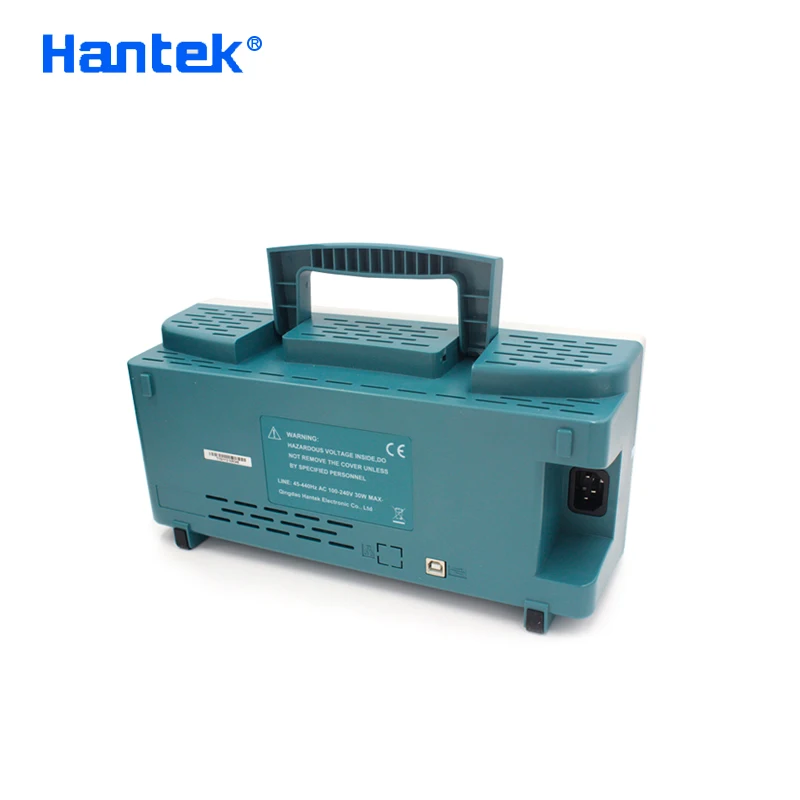

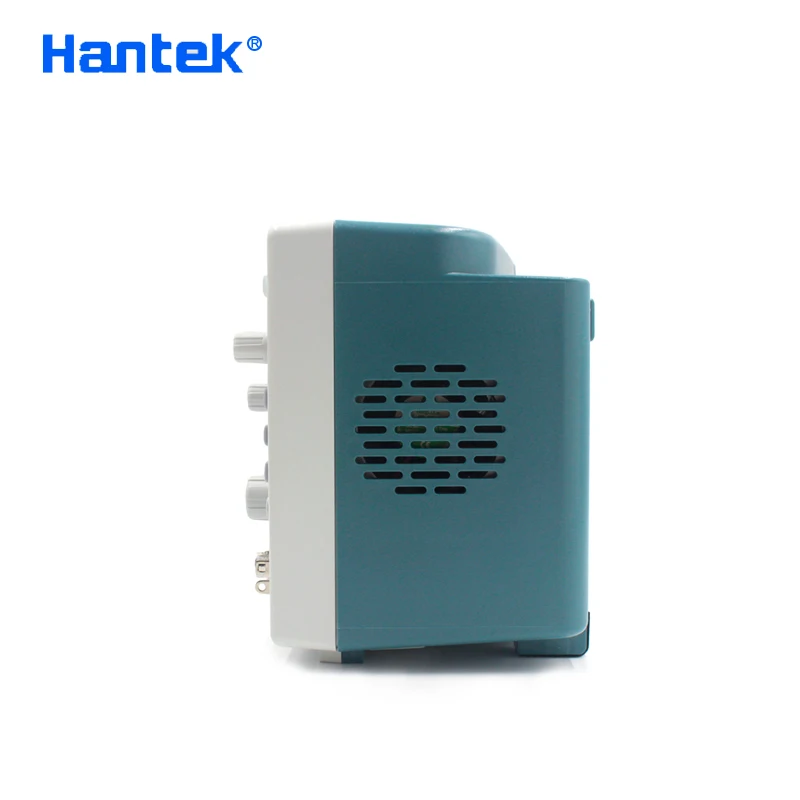

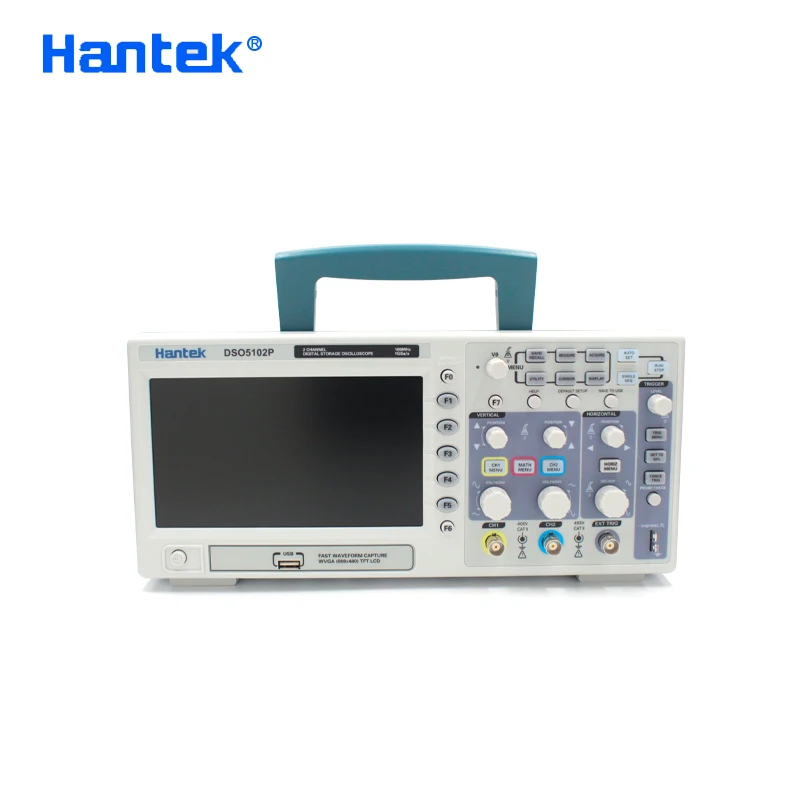

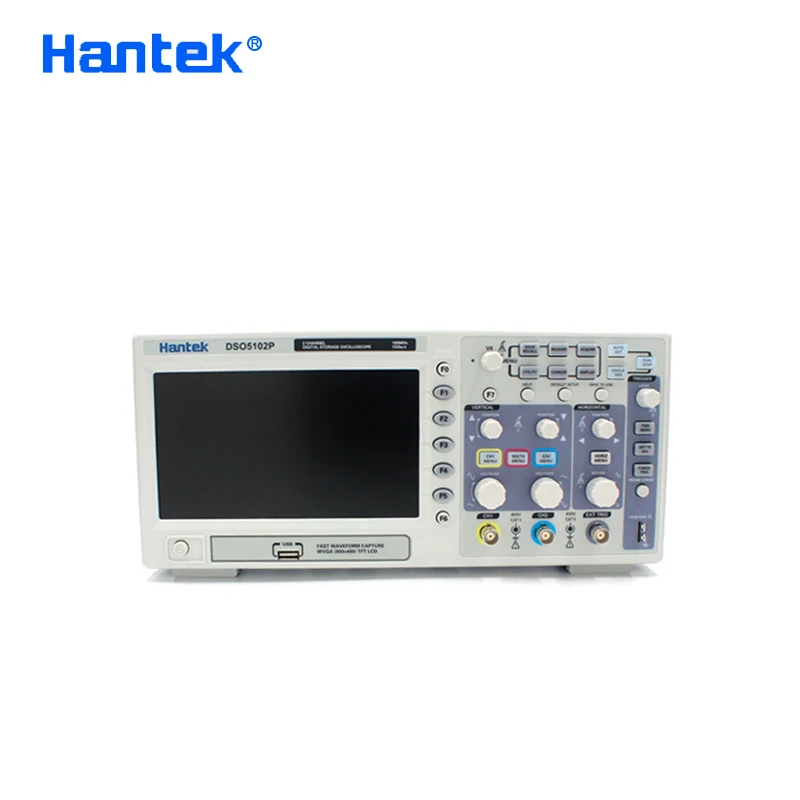

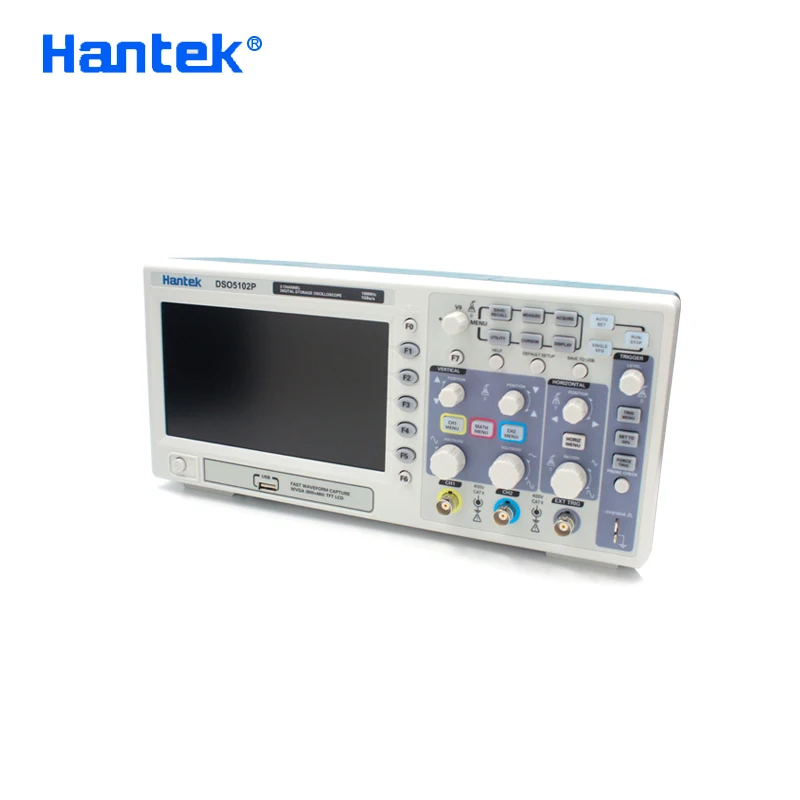

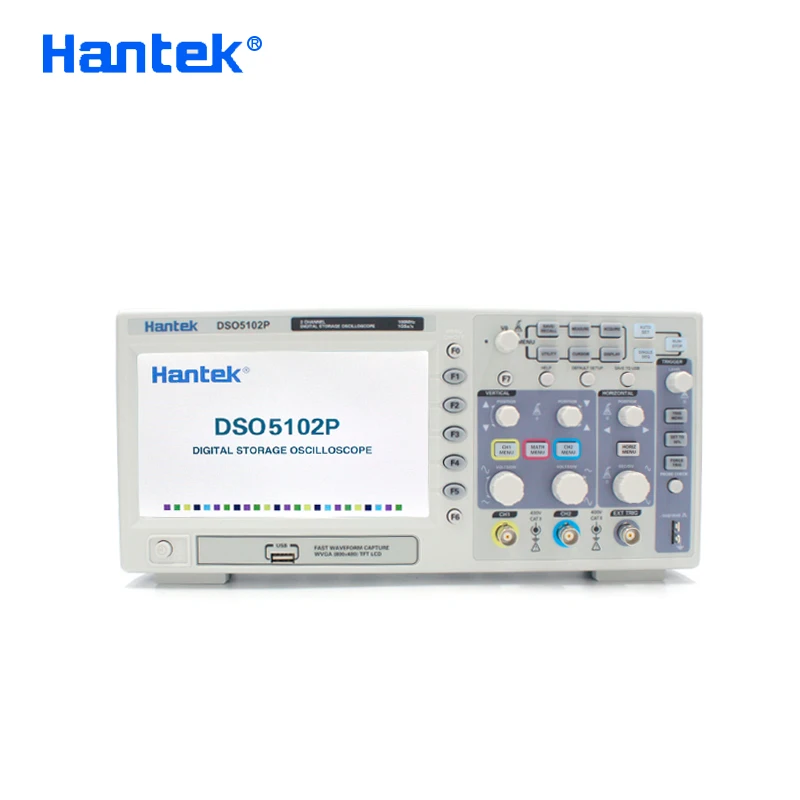

Hantek DSO5102P Digital Oscilloscope 100MHz 2Channels 1GSa/s Real Time sample rate USB host and device connectivity 7 Inch
Note: This product weighs more than 4KG and can only be sent by commercial courier, so regardless of the buyer's choice of any logistics method, we will use DHL or AliExpress Premium Shipping to send it (Russia and some countries use J-NET to send)
- 100MHz bandwidths
- 2 Channels
- 1GSa/s Real Time sample rate
- Large (7.0-inch) color display,WVGA(800x480)
- Record length up to 40K
- Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
- USB host and device connectivity, standard
- Multiple automatic measurements
- Four math functions, including FFTs standard
- Provides software for PC real-time analysis
- VGA Optional
-
Software:
Operating system: Windows NT, Windows 2000, Windows XP ,VISTA
| DSO5202P | DSO5102P | DSO5072P | |
| Bandwidth | 200MHz | 100MHz | 70MHz |
| Channel | 2 | ||
| Real-Time Sample | 1GSa/s | ||
| Equivalent Sample | 25GSa/s | ||
| Memory Depth | 40K | ||
| Rise Time | 1.7ns | 3.5ns | 5ns |
| Time Base Accuracy | 50ppm | ||
| Time Base Range | 2ns/div-40s/div | 4ns/div-40s/div | |
| Input Impendance | 1M | ||
| VOLTS/DIV Range | 2mV/div-5V/div | ||
| A/D Converter | 8 bit | ||
| Position Range | 50V(5V/div), 40V(2V/div-500mV/div), 2V(200mV/div-50mV/div), 400mV(20mV/div-2mV/div) |
||
| DC Gain Accuracy | 3% for Normal or Average acquisition mode, 5V/div to 10mV/div; 4% for Normal or Average acquisition mode, 5mV/div to 2mV/div |
||
| Bandwidth Limit | 20MHz | ||
| Trigger Types | Edge, Video, Pulse, Slope, Over time, Alternative | ||
| Trigger Source | CH1, CH2, EXT, EXT/5, AC Line | ||
| Math | +,-,x,÷,FFT | ||
| Cursor Measurement | Voltage difference between cursors: V; Time difference between cursors: T; Reciprocal of T in Hertz (1/T); |
||
| Auto Measuerment | Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF | ||
| Display | 7" TFT 16K Color LCD, 800*480 dots | ||
| Size | 313mm x 108mm x 142mm | ||
| Weight | 2.08KG | ||
| Standard Probe | PP200x2 | PP150X2 | PP80X2 |

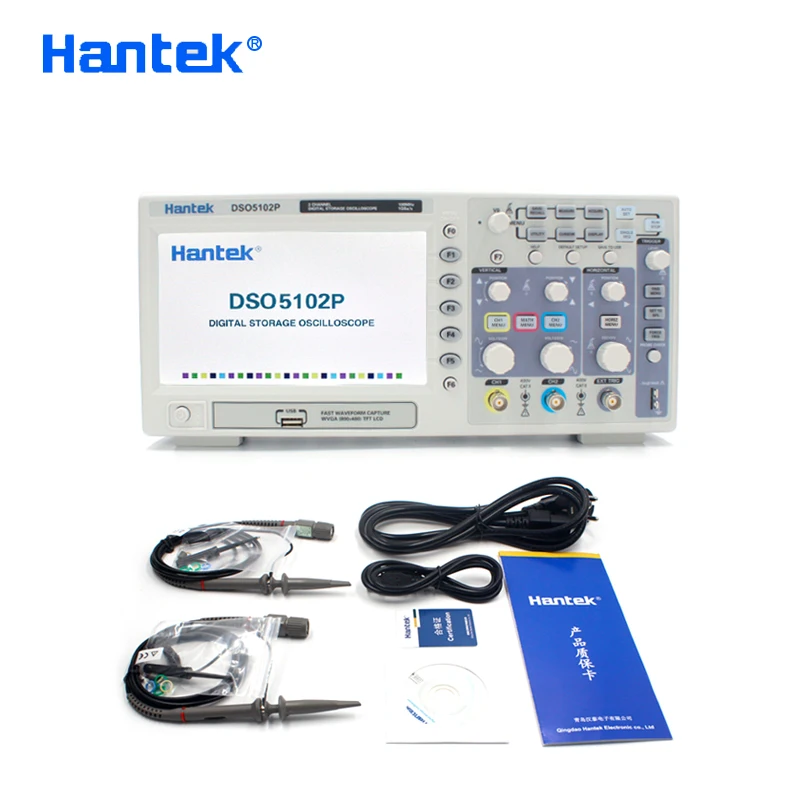

- 1 x 5102P Oscilloscope Host
- 2 x Connecting Lines
- 1 x USB Cable
- 1 x Installation CD
- 1 x Power line
- 1 x Original box
