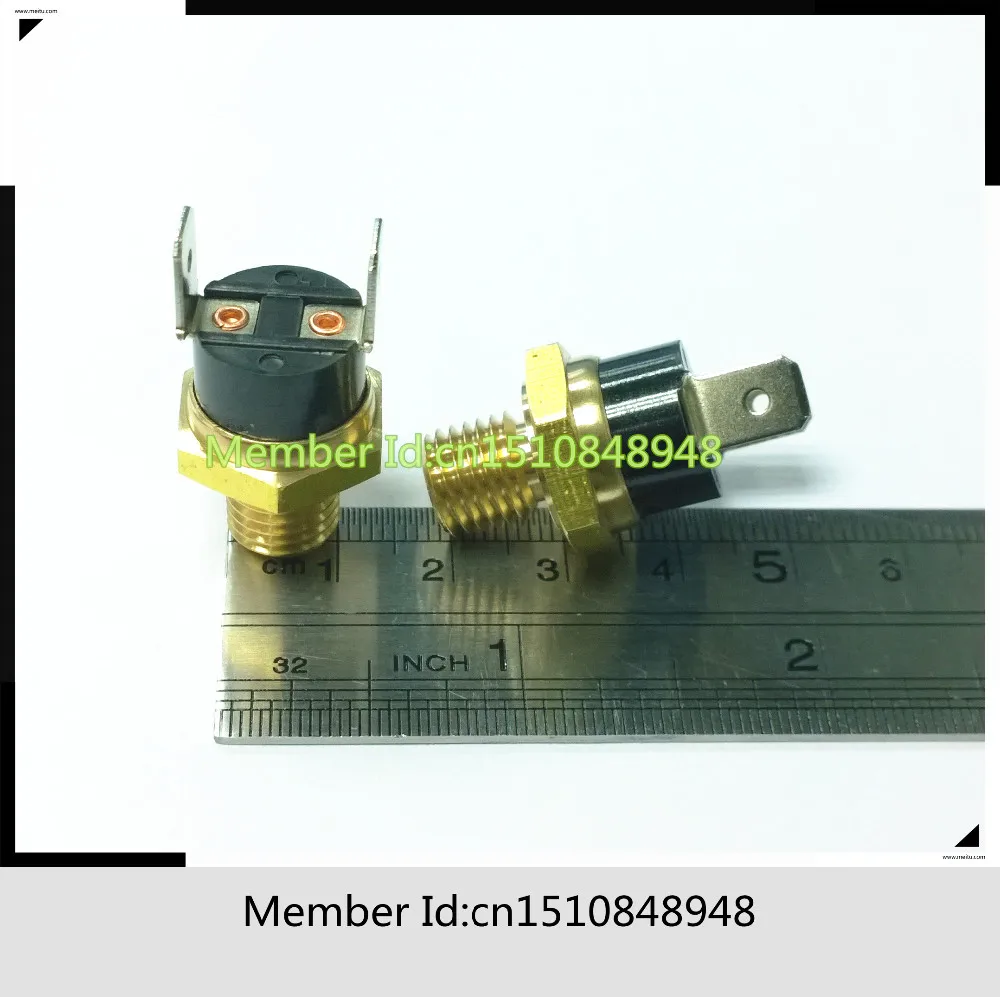

Temperature Screw cap KSD301 16A 250V 40C-155C 40 45 50 55 60 65 70 75 80 85 90 95 100 105 115 120 125 130 135 140 145 150 155 |

---

                                                              Welcome

                                                   Please leave a message required ,Size and temperature normally open or normally closed. Ensure proper fast delivery. Thank you!



Technical Parameters: 1, the electrical parameters: 1) CQC, VDE, UL, CUL AC250V 50 ~ 60Hz 5A / 10A / 15A (resistive load) (2) UL AC125V 50Hz 15A (resistive load) 2, operating temperature range: -10-350C (optional), temperature accuracy: ± 3 ± 5 ± 10C 3, recovery and action temperature difference: 8 ~ 100 C (optional) 4, Connection: plug terminal 250 # (bend 0 ~ 90 ° optional); plug terminals 187 # (bend 0 ~ 90 ° optionally, the thickness 0.5,0.8mm optional) 5, the service life: ≥ 100,000 times 6, the electrical strength: AC 50Hz 1800V lasted 1min, no flicker, no breakdown 7, the contact resistance: ≤50mΩ 8, insulation resistance: ≤100MΩ 9, the contact form: Normally closed: temperature rise, contacts open, the temperature drops, contact connected; Normally open type: temperature rise, contact connected, the temperature drops, contacts open. 10, shell protection grade: IP00 11, grounding: connected through the thermostat metal shell and the device ground metal parts. 12. Installation: KSD301 Series Installation ordinary activities ring, ring install small round activities, installation of flat panel active ring, Common largest aluminum cover with mounting holes, with mounting holes lengthened aluminum cover. 13, thread optional, M4, M5, M6, etc. according to customer requirements. Stable performance, high precision temperature control, reliable action altogether and the small size, do not pull the arc, high reliability, long life, less radio interference and other characteristics, Widely used in household electric open water bottles and drinking fountains, disinfecting cabinet, microwave oven, coffee maker, rice cookers, air conditioners, plastic, etc., Household appliances accessories of choice.
