Hantek DSO5102B Digital storage oscilloscope 2CH 100MHz 7inch Benchtop Scopemeter 1M Memory depth 1GSa/s Sample Rate | Инструменты
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.81 руб. | 0.3 руб. | 0 руб. |
| Feb-18-2026 | 0.88 руб. | 0.72 руб. | 0 руб. |
| Jan-18-2026 | 0.27 руб. | 0.51 руб. | 0 руб. |
| Dec-18-2025 | 0.49 руб. | 0.16 руб. | 0 руб. |
| Nov-18-2025 | 0.24 руб. | 0.28 руб. | 0 руб. |
| Oct-18-2025 | 0.60 руб. | 0.28 руб. | 0 руб. |
| Sep-18-2025 | 0.49 руб. | 0.72 руб. | 0 руб. |
| Aug-18-2025 | 0.35 руб. | 0.66 руб. | 0 руб. |
| Jul-18-2025 | 0.38 руб. | 0.2 руб. | 0 руб. |
Описание товара
{infomodule}
Description :

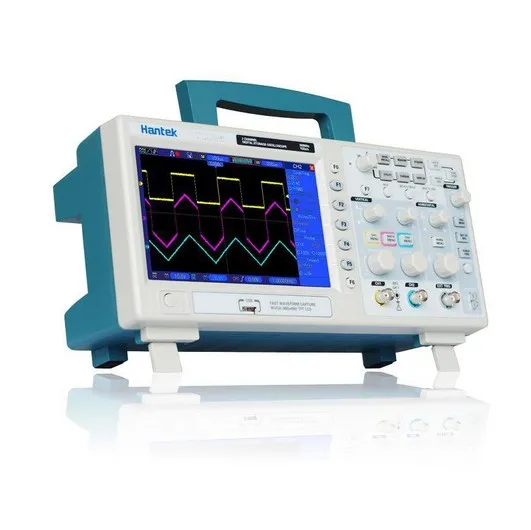

Professional Hantek DSO5102B 7inch 2-Channel Digital Storage Oscilloscope
Features:
200 / 100 / 60MHz bandwidths
1GSa/s Real Time sample rate
Large (7.0-inch) color display,WVGA(800x480)
Record length up to 1M
Trigger mode : edge / pulse width / line selectable video / slop / overtime etc.
USB host and device connectivity, standard
Multiple automatic measurements
Four math functions, including FFTs standard
Provides software for PC real-time analysis
Specification :
| Model | DSO5202B | DSO5102B | DSO5062B |
| Bandwidth | 200MHz | 100MHz | 60MHz |
| Real-time Sample Rate | 1GSa/s | ||
| Equivalent Sample Rate | 25GSa/s | ||
| Record Length(Sample Points) | Single-channel: Maximum 1M; Dual-channel:Maximum 512K (4K,16K,40K optional) | ||
| SEC/DIV Range | 4nS/div-40S/div (in a 2, 4, 8 sequence) | ||
| Delay Time Accuracy | 500ps | ||
| Vertical | |||
| A/D Converter | 8-bit resolution, each channel sampled simultaneously | ||
| VOLTS/DIV Range | 2mV/div~5V/div at input BNC | ||
| Position Range | ±50V(5V/div),±40V(2V/div~500mV/div),2V(200mV/div~50mV/div)±400mV(20mV/div~2mV/div) | ||
| Bandwidth Limit | 20MHz | ||
| Rise Time at BNC | ≤1.7ns | ≤3.5ns | ≤5.8ns |
| DC Gain Accuracy | ±4% for Sample or Average acquisition mode, 5mV/div to 2mV/div ±3% for Sample or Average acquisition mode, 5V/div to 10mV/div | ||
| Trigger | |||
| Trigger Sensitivity (Edge Trigger Type) | DC : CH1/CH2(Typical) 1div from DC to 10MHz;1.5div from 10MHz to Full EXT(Typical) 200mV from DC to 40MHz EXT/5(Typical) 1V from DC to 40MHz AC: Attenuates signals below 10Hz HF Reject: Attenuates signals above 80kHz LF Reject: Attenuates signals below 150kHz Noise Reject: Reduces trigger sensitivity | ||
| Trigger Level Range | CH1, CH2 : ±8 divisions from center of screen EXT : ±1.2V EXT/5 : ±6V | ||
| Trigger Level Accuracy, typical (Accuracy is for signals having rise and fall times ≥20ns) | CH1, CH2 : ±(0.3div×V/div) (within ±4 divisions from center of screen) EXT : ±(6% of setting + 40mV) EXT/5 : ±(6% of setting + 200mV) | ||
| Holdoff Range | 100ns-10s | ||
| Trigger Type | |||
| Edge | Trigger on the rising or falling edge | ||
| Pulse Width | Trigger (when >,<,=,≠) on positive or negative pulses Pulse Width Range: 20ns-10s | ||
| Video | Trigger on an NTSC, PAL, or SECAM standard video signal Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM) | ||
| Slope | Trigger (when >,<,=,≠) on a positive or negative slope Set Time: 20ns–10s | ||
| Overtime | from the rising or falling edge Set Time: 20-10s | ||
| Alternate | Internal trigger on edge, pulse width, video or slope | ||
| Measurement | |||
| Cursors | Manual : The difference between voltage cursors V, the difference between time cursors T, 1/T calculated by Hz. Tracing : The voltage and time at a waveform point | ||
| Automatic | Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width | ||
| Display | |||
| Type | Right angle 7 inch TFT 16-digit color LCD | ||
| Resolution | 800 x 480 dots | ||
| Contrast | 16 gears, with the progress bar to show adjustment | ||
| Interface | USB host and USB slave | ||
| Power Supply | |||
| Voltage | 100-120VACRMS(±10%), 45Hz to 440Hz,CAT II 120-240VACRMS(±10%), 45Hz to 66Hz,CAT II | ||
| Power | <30W | ||
| Fuse | 2A, T rating, 250V | ||
| Mechanical | |||
| Size | Length : 313mm, Width : 108mm, Height : 142mm | ||

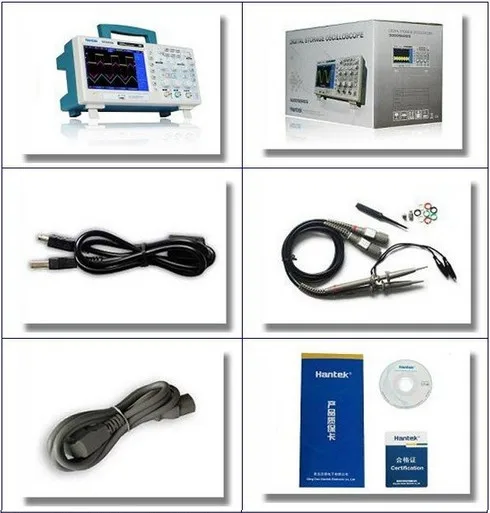

Package includes :
1 x Professional Original Hantek DSO5102B 2-Channel Digital Oscilloscope
(Full accessories as picture shows)
Comes in color retail box.
