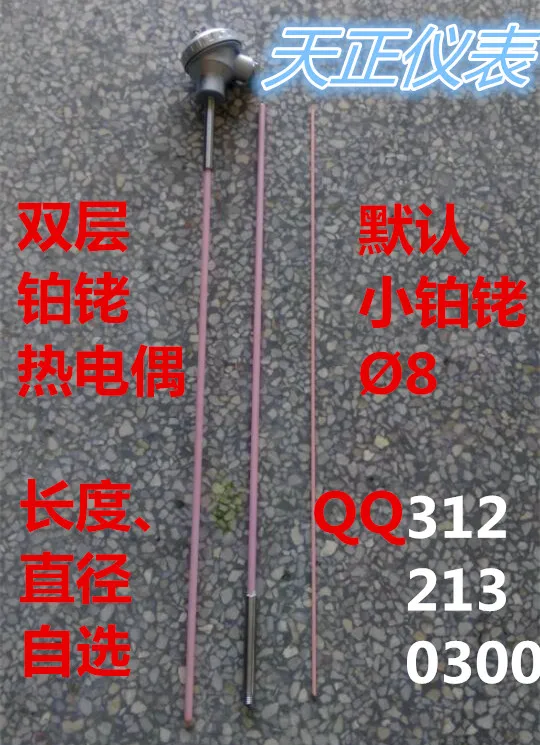

WRP-130 131 132 / high-temperature platinum-rhodium thermocouple S-type small platinum and rhodium temperatu | Инструменты
Laser marking machine inkjet printer synchronizer mounting bracket synchronous wheel meter encoder | Инструменты
LS5660-7R AC-DC конвертер | Инструменты
123 416,88 руб.
Новый цифровой тестовый вакуумный манометр WK-6889 | Инструменты
20 016,64 руб.
TailKuKe Daytimebuy Store
Магазина TailKuKe Daytimebuy Store работает с 11.05.2013. его рейтинг составлет 88.97 баллов из 100. В избранное добавили 2348 покупателя. Средний рейтинг торваров продавца 4.6 в продаже представленно 2530 наименований товаров, успешно доставлено 2580 заказов. 553 покупателей оставили отзывы о продавце.
Характеристики
Single Silicon Four Frequency Range Can Be Changed to / Mixing Sweep Pulse Width Adjustable | Инструменты
История изменения цены
*Текущая стоимость 2 662,79 - 3 893,52 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-19-2026 | 3168.55 руб. | 3326.85 руб. | 3247 руб. |
| Feb-19-2026 | 3141.25 руб. | 3298.60 руб. | 3219.5 руб. |
| Jan-19-2026 | 2635.56 руб. | 2767.30 руб. | 2701 руб. |
| Dec-19-2025 | 3088.61 руб. | 3242.56 руб. | 3165 руб. |
| Nov-19-2025 | 2689.25 руб. | 2823.18 руб. | 2756 руб. |
| Oct-19-2025 | 3035.94 руб. | 3187.89 руб. | 3111 руб. |
| Sep-19-2025 | 3008.24 руб. | 3158.58 руб. | 3083 руб. |
| Aug-19-2025 | 2981.95 руб. | 3130.25 руб. | 3055.5 руб. |
| Jul-19-2025 | 2955.16 руб. | 3103.0 руб. | 3029 руб. |
Описание товара
modname=ckeditor
Type 1: finished 45A silicon plate
Type 2: finished product + frequency meter (no silicon plate)
Type 3: finished 25A silicon plate
Type 4: finished product (no silicon plate)
Type 5: Finished 45A silicon plate + frequency meter
Type 6: finished 25A silicon plate + frequency meter

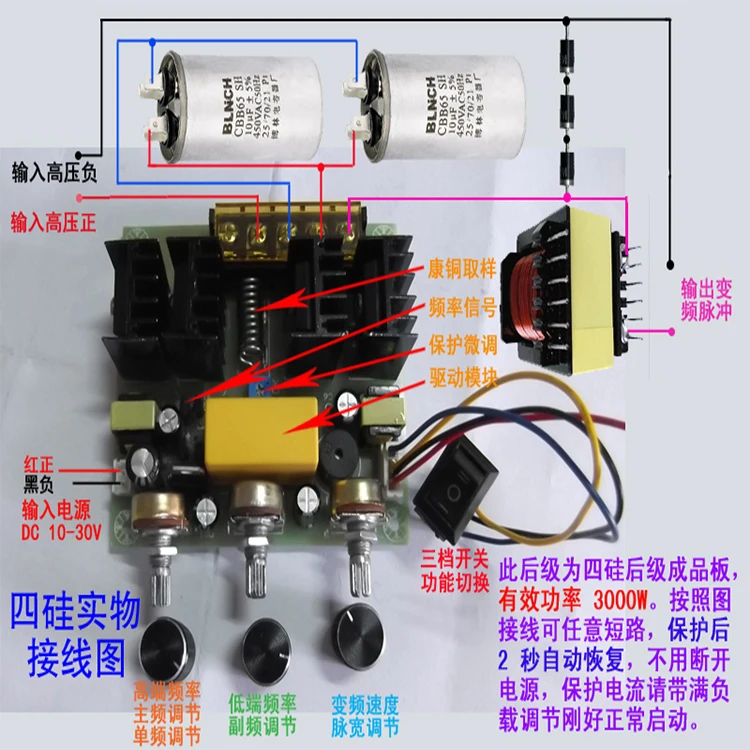

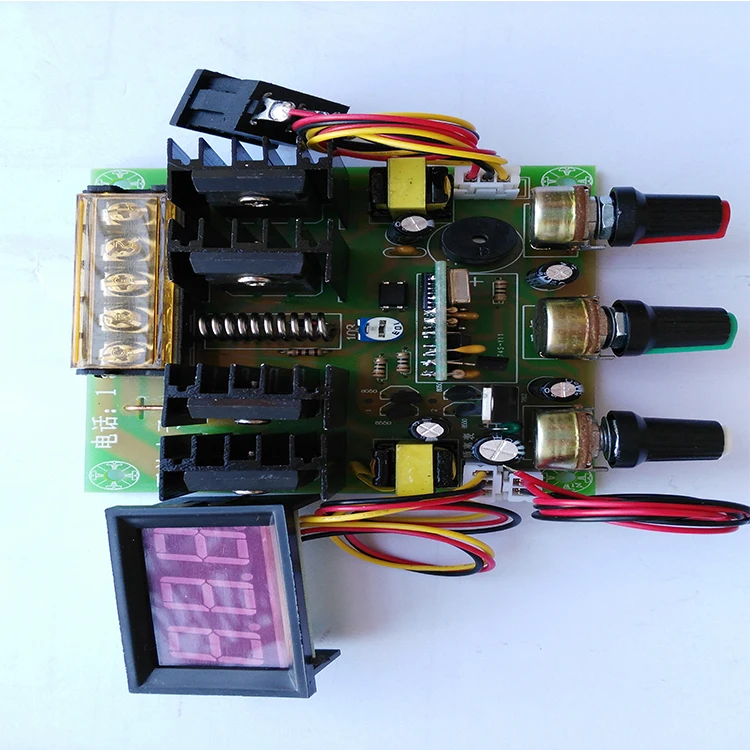

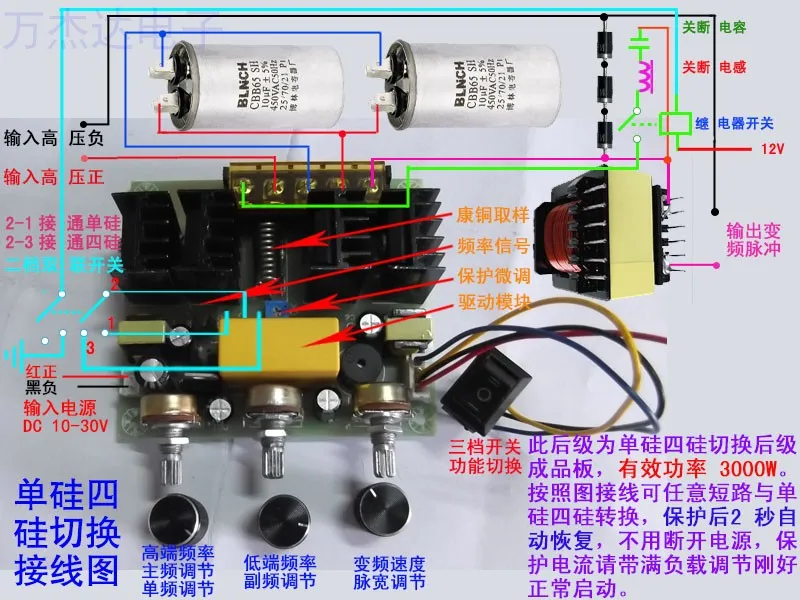

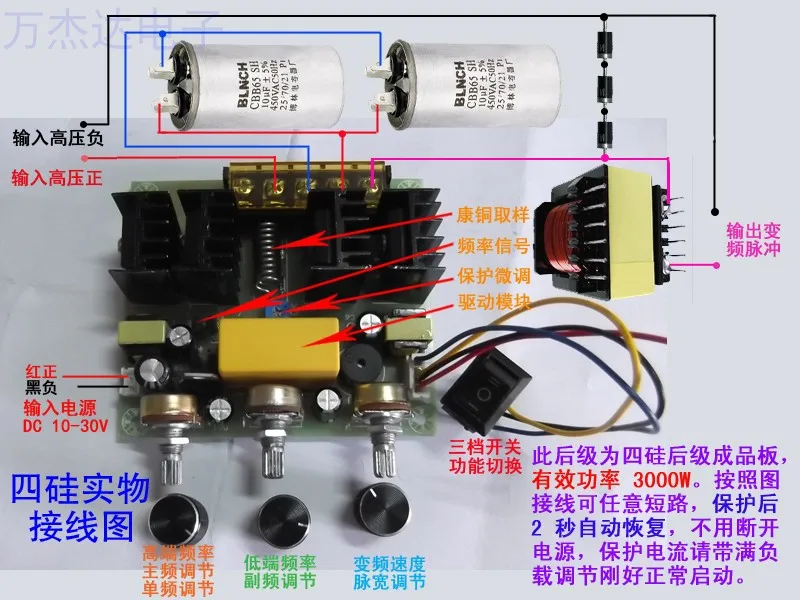

Functional Band Single Frequency, Mixing and Sweep Frequency of Tetrasilicon Post Stage Board(Frequency up)Frequency sweep(Frequency reduction)Four functions, with the main frequency, the secondary frequency and the pulse width independently adjustable, do not affect each other, the output frequency pulse width is very accurate and stable.
Single frequency:10-250Hz
mixing:Main frequency20-250Hz Sub-frequency4-25Hz pulse width10%-90%
frequency conversion-Frequency up:high frequency100-250Hz Low Frequency10-70Hz Frequency rise speed5-35Hz
frequency conversion-Frequency reduction:high frequency100-250Hz Low Frequency10-70Hz Frequency reduction speed5-35Hz
Frequency of the new edition is modified arbitrarily.50-250HZ)
Arbitrary modification of operation method: must be single-frequency mode into the condition of changing frequency mode:

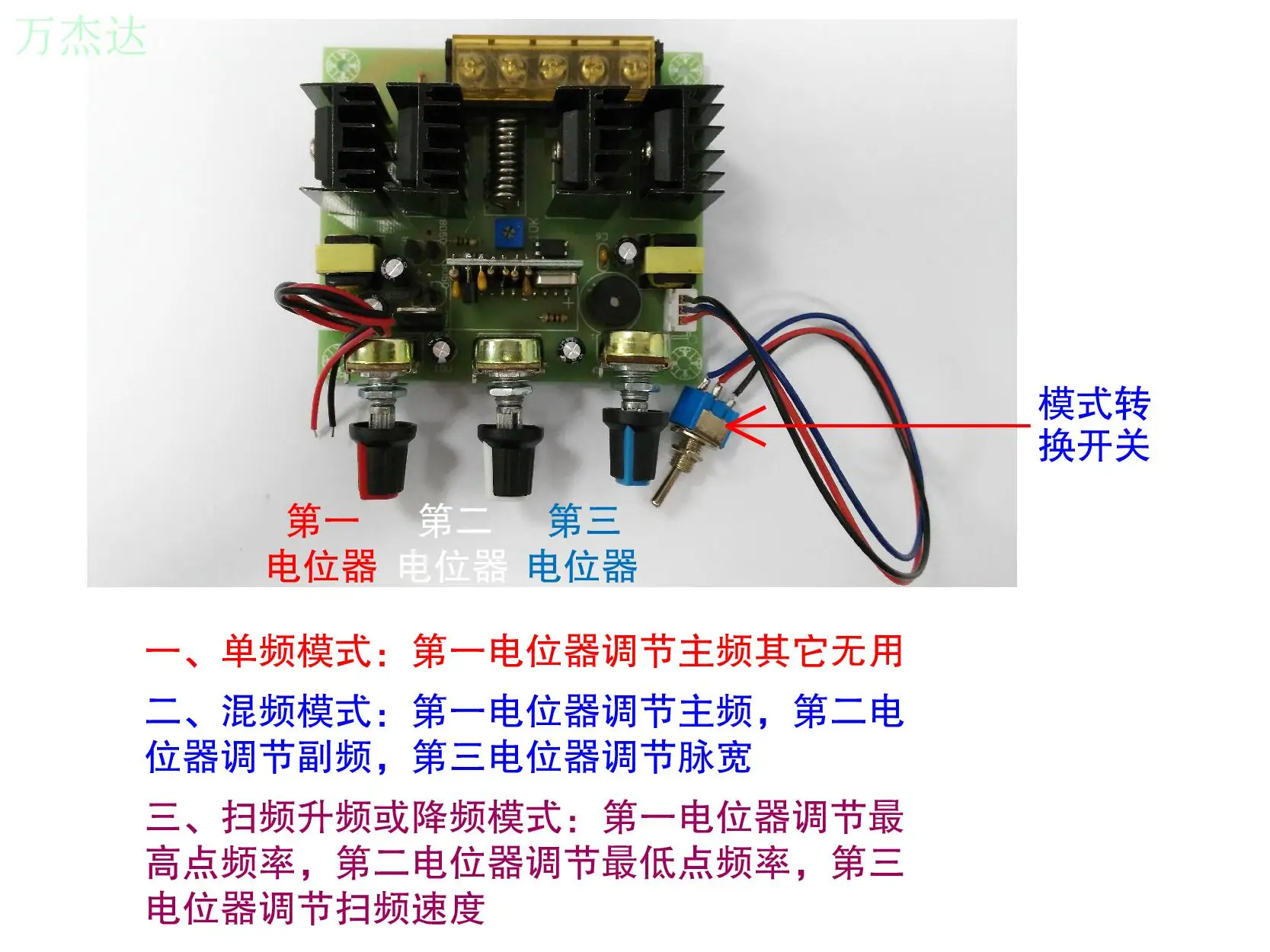

1.Max main frequency modulation 2.Minimum sub-frequency modulation 3.Minimum Pulse Width Modulation 4.Protective foot grounding
Method of operation:
If the above conditions are satisfied, turn on the power, loosen the protective foot, enter the frequency setting, maximum frequency.250To adjust the main frequency, adjust to the desired frequency point, once again short-circuit the protective foot, frequency setting is completed. Re-energizing, adjusting the maximum frequency of the main frequency is to set the maximum frequency point.
Finished products: complete finished products after the board+Accessories (Notes)45ASilicon Voltage Resistance1600VThat is to say,25ASilicon Voltage Resistance1200V)

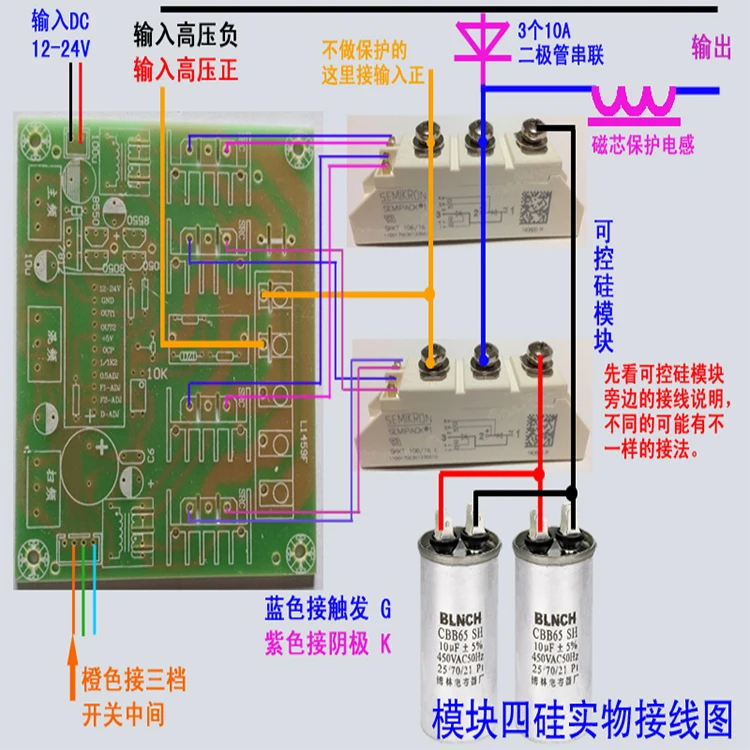

No Silicon: No Four Thyristors for Finished Post-Stage Board+parts
Model Block: Single back block new CNC rear drive board module without accessories
Parts list:
1AndXH2.54-3PSocket line1Article,2AndXH2.54-2PSocket line1Article,3Potentiometer gold KNOB CAP3Yes,4AndMTS 102Toggle mode switch one
PCBPlate size:83MM*93MM
'
