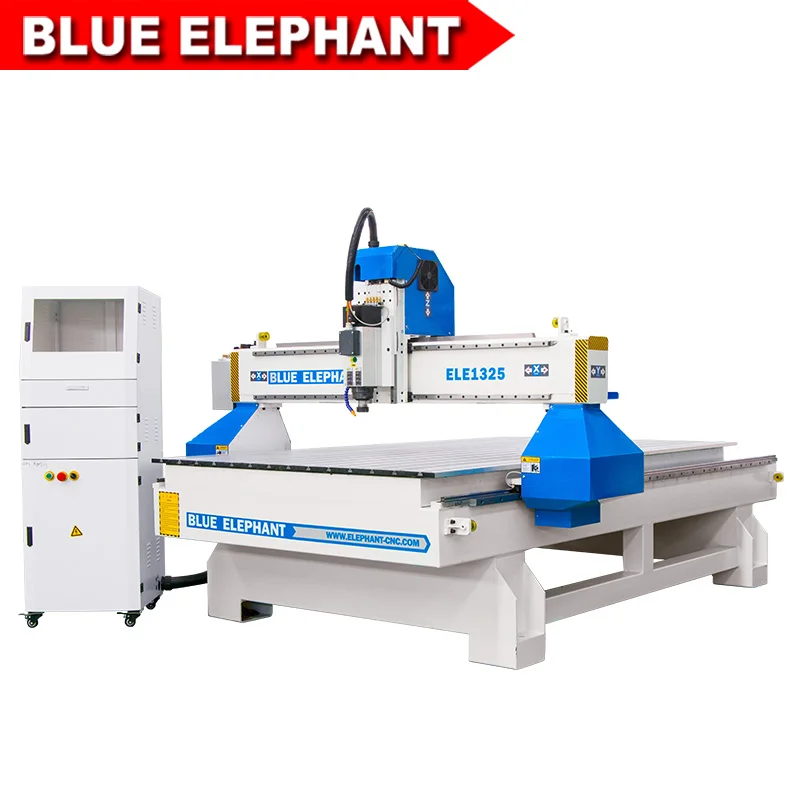

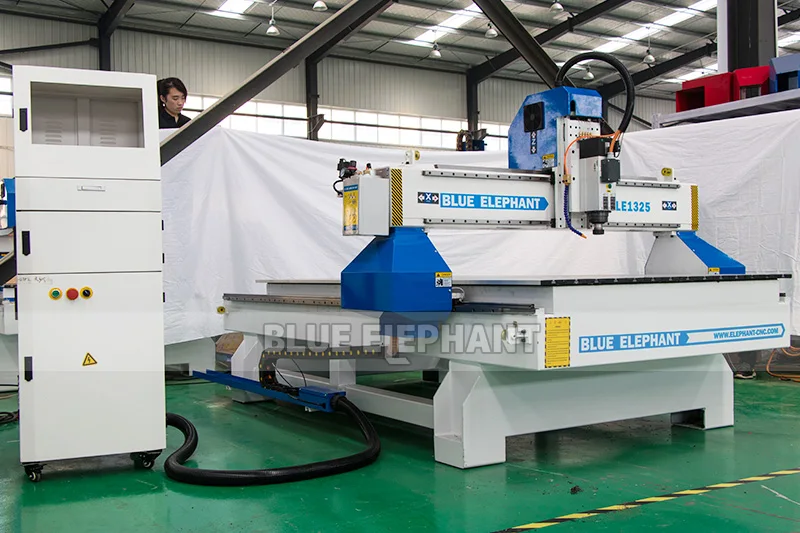

3 axis cnc router 1325 wood engraving machine for carving and cutting acrylic furniture





Advantages

• Equipped with original Italy HSD spindle: powerful and quality guaranteed
• With WEIHONG control system: precision and durable
• With heavy duty frame and gantry
• With Automatic Oil Mist Cooling to prolong the lifetime of the machine
• All the specifications and the working size can be customized according to your special requirement

Technical parameters

X,Y,Z Working Area	1300*2500*200mm
Color	White and Blue( Can Be Customized)
Working Voltage	380V/3PH/50Hz(Can Be Customized to Meet Different Country’s Requirement)
Control System	WEIHONG PM95A-3L

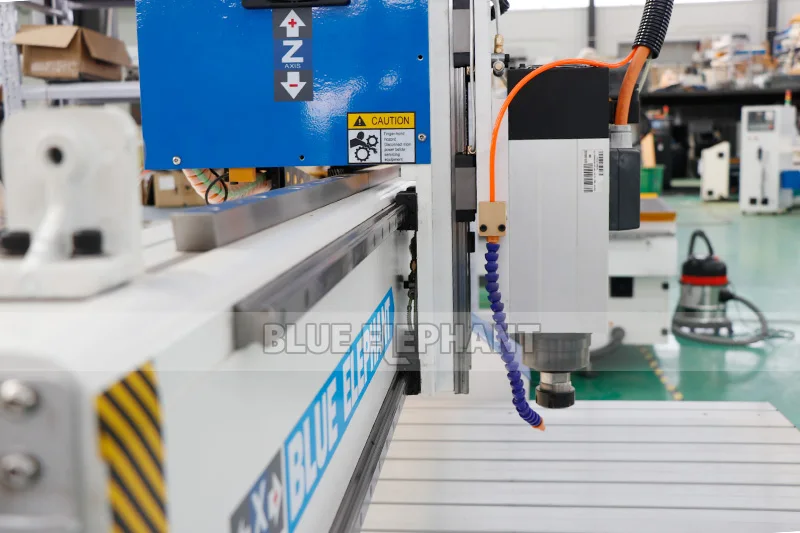

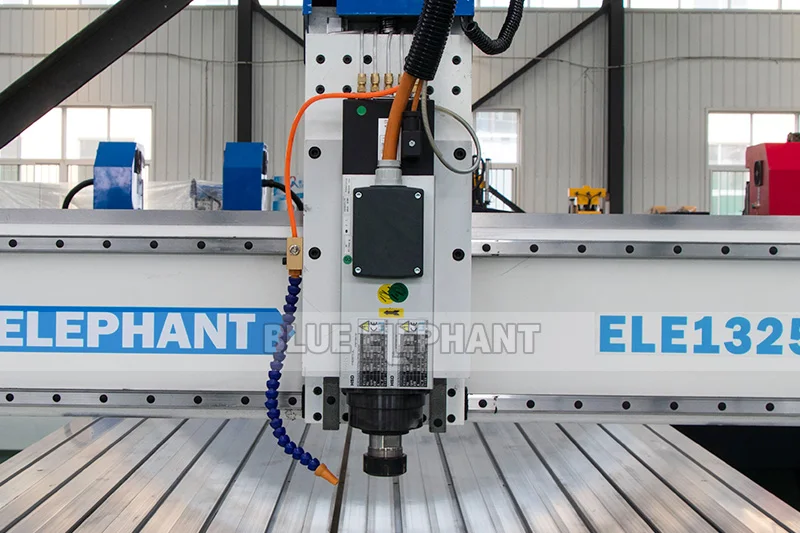

Spindle	7KW Italy HSD Spindle
Spindle Speed	0-24000RPM
Inverter	7.5 KW Taiwan DELTA
Drive Motors	FL118 Motor and YAKO 2811
Frame	New Type Heavy Duty Body

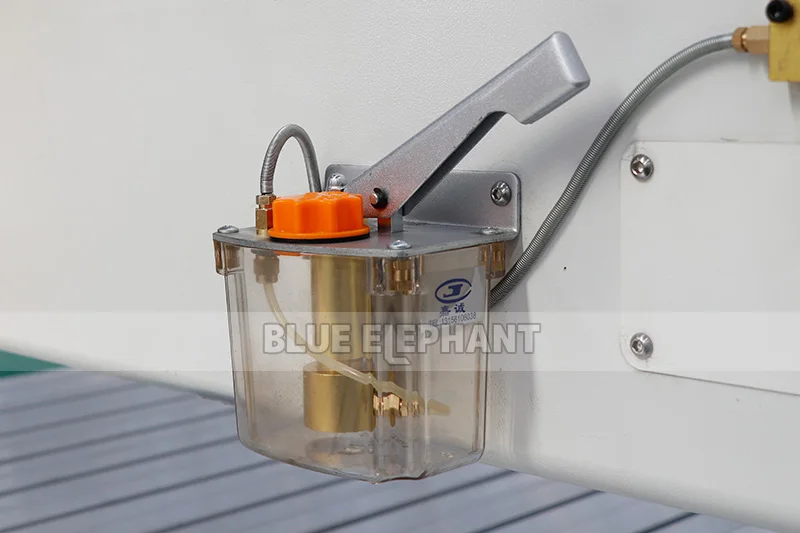

Lubrication	Manual Lubrication System
Gantry structure	Steel Gantry

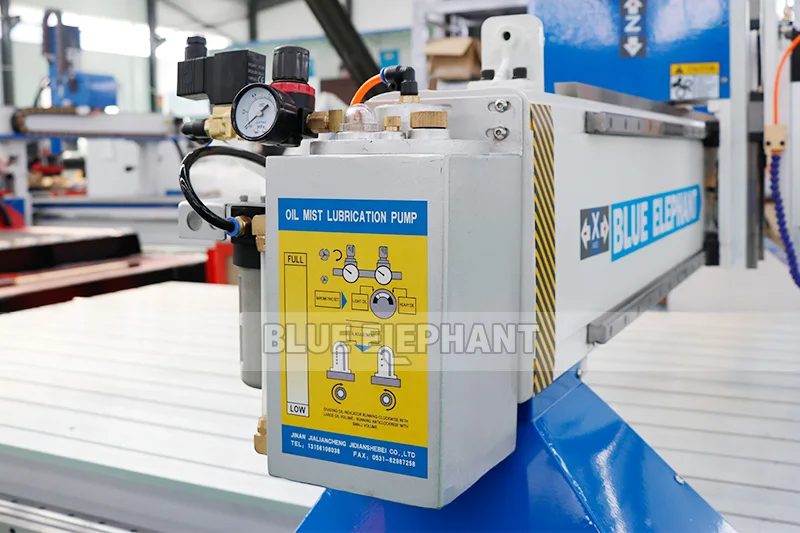

Spray/ Flume	Automatic Oil Mist Cooling

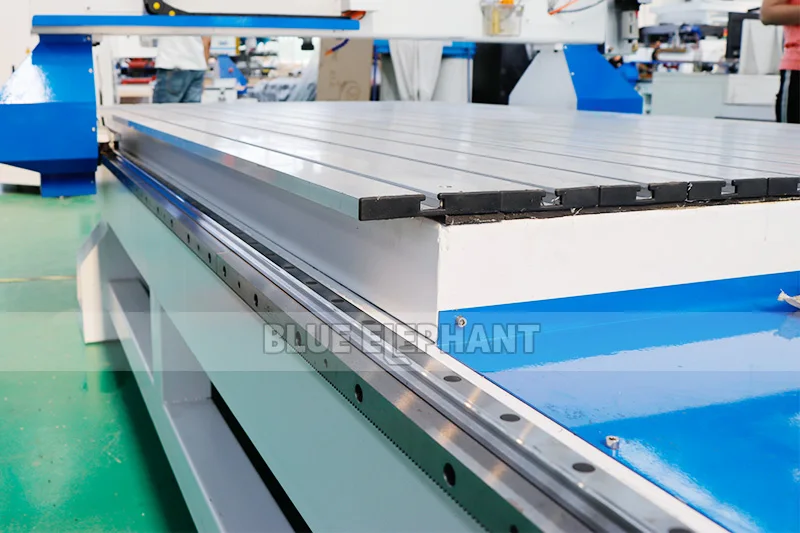

X, Y Structure	ABBA/PMI 20# Guide Rails
Z Structure	TBI Ball Screw Ball Screw Transmission
Tool Sensor	Semi-Automatic Tool Sensor

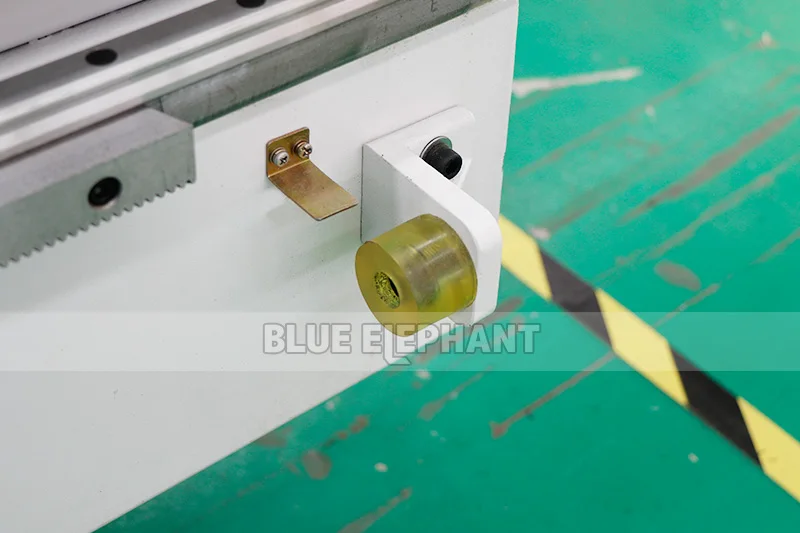

Limited Switch	Japan Omron Limited Switch
Wire	High Soft Shjeld with Copper Wire to Protect Against Static Electricity

PS:All the working area and specifications can be customized according to your requests.

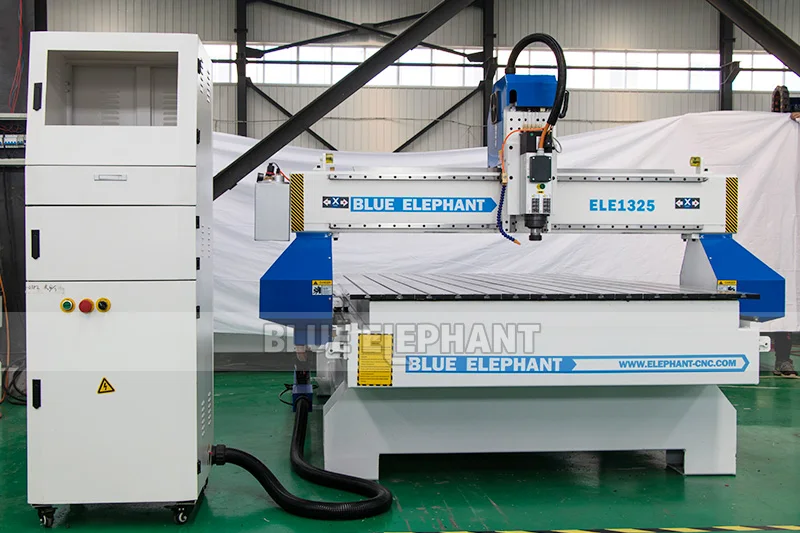

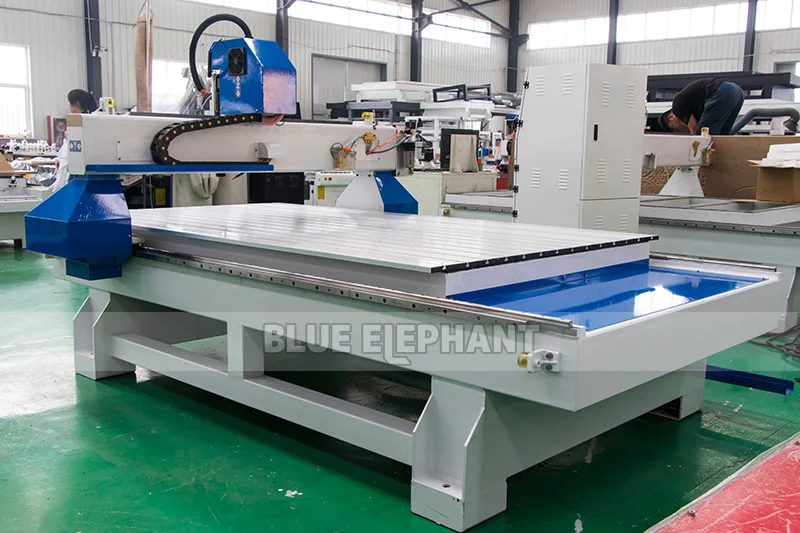

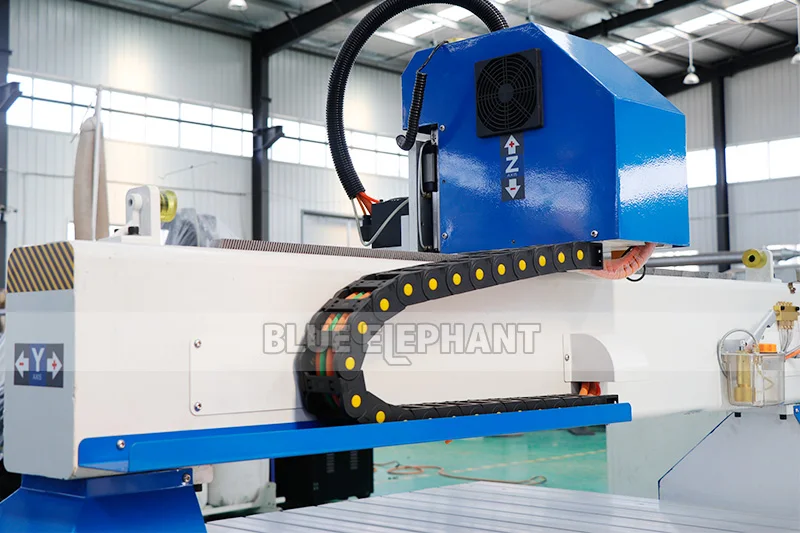

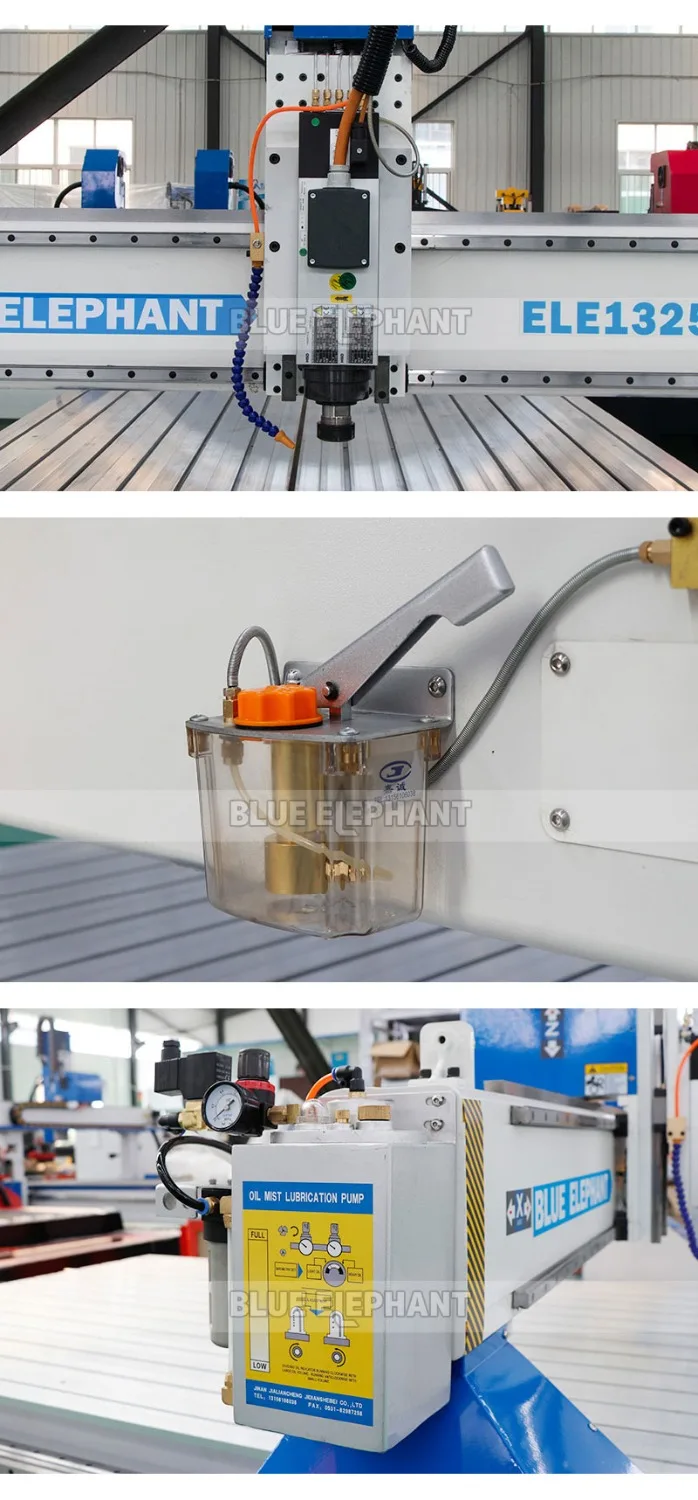

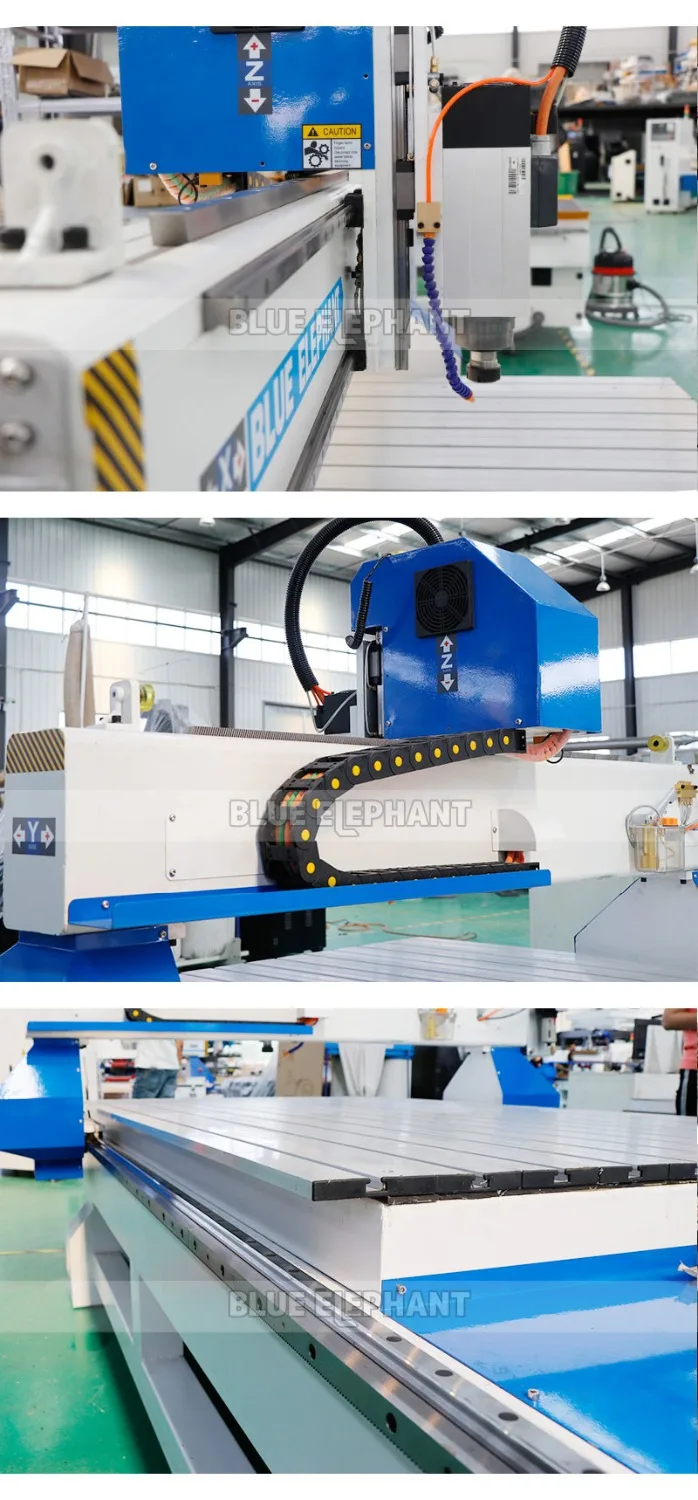

Detail images:

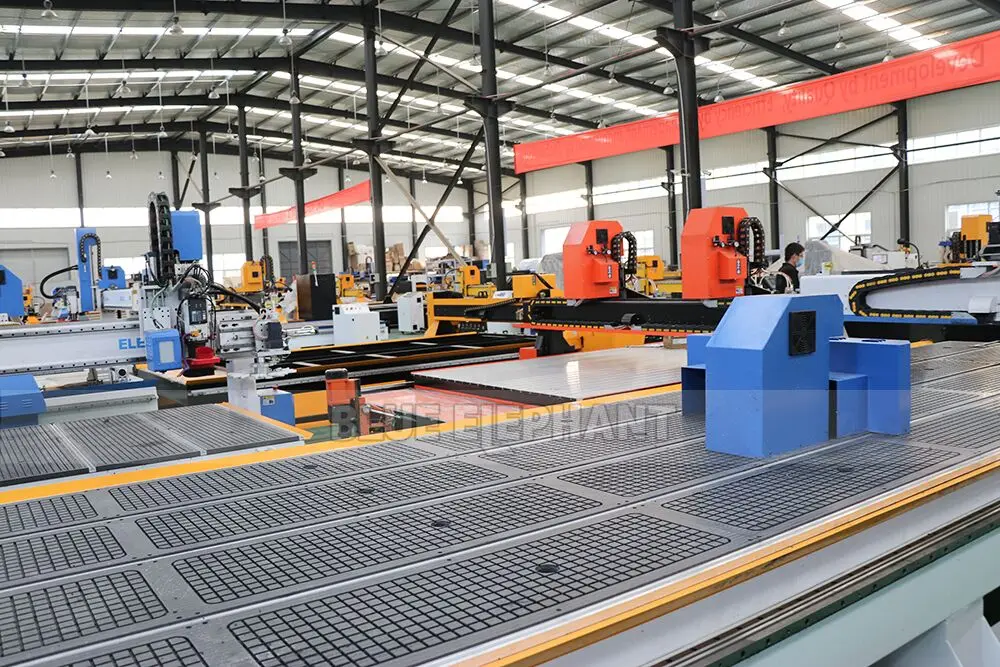

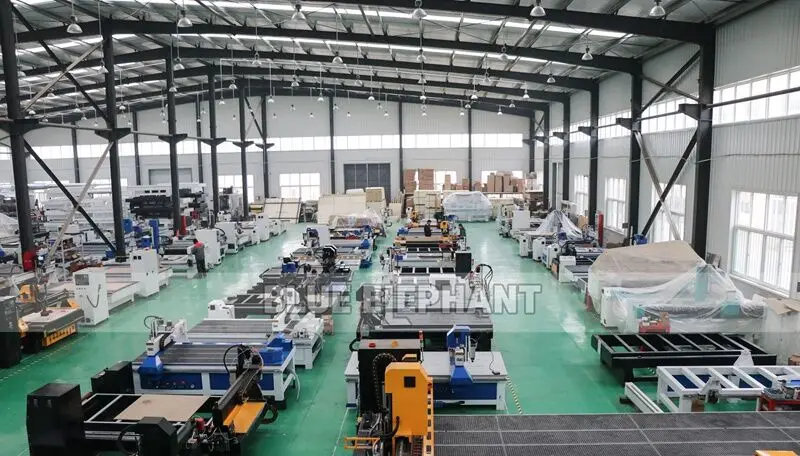

Applications:        1.Advertisement: engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials. Including marble, brass, steel, and other    metallic material. 2.Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto. 3.Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould. 4.Architectural models: engraving fine window, fencing and wall patterns, etc. 5.Seal: engraving seals and medal on materials such as buffalo horn, wood etc. 6.Label: engraving character, number, and other pattern on label for products and on product directly. 7.Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.   Different types of raw materials such as stone, wood, soft metal...etc can be processed by our CNC machines into various stuff that we can often see in our lives.    Our Cnc Router Samples:     Our Factory: Blue Elephant cnc router have passed the CE, SGS, ISO9001 etc, International Certifications, accept more than 50 countries import licensing and all machine parts us import European brand. Our factory machine quality standard can be up to Italy, France, Germany, Taiwan, Japan Level. We have our own factory and R and D team, mastering the core technology of research and development. Factory covers an area of about 3200 square meters, specializing in the production of various types of special-shaped machine. We welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you could sent message about your sourcing requirements, will get a quickly reply in 4 hours in Aliexpress(not include sleeping time)       Warranty (Our service): A Guarantee 12 months for the whole machine.  Within 12 months under normal use and maintenance, if something is wrong with machine, you will get spare part for free; Out of 12 months, you will get spare part at cost price. You will also get technical support and service all the lifetime.   B Technical support 1.Technical support by phone, video chat, email or skype around the clock 2.Friendly English version manual and operation video CD disk 3.Engineer available to service machinery overseas   C After sales services Normal machine is properly adjusted before dispatch. You will be able to use the machines immediately. You will be able to get free training advice towards our machine in our factory.  You will also get free suggestion and consulting, technical support and service by email/fax/tel and lifetime technical support      Customer visit factory:   What we want to do is not only to open more markets, but to make more friends who grow together with the Blue Elephant. We are willing to work together with you to grow up and keep fighting.   Packaging& delivery:   1.Outside package:Standard marine export plywood case.  2.inner package:Stretch film and plastic film for humidity.                      Delivery Detail:  Shipped in 15 working days after payment.   Customer get machine: Customer feedback : Many many customers in the world are using our machine, good feedback pictures below for your reference.

​
