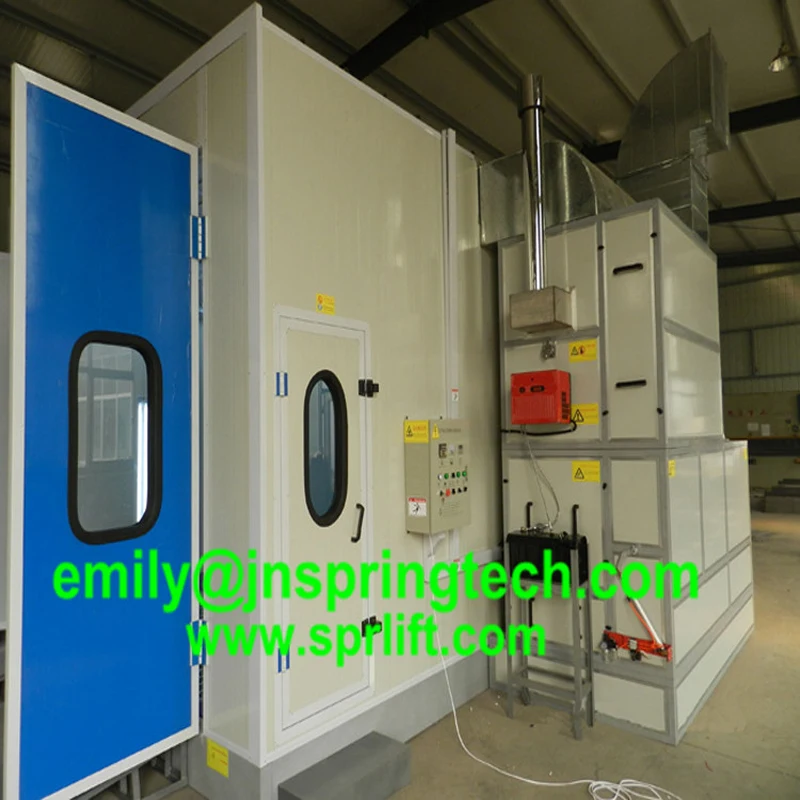

Hot Sale Spray Booth Type Car Paint with Low Price model LX2S | Автомобили и мотоциклы

Parameters

Outside size

7000×5350×3400mm(L×W×H)

Inside size

6900×3900×2650mm(L×W×H)

Entrance door

3 folds,3000x2600 mm(W×H), bending steel without covered frame

Emergency door

650*1800mm(W*H),equipped with handle lock

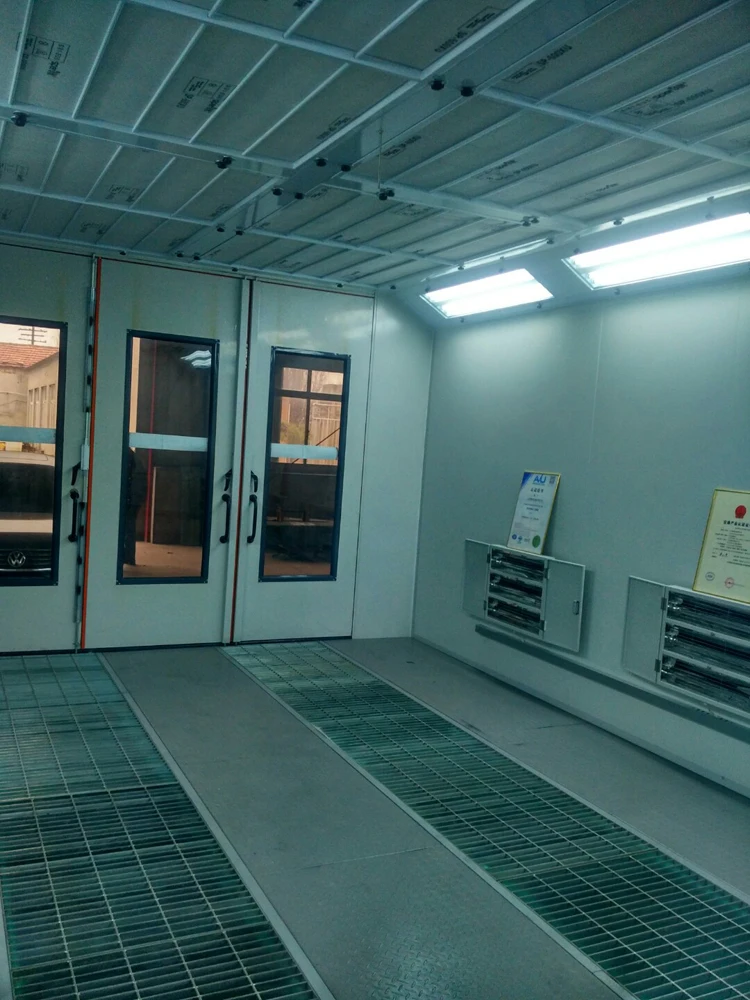

Cabin system

Wall panel

-Sandwich style EPS 50mm,0.376mm thick steel,  anti-flame and heat-insulation.

-High quality galvanized steel roof panel.

Basement

-Galvanized steel assemble,280mm high,quadrate steel support,2 rows of grills,3 rows of indented plates.

-2 ramps,external setting,620*2000mm(W*L)/pc

Ventilation system

Inlet fan

1*7.5KW turbo fan, air capacity: 25000m³/h, direct drive,with Siemens technology production

Outlet fan

1*7.5KW turbo fan, air capacity: 25000m³/h, direct drive,with Siemens technology production

Cabinet setting type

-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful .

-Air duct*2m long*1unit,

-Elbow:90°*1 unit

Airflow speed

0.4-0.5m/s,ventilation rate:320time/h

Heating system

Burner

Italy RIELLO G20 oil burner, heating capacity: 200000Kcal/h,

with BELIMO 10N electric damper

Heat Exchanger

1.2mm thickness SUS304 stainless steel

Cabinet

Rock-wool insulation*1 unit

Lighting system

Ceiling lights

32pcs*16w LED lighting

Side lights

32pcs*16w LED lighting

Filtering system

Primary filter

Grade G2 plate type , filtering rate>83%

Ceiling filter

EU5 grade high efficient filter,filtering rate>98%

Floor filter

Multi-layer fiberglass filter,filtering rate>70%

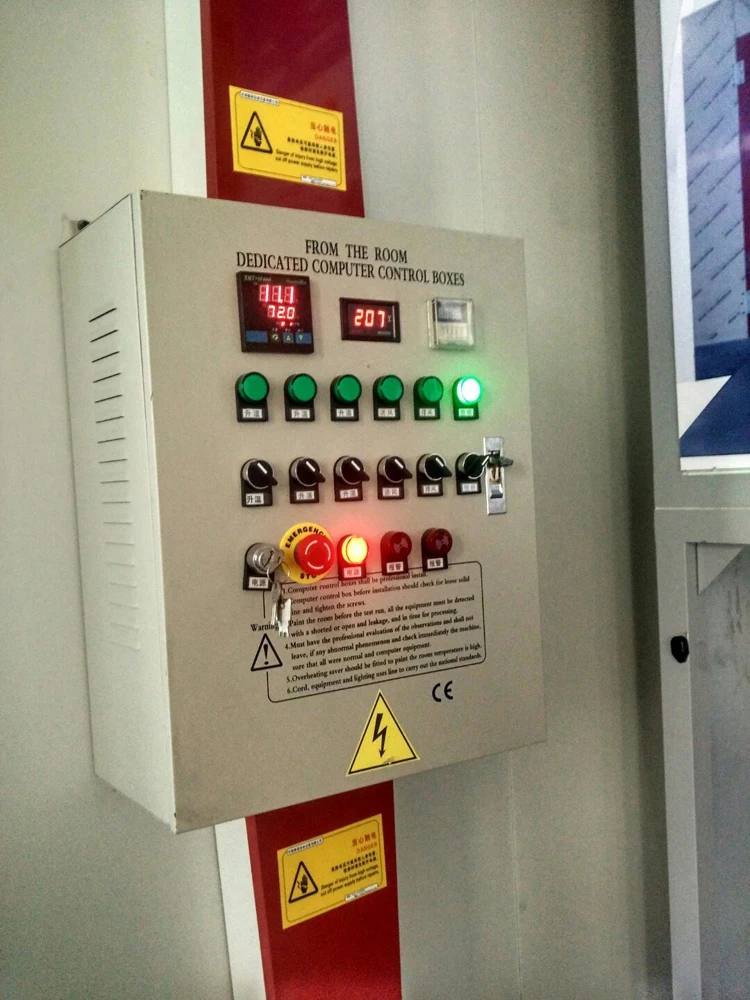

Control system

Control panel

Intelligent control system

Function

Painting, risen-temperature painting, baking, time setting, lighting,  failure indication, thermostatic switch, power switch, emergency stop

Voltage/Frequency

380V,50HZ,3 phase
