Система обнаружения слепых зон Best Car BSD с микроволновым датчиком, видимым зеркалом и функцией записи DVR, антистолкновения и помощи при парковке.

Система обнаружения слепых зон Best Car BSD с микроволновым датчиком видимым зеркалом и функцией записи DVR антистолкновения помощи при парковке.

Brand NameJMANEYESOriginMainland ChinaTypeVisibleMaterial TypeabsModel NameDBDFZS66OSD LanguageEnglishTalk RangeDetection range :8*12MMeasurement unitpiece/piecesEach pack1mirror monitor size 6.86 INCHMulti-function Blind spot lane change assist+ DVR recording + parking aid assist15 534,95 ₽-15%15 534,95 ₽-15%13 204,93 ₽13 204,93 ₽Add to CartBuy now13 204,93 ₽loader

Description

Welcome to our  Smile shop

Best Car BSD microwave sensor visible blind spot mirror detection system with DVR anti Collision parking aid assistance system

Product instroduction :

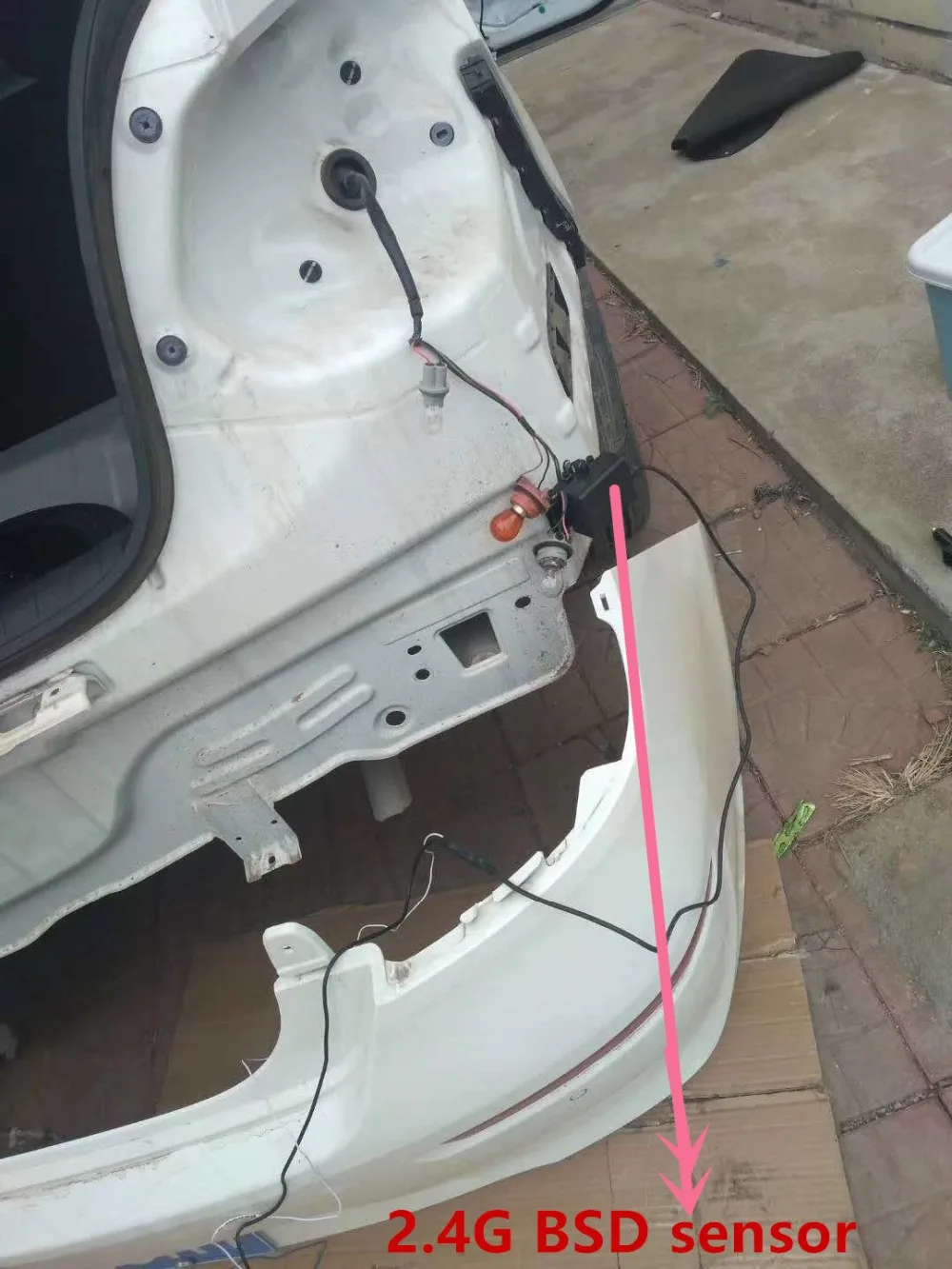

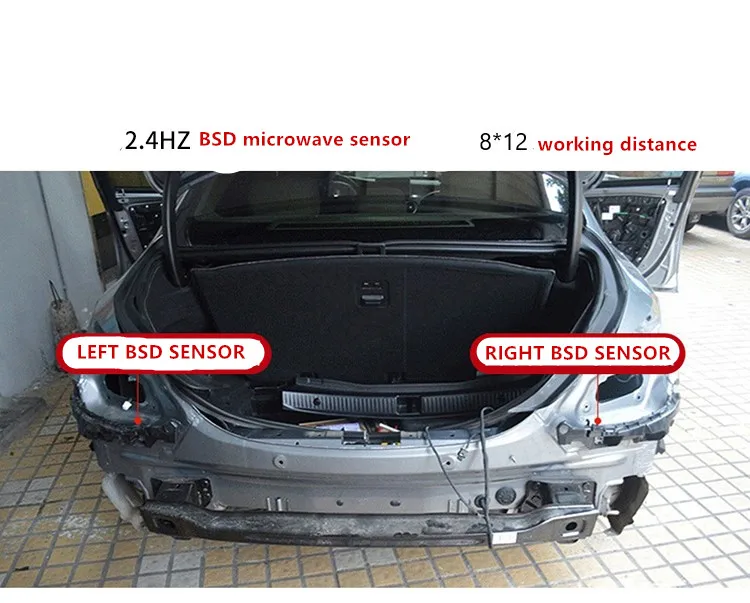

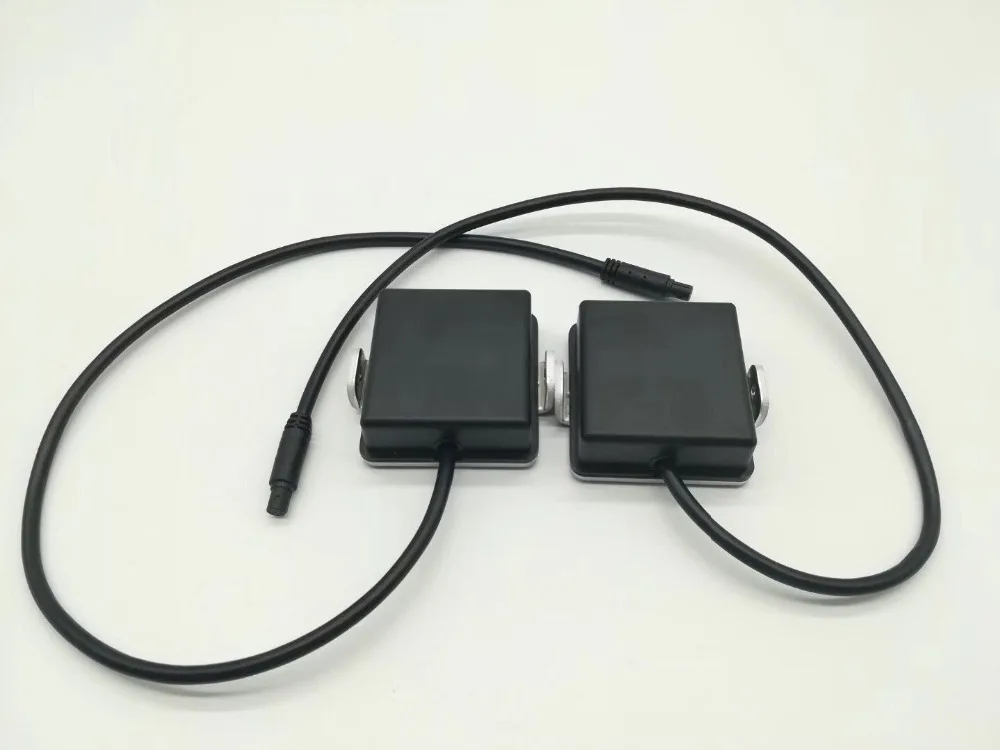

This product is a driving blind area auxiliary system that detects moving objects within a range of 6 to 12 meters behind the vehicle side through two 24GHZ millimeter-wave radars mounted on the rear bumper of the vehicle body. When the rear side moves the object into the set warning area, the LED light will light up to prompt the driver. At the same time, when a moving object enters the sensor area set by the radar on the side, if the same side turn signal is turned on at this time(it is judged that the driver wants to change the path), the same side LED indicator lights flash quickly, and the sound drops three hints. Warning drivers, Then there is a moving object near the rear. At this time, it is dangerous to change the channel to prevent danger from happening. AND also with DVR driving record function and HD wide angle touch

mirror 6.86 inch .

Specification :

1、Operating voltage：DC 9～16V

2、Working current： 190MA±5MA
3、Operating temperature：-40℃～+85℃

4、Storage temperature：-40℃～+85℃

5、Static current consumption：≤1mA

6、Frequency of operation：24GHZ~24.25GHZ
7、Speed adaptation range：±120KM/小时
8、Warning Scope：6 to 12 meters behind the side.
9、Warning Method：Sound and LED Lighting
10、Start Mode：Start with ACC

I. Instructions for use.

A、Left Blind Area Detection：

     When the mobile vehicle is monitored within the left rear blind area(6 ~ 12M), the LED light warning is on the left side of the rearview mirror。
B、Right Blind Area Detection

     When the moving vehicle is monitored within the blind area(6 ~ 12M) in the right rear of the car, the LED light on the right side of the rearview mirror is the warning light.。
C、Left turn blind warning：
     When the mobile vehicle is monitored within the left rear blind area(6 ~ 12M), the LED light on the left side of the rearview mirror is the warning light。
      If the left turn signal is turned on at this time, the left LED warning light will flash the warning and the sound hint(drop drop)。
D、Right turn blind warning：

     When the moving vehicle is monitored within the blind area(6 ~ 12M) in the right rear of the car, the LED light on the right side of the rearview mirror is the warning light.。
       If the right turn signal is turned on at this time, the right LED warning light will flash the warning and the sound hint(drop drop)。

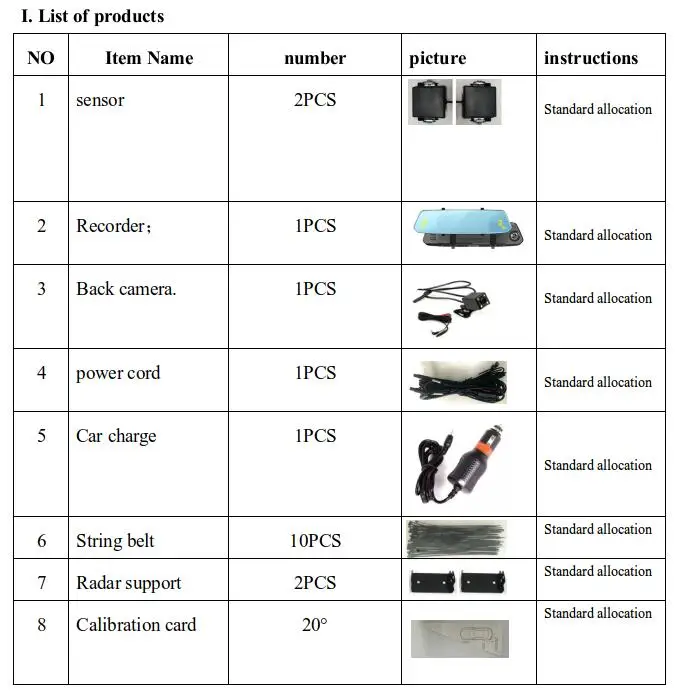

Full set

 Wish Happy cooperation belong YOU AND ME
